Transporto priemonė: MBO 1218; VIN numerio dalis: 685288

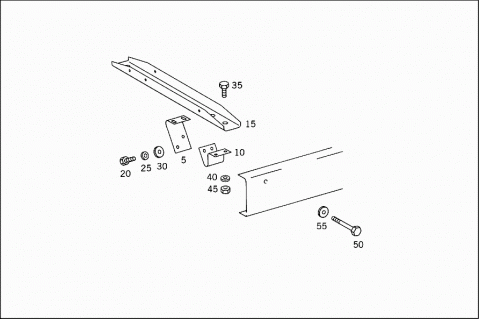

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | H XM6852420723 | PLATE |
| LEFT | ||
| 010 | H XM6852420823 | PLATE |
| RIGHT | ||
| 015 | H XM6852430003 | CROSS MEMBER |
| 020 | Q 23-09442-125 | PART NAME MISSING |
| SCREW | ||
| 9/16-12 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SUPPORT TO TRANSMISSION | ||
| 025 | Q 23-09319-014 | PART NAME MISSING |
| WASHER | ||
| 9/16 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SUPPORT TO TRANSMISSION | ||
| 030 | Q 23-11656-009 | PART NAME MISSING |
| WASHER | ||
| 9/16 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| SUPPORT TO TRANSMISSION | ||
| 035 | Q 23-09446-200 | PART NAME MISSING |
| SCREW | ||
| 3/4-10 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ENGINE SUPPORT TO CROSS MEMBER | ||
| 040 | Q 23-09114-004 | PART NAME MISSING |
| WASHER | ||
| 3/4 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ENGINE SUPPORT TO CROSS MEMBER | ||
| 045 | Q 23-09901-112 | PART NAME MISSING |
| NUT | ||
| 3/4-10 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| ENGINE SUPPORT TO CROSS MEMBER | ||
| 050 | N 000961016120 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 055 | Q 23-09114-000 | PART NAME MISSING |
| WASHER | ||
| 5/8 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| BRACKET TO SIDE MEMBER |
