Transporto priemonė: MBO 1219; VIN numerio dalis: 685289

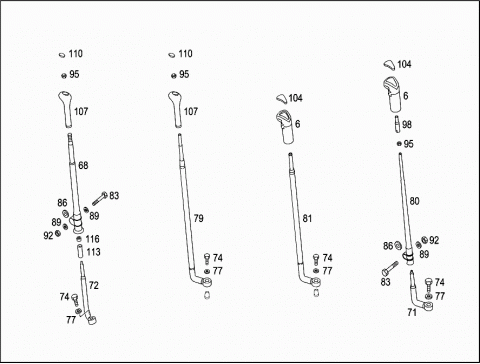

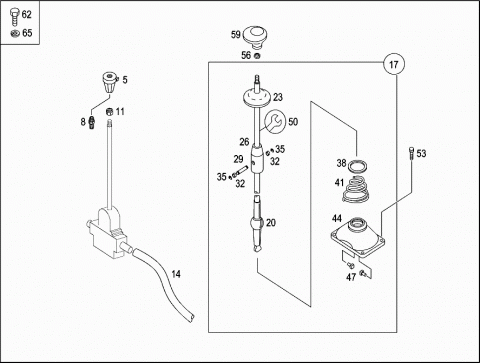

Grupė: 26 TRANSMISSION - 090 SHIFT LEVER AND SHIFTING PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | Q TF00-00398-000 | VALVE |
| SHIFT LEVER KNOB | ||
| FUL A6910 | ||
| 006 | Q TF00-00398-000 | VALVE |
| SHIFT LEVER KNOB | ||
| FUL A6910 | ||
| 006 | Q TF00-00398-000 | VALVE |
| SHIFT LEVER KNOB | ||
| FUL A6910 | ||
| 008 | Q TF00-01219-000 | UNION |
| AT SHIFT LEVER | ||
| PH 68P4 1 - 1/4" PTC X 1/16 MPT" | ||
| 008 | A 6859970189 | QUICK CONNECTOR |
| AT SHIFT LEVER | ||
| NORGREN M24250416 - 1/16" NPT - 1/4" | ||
| 011 | Q T23-09596-050 | NUT |
| AT SHIFT LEVER | ||
| 1/2 | ||
| 011 | Q T23-09596-050 | NUT |
| AT SHIFT LEVER | ||
| 1/2 | ||
| 014 | Q T48-00100-010 | PLASTIC PIPE |
| AT SHIFT LEVER | ||
| 1/4" | ||
| 017 | H LM6852602939 | SHIFT LEVER |
| COMPLETE | ||
| 020 | Q TF00-00430-000 | SHIFT LEVER |
| FUL 22383 | ||
| 023 | Q TF00-00425-000 | BOOT |
| FUL 202484 | ||
| 026 | Q TF00-00538-000 | GUIDE TUBE |
| FUL 4304892 | ||
| 029 | Q TF00-00426-000 | PIN |
| FUL 21245 | ||
| 032 | Q T07-19109-000 | BUSHING |
| 035 | Q TF00-00422-000 | LOCK |
| FUL 19124 | ||
| 038 | Q TF00-00434-000 | WASHER |
| FUL 23181 | ||
| 041 | Q TF00-00485-000 | PRESSURE SPRING |
| FUL 4300690 | ||
| 044 | Q TF00-00445-000 | TRANSMISSION CASE COVER |
| FUL 241075 | ||
| 047 | Q TF00-00510-000 | PIN |
| FUL 4302711 | ||
| 050 | Q TF18-28096-000 | REPAIR KIT |
| GEARSHIFT MECHANISM | ||
| FUL S1607 | ||
| 053 | Q T23-09436-125 | SCREW |
| CASE COVER | ||
| 3/8-16 | ||
| 056 | Q T23-09247-108 | NUT |
| SHIFT LEVER UPPER PART | ||
| 1/2 | ||
| 059 | H LM6852670308 | SPHERICAL PIECE |
| GEARSHIFT LEVER KNOB | ||
| 062 | N 000933010263 | SCREW |
| TRANSMISSION TO ENGINE | ||
| M10X45 | ||
| 065 | N 000127010205 | LOCK WASHER |
| TRANSMISSION TO ENGINE | ||
| 10 | ||
| 068 | A 6672602039 | SHIFT LEVER |
| 071 | A 6852600139 | SHIFT LEVER |
| 072 | A 6852600039 | SHIFT LEVER |
| 074 | N 000933010020 | SCREW |
| M10X20MM | ||
| 074 | N 000933010020 | SCREW |
| M10X20MM | ||
| 074 | N 000933010020 | SCREW |
| M10X20 | ||
| 077 | N 221822010000 | WASHER |
| 10 | ||
| 077 | N 221822010000 | WASHER |
| 10 | ||
| 077 | N 221822010000 | WASHER |
| 10 | ||
| 079 | A 6852600239 | SHIFT LEVER |
| 080 | A 6672602039 | SHIFT LEVER |
| 081 | A 6852600339 | SHIFT LEVER |
| 083 | Q T23-09434-200 | SCREW |
| 5/16-18 | ||
| 083 | Q T23-09434-200 | SCREW |
| 5/16-18 | ||
| 086 | A 6672670076 | WASHER |
| 086 | A 6672670076 | WASHER |
| 089 | Q T23-10900-031 | WASHER |
| 5/16 | ||
| 089 | Q T23-10900-031 | WASHER |
| 5/16 | ||
| 092 | Q T23-09900-105 | NUT |
| 5/16-18 | ||
| 092 | Q T23-09900-105 | NUT |
| 5/16-18 | ||
| 095 | N 000936010010 | NUT |
| M10X1 | ||
| 095 | N 000936010010 | NUT |
| M10X1 | ||
| 095 | N 000936010010 | NUT |
| M10X1 | ||
| 098 | A 6852670201 | SHIFT LEVER |
| ADAPTER | ||
| 104 | A 6852670022 | COVER |
| 104 | A 6852670022 | COVER |
| 107 | A 6202680042 | KNOB |
| 107 | A 6202680042 | KNOB |
| 110 | A 6202680457 | COVER |
| 110 | A 6202680457 | COVER |
| 113 | A 6672670096 | BOOT |
| 116 | A 6672670051 | SPACER RING |
