Transporto priemonė: MBO 1219; VIN numerio dalis: 685517

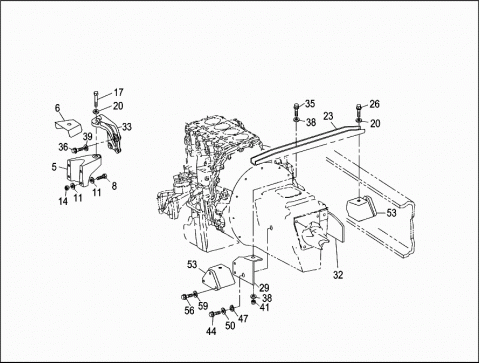

Grupė: 24 ENGINE SUSPENSION

#	Kodas	Pavadinimas
005	H LM6852400017	RUBBER MOUNTING
	Repalced by: A 6952400217
005	A 6952400217	RUBBER MOUNTING
		FRONT
	Repalced by: A 6952400417
005	A 6952400417	RUBBER MOUNTING
		FRONT
005	A 6952400417	RUBBER MOUNTING
		FRONT
	Repalced by: A 6852410501
005	A 9702400417	RUBBER MOUNTING
		FRONT
005	A 9702400417	RUBBER MOUNTING
		FRONT
	Repalced by: A 6852410501
005	A 6852410501	ENGINE SUPPORT
		FRONT
005	H LM6852400017	RUBBER MOUNTING
		FRONT
006	A 6852400045	PROTECTIVE PLATE
006	A 6852400045	PROTECTIVE PLATE
008	Q T23-09440-200	SCREW
		ENGINE FRONT MOUNTING TO ENGINE SUPPORT
		1/2-13
008	Q T23-09440-200	SCREW
		ENGINE FRONT MOUNTING TO ENGINE SUPPORT
		1/2-13
008	Q T23-09440-200	SCREW
		ENGINE FRONT MOUNTING TO ENGINE SUPPORT
		1/2-13
008	Q T23-09440-150	SCREW
		ENGINE FRONT MOUNTING TO ENGINE SUPPORT
		1/2-13
008	Q T23-09440-150	SCREW
		ENGINE FRONT MOUNTING TO ENGINE SUPPORT
		1/2-13
008	Q T23-09440-150	SCREW
		ENGINE FRONT MOUNTING TO ENGINE SUPPORT
		1/2-13
008	Q T23-09440-300	SCREW
		ENGINE FRONT MOUNTING TO ENGINE SUPPORT
		1/2-13
011	Q T23-09114-003	WASHER
		ENGINE FRONT MOUNTING TO ENGINE SUPPORT
		1/2
011	Q T23-09114-003	WASHER
		ENGINE FRONT MOUNTING TO ENGINE SUPPORT
		1/2
011	Q T23-09114-003	WASHER
		ENGINE FRONT MOUNTING TO ENGINE SUPPORT
		1/2
014	Q T23-09901-108	NUT
		ENGINE FRONT MOUNTING TO ENGINE SUPPORT
		1/2-13
014	Q T23-09901-108	NUT
		ENGINE FRONT MOUNTING TO ENGINE SUPPORT
		1/2-13
014	Q T23-09901-108	NUT
		ENGINE FRONT MOUNTING TO ENGINE SUPPORT
		1/2-13
017	N 910105016007	SCREW
		ENGINE FRONT MOUNTING TO ENGINE
		M16X1,5X45
017	N 910105016007	SCREW
		ENGINE FRONT MOUNTING TO ENGINE
		M16X1,5X45
017	N 910105016007	HEXAGON HEAD BOLT
		ENGINE FRONT MOUNTING TO ENGINE
		M16X1,5X45
020	A 3529902440	WASHER
		ENGINE FRONT MOUNTING TO ENGINE
		17
020	A 3529902440	WASHER
		ENGINE FRONT MOUNTING TO ENGINE
		17
023	H LM6852430003	CROSS MEMBER
023	A 6853120026	CROSS MEMBER
023	H LM6852430103	CROSS MEMBER
026	N 910105018009	SCREW
		ENGINE MOUNTING TO CROSS MEMBER
		M18X1,5X30
026	N 910105018009	SCREW
		ENGINE MOUNTING TO CROSS MEMBER
		M18X1,5X30
026	N 910105018009	SCREW
		M18X1,5X30
026	N 910105018024	HEXAGON HEAD BOLT
		M18X1.5X60
029	Q T07-18321-000	BRACKET
		LEFT
029	A 6852420001	ENGINE SUPPORT
		LEFT
032	Q T07-18322-000	BRACKET
		RIGHT
032	A 6852420101	ENGINE SUPPORT
		RIGHT
033	A 6852600162	BRACKET
033	A 6852610440	BRACKET
035	Q T23-09446-200	SCREW
		BRACKET TO TRANSMISSION
		3/4-10
036	N 210931016002	SCREW
		M16X45
036	N 304017016010	HEXAGON HEAD BOLT
		M16X50
038	Q T23-09114-004	WASHER
		BRACKET TO TRANSMISSION
		3/4
039	Q T23-09114-000	WASHER
		BRACKET TO TRANSMISSION
		5/8
041	Q T23-09901-112	NUT
		BRACKET TO TRANSMISSION
		3/4-10
044	N 000933012080	SCREW
		BRACKET TO TRANSMISSION
		M12X35
044	Q T01-29001-000	PIN
		BRACKET TO TRANSMISSION
		M12X1.5X1.75
047	Q T23-09319-013	WASHER
		BRACKET TO TRANSMISSION
		1/2
050	Q T23-09114-003	WASHER
		BRACKET TO TRANSMISSION
		1/2
053	A 9702400318	RUBBER MOUNTING
		REAR OUTSIDE
053	A 9702400318	RUBBER MOUNTING
		REAR OUTSIDE
053	A 9702400318	RUBBER MOUNTING
		REAR OUTSIDE
053	A 9582401018	RUBBER MOUNTING
		REAR OUTSIDE
056	N 000961016120	SCREW
		ENGINE REAR MOUNTING, AT FRAME
		M16X1,5X38
056	N 000961016120	SCREW
		ENGINE REAR MOUNTING, AT FRAME
		M16X1,5X38
056	N 000961016120	SCREW
		ENGINE REAR MOUNTING, AT FRAME
		M16X1,5X38
059	A 3529902440	WASHER
		ENGINE REAR MOUNTING, AT FRAME
		17
059	A 3529902440	WASHER
		ENGINE REAR MOUNTING, AT FRAME
		17
059	A 3529902440	WASHER
		ENGINE REAR MOUNTING, AT FRAME
		17
059	N 000127016201	LOCK WASHER
		16
059	N 000127016201	LOCK WASHER
		16
059	N 000127016201	LOCK WASHER
		16
	N 000934012023	NUT
		M12X1,5
