Transporto priemonė: MBO 1219; VIN numerio dalis: 685517

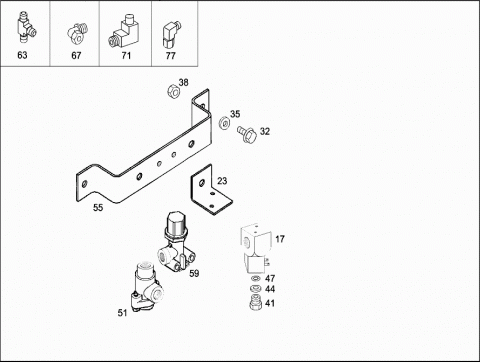

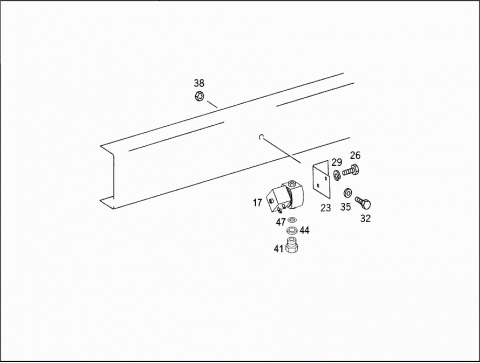

Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 017 | Q T06-42541-000 | VALVE |
| Repalced by: A 6859970112 | ||
| 017 | A 6859970112 | 3-2-WAY PNEUMATIC VALVE |
| 3/2-WAY SOLENOID VALVE | ||
| 017 | A 6859970112 | 3-2-WAY PNEUMATIC VALVE |
| 3/2-WAY SOLENOID VALVE | ||
| 017 | Q T06-42541-000 | VALVE |
| Repalced by: A 6859970112 | ||
| 017 | A 6859970112 | 3-2-WAY PNEUMATIC VALVE |
| 3/2-WAY SOLENOID VALVE | ||
| 017 | Q T06-42541-000 | VALVE |
| Repalced by: A 6859970112 | ||
| 017 | A 6859970112 | 3-2-WAY PNEUMATIC VALVE |
| 3/2-WAY SOLENOID VALVE | ||
| 017 | Q T06-42541-000 | VALVE |
| Repalced by: A 6859970112 | ||
| 017 | A 6859970112 | 3-2-WAY PNEUMATIC VALVE |
| 3/2-WAY SOLENOID VALVE | ||
| 023 | H LM6854290340 | BRACKET |
| SOLENOID VALVE | ||
| 023 | H LM6854290340 | BRACKET |
| 023 | H LM6854290340 | BRACKET |
| SOLENOID VALVE | ||
| 023 | H LM6854290340 | BRACKET |
| SOLENOID VALVE | ||
| 023 | H LM6854290340 | BRACKET |
| 3/2-WAY SOLENOID VALVE | ||
| 023 | H LM6854290340 | BRACKET |
| SOLENOID VALVE | ||
| 026 | N 000933005097 | SCREW |
| SOLENOID VALVE TO BRACKET | ||
| M 5X16 | ||
| 026 | N 000933005097 | SCREW |
| SOLENOID VALVE TO BRACKET | ||
| M 5X16 | ||
| 029 | Q T23-09318-008 | LOCK WASHER |
| SOLENOID VALVE TO BRACKET | ||
| 032 | Q T23-09436-125 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 3/8-16 | ||
| 032 | Q T23-09436-125 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 3/8-16 | ||
| 032 | Q T23-09436-125 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 3/8-16 | ||
| 032 | Q T23-09436-125 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 3/8-16 | ||
| 032 | Q T23-09436-125 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 3/8-16 | ||
| 032 | Q T23-09434-125 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 5/16 - 18 | ||
| 032 | Q T23-09432-225 | PART NAME MISSING |
| BRACKET TO SIDE MEMBER | ||
| 1/4 - 20 | ||
| 035 | Q T23-09114-002 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 3/8 | ||
| 035 | Q T23-09114-002 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 3/8 | ||
| 035 | Q T23-09114-002 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 3/8 | ||
| 035 | Q T23-09114-002 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 3/8 | ||
| 035 | Q T23-09114-002 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 3/8 | ||
| 035 | Q T23-00600-031 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 5/16 | ||
| 035 | Q T23-00600-025 | WASHER |
| BRACKET TO SIDE MEMBER | ||
| 1/4 | ||
| 038 | Q T23-09901-106 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 3/8-16 | ||
| 038 | Q T23-09901-106 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 3/8-16 | ||
| 038 | Q T23-09901-106 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 3/8-16 | ||
| 038 | Q T23-09901-106 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 3/8-16 | ||
| 038 | Q T23-09901-106 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 3/8 | ||
| 038 | Q T23-09901-105 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 5/16 | ||
| 038 | Q T23-09901-104 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 1/4 | ||
| 041 | H LM6859900571 | ELBOW FITTING |
| 041 | H LM6859900571 | ELBOW FITTING |
| 041 | H LM6859900571 | ELBOW FITTING |
| 041 | H LM6859900571 | ELBOW FITTING |
| 041 | H LM6859900571 | ELBOW FITTING |
| 044 | A 6859940003 | WASHER |
| 044 | A 6859940003 | WASHER |
| 044 | A 6859940003 | WASHER |
| 044 | A 6859940003 | WASHER |
| 044 | A 6859940003 | WASHER |
| 047 | A 6859970045 | SEAL RING |
| 047 | A 6859970045 | SEAL RING |
| 047 | A 6859970045 | SEAL RING |
| 047 | A 6859970045 | SEAL RING |
| 047 | A 6859970045 | SEAL RING |
| 051 | H LM6854310013 | VALVE |
| 055 | A 6854292240 | BRACKET |
| 059 | A 6854300181 | PRESSURE REGULATOR |
| 063 | N 210503000020 | T-FITTING |
| 067 | N 210500000032 | ELBOW FITTING |
| 067 | N 210500000027 | ELBOW FITTING |
| 3/2-WAY SOLENOID VALVE | ||
| 1/8 MPT X 1/4T | ||
| 071 | N 210500000030 | ELBOW FITTING |
| 071 | N 210500000030 | ELBOW FITTING |
| 3/2-WAY SOLENOID VALVE | ||
| 077 | N 210500000031 | ELBOW FITTING |
