Transporto priemonė: MBO 1418; VIN numerio dalis: 685292

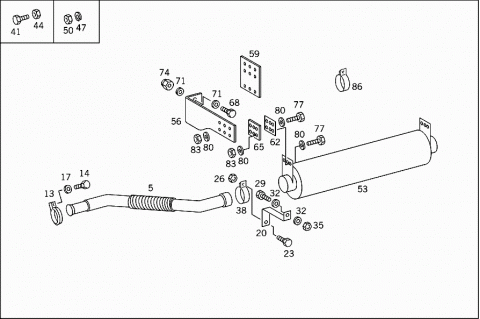

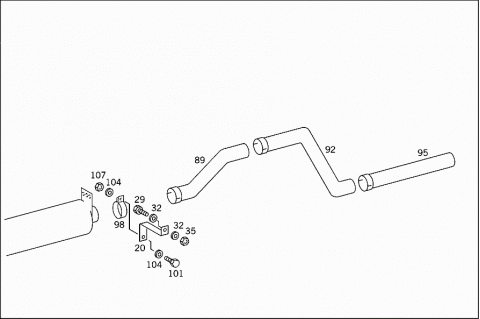

Grupė: 49 EXHAUST SYSTEM

#	Kodas	Pavadinimas
005	H XM6854904819	EXHAUST PIPE
		FRONT
	H XM6854928401	FRONT EXHAUST PIPE
	H XM6854928501	FRONT EXHAUST PIPE
013	A 6209970490	CLAMP
014	Q 23-09434-150	PART NAME MISSING
		SCREW
		5/16-18
	Y YYYYYYYYYYYY	PART NAME MISSING
		CLAMP TO EXHAUST PIPE
017	Q 23-09114-006	PART NAME MISSING
		WASHER
		5/16
	Y YYYYYYYYYYYY	PART NAME MISSING
		CLAMP TO EXHAUST PIPE
020	H XM6854920141	BRACKET
		EXHAUST PIPE
023	Q 23-09436-150	PART NAME MISSING
		SCREW
		3/8-16
026	Q 23-09901-106	PART NAME MISSING
		NUT
		3/8-16
029	Q 23-09440-150	PART NAME MISSING
		SCREW
		1/2-13
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO FRAME
032	Q 23-09114-003	PART NAME MISSING
		WASHER
		1/2
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO FRAME
035	Q 23-09901-108	PART NAME MISSING
		NUT
		1/2-13
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO FRAME
038	N 071555104501	CLAMP
		EXHAUST PIPE TO BRACKET
		55-104.5
038	N 071555104501	CLAMP
		EXHAUST PIPE TO EXHAUST PIPE
		55-104.5
041	Q 23-09436-150	PART NAME MISSING
		EXHAUST PIPE TO BRACKET
		3/8-16
041	Q 23-09436-150	PART NAME MISSING
		EXHAUST PIPE TO EXHAUST PIPE
		3/8-16
044	Q 23-09901-106	PART NAME MISSING
		EXHAUST PIPE TO BRACKET
044	Q 23-09901-106	PART NAME MISSING
		EXHAUST PIPE TO EXHAUST PIPE
047	Q 23-09320-010	PART NAME MISSING
		LOCK WASHER
		5/16
	Y YYYYYYYYYYYY	PART NAME MISSING
		CLAMP TO EXHAUST PIPE
050	Q 23-09247-105	PART NAME MISSING
		NUT
		5/16-18
	Y YYYYYYYYYYYY	PART NAME MISSING
		CLAMP TO EXHAUST PIPE
053	H XM6854900801	EXHAUST MUFFLER
		FRONT
056	H XM6854922917	ANGLE
		EXHAUST MUFFLER TO SIDE MEMBER
059	H XM6854910083	INSULATION
		EXHAUST MUFFLER TO BRACKET
062	A 6804910018	PLATE
		EXHAUST MUFFLER TO BRACKET
065	A 6804910020	MOUNTING STRAP
		EXHAUST MUFFLER TO BRACKET
065	H XM6854910020	MOUNTING STRAP
		EXHAUST MUFFLER TO BRACKET
068	Q 23-09436-125	PART NAME MISSING
		SCREW
		3/8-16
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO FRAME
071	Q 23-09114-002	PART NAME MISSING
		WASHER
		3/8
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO FRAME
074	Q 23-09901-106	PART NAME MISSING
		NUT
		3/8-16
	Y YYYYYYYYYYYY	PART NAME MISSING
		BRACKET TO FRAME
077	Q 23-11609-125	PART NAME MISSING
		SCREW
		10-24
	Y YYYYYYYYYYYY	PART NAME MISSING
		EXHAUST MUFFLER TO BRACKET
080	Q 23-00600-010	PART NAME MISSING
		WASHER
		10
	Y YYYYYYYYYYYY	PART NAME MISSING
		EXHAUST MUFFLER TO BRACKET
083	Q 23-09336-005	PART NAME MISSING
		NUT
		10
	Y YYYYYYYYYYYY	PART NAME MISSING
		EXHAUST MUFFLER TO BRACKET
086	Q 04-12096-001	PART NAME MISSING
		CLAMP
086	H XM6854920940	CLAMP
089	H XM6854920704	REAR EXHAUST PIPE
092	H XM6854920604	REAR EXHAUST PIPE
095	H XM6854921014	END PIECE
		REAR EXHAUST PIPE
098	N 071555100500	CLAMP
		EXHAUST PIPE TO BRACKET
		55-100.5 MM
101	Q 23-09436-150	PART NAME MISSING
		SCREW
		3/8-16
	Y YYYYYYYYYYYY	PART NAME MISSING
		CLAMP TO BRACKET
104	Q 23-09114-002	PART NAME MISSING
		WASHER
	Y YYYYYYYYYYYY	PART NAME MISSING
		CLAMP TO BRACKET
107	Q 23-09901-106	PART NAME MISSING
		NUT
	Y YYYYYYYYYYYY	PART NAME MISSING
		CLAMP TO BRACKET
