Transporto priemonė: MB 500; VIN numerio dalis: 684040

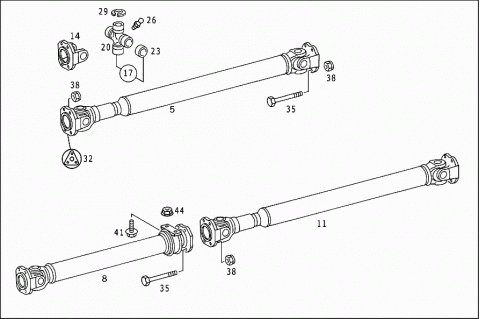

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6844101002 | PROPELLER SHAFT |
| FROM TRANSMISSION TO REAR AXLE | ||
| 008 | A 6844104102 | PROPELLER SHAFT |
| FRONT | ||
| 011 | A 6844104002 | PROPELLER SHAFT |
| REAR | ||
| 014 | A 6844110011 | DRIVE FLANGE |
| FRONT AND REAR | ||
| 017 | A 6844100031 | UNIVERSAL JOINT CROSS |
| COMPLETE | ||
| 020 | A 6844114031 | UNIVERSAL JOINT CROSS |
| 023 | A 6844104042 | BEARING BUSHING |
| A 6849970088 | GREASE NIPPLE | |
| 026 | A 6849974088 | GREASE NIPPLE |
| 029 | A 6844110073 | LOCK |
| 032 | A 0004101528 | UNIVERSAL JOINT |
| REPAIR KIT | ||
| 035 | A 3609903001 | SCREW |
| Repalced by: A 0079901101 | ||
| 035 | A 0079901101 | SCREW |
| PROPELLER SHAFT TO REAR AXLE | ||
| 035 | A 0079901101 | SCREW |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 038 | N 308673012003 | NUT |
| PROPELLER SHAFT TO REAR AXLE | ||
| 038 | N 308673012003 | NUT |
| PROPELLER SHAFT TO TRANSMISSION | ||
| 038 | N 308673012003 | NUT |
| PROPELLER SHAFT TO PROPELLER SHAFT | ||
| 041 | A 0029902704 | SCREW |
| PROPELLER SHAFT | ||
| M 12X1,5X30 | ||
| 044 | A 0009906750 | NUT |
| PROPELLER SHAFT | ||
