Transporto priemonė: MB 500; VIN numerio dalis: 684040

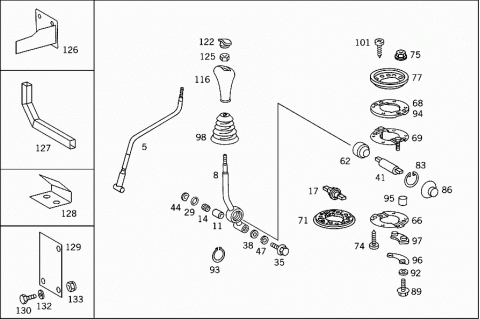

Grupė: 26 TRANSMISSION - 090 SHIFT LEVER AND SHIFTING PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| BG SA 088261/02 | ||
| 005 | A 6842604539 | SHIFT LEVER |
| 005 | A 6842604439 | SHIFT LEVER |
| 005 | A 6842605139 | SHIFT LEVER |
| 005 | A 6842605839 | SHIFT LEVER |
| 005 | A 6842605839 | SHIFT LEVER |
| 005 | A 6842605739 | SHIFT LEVER |
| 005 | A 6842605739 | SHIFT LEVER |
| 008 | A 6842604639 | SHIFT LEVER |
| 011 | A 6732680350 | BUSHING |
| 014 | A 0109818010 | NEEDLE BEARING |
| 014 | A 0119812910 | NEEDLE BEARING |
| 017 | A 6552680074 | PIN |
| SHIFT LEVER BEARING | ||
| 029 | A 0099972648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 029 | A 0099972648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 035 | A 0019908104 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| M 10X20 | ||
| 038 | A 3859900740 | WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 038 | A 3859900740 | WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 041 | A 3852681474 | PIN |
| SHIFT LEVER BEARING | ||
| 041 | A 3852681474 | PIN |
| SHIFT LEVER BEARING | ||
| 044 | N 900055016001 | SPRING WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 044 | N 900055016001 | SPRING WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 047 | N 000127010202 | LOCK WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 047 | N 000127010202 | LOCK WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 053 | N 001444010222 | PIN |
| SHIFT LEVER TO BRACKET | ||
| 056 | N 900055010001 | SPRING WASHER |
| SHIFT LEVER TO BRACKET | ||
| 059 | N 000094003207 | COTTER PIN |
| SHIFT LEVER TO BRACKET | ||
| 062 | A 0019813931 | JOINT BEARING |
| 062 | A 0009814531 | JOINT BEARING |
| 066 | A 3892680440 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 066 | A 3892680440 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 068 | A 6552682940 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 068 | A 6552682940 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 069 | A 3892605262 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 069 | A 3892605262 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 071 | A 6552682740 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 071 | A 6552682740 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 074 | N 007981004226 | SHEET METAL SCREW |
| COVERING TO BODY | ||
| 074 | N 007981004226 | SHEET METAL SCREW |
| COVERING TO BODY | ||
| 075 | A 0009906350 | NUT |
| 077 | A 3852601962 | BRACKET |
| SHIFT LEVER BEARING TO CAB FLOOR | ||
| 077 | A 3852601962 | BRACKET |
| SHIFT LEVER BEARING TO CAB FLOOR | ||
| 083 | N 000472042001 | LOCK RING |
| GEARSHIFT LEVER LOWER PART | ||
| 083 | N 000472042001 | LOCK RING |
| GEARSHIFT LEVER LOWER PART | ||
| 086 | A 6202680196 | BOOT |
| SHIFT LEVER BEARING | ||
| 086 | A 6202680196 | BOOT |
| SHIFT LEVER BEARING | ||
| 089 | A 0019904204 | SCREW |
| SHIFT LEVER BEARING | ||
| M 8X35 | ||
| 092 | N 000125008417 | WASHER |
| SHIFT LEVER BEARING | ||
| 092 | N 000125008417 | WASHER |
| SHIFT LEVER BEARING | ||
| 093 | N 000471018001 | LOCK RING |
| SHIFT LEVER BEARING | ||
| 093 | N 000471018001 | LOCK RING |
| SHIFT LEVER BEARING | ||
| 094 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER BEARING | ||
| 094 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER BEARING | ||
| 095 | A 3892680525 | BUSHING |
| SHIFT LEVER BEARING | ||
| 095 | A 3892680525 | BUSHING |
| SHIFT LEVER BEARING | ||
| 096 | A 3852681640 | BRACKET |
| SHIFT LEVER BEARING | ||
| 096 | A 3852681640 | BRACKET |
| SHIFT LEVER BEARING | ||
| 097 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER BEARING | ||
| 097 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER BEARING | ||
| 098 | A 3892680097 | BOOT |
| SHIFT LEVER | ||
| 098 | A 3892680097 | BOOT |
| SHIFT LEVER | ||
| 101 | N 007981003225 | SHEET METAL SCREW |
| SHIFT LEVER | ||
| 101 | N 007981003225 | SHEET METAL SCREW |
| SHIFT LEVER | ||
| 116 | A 6842684042 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 116 | A 6842684042 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 122 | A 6842684057 | COVER |
| SHIFT LEVER HANDLE | ||
| 122 | A 6842684057 | COVER |
| SHIFT LEVER HANDLE | ||
| 125 | N 308675010000 | NUT |
| SHIFT LEVER HANDLE TO SHIFT LEVER | ||
| 126 | A 6842604862 | BRACKET |
| SHIFT LEVER | ||
| 126 | A 6842604962 | BRACKET |
| SHIFT LEVER | ||
| 127 | A 6842604260 | SUPPORT |
| SHIFT LEVER | ||
| 128 | A 6842685540 | BRACKET |
| SHIFT LEVER | ||
| 128 | A 6842685640 | BRACKET |
| SHIFT LEVER | ||
| 129 | A 6842685440 | BRACKET |
| SHIFT LEVER | ||
| 130 | N 304017010040 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 10X25 | ||
| 130 | N 304017008016 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| M 8X16 | ||
| 130 | N 304017008041 | SCREW |
| GEARSHIFT MECHANISM TO CONSOLE | ||
| M 8X40 | ||
| 132 | N 000125008417 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 133 | N 910113010001 | NUT |
| CONSOLE TO SIDE MEMBER | ||
| 135 | A 6842604833 | SHIFTING ROD |
| 135 | A 6842604833 | SHIFTING ROD |
| 135 | A 6842604733 | SHIFTING ROD |
| 135 | A 6842604733 | SHIFTING ROD |
| 136 | A 6842604433 | SHIFTING ROD |
| 136 | A 6842604433 | SHIFTING ROD |
| 137 | A 3852680188 | CLAMPING PIECE |
| 137 | A 3852680188 | CLAMPING PIECE |
| 140 | N 000933010269 | SCREW |
| M 10X35 | ||
| 140 | N 000933010269 | SCREW |
| M 10X35 | ||
| 146 | A 6842604175 | CONNECTOR |
| 146 | A 6842604175 | CONNECTOR |
| 149 | A 6732680089 | JOINT |
| SHIFTING ROD | ||
| 152 | N 304032012003 | NUT |
| JOINT TO CONNECTOR | ||
| 159 | A 6842604462 | BRACKET |
| SHIFTING ROD | ||
| 159 | A 6842604462 | BRACKET |
| SHIFTING ROD | ||
| 159 | A 6842604562 | BRACKET |
| SHIFTING ROD | ||
| 159 | A 6842604562 | BRACKET |
| SHIFTING ROD | ||
| 161 | A 6732600762 | BRACKET |
| SHIFTING ROD | ||
| 161 | A 6732600762 | BRACKET |
| SHIFTING ROD | ||
| 164 | A 6752600362 | REPAIR KIT |
| BRACKET | ||
| 164 | A 6752600362 | REPAIR KIT |
| BRACKET | ||
| 167 | A 0099972648 | SEAL RING |
| BRACKET TO FRAME | ||
| 170 | A 6842680450 | BUSHING |
| BRACKET TO FRAME | ||
| 173 | N 000933010289 | SCREW |
| BRACKET TO FRAME | ||
| M 10X100 | ||
| 174 | N 304017012020 | SCREW |
| BRACKET TO FRAME | ||
| M 12X30 | ||
| 174 | N 304017012020 | SCREW |
| BRACKET TO FRAME | ||
| M 12X30 | ||
| 176 | A 3859900740 | WASHER |
| BRACKET TO FRAME | ||
| 179 | N 900055016001 | LOCK RING |
| BRACKET TO FRAME | ||
| 182 | N 913004010004 | NUT |
| BRACKET TO FRAME | ||
| 183 | N 304017012020 | SCREW |
| BRACKET TO FRAME | ||
| M 12X30 | ||
| 184 | N 910113012005 | NUT |
| BRACKET TO FRAME | ||
| 185 | A 6842680053 | SPACER TUBE |
| JOINT TO TRANSMISSION | ||
| 185 | A 6842684053 | SPACER TUBE |
| JOINT TO TRANSMISSION | ||
| 188 | A 0019909004 | SCREW |
| JOINT TO TRANSMISSION | ||
| M 10X60 | ||
| 194 | A 0009906550 | NUT |
| JOINT TO TRANSMISSION | ||
| 200 | A 6842684029 | SHIFTING ROD |
| 200 | A 6842684029 | SHIFTING ROD |
| 203 | A 6842680289 | JOINT |
| PULL ROD | ||
| 206 | N 304032008006 | NUT |
| JOINT TO PULL ROD | ||
| 221 | A 6842680440 | BRACKET |
| BACK-UP LIGHT SWITCH | ||
| 222 | A 6842684940 | BRACKET |
| SELECTOR LEVER | ||
| 222 | A 6842684940 | BRACKET |
| SELECTOR LEVER | ||
| 224 | A 6842684440 | BRACKET |
| SELECTOR LEVER | ||
| 224 | A 6842684440 | BRACKET |
| SELECTOR LEVER | ||
| 230 | A 6842680153 | SPACER TUBE |
| CONNECTOR TO SHIFTING ROD | ||
| 230 | A 6842680153 | SPACER TUBE |
| CONNECTOR TO SHIFTING ROD | ||
| 233 | A 0019904404 | SCREW |
| CONNECTOR TO SHIFTING ROD | ||
| M 8X45 | ||
| 236 | N 000125008417 | WASHER |
| CONNECTOR TO SHIFTING ROD | ||
| 239 | A 0009906350 | NUT |
| CONNECTOR TO SHIFTING ROD | ||
| 242 | N 913004006002 | NUT |
| SPRING TO BRACKET | ||
| 245 | N 080705018001 | NUT |
| BACK-UP LIGHT SWITCH |
