Transporto priemonė: MB 8000/42; VIN numerio dalis: 684492

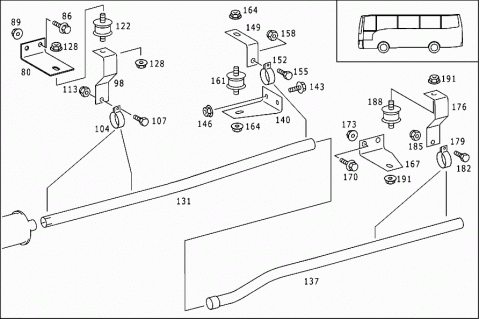

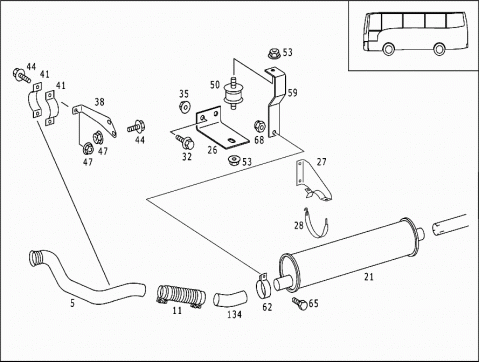

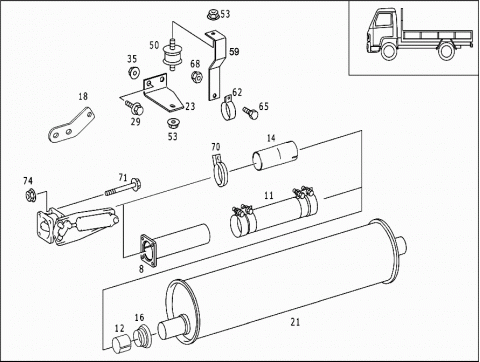

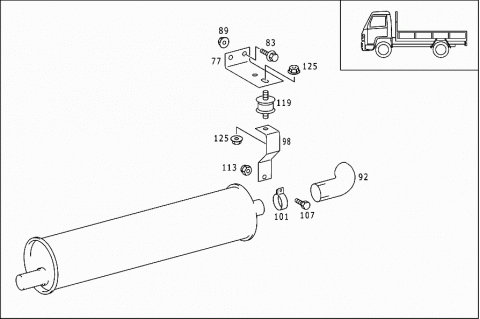

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6844901719 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6844901619 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 6844905119 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 6844901319 | EXHAUST PIPE |
| CENTRAL | ||
| 011 | A 9704900265 | FLEXIBLE METAL TUBE |
| CONNECTION OF EXHAUST PIPES WITH EACH OTHER | ||
| 011 | A 9704900265 | FLEXIBLE METAL TUBE |
| CONNECTION OF EXHAUST PIPES WITH EACH OTHER | ||
| 011 | A 9704900265 | FLEXIBLE METAL TUBE |
| CONNECTION OF EXHAUST PIPES WITH EACH OTHER | ||
| 012 | A 6844920253 | SPACER TUBE |
| EXHAUST HOSE ON EXHAUST MUFFLER | ||
| 014 | A 6844922701 | FRONT EXHAUST PIPE |
| EXHAUST PIPE BRACKET,CENTRAL | ||
| 73 X 185 MM | ||
| 016 | A 6204923109 | CONNECTOR |
| EXHAUST HOSE ON EXHAUST MUFFLER | ||
| 018 | A 6844923941 | BRACKET |
| BRACKET TO FLYWHEEL HOUSING | ||
| 021 | A 6844910001 | MUFFLER |
| Repalced by: A 6674900001 | ||
| 021 | A 6674900001 | EXHAUST MUFFLER |
| 023 | A 6844926441 | BRACKET |
| CENTRAL EXHAUST PIPE BRACKET TO FRAME | ||
| 026 | A 6844922041 | BRACKET |
| CENTRAL EXHAUST PIPE BRACKET TO FRAME | ||
| 026 | A 6844922041 | BRACKET |
| CENTRAL EXHAUST PIPE BRACKET TO FRAME | ||
| 027 | A 6844900034 | SUPPORT |
| CENTRAL EXHAUST PIPE BRACKET TO FRAME | ||
| 028 | A 6844900042 | STRAP |
| AT EXHAUST MUFFLER BRACKET | ||
| 029 | N 910105010007 | SCREW |
| CENTRAL EXHAUST PIPE BRACKET TO FRAME | ||
| M 10X35 | ||
| 032 | N 910105010009 | SCREW |
| CENTRAL EXHAUST PIPE BRACKET TO FRAME | ||
| M 10X35 | ||
| 032 | N 910105010009 | SCREW |
| CENTRAL EXHAUST PIPE BRACKET TO FRAME | ||
| M 10X35 | ||
| 035 | N 913023010002 | NUT |
| CENTRAL EXHAUST PIPE BRACKET TO FRAME | ||
| 035 | N 913023010002 | NUT |
| CENTRAL EXHAUST PIPE BRACKET TO FRAME | ||
| 038 | A 6844923441 | BRACKET |
| CENTRAL EXHAUST PIPE TO SUPPORT | ||
| 038 | A 6844923441 | BRACKET |
| CENTRAL EXHAUST PIPE TO SUPPORT | ||
| 041 | A 6844924040 | CLAMP |
| CENTRAL EXHAUST PIPE TO SUPPORT | ||
| 041 | A 6844924040 | CLAMP |
| CENTRAL EXHAUST PIPE TO SUPPORT | ||
| 044 | N 910105010009 | SCREW |
| CLAMP TO BRACKET | ||
| 044 | N 910105010009 | SCREW |
| CLAMP TO BRACKET | ||
| 047 | N 913023010002 | NUT |
| CLAMP TO BRACKET | ||
| 047 | N 913023010002 | NUT |
| CLAMP TO BRACKET | ||
| 050 | A 3714927087 | BUFFER |
| CENTRAL EXHAUST PIPE TO BRACKET | ||
| 050 | A 3714927087 | BUFFER |
| CENTRAL EXHAUST PIPE TO BRACKET | ||
| 053 | N 913023010002 | NUT |
| CENTRAL EXHAUST PIPE TO BRACKET | ||
| 053 | N 913023010002 | NUT |
| CENTRAL EXHAUST PIPE TO BRACKET | ||
| 059 | A 6844922241 | BRACKET |
| EXHAUST PIPE TO MUFFLER | ||
| 059 | A 6844922241 | BRACKET |
| EXHAUST PIPE TO MUFFLER | ||
| 062 | N 071555075502 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 062 | N 071555075502 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 065 | N 304017010047 | SCREW |
| CLAMP TO BRACKET | ||
| M 10X35 | ||
| 065 | N 304017010047 | SCREW |
| CLAMP TO BRACKET | ||
| M 10X35 | ||
| 068 | N 910113010001 | NUT |
| CLAMP TO BRACKET | ||
| 068 | N 910113010001 | NUT |
| CLAMP TO BRACKET | ||
| 070 | A 6209970490 | CLAMP |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| 070 | A 6209970490 | CLAMP |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| 070 | A 6209970490 | CLAMP |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| 071 | N 910105008020 | SCREW |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| M8X55 | ||
| 071 | N 910105008020 | SCREW |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| M8X55 | ||
| 071 | N 910105008020 | SCREW |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| M8X55 | ||
| 074 | N 913023008002 | NUT |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| 074 | N 913023008002 | NUT |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| 074 | N 913023008002 | NUT |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| 077 | A 6844927041 | BRACKET |
| REAR EXHAUST PIPE | ||
| 080 | A 6844922041 | BRACKET |
| REAR EXHAUST PIPE | ||
| 083 | N 910105010009 | SCREW |
| REAR EXHAUST PIPE BRACKET TO FRAME | ||
| M 10X25 | ||
| 086 | N 910105010009 | SCREW |
| REAR EXHAUST PIPE BRACKET TO FRAME | ||
| M 10X25 | ||
| 089 | N 913023010002 | NUT |
| REAR EXHAUST PIPE BRACKET TO FRAME | ||
| 089 | N 913023010002 | NUT |
| REAR EXHAUST PIPE BRACKET TO FRAME | ||
| 089 | N 913023010002 | NUT |
| REAR EXHAUST PIPE BRACKET TO FRAME | ||
| 092 | A 6844922301 | REAR EXHAUST PIPE |
| 098 | A 6844922241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 098 | A 6844922241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 107 | N 304017010047 | SCREW |
| CLAMP TO BRACKET | ||
| M 10X35 | ||
| 101 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 104 | N 071555075502 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 107 | N 304017010047 | SCREW |
| CLAMP TO BRACKET | ||
| M 10X35 | ||
| 113 | N 910113010001 | NUT |
| CLAMP TO BRACKET | ||
| 113 | N 910113010001 | NUT |
| CLAMP TO BRACKET | ||
| 119 | A 3714927087 | BUFFER |
| REAR EXHAUST PIPE TO BRACKET | ||
| 122 | A 3714927087 | BUFFER |
| REAR EXHAUST PIPE TO BRACKET | ||
| 125 | N 913023010002 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 128 | N 913023010002 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
| 131 | A 6844922101 | EXHAUST PIPE |
| REAR,FRONT | ||
| 134 | A 6844922801 | EXHAUST PIPE |
| REAR CENTRAL | ||
| 137 | A 6844922201 | EXHAUST PIPE |
| REAR | ||
| 140 | A 6844923341 | BRACKET |
| REAR EXHAUST PIPE TO CROSS MEMBER | ||
| 143 | N 910105010009 | SCREW |
| BRACKET TO REAR CROSS MEMBER | ||
| M 10X25 | ||
| 146 | N 913023010002 | NUT |
| BRACKET TO REAR CROSS MEMBER | ||
| 149 | A 6844923541 | BRACKET |
| REAR EXHAUST PIPE | ||
| 152 | N 071555078502 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 155 | N 304017010047 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| M 10X35 | ||
| 158 | N 910113010001 | NUT |
| EXHAUST PIPE TO BRACKET | ||
| 161 | A 3714927087 | BUFFER |
| BRACKET TO BRACKET | ||
| 164 | N 913023010002 | NUT |
| BRACKET TO BRACKET | ||
| 167 | A 6844926441 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 170 | N 910105010009 | SCREW |
| REAR BRACKET TO FRAME | ||
| M 10X25 | ||
| 173 | N 913023010002 | NUT |
| REAR BRACKET TO FRAME | ||
| 176 | A 6844923641 | BRACKET |
| REAR EXHAUST PIPE | ||
| 179 | N 071555075502 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 182 | N 304017010047 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| M 10X35 | ||
| 185 | N 910113010002 | HEXAGON NUT |
| EXHAUST PIPE TO BRACKET | ||
| 188 | A 3714927087 | BUFFER |
| BRACKET TO BRACKET | ||
| 191 | N 913023010002 | NUT |
| BRACKET TO BRACKET | ||
