Transporto priemonė: MB 8000/42; VIN numerio dalis: 684492

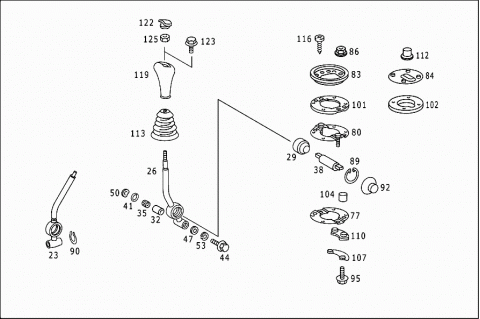

Grupė: 26 TRANSMISSION - 090 SHIFT LEVER AND SHIFTING PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 023 | A 6842600739 | SHIFT LEVER |
| 026 | A 6842605739 | SHIFT LEVER |
| 026 | A 6842605739 | SHIFT LEVER |
| 026 | A 6842606139 | SHIFT LEVER |
| 026 | A 6842605839 | SHIFT LEVER |
| 026 | A 6842606439 | SHIFT LEVER |
| 026 | A 6842600939 | SHIFT LEVER |
| 026 | A 6842600939 | SHIFT LEVER |
| 026 | A 6842601039 | SHIFT LEVER |
| 029 | A 0019813931 | JOINT BEARING |
| 029 | A 0019813931 | JOINT BEARING |
| 029 | A 0019813931 | JOINT BEARING |
| 029 | A 0009814531 | JOINT BEARING |
| 029 | A 0009814531 | JOINT BEARING |
| 029 | A 0009814531 | JOINT BEARING |
| 032 | A 6732680350 | BUSHING |
| 032 | A 6732680350 | BUSHING |
| 032 | A 6732680350 | BUSHING |
| 035 | A 0109818010 | NEEDLE BEARING |
| 035 | A 0109818010 | NEEDLE BEARING |
| 035 | A 0109818010 | NEEDLE BEARING |
| 035 | A 0119812910 | NEEDLE BEARING |
| 035 | A 0119812910 | NEEDLE BEARING |
| 035 | A 0119812910 | NEEDLE BEARING |
| 038 | A 3852681474 | PIN |
| SHIFT LEVER BEARING | ||
| 038 | A 3852681474 | PIN |
| SHIFT LEVER BEARING | ||
| 038 | A 3852681474 | PIN |
| SHIFT LEVER BEARING | ||
| 041 | A 0099972648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 041 | A 0099972648 | SEAL RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 044 | N 910105010006 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| M 10X20 | ||
| 044 | N 910105010006 | SCREW |
| SHIFTING TUBE TO SHIFT LEVER | ||
| M 10X20 | ||
| 047 | A 3859900740 | WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 047 | A 3859900740 | WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 050 | N 900055016001 | LOCK RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 050 | N 900055016001 | LOCK RING |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 053 | N 000127010202 | LOCK WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 053 | N 000127010202 | LOCK WASHER |
| SHIFTING TUBE TO SHIFT LEVER | ||
| 056 | N 001444010222 | PIN |
| SHIFT LEVER TO BRACKET | ||
| 059 | N 900055010001 | LOCK RING |
| SHIFT LEVER TO BRACKET | ||
| 062 | N 000094003207 | COTTER PIN |
| SHIFT LEVER TO BRACKET | ||
| 074 | N 913023010002 | NUT |
| YOKE TO TRANSMISSION | ||
| 074 | N 913023010002 | NUT |
| YOKE TO TRANSMISSION | ||
| 077 | A 3892680440 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 077 | A 3892680440 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 077 | A 3892680440 | BRACKET |
| SHIFT LEVER UPPER PART | ||
| 080 | A 3892605262 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 080 | A 3892605262 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 080 | A 3892605262 | BRACKET |
| SHIFT LEVER LOWER PART | ||
| 083 | A 3852601962 | BRACKET |
| SHIFT LEVER BEARING TO CAB FLOOR | ||
| 083 | A 3852601962 | BRACKET |
| SHIFT LEVER BEARING TO CAB FLOOR | ||
| 084 | A 6732600065 | COVER |
| SHIFT LEVER BEARING | ||
| 086 | A 0009906350 | NUT |
| GEARSHIFT LEVER LOWER PART | ||
| 086 | A 0009906350 | NUT |
| GEARSHIFT LEVER LOWER PART | ||
| 086 | A 0009906350 | NUT |
| GEARSHIFT LEVER LOWER PART | ||
| 086 | N 913023008003 | NUT |
| 086 | N 913023008003 | NUT |
| 089 | N 000472042001 | LOCK RING |
| GEARSHIFT LEVER LOWER PART | ||
| 089 | N 000472042001 | LOCK RING |
| GEARSHIFT LEVER LOWER PART | ||
| 089 | N 000472042001 | LOCK RING |
| GEARSHIFT LEVER LOWER PART | ||
| 090 | N 000471018001 | LOCK RING |
| 092 | A 6202680196 | BOOT |
| SHIFT LEVER BEARING | ||
| 092 | A 6202680196 | BOOT |
| SHIFT LEVER BEARING | ||
| 092 | A 6202680196 | BOOT |
| SHIFT LEVER BEARING | ||
| 095 | A 0019904204 | SCREW |
| SHIFT LEVER BEARING | ||
| M 8X35 | ||
| 095 | N 910105008010 | SCREW |
| SHIFT LEVER BEARING | ||
| M 8X40 | ||
| 095 | N 910105008010 | SCREW |
| SHIFT LEVER BEARING | ||
| M 8X40 | ||
| 101 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER BEARING | ||
| 101 | A 3852680392 | RUBBER PAD |
| SHIFT LEVER BEARING | ||
| 102 | A 6202680092 | RUBBER PAD |
| SHIFT LEVER BEARING | ||
| A 6846115914 | BRACKET | |
| SHIFT LEVER BEARING | ||
| A 6846102136 | BRACKET | |
| SHIFT LEVER BEARING | ||
| 104 | A 3892680525 | BUSHING |
| SHIFT LEVER BEARING | ||
| 104 | A 3892680525 | BUSHING |
| SHIFT LEVER BEARING | ||
| 104 | A 3892680525 | BUSHING |
| SHIFT LEVER BEARING | ||
| 107 | A 3852681640 | BRACKET |
| SHIFT LEVER BEARING | ||
| 107 | A 3852681640 | BRACKET |
| SHIFT LEVER BEARING | ||
| 107 | A 3852681640 | BRACKET |
| SHIFT LEVER BEARING | ||
| 107 | A 6732681940 | BRACKET |
| SHIFT LEVER BEARING | ||
| 110 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER BEARING | ||
| 110 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER BEARING | ||
| 110 | A 3852680492 | RUBBER PAD |
| SHIFT LEVER BEARING | ||
| 112 | N 913018013201 | PROTECTION CAP |
| Repalced by: A 0008310929 | ||
| 112 | A 0008310929 | CAP |
| SCREW TO COVER | ||
| 113 | A 3892680097 | BOOT |
| SHIFT LEVER | ||
| N 000471018001 | LOCK RING | |
| BELLOWS TO SHIFTING ROD | ||
| 116 | N 007981003225 | SHEET METAL SCREW |
| BELLOWS BRACKET TO CAB | ||
| 116 | N 007981003225 | SHEET METAL SCREW |
| SHIFT LEVER | ||
| 116 | N 007981003225 | SHEET METAL SCREW |
| SHIFT LEVER | ||
| 119 | A 6842684042 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 119 | A 6842684042 | KNOB |
| (SHIFT LEVER HANDLE) | ||
| 119 | A 6842684142 | KNOB |
| 119 | A 6842684142 | KNOB |
| 119 | A 6842684142 | KNOB |
| 119 | A 6842684142 | KNOB |
| 122 | A 9702680157 | COVER |
| SHIFT LEVER HANDLE | ||
| 122 | A 9702680157 | COVER |
| SHIFT LEVER HANDLE | ||
| 122 | A 9702680157 | COVER |
| SHIFT LEVER HANDLE | ||
| 123 | N 910105010002 | SCREW |
| SHIFT LEVER HANDLE TO SHIFT LEVER | ||
| M 10X50 | ||
| 123 | N 910105010002 | SCREW |
| SHIFT LEVER HANDLE TO SHIFT LEVER | ||
| M 10X50 | ||
| 125 | N 308675010000 | NUT |
| SHIFT LEVER HANDLE TO SHIFT LEVER | ||
| 125 | N 308675010000 | NUT |
| SHIFT LEVER HANDLE TO SHIFT LEVER | ||
| 125 | N 308675010000 | NUT |
| SHIFT LEVER HANDLE TO SHIFT LEVER | ||
| 127 | A 6842604031 | SHIFTING ROD |
| 128 | A 6842600231 | SHIFTING ROD |
| 128 | A 6842600031 | SHIFTING ROD |
| 131 | A 0009967045 | ARTICULATION PIECE |
| SHIFTING ROD | ||
| 131 | A 0009967045 | ARTICULATION PIECE |
| SHIFTING ROD | ||
| 134 | N 308675014002 | NUT |
| SHIFTING ROD | ||
| 134 | N 308675014002 | NUT |
| SHIFTING ROD | ||
| 137 | A 6842680640 | BRACKET |
| SHIFTING ROD | ||
| 140 | A 6842604462 | BRACKET |
| SHIFTING ROD | ||
| 140 | A 6842604562 | BRACKET |
| SHIFTING ROD | ||
| 140 | A 6842604562 | BRACKET |
| SHIFTING ROD | ||
| 140 | A 6842600362 | BRACKET |
| SHIFTING ROD | ||
| 143 | A 6843170740 | BRACKET |
| 146 | A 6752600362 | REPAIR KIT |
| BRACKET | ||
| 149 | N 304017012020 | SCREW |
| BRACKET TO FRAME | ||
| M 12X30 | ||
| 152 | N 910105012007 | SCREW |
| BRACKET TO FRAME | ||
| M 12X1,5X30 | ||
| 158 | N 910105010009 | SCREW |
| BRACKET TO FRAME | ||
| M 10X25 | ||
| 161 | N 910105012007 | SCREW |
| BRACKET TO BRACKET | ||
| 164 | N 910113012005 | NUT |
| BRACKET TO FRAME | ||
| 167 | N 913023012002 | NUT |
| BRACKET TO FRAME | ||
| 170 | N 913023010002 | NUT |
| BRACKET TO FRAME | ||
| 173 | N 913023012002 | NUT |
| BRACKET TO BRACKET | ||
| 179 | A 6842684129 | SHIFTING ROD |
| 179 | A 6842684129 | SHIFTING ROD |
| 182 | A 0009966645 | ARTICULATION PIECE |
| PULL ROD | ||
| 182 | A 0009966645 | ARTICULATION PIECE |
| PULL ROD | ||
| 182 | A 0009966645 | ARTICULATION PIECE |
| PULL ROD | ||
| 185 | N 304032012001 | NUT |
| JOINT TO PULL ROD | ||
| 185 | N 304032012003 | NUT |
| JOINT TO PULL ROD | ||
| 188 | A 0009906550 | NUT |
| PULL ROD | ||
| 188 | N 913023010002 | NUT |
| PULL ROD | ||
| 191 | A 6202600662 | BRACKET |
| SHIFTING TRANSFER,LEFT | ||
| 194 | A 0009965245 | ARTICULATION PIECE |
| SHIFTING TRANSFER,LEFT | ||
| 197 | N 000979010011 | NUT |
| 200 | N 000094002077 | COTTER PIN |
| 203 | A 6732680028 | CONNECTOR |
| 206 | N 308675014002 | NUT |
| 209 | A 0109818010 | NEEDLE BEARING |
| 209 | A 0119812910 | NEEDLE BEARING |
| 212 | A 6842600092 | SHAFT |
| INTERMEDIATE SHAFT | ||
| 215 | A 6732680174 | PIN |
| SHIFT LEVER TO SHAFT | ||
| 218 | A 0099972648 | SEAL RING |
| SHIFT LEVER TO SHAFT | ||
| 221 | N 900055016001 | SPRING WASHER |
| SHIFT LEVER TO SHAFT | ||
