Transporto priemonė: O350 TOURISMO E3 O 403-RHD EURO3; VIN numerio dalis: 613358
Grupė: 55 SPECIAL INSTALLATIONS - 090 COMPRESSOR
| # | Kodas | Pavadinimas |
|---|---|---|

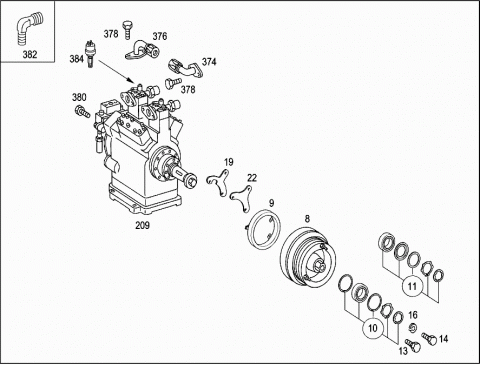

| 008 | A 0008330326 | COUPLING |
| Repalced by: A 0008335426 | ||
| 008 | A 0008335426 | COUPLING |
| 008 | A 0008331926 | COUPLING |
| Repalced by: A 6298330026 | ||
| 008 | A 6298330026 | COUPLING |
| Repalced by: A 0008334526 | ||
| 008 | A 0008334526 | COUPLING |
| 008 | A 6298330026 | COUPLING |
| Repalced by: A 0008334526 | ||
| 008 | A 0008334526 | COUPLING |
| 008 | A 6298330026 | COUPLING |
| TO A 613 130 15 15 / A 613 130 36 15 | ||
| Repalced by: A 0008334526 | ||
| 008 | A 0008334526 | COUPLING |
| 008 | A 0008331926 | COUPLING |
| Repalced by: A 6298330026 | ||
| 008 | A 6298330026 | COUPLING |
| Repalced by: A 0008334526 | ||
| 008 | A 0008334526 | COUPLING |
| 008 | A 0008331926 | COUPLING |
| Repalced by: A 6298330026 | ||
| 008 | A 6298330026 | COUPLING |
| Repalced by: A 0008334526 | ||
| 008 | A 0008334526 | COUPLING |
| 008 | A 0008332526 | COUPLING |
| Repalced by: A 0008335726 | ||
| 008 | A 0008335726 | COUPLING |
| TO A 613 130 37 15 | ||
| 008 | A 0008335726 | COUPLING |
| 008 | A 0008335726 | COUPLING |
| 008 | A 0008335726 | COUPLING |
| 008 | A 6138330026 | COUPLING |
| TO A 002 830 58 60 | ||
| 009 | A 0001311688 | MAGNET |
| TO A 000 833 54 26 | ||
| 009 | A 0005436185 | MAGNET |
| 009 | A 0005436185 | MAGNET |
| 009 | A 0005436185 | MAGNET |
| 009 | A 0005436185 | MAGNET |
| 010 | A 0009805415 | BALL BEARING |
| REPAIR KIT | ||
| TO A 000 833 03 26 | ||
| 010 | A 0009805415 | BALL BEARING |
| REPAIR KIT | ||
| TO A 000 833 19 26 | ||
| 010 | A 0009805415 | BALL BEARING |
| REPAIR KIT | ||
| TO A 000 833 19 26 | ||
| 010 | A 0009805415 | BALL BEARING |
| REPAIR KIT | ||
| TO A 000 833 57 26/19 26 | ||
| 010 | A 0009805415 | BALL BEARING |
| REPAIR KIT | ||
| TO A 000 833 25 26 | ||
| 011 | A 0009806115 | GROOVED BALL BEARING |
| TO A 000 833 54 26/45 26 | ||
| 011 | A 0009806115 | GROOVED BALL BEARING |
| TO A 629 833 00 26/A 000 833 5726/4526 | ||
| 011 | A 0009806115 | GROOVED BALL BEARING |
| TO A 629 833 00 26/A 000 833 4526/5726 | ||
| 011 | A 0009806115 | GROOVED BALL BEARING |
| TO A 629 833 00 26/A 000 833 4526/5726 | ||
| 012 | A 0039901622 | SCREW |
| MAGNETIC COUPLING | ||
| FA LINNIG | ||
| 012 | A 0039901622 | SCREW |
| MAGNETIC COUPLING | ||
| FA LINNIG | ||
| 012 | A 0039901622 | SCREW |
| MAGNETIC COUPLING | ||
| FA LINNIG | ||
| 012 | A 0039901622 | SCREW |
| MAGNETIC COUPLING | ||
| FA LINNIG | ||
| 013 | A 0001300171 | SCREW |
| PULLEY TO FLANGE | ||
| 014 | N 000933012051 | SCREW |
| PULLEY TO AIR COMPRESSOR | ||
| M12X50 | ||
| 016 | N 912004012100 | LOCK WASHER |
| PULLEY TO AIR COMPRESSOR | ||
| 019 | A 0008360432 | CLAMP |
| 019 | A 0008360432 | CLAMP |
| 019 | A 0008360432 | CLAMP |
| 022 | A 6131310043 | CONNECTOR |
| TO A 613 130 37 15 | ||
| 022 | A 0008357314 | BRACKET |
| 022 | A 0008357314 | BRACKET |
| 024 | A 0018350814 | BRACKET |

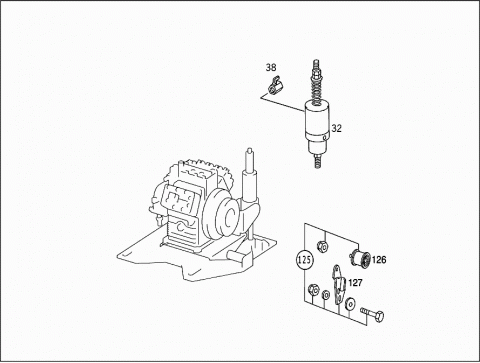

| 032 | A 0008002872 | CYLINDER |
| 038 | A 0008003278 | VALVE |
| 116 | A 6139970092 | V-BELT |
| REFRIGERANT COMPRESSOR | ||
| 125 | A 0005500233 | TIGHTENER PULLEY |
| REFRIGERANT COMPRESSOR | ||
| 126 | A 0005520034 | TENSION ROLLER |
| 127 | A 0005520040 | BRACKET |

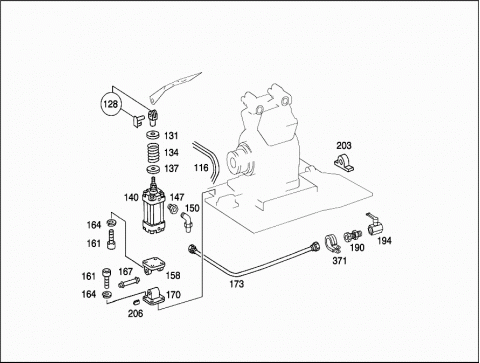

| 128 | A 0008310021 | FORK |
| 131 | A 0008330082 | WASHER |
| 134 | A 0008330067 | SPRING |
| 137 | A 0008330182 | WASHER |
| 140 | A 0003200260 | CYLINDER |
| 147 | A 0008352651 | ADAPTER |
| TO A 629 830 25 60, A 000 130 95 15 | ||
| 150 | A 0008360425 | PIPE SOCKET |
| 158 | A 0008310056 | CLAMP |
| 161 | A 0008330071 | SCREW |
| 164 | A 0008330096 | PAD |
| 167 | A 0008330137 | PIN |
| 170 | A 0008350728 | MOUNTING |
| 173 | A 0259976482 | HOSE |
| TO A 629 830 25 60, A 000 130 95 15 | ||
| 190 | A 0008360525 | PIPE SOCKET |
| 194 | A 0019977835 | PLUG |
| (SHUT-OFF VALVE) | ||
| 203 | A 0008350828 | MOUNTING |
| 206 | A 0009913468 | KEY |
| 209 | A 0001309515 | COMPRESSOR |
| 209 | A 0001309715 | COMPRESSOR |
| Repalced by: A 0028302660 | ||
| 209 | A 0028302660 | COMPRESSOR |
| 209 | A 6298302560 | COMPRESSOR |
| Repalced by: A 6298309460 | ||
| 209 | A 6298309460 | COMPRESSOR |
| 209 | A 0018305360 | COMPRESSOR |
| Repalced by: A 6298309460 | ||
| 209 | A 6298309460 | COMPRESSOR |
| 209 | A 0001309415 | COMPRESSOR |
| Repalced by: A 6298309560 | ||
| 209 | A 6298309560 | COMPRESSOR |
| 209 | A 0001309415 | COMPRESSOR |
| Repalced by: A 6298309560 | ||
| 209 | A 6298309560 | COMPRESSOR |
| 209 | A 0018303060 | COMPRESSOR |
| Repalced by: A 6298309560 | ||
| 209 | A 6298309560 | COMPRESSOR |
| 209 | A 0018303060 | COMPRESSOR |
| Repalced by: A 6298309560 | ||
| 209 | A 6298309560 | COMPRESSOR |
| 209 | A 6278301760 | COMPRESSOR |
| Repalced by: A 6298309560 | ||
| 209 | A 6298309560 | COMPRESSOR |

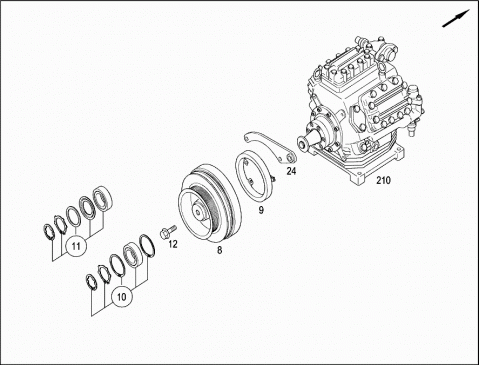

| 210 | A 0028305860 | COMPRESSOR |
| Repalced by: A 0028304160 | ||
| 210 | A 0028304160 | COMPRESSOR |
| Repalced by: A 6328307360 | ||
| 210 | A 6328307360 | COMPRESSOR |
| 212 | A 0001300832 | BEARING CAP |
| CRANKSHAFT SLIP RING SEAL | ||
| 212 | A 0001300832 | BEARING CAP |
| CRANKSHAFT SLIP RING SEAL | ||
| 212 | A 0001300832 | BEARING CAP |
| CRANKSHAFT SLIP RING SEAL | ||
| 212 | A 0001300832 | BEARING CAP |
| CRANKSHAFT SLIP RING SEAL | ||
| 215 | A 0011313780 | GASKET |
| CRANKSHAFT SLIP RING SEAL | ||
| 215 | A 0011313780 | GASKET |
| CRANKSHAFT SLIP RING SEAL | ||
| 215 | A 0011313780 | GASKET |
| CRANKSHAFT SLIP RING SEAL | ||
| 215 | A 0011313780 | GASKET |
| CRANKSHAFT SLIP RING SEAL | ||
| 217 | A 0001320360 | SEAL RING |
| 217 | A 0001320460 | SEAL RING |
| Repalced by: A 0001320360 | ||
| 217 | A 0001320360 | SEAL RING |
| 217 | A 0001320460 | SEAL RING |
| Repalced by: A 0001320360 | ||
| 217 | A 0001320360 | SEAL RING |
| 217 | A 0001320460 | SEAL RING |
| Repalced by: A 0001320360 | ||
| 217 | A 0001320360 | SEAL RING |
| 217 | A 0001320460 | SEAL RING |
| Repalced by: A 0001320360 | ||
| 217 | A 0001320360 | SEAL RING |
| 218 | A 0001310465 | OIL PUMP |
| (PARTS KIT),OIL PUMP | ||
| 218 | A 0001310465 | OIL PUMP |
| (PARTS KIT),OIL PUMP | ||
| 218 | A 0001310465 | OIL PUMP |
| (PARTS KIT),OIL PUMP | ||
| 218 | A 0001310465 | OIL PUMP |
| (PARTS KIT),OIL PUMP | ||
| 220 | A 0008002348 | OIL PUMP |
| 220 | A 0008002348 | OIL PUMP |
| 220 | A 0008002348 | OIL PUMP |
| 220 | A 0008002348 | OIL PUMP |
| 221 | A 0011319980 | GASKET |
| OIL PUMP | ||
| 221 | A 0011319980 | GASKET |
| OIL PUMP | ||
| 221 | A 0011319980 | GASKET |
| OIL PUMP | ||
| 221 | A 0011319980 | GASKET |
| OIL PUMP | ||
| 224 | N 910105008012 | SCREW |
| OIL PUMP | ||
| M 8 X 30 | ||
| 224 | N 910105008012 | SCREW |
| OIL PUMP | ||
| M 8 X 30 | ||
| 224 | N 910105008012 | SCREW |

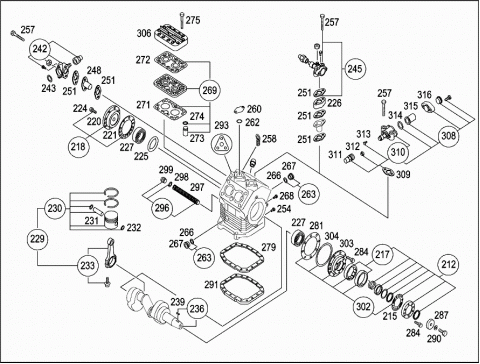

| OIL PUMP | ||
| M 8 X 30 | ||
| 224 | N 910105008012 | SCREW |
| OIL PUMP | ||
| M8X30 | ||
| 225 | A 0009810978 | TOLERANCE RING |
| 225 | A 0009810978 | TOLERANCE RING |
| 226 | A 0008300624 | INTERMEDIATE PIECE |
| WITH SCREW FITTING | ||
| 46MM | ||
| 226 | A 0008300724 | INTERMEDIATE PIECE |
| WITH SCREW FITTING | ||
| 34MM | ||
| 226 | A 0008300824 | INTERMEDIATE PIECE |
| 25MM | ||
| 226 | A 0008300924 | INTERMEDIATE PIECE |
| 15MM | ||
| 226 | A 0008301324 | INTERMEDIATE PIECE |
| 46MM | ||
| 227 | A 0109814301 | CYLINDR. ROLLER BEARING |
| OIL PUMP | ||
| 227 | A 0109814301 | CYLINDR. ROLLER BEARING |
| OIL PUMP | ||
| 227 | A 0109814301 | CYLINDR. ROLLER BEARING |
| OIL PUMP | ||
| 227 | A 0109814301 | CYLINDR. ROLLER BEARING |
| OIL PUMP | ||
| 227 | A 0109814301 | CYLINDR. ROLLER BEARING |
| OIL PUMP | ||
| 229 | A 0001304917 | CONNECTING ROD |
| REPAIR KIT | ||
| TO A 629 830 94 60 | ||
| 229 | A 0001305017 | PISTON |
| REPAIR KIT | ||
| TO A 629 830 95 60 | ||
| 229 | A 0001305017 | PISTON |
| REPAIR KIT | ||
| TO A 629 830 95 60 | ||
| 229 | A 0001305017 | PISTON |
| REPAIR KIT | ||
| TO A 629 830 95 60 | ||
| 229 | A 0001305017 | PISTON |
| REPAIR KIT | ||
| TO A 629 830 95 60 | ||
| 229 | A 0001306617 | PISTON |
| REPAIR KIT | ||
| TO A 002 830 58 60 | ||
| 230 | A 0001303817 | PISTON |
| COMPLETE | ||
| Repalced by: A 0001304417 | ||
| 230 | A 0001304417 | PISTON |
| COMPLETE | ||
| TO A 629 830 94 60 | ||
| 230 | A 0001304517 | PISTON |
| COMPLETE | ||
| D=60;TO A 629 830 95 60 | ||
| 230 | A 0001304517 | PISTON |
| COMPLETE | ||
| D=60;TO A 629 830 95 60 | ||
| 230 | A 0001304517 | PISTON |
| COMPLETE | ||
| D=60;TO A 629 830 95 60 | ||
| 230 | A 0001304517 | PISTON |
| COMPLETE | ||
| D=60;TO A 629 830 95 60 | ||
| 230 | A 0001304517 | PISTON |
| COMPLETE | ||
| D=60;TO A 629 830 95 60 | ||
| 230 | A 0001304617 | PISTON |
| COMPLETE | ||
| TO A 002 830 26 60 | ||
| 231 | A 0009915415 | PISTON PIN |
| 232 | A 0109948641 | LOCK |
| 15X1MM | ||
| 233 | A 0001303316 | CONNECTING ROD |
| COMPLETE | ||
| 233 | A 0001303316 | CONNECTING ROD |
| COMPLETE | ||
| 233 | A 0001303316 | CONNECTING ROD |
| COMPLETE | ||
| 233 | A 0001303316 | CONNECTING ROD |
| COMPLETE | ||
| 233 | A 0001303316 | CONNECTING ROD |
| COMPLETE | ||
| 233 | A 0001312817 | CONNECTING ROD |
| TO A 002 830 58 60 | ||
| 236 | A 0001300514 | CRANKSHAFT |
| TO FK40/650/465 | ||
| 236 | A 0001300814 | CRANKSHAFT |
| TO FKX50/660K;TO A 002 830 58 60 | ||
| 236 | A 0001300714 | CRANKSHAFT |
| TO FK40/555/560/655 | ||
| 236 | A 0001300714 | CRANKSHAFT |
| TO FK40/470 | ||
| 236 | A 0001300714 | CRANKSHAFT |
| TO FK 40 / 555/560/655 | ||
| 236 | A 0001300714 | CRANKSHAFT |
| TO FK 40 / 555/560/655 | ||
| 236 | A 0001300714 | CRANKSHAFT |
| TO FK 40 / 555/560/655 | ||
| 239 | A 0001314108 | SPRING |
| CRANKSHAFT | ||
| 239 | A 0001314108 | SPRING |
| CRANKSHAFT | ||
| 239 | A 0001314108 | SPRING |
| CRANKSHAFT | ||
| 239 | A 0001314108 | SPRING |
| CRANKSHAFT | ||
| 242 | A 0001307720 | VALVE |
| NW32 | ||
| 242 | A 0001307720 | VALVE |
| NW32 | ||
| 242 | A 0001307720 | VALVE |
| NW32 | ||
| 242 | A 0001307720 | VALVE |
| NW32 | ||
| 243 | A 0009979149 | GASKET |
| 243 | A 0009979149 | GASKET |
| 243 | A 0009979149 | GASKET |
| 243 | A 0009979149 | GASKET |
| 245 | A 0001304220 | VALVE |
| 245 | A 0001304220 | VALVE |
| 245 | A 0001304220 | VALVE |
| 245 | A 0001304220 | VALVE |
| 248 | A 0001310834 | STRAINER |
| 248 | A 0001310834 | STRAINER |
| 248 | A 0001310834 | STRAINER |
| 248 | A 0001310834 | STRAINER |
| 251 | A 0001318580 | GASKET |
| Repalced by: A 0021310180 | ||
| 251 | A 0021310180 | GASKET |
| Repalced by: A 0008312998 | ||
| 251 | A 0008312998 | GASKET |
| 251 | A 0021310180 | GASKET |
| Repalced by: A 0008312998 | ||
| 251 | A 0008312998 | GASKET |
| 251 | A 0021310180 | GASKET |
| Repalced by: A 0008312998 | ||
| 251 | A 0008312998 | GASKET |
| 251 | A 0021310180 | GASKET |
| Repalced by: A 0008312998 | ||
| 251 | A 0008312998 | GASKET |
| 251 | A 0021310180 | GASKET |
| Repalced by: A 0008312998 | ||
| 251 | A 0008312998 | GASKET |
| 254 | A 0008350878 | FASTENER |
| 1/4" | ||
| 254 | A 0008350878 | FASTENER |
| TURN SIGNAL LAMP,ABOVE HEADLAMP, RIGHT | ||
| 1/4" | ||
| 257 | N 910105010015 | SCREW |
| 258 | A 0009904213 | SCREW |
| 260 | A 0009970950 | FLANGE |
| 9MM | ||
| 260 | A 0008320768 | FLANGE |
| 15 MM | ||
| 260 | A 0008320768 | FLANGE |
| 15 MM | ||
| 260 | A 0008320768 | FLANGE |
| 15 MM | ||
| 260 | A 0008320768 | FLANGE |
| 15MM | ||
| 262 | A 0189970745 | SEAL RING |
| 34,59X2,2MM | ||
| 263 | A 6278350261 | SIGHT GLASS |
| 18MM | ||
| 263 | A 6278350261 | SIGHT GLASS |
| 18MM | ||
| 263 | A 6278350261 | SIGHT GLASS |
| 18MM | ||
| 263 | A 0008351361 | SIGHT GLASS |
| 22MM | ||
| 263 | A 0008351361 | SIGHT GLASS |
| 22MM | ||
| 263 | A 6278350261 | SIGHT GLASS |
| 18MM | ||
| 266 | A 0299973348 | SEAL RING |
| INSPECTION GLASS | ||
| 23MM | ||
| 266 | A 0299973348 | SEAL RING |
| INSPECTION GLASS | ||
| 23MM | ||
| 266 | A 0299973348 | SEAL RING |
| INSPECTION GLASS | ||
| 23MM | ||
| 266 | A 0299973348 | SEAL RING |
| INSPECTION GLASS | ||
| 23MM | ||
| 266 | A 0018357098 | SEAL |
| INSPECTION GLASS | ||
| 28,3X1,8MM | ||
| 266 | A 0018357098 | SEAL |
| INSPECTION GLASS | ||
| 28,3X1,8MM | ||
| 267 | A 0008351261 | SIGHT GLASS |
| D=22 | ||
| 268 | A 0009905217 | SCREW |
| SRREW PLUG | ||
| 1/8" | ||
| 268 | A 0009905217 | SCREW |
| SRREW PLUG | ||
| 1/8" | ||
| 269 | A 6278350111 | VALVE |
| COMPLETE | ||
| 269 | A 6278350111 | VALVE |
| COMPLETE | ||
| 269 | A 6278350111 | VALVE |
| COMPLETE | ||
| 269 | A 6278350111 | VALVE |
| COMPLETE | ||
| 269 | A 0001315531 | VALVE DISC |
| 271 | A 0008330498 | SEAL |
| 272 | A 0021310480 | GASKET |
| 272 | A 0021310480 | GASKET |
| 272 | A 0021310480 | GASKET |
| 272 | A 0021310480 | GASKET |
| 273 | A 0038304384 | VALVE |
| 273 | A 0038304384 | VALVE |
| 274 | A 0018355998 | SEAL |
| 275 | N 910105010052 | SCREW |
| M10X70 | ||
| 275 | N 910105010052 | SCREW |
| M 10 X 70 | ||
| 275 | N 910105010052 | SCREW |
| M10X70 | ||
| 275 | N 910105010052 | SCREW |
| M10X70 | ||
| 279 | A 0008351823 | WEATHERSTRIP |
| 279 | A 0008351823 | WEATHERSTRIP |
| 281 | A 0021310080 | GASKET |
| 281 | A 0021310080 | GASKET |
| 281 | A 0021310080 | GASKET |
| 281 | A 0021310080 | GASKET |
| 284 | N 000912008013 | SCREW |
| M 8 X 25 | ||
| 284 | N 000912008013 | SCREW |
| M 8 X 25 | ||
| 284 | N 000912008013 | SCREW |
| M 8 X 25 | ||
| 284 | N 000912008013 | SCREW |
| M8X25 | ||
| 287 | A 0001311776 | WASHER |
| CRANKSHAFT | ||
| 287 | A 0001311776 | WASHER |
| CRANKSHAFT | ||
| 287 | A 0001311776 | WASHER |
| CRANKSHAFT | ||
| 287 | A 0001311776 | WASHER |
| CRANKSHAFT | ||
| 290 | N 910105012010 | HEXAGON HEAD BOLT |
| CRANKSHAFT | ||
| M12X1,5X40MM | ||
| 291 | A 0008351411 | PLATE |
| 291 | A 0008351411 | PLATE |
| 293 | A 6278320099 | GASKET KIT |
| PARTS KIT | ||
| 293 | A 6278320099 | GASKET KIT |
| PARTS KIT | ||
| 293 | A 6278320099 | GASKET KIT |
| PARTS KIT | ||
| 293 | A 6278320099 | GASKET KIT |
| PARTS KIT | ||
| A 0008351188 | PLATE | |
| R134A | ||
| A 0008351188 | PLATE | |
| R134A | ||
| A 0008351188 | PLATE | |
| R134A | ||
| A 0008351188 | PLATE | |
| R134A | ||
| A 0008351188 | PLATE | |
| R134A | ||
| A 0008351088 | PLATE | |
| DEA SE 55 | ||
| A 0008351088 | PLATE | |
| DEA SE 55 | ||
| A 0008351088 | PLATE | |
| DEA SE 55 | ||
| A 0008351088 | PLATE | |
| DEA SE 55 | ||
| 296 | A 0008330149 | STRAINER |
| ELEMENT | ||
| 296 | A 0008330149 | STRAINER |
| ELEMENT | ||
| 297 | A 0008330049 | STRAINER |
| OIL STRAINER | ||
| 297 | A 0008330049 | STRAINER |
| OIL STRAINER | ||
| 298 | A 0018356098 | SEAL |
| 298 | A 0018356098 | SEAL |
| 299 | A 0009908017 | SCREW |
| M22X1,5 | ||
| 299 | A 0009908017 | SCREW |
| M22X1,5 | ||
| 302 | A 0008310320 | MOUNTING |
| 302 | A 0008310320 | MOUNTING |
| 303 | A 0008310611 | PLATE |
| 303 | A 0008310611 | PLATE |
| 304 | A 0149973145 | SEAL RING |
| 101,19X3,53MM | ||
| 304 | A 0149973145 | SEAL RING |
| 101,19X3,53MM | ||
| 306 | A 0008350556 | COVER |
| CYLINDER SIDE COVER | ||
| 306 | A 0008350556 | COVER |
| CYLINDER SIDE COVER | ||
| 308 | A 0038304484 | VALVE |
| SHUT-OFF VALVE | ||
| 309 | A 0021310180 | GASKET |
| Repalced by: A 0008312998 | ||
| 309 | A 0008312998 | GASKET |
| 310 | A 0009970222 | VALVE BODY |
| 311 | A 0009908252 | NUT |
| M22X1,5 | ||
| 312 | A 0009908352 | NUT |
| 7/16 | ||
| 313 | A 0009905217 | SCREW |
| SRREW PLUG | ||
| 1/8" | ||
| 314 | A 0009979145 | SEAL RING |
| 315 | A 0008314725 | PIPE SOCKET |
| D=35 | ||
| 316 | A 0009970650 | FLANGE |
| 16MM | ||

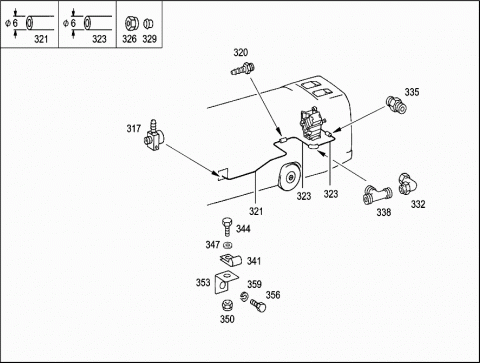

| 317 | A 6459900778 | CONNECTOR |
| 320 | N 915059004000 | FITTING |
| 321 | A 0009872627 | PLASTIC PIPE |
| PIPE SOCKET TO CONNECTOR | ||
| 4X6MM | ||
| 323 | A 0004291101 | LINE |
| FROM CONNECTORS I,II TO BULKHEAD FITTING | ||
| 6 X 1 MM | ||
| 326 | N 915017006100 | UNION NUT |
| N 003861006007 | GLAND | |
| Repalced by: A 0019901667 | ||
| 329 | A 0019901667 | GLAND |
| 332 | A 0009907171 | ELBOW FITTING |
| CONNECTOR I | ||
| 335 | A 0029975672 | FITTING |
| CONNECTOR II | ||
| 335 | A 0029906071 | FITTING |
| CONNECTOR II | ||
| 338 | A 0009903470 | T-FITTING |
| 341 | N 916016006208 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 6 / 15 MM | ||
| 341 | N 916016010204 | CLAMP |
| 10 / 15 MM | ||
| 341 | N 916016006201 | CLAMP |
| FOR LINES IN ENGINE COMPARTMENT | ||
| 344 | N 304017006004 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| 344 | N 000933006230 | SCREW |
| M6X25 | ||
| 347 | N 009021006205 | WASHER |
| DELIVERY LINE TO BRACKET | ||
| 350 | N 910113006000 | NUT |
| 350 | A 0039900251 | NUT |
| FOR LINES IN ENGINE COMPARTMENT | ||
| 353 | A 3055480043 | BRACKET |
| FOR LINES IN ENGINE COMPARTMENT | ||
| 356 | N 304017008016 | SCREW |
| BRACKET IN ENGINE COMPARTMENT | ||
| 359 | N 912004008100 | LOCK WASHER |
| BRACKET IN ENGINE COMPARTMENT | ||
| 371 | A 0009952502 | CLAMP |
| 15 / 20 RSGU | ||
| 374 | A 0001300155 | PIPE BEND |
| 376 | A 0001300055 | PIPE BEND |
| 378 | N 000933010145 | SCREW |
| ELBOW TO AIR COMPRESSOR | ||
| M 10 X 35 | ||
| 380 | N 000933010280 | SCREW |
| M 12 X 70 | ||
| 382 | A 0008352351 | ADAPTER |
| ELBOW TO AIR COMPRESSOR | ||
| 384 | A 0005404144 | OIL-BREAK SWITCH |
| HIGH PRESSURE | ||
| 384 | A 0005404244 | OIL-BREAK SWITCH |
| LOW PRESSURE | ||

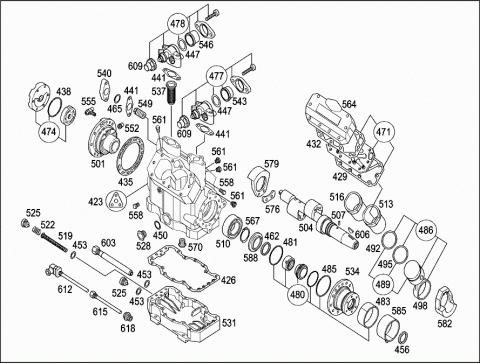

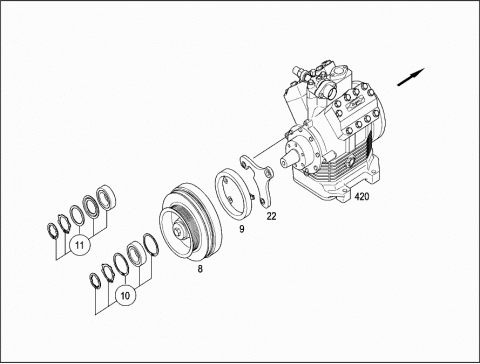

| 420 | A 0018309960 | COMPRESSOR |
| Repalced by: A 6328350103 | ||
| 420 | A 6328350103 | COMPRESSOR |
| BITZER 4PFC | ||
| A 0008301624 | INTERMEDIATE PIECE | |
| 423 | A 0011302015 | GASKET KIT |
| 4PFC | ||
| 426 | A 0008352023 | WEATHERSTRIP |
| 244X232X1MM | ||
| 429 | A 0008352323 | WEATHERSTRIP |
| D=65,191X115X1MM | ||
| 432 | A 0008352523 | WEATHERSTRIP |
| 435 | A 0021310880 | GASKET |
| D=155X115X1MM | ||
| 438 | A 0149977645 | SEAL RING |
| 441 | A 0021310980 | GASKET |
| 80X44,5X1MM | ||
| 447 | A 0008320898 | SEAL |
| 42X30X1MM | ||
| 450 | A 0149978045 | SEAL RING |
| D=23,52X1,78MM | ||
| 453 | A 0008352623 | WEATHERSTRIP |
| 22X27X1,5MM | ||
| 456 | A 0008352723 | WEATHERSTRIP |
| D=50X40X4MM | ||
| 456 | A 0028350398 | SEALING RING |
| 85X2MM | ||
| 456 | A 0028350498 | SEAL |
| 9,5MM | ||
| 462 | A 0018356698 | SEAL |
| D=51X47X2MM | ||
| 465 | A 0149977945 | SEAL RING |
| D=32,9X3,53MM | ||
| A 0018358498 | SEAL | |
| 42X36X1,5MM | ||
| 471 | A 0008300280 | PLATE |
| D=65MM,F.4PFC | ||
| 474 | A 0001300298 | OIL PUMP |
| 477 | A 0038305984 | VALVE |
| PRESSURE SHUTOFF VALVE | ||
| 4PFC,22MM | ||
| 478 | A 0038306084 | VALVE |
| SUCTION SHUTOFF VALVE | ||
| D=35MM,4PFC | ||
| 480 | A 0008302398 | SEAL |
| Repalced by: A 0008303298 | ||
| 480 | A 0008303298 | SEAL |
| 481 | A 0149977645 | SEAL RING |
| D=74X2MM | ||
| 483 | A 0019835310 | FELT STRIP |
| 280X24MM | ||
| 485 | A 0149977745 | SEAL RING |
| D=85X3,53MM | ||
| 486 | A 0001305817 | PISTON |
| D=65,F.4PFC | ||
| Repalced by: A 0008300671 | ||
| 486 | A 0008300671 | TS |
| D=65,F.4PFC | ||
| 489 | A 0001306217 | PISTON |
| D=65,F.4PFC | ||
| Repalced by: A 0008301371 | ||
| 489 | A 0008301371 | TS PISTON |
| D=65,F.4PFC | ||
| 492 | A 0001312214 | PISTON RING |
| GROOVE I | ||
| D=65X59,4X1,5MM | ||
| 495 | A 0001312614 | PISTON RING |
| GROOVE II | ||
| 4PFC,D=65X59,5X1,5MM | ||
| 498 | A 0001306417 | CONNECTING ROD |
| D=70X16X90MM | ||
| 501 | A 0008310711 | PLATE |
| D=155X60MM | ||
| 504 | A 0001300914 | CRANKSHAFT |
| D=70X366MM | ||
| 507 | A 0019917160 | DOWEL PIN |
| SPIRAL ROLL PIN | ||
| D=3X20MM | ||
| 510 | A 0109815901 | CYLINDR. ROLLER BEARING |
| D=90X50X20MM | ||
| 513 | A 0001315102 | CYLINDER LINER |
| RIGHT | ||
| 4PFC,D=65X82X71MM | ||
| 516 | A 0001315402 | CYLINDER LINER |
| LEFT | ||
| 4PFC,D=65X82X71MM | ||
| 519 | A 0008330249 | STRAINER |
| DIA., | ||
| D=14X105MM | ||
| 522 | A 0008330367 | SPRING |
| DIA., | ||
| D=18X28X1,25MM | ||
| 525 | A 0009905617 | SCREW |
| SRREW PLUG | ||
| M22X1,5 | ||
| 528 | A 0008351161 | SIGHT GLASS |
| M24X1,D=33X15MM | ||
| 531 | A 0008300480 | PLATE |
| 244X232X46MM | ||
| 534 | A 0008351939 | COVER |
| D=95X63MM | ||
| 537 | A 0008320644 | FILTER |
| D=30X78MM | ||
| 540 | A 0009970750 | FLANGE |
| 543 | A 0008310490 | BUSHING |
| PRESSURE SHUTOFF VALVE | ||
| D=28,1 1/8" | ||
| 546 | A 0008310590 | BUSHING |
| SUCTION SHUTOFF VALVE | ||
| D=35,1 3/8" | ||
| 549 | A 0038306384 | VALVE |
| PRESSURE RELIEF VALVE | ||
| 3/4",NPTF,34BAR | ||
| Repalced by: A 0048301184 | ||
| 549 | A 0048301184 | VALVE |
| PRESSURE RELIEF VALVE | ||
| 3/4",NPTF,34BAR | ||
| 552 | A 0038306484 | VALVE |
| PRESSURE RELIEF VALVE | ||
| M12X1X29,2BAR | ||
| Repalced by: A 0048306584 | ||
| 552 | A 0048306584 | PRESSURE RELIEF VALVE |
| PRESSURE RELIEF VALVE | ||
| M12X1X29,2BAR | ||
| 555 | A 0001309820 | VALVE |
| PRESSURE VALVE | ||
| 1/8"-27NPTF | ||
| 558 | A 0009987650 | PLUG |
| 1/4"-18NPTF,ST. | ||
| 561 | A 0009987750 | PLUG |
| 1/8"-27NPTF,ST. | ||
| 564 | A 0001305319 | CYLINDER HEAD |
| 191X115X45MM | ||
| Repalced by: A 0001305719 | ||
| 564 | A 0001305719 | CYLINDER HEAD |
| 191X115X45MM | ||
| 567 | A 0109944841 | LOCK |
| D=50X45,2X2MM | ||
| 570 | A 0008353420 | CONTROL VALVE |
| R1/2",SW27 | ||
| A 0008101212 | BEARING | |
| D=31X33,8MM | ||
| 576 | A 0008310002 | SEGMENT |
| D=76X25X3,5MM | ||
| 579 | A 0001320205 | BALANCING WEIGHT |
| 4PFC U. NFC,HUB=42;H=29 | ||
| 582 | A 0001320405 | BALANCING WEIGHT |
| 4PFC U. NFC,HUB=42;H=32 | ||
| 585 | A 0004311491 | CLAMPING RING |
| DIA., | ||
| D=92-95 | ||
| 588 | A 0009971342 | SEAL WASHER |
| DIA., | ||
| D=80X51X10MM | ||
| 603 | A 0018357647 | DRYING INSERT |
| D=175X19,5 | ||
| 606 | A 0009940421 | WOODRUFF KEY |
| 5X9MM | ||
| 609 | A 0019980023 | PROTECTIVE CAP |
| Repalced by: A 0009982923 | ||
| 609 | A 0009982923 | PROTECTIVE CAP |
| 612 | A 0008303720 | OIL SUMP HEATER |
| 24V,DC | ||
| 615 | A 0008351824 | SLEEVE |
| 0,5"-NPTF18X135MM | ||
| Repalced by: A 0018320225 | ||
| 615 | A 0018320225 | PIPE SOCKET |
| 0,5"-NPTF18X135MM | ||
| 618 | A 0001580159 | THREADED BUSHING |
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
