Transporto priemonė: O350 TOURISMO-RHD O 403-RHD EURO2; VIN numerio dalis: 613355

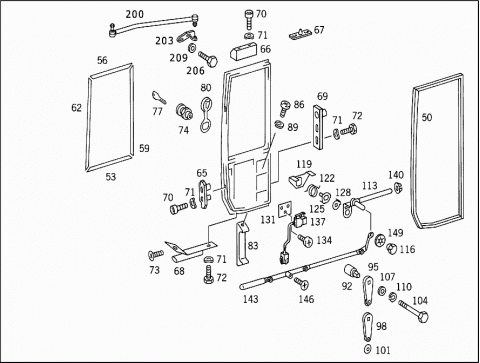

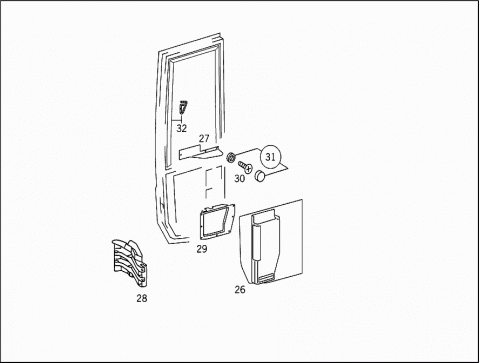

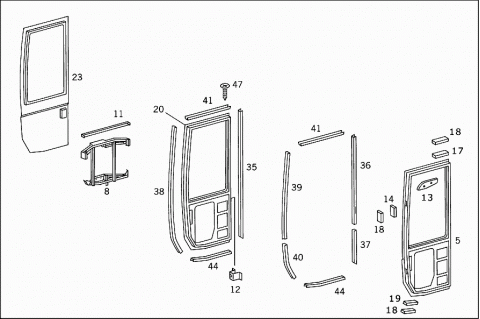

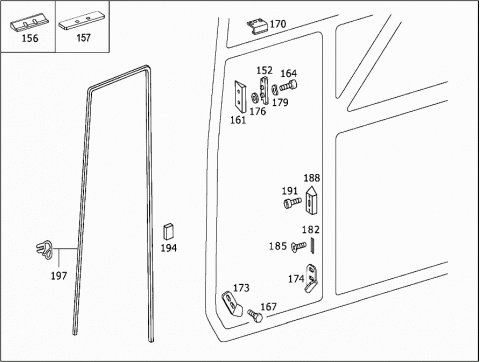

Grupė: 72 DOORS - 060 FRONT DOOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6137200303 | DOOR COMPLETE |
| FRONT RIGHT | ||
| 005 | A 6137200403 | DOOR COMPLETE |
| FRONT RIGHT | ||
| 008 | A 6137200006 | REINFORCEMENT |
| 008 | A 6137200006 | REINFORCEMENT |
| 011 | A 6137220916 | REINFORCEMENT |
| 011 | A 6137220916 | REINFORCEMENT |
| 012 | A 6137230014 | BRACKET |
| 012 | A 6137230014 | BRACKET |
| 013 | A 6137221011 | PLATE |
| 013 | A 6137221011 | PLATE |
| 014 | A 6137220111 | PLATE |
| 014 | A 6137220111 | PLATE |
| 017 | A 6137220211 | PLATE |
| 017 | A 6137220211 | PLATE |
| 018 | A 6137220311 | PLATE |
| 018 | A 6137220311 | PLATE |
| 019 | A 6137220411 | PLATE |
| 019 | A 6137220411 | PLATE |
| 020 | A 6137220210 | INTERIOR PART |
| 020 | A 6137220310 | INTERIOR PART |
| 023 | A 6137220309 | PANELLING |
| 023 | A 6137220409 | PANELLING |
| 026 | A 6137270971 | PANELLING |
| INSIDE | ||
| 026 | A 6137270971 | PANELLING |
| INSIDE | ||
| 027 | A 6137270771 | PANELLING |
| INSIDE | ||
| 027 | A 6137270771 | PANELLING |
| INSIDE | ||
| 028 | A 6137270188 | COVERING |
| SWIVEL BAR,BOTTOM | ||
| 028 | A 6137270188 | COVERING |
| SWIVEL BAR,BOTTOM | ||
| 029 | A 6137270088 | COVERING |
| INSIDE | ||
| 029 | A 6137270088 | COVERING |
| INSIDE | ||
| 030 | N 000000000483 | SCREW |
| PANELLING TO DOOR | ||
| 030 | N 000000000483 | SCREW |
| PANELLING TO DOOR | ||
| 031 | H XB3738140018 | CAP |
| PANELLING TO DOOR | ||
| 031 | H XB3738140018 | CAP |
| PANELLING TO DOOR | ||
| 032 | A 6137270230 | SEAL |
| 032 | A 6137270230 | SEAL |
| 035 | A 6137230126 | LEDGE |
| REAR | ||
| 035 | A 6137230626 | LEDGE |
| REAR | ||
| 036 | A 6137231026 | LEDGE |
| REAR TOP | ||
| 036 | A 6137231026 | LEDGE |
| REAR TOP | ||
| 036 | A 6137231026 | LEDGE |
| REAR TOP | ||
| 037 | A 6137330890 | LEDGE |
| REAR BOTTOM | ||
| 037 | A 6137330890 | LEDGE |
| REAR BOTTOM | ||
| 037 | A 6137330890 | LEDGE |
| REAR BOTTOM | ||
| 038 | A 6137230326 | LEDGE |
| FRONT | ||
| 038 | A 6137230726 | LEDGE |
| FRONT | ||
| 039 | A 6137231426 | LEDGE |
| FRONT TOP | ||
| 039 | A 6137231426 | LEDGE |
| FRONT TOP | ||
| 039 | A 6137231426 | LEDGE |
| FRONT TOP | ||
| 040 | A 6137231126 | LEDGE |
| FRONT BOTTOM | ||
| 040 | A 6137231126 | LEDGE |
| FRONT BOTTOM | ||
| 040 | A 6137231126 | LEDGE |
| FRONT BOTTOM | ||
| 041 | A 6137230426 | LEDGE |
| TOP | ||
| 041 | A 6137230426 | LEDGE |
| TOP | ||
| 044 | A 6137230526 | LEDGE |
| BOTTOM | ||
| 044 | A 6137230526 | LEDGE |
| BOTTOM | ||
| 047 | N 007983003256 | SHEET METAL SCREW |
| Repalced by: N 007983003248 | ||
| 047 | N 007983003256 | SHEET METAL SCREW |
| Repalced by: N 007983003248 | ||
| 047 | N 007983003248 | SHEET METAL SCREW |
| LEDGE TO DOOR | ||
| B 3,9 X 16 | ||
| 047 | N 007983003248 | SHEET METAL SCREW |
| LEDGE TO DOOR | ||
| B 3,9 X 16 | ||
| 050 | A 6137300160 | WEATHERSTRIP |
| 050 | A 6137300260 | WEATHERSTRIP |
| 053 | A 6137270174 | LEDGE |
| BOTTOM | ||
| 053 | A 6137270174 | LEDGE |
| BOTTOM | ||
| 053 | A 6137270774 | LEDGE |
| BOTTOM | ||
| 053 | A 6137270774 | LEDGE |
| BOTTOM | ||
| 056 | A 6137270274 | LEDGE |
| TOP | ||
| 056 | A 6137270274 | LEDGE |
| TOP | ||
| 059 | A 6137270374 | LEDGE |
| RIGHT | ||
| 059 | A 6137270374 | LEDGE |
| RIGHT | ||
| 059 | A 6137270574 | LEDGE |
| RIGHT | ||
| 059 | A 6137270874 | LEDGE |
| RIGHT | ||
| 059 | A 6137270874 | LEDGE |
| RIGHT | ||
| 062 | A 6137270474 | LEDGE |
| LEFT | ||
| 062 | A 6137270674 | LEDGE |
| LEFT | ||
| 065 | H XB0007230086 | CAM |
| DOOR LOCKING MECHANISM | ||
| 065 | H XB0007230086 | CAM |
| DOOR LOCKING MECHANISM | ||
| 065 | H XB0007230086 | CAM |
| DOOR LOCKING MECHANISM | ||
| 065 | H XB0007230086 | CAM |
| DOOR LOCKING MECHANISM | ||
| 065 | H XB0007230086 | CAM |
| DOOR LOCKING MECHANISM | ||
| 066 | A 6137230086 | CAM |
| DOOR LOCKING MECHANISM | ||
| 066 | A 6137230086 | CAM |
| DOOR LOCKING MECHANISM | ||
| 067 | A 6137230903 | STRIKER |
| DOOR LOCKING MECHANISM | ||
| 067 | A 6137230903 | STRIKER |
| DOOR LOCKING MECHANISM | ||
| 067 | A 6137230903 | STRIKER |
| DOOR LOCKING MECHANISM | ||
| 068 | A 6137230503 | STRIKER |
| DOOR LOCKING MECHANISM | ||
| 068 | A 6137230503 | STRIKER |
| DOOR LOCKING MECHANISM | ||
| 068 | A 6137230503 | STRIKER |
| DOOR LOCKING MECHANISM | ||
| 069 | A 6137230603 | STRIKER |
| DOOR LOCKING MECHANISM | ||
| 069 | A 6137230603 | STRIKER |
| DOOR LOCKING MECHANISM | ||
| 069 | A 6137230603 | STRIKER |
| DOOR LOCKING MECHANISM | ||
| 070 | N 007984008025 | SCREW |
| M 8 X 40 | ||
| 070 | N 007984008025 | SCREW |
| M 8 X 40 | ||
| 071 | N 000137008101 | SPRING WASHER |
| 071 | N 000137008101 | SPRING WASHER |
| 071 | N 000137008101 | SPRING WASHER |
| 071 | N 000137008101 | SPRING WASHER |
| 072 | N 000933008114 | SCREW |
| Repalced by: N 000933008154 | ||
| 072 | N 000933008114 | SCREW |
| Repalced by: N 000933008154 | ||
| 072 | N 000933008154 | SCREW |
| M 8 X 22 | ||
| 072 | N 000933008154 | SCREW |
| M 8 X 22 | ||
| 073 | N 000965008003 | SCREW |
| M 8 X 20 | ||
| 073 | N 000965008003 | SCREW |
| M 8 X 20 | ||
| 074 | H XB3739880060 | LOCK |
| CLOSING 0 DEGREES - 90 DEGREES | ||
| 074 | H XB3739880060 | LOCK |
| CLOSING 0 DEGREES - 90 DEGREES | ||
| 074 | H XB3739880160 | LOCK |
| 074 | H XB3739880160 | LOCK |
| 074 | H XB3739880160 | LOCK |
| 077 | H XB3739880059 | KEY |
| 077 | H XB3739880059 | KEY |
| 080 | A 3027550484 | FASTENER |
| Repalced by: A 3027550584 | ||
| 080 | A 3027550484 | FASTENER |
| Repalced by: A 3027550584 | ||
| 080 | A 3027550584 | FASTENER |
| 080 | A 3027550584 | FASTENER |
| 083 | A 6137660001 | DOOR HANDLE |
| 083 | A 6137660001 | DOOR HANDLE |
| 086 | N 007985006128 | SCREW |
| Repalced by: N 007985006157 | ||
| 086 | N 007985006128 | SCREW |
| Repalced by: N 007985006157 | ||
| 086 | N 007985006157 | SCREW |
| HANDLE TO DOOR | ||
| 086 | N 007985006157 | SCREW |
| HANDLE TO DOOR | ||
| 089 | N 912004006100 | LOCK WASHER |
| HANDLE TO DOOR | ||
| 089 | N 912004006100 | LOCK WASHER |
| HANDLE TO DOOR | ||
| 092 | A 6137230083 | SPACER |
| 092 | A 6137230083 | SPACER |
| 095 | A 6137200004 | LOCKING EYE |
| 095 | A 6137200004 | LOCKING EYE |
| 098 | A 6137230003 | STRIKER |
| 098 | A 6137230003 | STRIKER |
| 101 | A 6139900140 | WASHER |
| 101 | A 6139900140 | WASHER |
| 104 | N 000931005054 | SCREW |
| 104 | N 000931005054 | SCREW |
| 107 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 107 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 107 | N 009021005205 | WASHER |
| 107 | N 009021005205 | WASHER |
| 110 | N 912004005100 | LOCK WASHER |
| Repalced by: N 912004005103 | ||
| 110 | N 912004005100 | LOCK WASHER |
| Repalced by: N 912004005103 | ||
| 110 | N 912004005103 | LOCK WASHER |
| 110 | N 912004005103 | LOCK WASHER |
| 113 | A 6137200235 | LOCK |
| 113 | A 6137200235 | LOCK |
| 113 | A 6137200435 | LOCK |
| 113 | A 6137200435 | LOCK |
| 113 | A 6137200535 | LOCK |
| 113 | A 6137200535 | LOCK |
| 116 | A 6137230009 | DOOR PULL HANDLE |
| 116 | A 6137230009 | DOOR PULL HANDLE |
| 119 | A 6137230114 | BRACKET |
| 119 | A 6137230114 | BRACKET |
| 119 | A 6137230114 | BRACKET |
| 122 | H XB3737230134 | SPRING |
| 122 | H XB3737230134 | SPRING |
| 122 | H XB3737230134 | SPRING |
| 125 | H XB3737230214 | BRACKET |
| 125 | H XB3737230214 | BRACKET |
| 125 | H XB3737230214 | BRACKET |
| 128 | A 6137230029 | STOP |
| 128 | A 6137230029 | STOP |
| 128 | A 6137230029 | STOP |
| 131 | A 6137230011 | PLATE |
| 131 | A 6137230011 | PLATE |
| 131 | A 6137230011 | PLATE |
| 134 | N 007985004124 | SCREW |
| Repalced by: N 007985004149 | ||
| 134 | N 007985004124 | SCREW |
| Repalced by: N 007985004149 | ||
| 134 | N 007985004149 | SCREW |
| 134 | N 007985004149 | SCREW |
| 134 | N 007985004124 | SCREW |
| Repalced by: N 007985004149 | ||
| 134 | N 007985004149 | SCREW |
| 137 | A 0048203910 | SWITCH |
| 137 | A 0048203910 | SWITCH |
| 137 | A 0048203910 | SWITCH |
| 140 | A 3077230053 | BUSHING |
| 140 | A 3077230053 | BUSHING |
| 140 | A 3077230053 | BUSHING |
| 143 | A 6137200335 | LOCK |
| 143 | A 6137200335 | LOCK |
| 146 | N 000965006024 | SCREW |
| Repalced by: A 0029900120 | ||
| 146 | A 0029900120 | SCREW |
| M6X20 | ||
| 146 | N 000965006024 | SCREW |
| Repalced by: A 0029900120 | ||
| 146 | A 0029900120 | SCREW |
| M6X20 | ||
| 146 | N 000965006013 | SCREW |
| 146 | N 000965006013 | SCREW |
| 149 | N 912010010001 | LOCK PLATE |
| 149 | N 912010010001 | LOCK PLATE |
| 152 | H XB0007230003 | STRIKER |
| Repalced by: A 6137200204 | ||
| 152 | H XB0007230003 | STRIKER |
| Repalced by: A 6137200204 | ||
| 152 | A 6137200204 | STRIKER |
| DOOR FRAME | ||
| 152 | A 6137200204 | STRIKER |
| DOOR FRAME | ||
| 152 | A 6137200204 | LOCKING EYE |
| DOOR FRAME | ||
| 152 | A 6137200204 | LOCKING EYE |
| DOOR FRAME | ||
| 156 | A 6137230195 | PAD |
| Repalced by: A 6137230295 | ||
| 156 | A 6137230195 | PAD |
| Repalced by: A 6137230295 | ||
| 156 | A 6137230295 | PAD |
| STRIKER TO FRAME | ||
| 156 | A 6137230295 | PAD |
| STRIKER TO FRAME | ||
| 156 | A 6137230295 | PAD |
| STRIKER TO FRAME | ||
| 156 | A 6137230295 | PAD |
| STRIKER TO FRAME | ||
| 157 | A 6137230395 | PAD |
| 157 | A 6137230395 | PAD |
| 156 | A 6137230095 | PAD |
| Repalced by: A 6137230295 | ||
| 156 | A 6137230095 | PAD |
| Repalced by: A 6137230295 | ||
| 156 | A 6137230295 | PAD |
| STRIKER TO FRAME | ||
| 156 | A 6137230295 | PAD |
| STRIKER TO FRAME | ||
| 161 | A 6137660119 | PLATE |
| STRIKER TO FRAME | ||
| 161 | A 6137660119 | PLATE |
| STRIKER TO FRAME | ||
| 164 | N 007984008010 | SCREW |
| STRIKER TO FRAME | ||
| M 8 X 30 | ||
| 164 | N 007984008010 | SCREW |
| STRIKER TO FRAME | ||
| M 8 X 30 | ||
| 164 | N 007984008010 | SCREW |
| STRIKER TO FRAME | ||
| M 8 X 30 | ||
| 164 | N 007984008010 | SCREW |
| STRIKER TO FRAME | ||
| M 8 X 30 | ||
| 167 | N 000933008114 | SCREW |
| Repalced by: N 000933008154 | ||
| 167 | N 000933008114 | SCREW |
| Repalced by: N 000933008154 | ||
| 167 | N 000933008154 | SCREW |
| STRIKER TO FRAME | ||
| M 8 X 22 | ||
| 167 | N 000933008154 | SCREW |
| STRIKER TO FRAME | ||
| M 8 X 22 | ||
| 170 | A 6137230303 | STRIKER |
| 170 | A 6137230303 | STRIKER |
| 170 | A 6137230803 | STRIKER |
| 170 | A 6137230803 | STRIKER |
| 170 | A 6137230803 | STRIKER |
| 170 | A 6137230803 | STRIKER |
| 173 | A 6137230403 | STRIKER |
| 173 | A 6137230403 | STRIKER |
| 173 | A 6137230403 | STRIKER |
| 173 | A 6137230403 | STRIKER |
| 174 | A 6137230703 | STRIKER |
| 174 | A 6137230703 | STRIKER |
| 174 | A 6137230703 | STRIKER |
| 174 | A 6137230703 | STRIKER |
| 176 | H XB3739901340 | WASHER |
| STRIKER TO FRAME | ||
| 176 | H XB3739901340 | WASHER |
| STRIKER TO FRAME | ||
| 179 | N 000137008101 | SPRING WASHER |
| STRIKER TO FRAME | ||
| 179 | N 000137008101 | SPRING WASHER |
| STRIKER TO FRAME | ||
| 179 | N 000137008101 | SPRING WASHER |
| STRIKER TO FRAME | ||
| 179 | N 000137008101 | SPRING WASHER |
| STRIKER TO FRAME | ||
| 182 | A 6137660219 | PLATE |
| DOOR FRAME | ||
| 182 | A 6137660219 | PLATE |
| DOOR FRAME | ||
| 185 | N 007983003256 | SHEET METAL SCREW |
| Repalced by: N 007983003248 | ||
| 185 | N 007983003256 | SHEET METAL SCREW |
| Repalced by: N 007983003248 | ||
| 185 | N 007983003248 | SHEET METAL SCREW |
| STRIKER TO FRAME | ||
| 185 | N 007983003248 | SHEET METAL SCREW |
| STRIKER TO FRAME | ||
| 188 | A 6137230004 | LOCKING EYE |
| DOOR FRAME | ||
| 188 | A 6137230004 | LOCKING EYE |
| DOOR FRAME | ||
| 188 | A 6137230004 | LOCKING EYE |
| DOOR FRAME | ||
| 188 | A 6137230004 | LOCKING EYE |
| DOOR FRAME | ||
| 188 | A 6137230004 | LOCKING EYE |
| DOOR FRAME | ||
| 188 | A 6137230004 | LOCKING EYE |
| DOOR FRAME | ||
| 188 | A 6137230104 | LOCKING EYE |
| DOOR FRAME | ||
| 188 | A 6137230104 | LOCKING EYE |
| DOOR FRAME | ||
| 188 | A 6137230104 | LOCKING EYE |
| DOOR FRAME | ||
| 188 | A 6137230104 | LOCKING EYE |
| DOOR FRAME | ||
| 191 | N 000912008141 | SCREW |
| STRIKER TO FRAME | ||
| 191 | N 000912008141 | SCREW |
| STRIKER TO FRAME | ||
| 191 | N 000912008141 | SCREW |
| STRIKER TO FRAME | ||
| 191 | N 000912008141 | SCREW |
| STRIKER TO FRAME | ||
| 194 | A 3027540597 | PAD |
| 197 | A 6137300560 | WEATHERSTRIP |
| Repalced by: A 6137600098 | ||
| 197 | A 6137600098 | SEAL |
| SEAL TO FRAME | ||
| 197 | A 6137600098 | SEAL |
| SEAL TO FRAME | ||
| 197 | A 6137600098 | SEAL |
| SEAL TO FRAME | ||
| 197 | A 6137300660 | WEATHERSTRIP |
| Repalced by: A 6137600198 | ||
| 197 | A 6137600198 | SEAL |
| SEAL TO FRAME | ||
| 200 | A 6137600135 | DOOR GUIDE |
| 200 | A 6137600135 | DOOR GUIDE |
| 200 | A 6137600135 | DOOR GUIDE |
| 200 | A 6137600135 | DOOR GUIDE |
| 203 | A 6137600228 | BRACKET |
| DOOR RUN TO DOOR | ||
| 203 | A 6137600228 | BRACKET |
| DOOR RUN TO DOOR | ||
| 203 | A 6137600228 | BRACKET |
| DOOR RUN TO DOOR | ||
| 203 | A 6137600228 | BRACKET |
| DOOR RUN TO DOOR | ||
| 206 | N 304017008021 | SCREW |
| BRACKET TO DOOR | ||
| M 8 X 20 | ||
| 206 | N 304017008021 | SCREW |
| BRACKET TO DOOR | ||
| M 8 X 20 | ||
| 206 | N 910105008026 | SCREW |
| BRACKET TO DOOR | ||
| M 8 X 20 | ||
| 206 | N 910105008026 | SCREW |
| BRACKET TO DOOR | ||
| M 8 X 20 | ||
| 209 | N 000125008443 | WASHER |
| BRACKET TO DOOR | ||
| 209 | N 000125008443 | WASHER |
| BRACKET TO DOOR | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
