Transporto priemonė: O350 TOURISMO-RHD O 403-RHD EURO2; VIN numerio dalis: 613355
Grupė: 73 DOORS - 030 REAR DOOR
| # | Kodas | Pavadinimas |
|---|---|---|

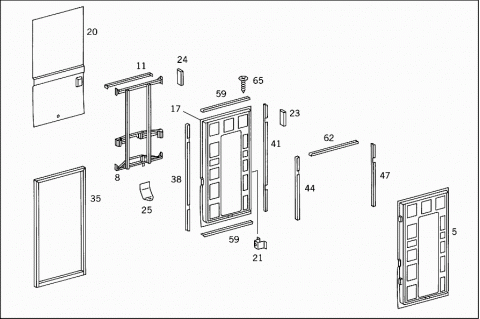

| 005 | A 6137300304 | DOOR SHELL |
| 005 | A 6137300404 | DOOR SHELL |
| 008 | A 6137300206 | REINFORCEMENT |
| Repalced by: A 6137300106 | ||
| 008 | A 6137300306 | REINFORCEMENT |
| Repalced by: A 6137300106 | ||
| 008 | A 6137300106 | REINFORCEMENT |
| 008 | A 6137300106 | REINFORCEMENT |
| 011 | A 6137320816 | REINFORCEMENT |
| 011 | A 6137320816 | REINFORCEMENT |
| 017 | A 6137320210 | INTERIOR PART |
| 017 | A 6137320310 | INTERIOR PART |
| 020 | A 6137320209 | PANELLING |
| 020 | A 6137320309 | PANELLING |
| 021 | A 6137230014 | BRACKET |
| 021 | A 6137230014 | BRACKET |
| 023 | A 6137220211 | PLATE |
| 023 | A 6137220211 | PLATE |
| 024 | A 6137320011 | PLATE |
| 025 | A 6137320214 | BRACKET |

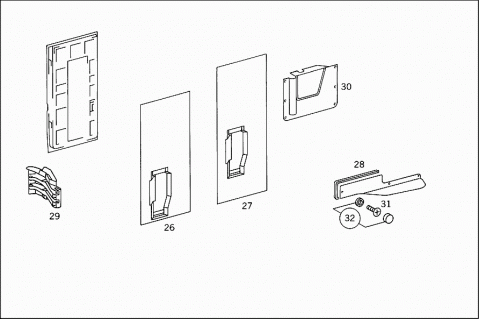

| 026 | A 6137370871 | PANELLING |
| INSIDE | ||
| 027 | A 6137370771 | PANELLING |
| INSIDE | ||
| 028 | A 6137370371 | PANELLING |
| INSIDE | ||
| 028 | A 6137370371 | PANELLING |
| INSIDE | ||
| 028 | A 6137370671 | PANELLING |
| INSIDE | ||
| 029 | A 6137270188 | COVERING |
| SWIVEL BAR,BOTTOM | ||
| 029 | A 6137270188 | COVERING |
| SWIVEL BAR,BOTTOM | ||
| 030 | A 6137370088 | COVERING |
| INSIDE | ||
| 030 | A 6137370088 | COVERING |
| INSIDE | ||
| 031 | N 000000000483 | SCREW |
| PANELLING TO DOOR | ||
| 031 | N 000000000483 | SCREW |
| PANELLING TO DOOR | ||
| 032 | H XB3738140018 | CAP |
| PANELLING TO DOOR | ||
| 032 | H XB3738140018 | CAP |
| PANELLING TO DOOR | ||
| 035 | A 6137300360 | WEATHERSTRIP |
| 035 | A 6137300460 | WEATHERSTRIP |
| 038 | A 6137330190 | LEDGE |
| FRONT | ||
| 038 | A 6137330590 | LEDGE |
| FRONT | ||
| 041 | A 6137330290 | LEDGE |
| REAR | ||
| 041 | A 6137330690 | LEDGE |
| REAR | ||
| 044 | A 6137331390 | LEDGE |
| FRONT TOP | ||
| 044 | A 6137331590 | LEDGE |
| FRONT TOP | ||
| 047 | A 6137331290 | LEDGE |
| REAR TOP | ||
| 047 | A 6137331490 | LEDGE |
| REAR TOP | ||
| 059 | A 6137330390 | LEDGE |
| TOP AND BOTTOM | ||
| 059 | A 6137330390 | LEDGE |
| TOP AND BOTTOM | ||
| 059 | A 6137330390 | LEDGE |
| BOTTOM | ||
| 059 | A 6137330390 | LEDGE |
| BOTTOM | ||
| 062 | A 6137331090 | LEDGE |
| TOP | ||
| 062 | A 6137331090 | LEDGE |
| TOP | ||
| 065 | N 007983003256 | SHEET METAL SCREW |
| Repalced by: N 007983003248 | ||
| 065 | N 000000000483 | SCREW |
| Repalced by: N 007983003248 | ||
| 065 | N 007983003248 | SHEET METAL SCREW |
| LEDGE TO DOOR | ||
| 065 | N 007983003248 | SHEET METAL SCREW |
| LEDGE TO DOOR | ||

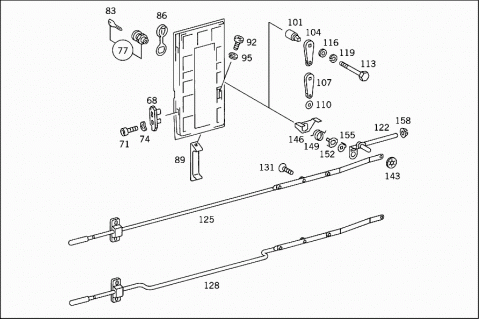

| 068 | H XB0007230086 | CAM |
| DOOR LOCKING MECHANISM | ||
| 068 | H XB0007230086 | CAM |
| DOOR LOCKING MECHANISM | ||
| 071 | N 007984008025 | SCREW |
| DOOR LOCKING MECHANISM | ||
| 071 | N 007984008025 | SCREW |
| DOOR LOCKING MECHANISM | ||
| 074 | N 000137008101 | SPRING WASHER |
| 074 | N 000137008101 | SPRING WASHER |
| 077 | H XB3739880060 | TUMBLER |
| CLOSING 0 DEGREES - 90 DEGREES | ||
| 077 | H XB3739880060 | TUMBLER |
| CLOSING 0 DEGREES - 90 DEGREES | ||
| 077 | H XB3739880160 | TUMBLER |
| 077 | H XB3739880160 | TUMBLER |
| 083 | H XB3739880059 | KEY |
| 083 | H XB3739880059 | KEY |
| 086 | A 3027550584 | FASTENER |
| 086 | A 3027550584 | FASTENER |
| 089 | A 6137660001 | DOOR HANDLE |
| 089 | A 6137660001 | DOOR HANDLE |
| 092 | N 007985006128 | SCREW |
| Repalced by: N 007985006157 | ||
| 092 | N 007985006128 | SCREW |
| Repalced by: N 007985006157 | ||
| 092 | N 007985006157 | SCREW |
| HANDLE TO DOOR | ||
| 092 | N 007985006157 | SCREW |
| HANDLE TO DOOR | ||
| 095 | N 912004006100 | LOCK WASHER |
| HANDLE TO DOOR | ||
| 095 | N 912004006100 | LOCK WASHER |
| HANDLE TO DOOR | ||
| 101 | A 6137230083 | SPACER |
| 101 | A 6137230083 | SPACER |
| 104 | A 6137200004 | LOCKING EYE |
| 104 | A 6137200004 | LOCKING EYE |
| 107 | A 6137230003 | STRIKER |
| 107 | A 6137230003 | STRIKER |
| 110 | A 6139900140 | WASHER |
| 110 | A 6139900140 | WASHER |
| 113 | N 000931005054 | SCREW |
| 113 | N 000931005054 | SCREW |
| 116 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 116 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 116 | N 009021005205 | WASHER |
| 116 | N 009021005205 | WASHER |
| 119 | N 912004005100 | LOCK WASHER |
| Repalced by: N 912004005103 | ||
| 119 | N 912004005100 | LOCK WASHER |
| Repalced by: N 912004005103 | ||
| 119 | N 912004005103 | LOCK WASHER |
| 119 | N 912004005103 | LOCK WASHER |
| 122 | A 6137200235 | LOCK |
| 122 | A 6137200235 | LOCK |
| 122 | A 6137200435 | LOCK |
| 122 | A 6137200535 | LOCK |
| 125 | A 6137300035 | DOOR LOCK |
| 128 | A 6137300135 | DOOR LOCK |
| 131 | N 000966006066 | SCREW |
| 131 | N 000966006066 | SCREW |
| 143 | N 912010010001 | LOCK PLATE |
| 143 | N 912010010001 | LOCK PLATE |
| 146 | A 6137230114 | BRACKET |
| 146 | A 6137230114 | BRACKET |
| 149 | H XB3737230134 | SPRING |
| 149 | H XB3737230134 | SPRING |
| 152 | H XB3737230214 | BRACKET |
| 152 | H XB3737230214 | BRACKET |
| 155 | H XB3737230229 | STOP |
| 155 | H XB3737230229 | STOP |
| 158 | A 3077230053 | BUSHING |
| 158 | A 3077230053 | BUSHING |

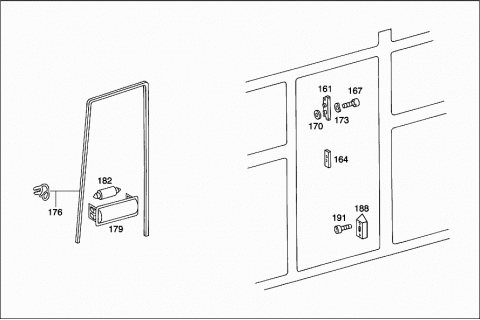

| 161 | H XB0007230003 | STRIKER |
| Repalced by: A 6137200204 | ||
| 161 | H XB0007230003 | STRIKER |
| Repalced by: A 6137200204 | ||
| 161 | A 6137200204 | STRIKER |
| DOOR FRAME | ||
| 161 | A 6137200204 | STRIKER |
| DOOR FRAME | ||
| 161 | A 6137200204 | STRIKER |
| DOOR FRAME | ||
| 161 | A 6137200204 | STRIKER |
| DOOR FRAME | ||
| 164 | A 6137230095 | PAD |
| Repalced by: A 6137230295 | ||
| 164 | A 6137230095 | PAD |
| Repalced by: A 6137230295 | ||
| 164 | A 6137230295 | PAD |
| DOOR FRAME | ||
| 164 | A 6137230295 | PAD |
| DOOR FRAME | ||
| 167 | N 007984008010 | SCREW |
| STRIKER TO FRAME | ||
| 167 | N 007984008010 | SCREW |
| STRIKER TO FRAME | ||
| 167 | N 007984008010 | SCREW |
| STRIKER TO FRAME | ||
| 167 | N 007984008010 | SCREW |
| STRIKER TO FRAME | ||
| 170 | H XB3739901340 | WASHER |
| STRIKER TO FRAME | ||
| 170 | H XB3739901340 | WASHER |
| STRIKER TO FRAME | ||
| 173 | N 000137008101 | SPRING WASHER |
| STRIKER TO FRAME | ||
| 173 | N 000137008101 | SPRING WASHER |
| STRIKER TO FRAME | ||
| 173 | N 000137008101 | SPRING WASHER |
| STRIKER TO FRAME | ||
| 173 | N 000137008101 | SPRING WASHER |
| STRIKER TO FRAME | ||
| 176 | A 3567300178 | WEATHERSTRIP |
| Repalced by: A 6137600298 | ||
| 176 | A 6137600298 | SEAL |
| SEAL TO FRAME | ||
| 176 | A 6137600298 | SEAL |
| SEAL TO FRAME | ||
| 176 | A 3567300278 | WEATHERSTRIP |
| Repalced by: A 6137600398 | ||
| 176 | A 6137600398 | SEAL |
| SEAL TO FRAME | ||
| 176 | A 6137600398 | SEAL |
| SEAL TO FRAME | ||
| 179 | A 1248200301 | INTERIOR LAMP |
| 179 | A 1248200301 | INTERIOR LAMP |
| 182 | A 0005446394 | BULB |
| 182 | A 0005446394 | BULB |
| 188 | A 6137230004 | LOCKING EYE |
| DOOR FRAME | ||
| 188 | A 6137230004 | LOCKING EYE |
| DOOR FRAME | ||
| 191 | N 000912008141 | SCREW |
| 191 | N 000912008141 | SCREW |
