Transporto priemonė: O350 TOURISMO-RHD O 403-RHD EURO2; VIN numerio dalis: 613355

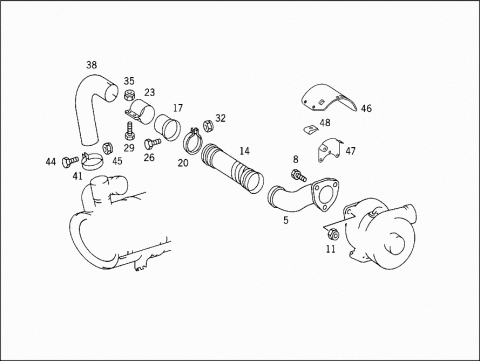

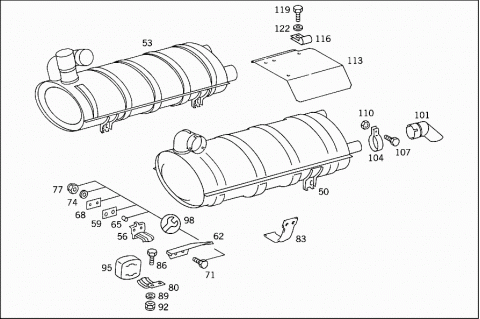

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3564901119 | EXHAUST PIPE |
| FRONT | ||
| 008 | N 000931012247 | SCREW |
| Repalced by: N 000931012114 | ||
| 008 | N 000931012114 | SCREW |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| M 12X45 | ||
| 011 | N 999901012000 | NUT |
| EXHAUST PIPE TO THROTTLE HOUSING | ||
| 014 | A 6214900065 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 014 | A 6214900065 | FLEXIBLE METAL TUBE |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 017 | A 6214920008 | COLLAR |
| 017 | A 6214920008 | COLLAR |
| 020 | A 6219970090 | CLAMP |
| HOSE TO EXHAUST PIPE AND TO MUFFLER | ||
| 020 | A 6219970090 | CLAMP |
| HOSE TO EXHAUST PIPE AND TO MUFFLER | ||
| 023 | A 6254920040 | CLAMP |
| COLLAR TO EXHAUST PIPE | ||
| 023 | A 6254920040 | CLAMP |
| COLLAR TO EXHAUST PIPE | ||
| 026 | N 910105008038 | SCREW |
| HOSE TO EXHAUST PIPE AND TO MUFFLER | ||
| M 8X50 | ||
| 026 | N 910105008038 | SCREW |
| HOSE TO EXHAUST PIPE AND TO MUFFLER | ||
| M 8X50 | ||
| 029 | N 000933010252 | SCREW |
| Repalced by: N 304017010002 | ||
| 029 | N 000933010252 | SCREW |
| Repalced by: N 304017010002 | ||
| 029 | N 304017010002 | SCREW |
| COLLAR TO EXHAUST PIPE | ||
| M 10X30 | ||
| 029 | N 304017010002 | SCREW |
| COLLAR TO EXHAUST PIPE | ||
| M 10X30 | ||
| 032 | N 999901008000 | NUT |
| HOSE TO EXHAUST PIPE AND TO MUFFLER | ||
| 032 | N 999901008000 | NUT |
| HOSE TO EXHAUST PIPE AND TO MUFFLER | ||
| 035 | N 999901010000 | NUT |
| COLLAR TO EXHAUST PIPE | ||
| 035 | N 999901010000 | NUT |
| COLLAR TO EXHAUST PIPE | ||
| 038 | A 3564921501 | FRONT EXHAUST PIPE |
| FRONT | ||
| 041 | A 6139970090 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 044 | N 000933010252 | SCREW |
| Repalced by: N 304017010002 | ||
| 044 | N 304017010002 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| 045 | N 999901010000 | NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 046 | Q 327340011002 | SCREENING PLATE |
| EXHAUST PIPE TO TURBOCHARGER | ||
| 047 | Q 139340011215 | BRACKET |
| SCREENING PLATE TO TURBOCHARGER | ||
| 048 | A 0029942145 | NUT |
| SCREENING PLATE TO TURBOCHARGER | ||
| 050 | A 3564900201 | EXHAUST MUFFLER |
| 053 | A 3564900001 | EXHAUST MUFFLER |
| 053 | A 6184900101 | EXHAUST MUFFLER |
| 053 | A 6184900301 | EXHAUST MUFFLER |
| 056 | A 3004910115 | CONSOLE |
| AT MUFFLER | ||
| 056 | A 3004910115 | CONSOLE |
| AT MUFFLER | ||
| 059 | A 3014910118 | PLATE |
| CONSOLE TO EXHAUST MUFFLER | ||
| 059 | A 3014910118 | PLATE |
| CONSOLE TO EXHAUST MUFFLER | ||
| 062 | A 3004910030 | PROTECTIVE PLATE |
| EXHAUST MUFFLER,LEFT AND RIGHT | ||
| 062 | A 3004910030 | PROTECTIVE PLATE |
| EXHAUST MUFFLER,LEFT AND RIGHT | ||
| 065 | A 3014910053 | SPACER TUBE |
| CONSOLE TO EXHAUST MUFFLER | ||
| 065 | A 3014910053 | SPACER TUBE |
| CONSOLE TO EXHAUST MUFFLER | ||
| 068 | A 3004910183 | INSULATION |
| 068 | A 3004910183 | INSULATION |
| 068 | A 3004910283 | INSULATION |
| 068 | A 3004910283 | INSULATION |
| 071 | N 910105008039 | SCREW |
| CONSOLE TO EXHAUST MUFFLER | ||
| M 8X25 | ||
| 071 | N 910105008039 | SCREW |
| CONSOLE TO EXHAUST MUFFLER | ||
| M 8X25 | ||
| 071 | N 000933008273 | SCREW |
| Repalced by: N 304017008027 | ||
| 071 | N 000933008273 | SCREW |
| Repalced by: N 304017008027 | ||
| 071 | N 910105008016 | SCREW |
| CONSOLE TO EXHAUST MUFFLER | ||
| M 8X30 | ||
| 071 | N 910105008016 | SCREW |
| CONSOLE TO EXHAUST MUFFLER | ||
| M 8X30 | ||
| 074 | N 000125008417 | WASHER |
| Repalced by: N 000125008443 | ||
| 074 | N 000125008417 | WASHER |
| Repalced by: N 000125008443 | ||
| 074 | N 000125008443 | WASHER |
| CONSOLE TO EXHAUST MUFFLER | ||
| 074 | N 000125008443 | WASHER |
| CONSOLE TO EXHAUST MUFFLER | ||
| 077 | N 999901008000 | NUT |
| CONSOLE TO EXHAUST MUFFLER | ||
| 077 | N 999901008000 | NUT |
| CONSOLE TO EXHAUST MUFFLER | ||
| 080 | A 3014910015 | CONSOLE |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 080 | A 3014910015 | CONSOLE |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 083 | A 6184910015 | CONSOLE |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 086 | N 304017010019 | SCREW |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| M 10X25 | ||
| 086 | N 304017010019 | SCREW |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| M 10X25 | ||
| 089 | N 000125010517 | WASHER |
| Repalced by: N 000125010532 | ||
| 089 | N 000125010517 | WASHER |
| Repalced by: N 000125010532 | ||
| 089 | N 000125010532 | WASHER |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 089 | N 000125010532 | WASHER |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 092 | N 999901010000 | NUT |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 092 | N 999901010000 | NUT |
| EXHAUST MUFFLER TO SUBSTRUCTURE | ||
| 095 | A 3004920082 | DAMPING PAD |
| EXHAUST MUFFLER TO CONSOLE | ||
| 095 | A 3004920082 | DAMPING PAD |
| EXHAUST MUFFLER TO CONSOLE | ||
| 098 | A 3014900037 | SUSPENSION |
| REPAIR KIT | ||
| 098 | A 3014900037 | SUSPENSION |
| REPAIR KIT | ||
| 101 | A 6134900021 | EXHAUST PIPE |
| REAR | ||
| 104 | N 071555094502 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 107 | N 000933010252 | SCREW |
| Repalced by: N 304017010002 | ||
| 107 | N 304017010002 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M 10X30 | ||
| 110 | N 999901010000 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 113 | A 3564920030 | PROTECTIVE PLATE |
| HEAT SHIELD | ||
| 116 | N 916016015203 | CLAMP |
| Repalced by: N 916016015202 | ||
| 116 | N 916016015202 | CLAMP |
| HEAT SHIELD MOUNTING | ||
| 15/15 | ||
| 119 | N 000933006220 | SCREW |
| Repalced by: N 304017006016 | ||
| 119 | N 304017006016 | SCREW |
| HEAT SHIELD MOUNTING | ||
| M 6X16 | ||
| 122 | N 000125006420 | WASHER |
| Repalced by: N 000125006421 | ||
| 122 | N 000125006421 | WASHER |
| HEAT SHIELD MOUNTING | ||
