Transporto priemonė: O350 TOURISMO-RHD O 403-RHD EURO2; VIN numerio dalis: 613355
Grupė: 29 PEDAL ASSEMBLY - 090 CLUTCH AND BRAKE PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|

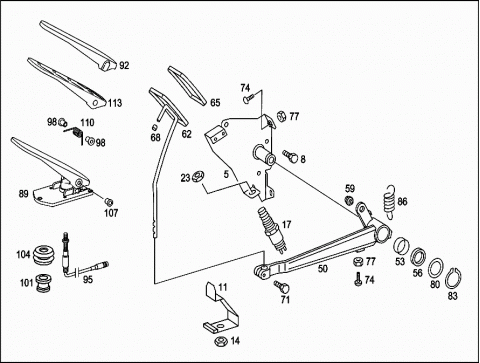

| 005 | A 3562900719 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 005 | A 3562900719 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 005 | A 3562900819 | BEARING BRACKET |
| CLUTCH PEDAL | ||
| 008 | N 304017010028 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| M10X20 | ||
| 008 | N 304017010028 | HEXAGON HEAD BOLT |
| BEARING BRACKET TO SUBSTRUCTURE | ||
| M10X20 | ||
| 011 | A 3562910740 | BRACKET |
| TRAVEL SENSOR | ||
| 014 | N 074305026202 | NUT |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 017 | A 6555400017 | SENDER UNIT |
| CLUTCH ACTUATION | ||
| WABCO | ||

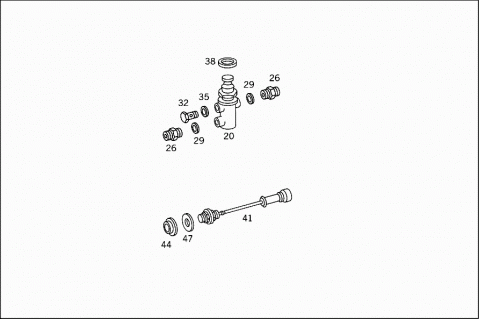

| 020 | A 0012609157 | VALVE |
| CLUTCH ACTUATION | ||
| WABCO | ||
| 023 | N 074305026202 | NUT |
| 3/2-WAY VALVE TO BEARING BRACKET | ||
| 023 | N 074305026202 | NUT |
| 3/2-WAY VALVE TO BEARING BRACKET | ||
| 026 | A 0019972572 | FITTING |
| 3/2-WAY VALVE;CONNECTIONS "1,2" | ||
| 029 | N 007603012110 | SEAL RING |
| 3/2-WAY VALVE;CONNECTIONS "1,2" | ||
| 032 | A 3529970772 | HOLLOW SCREW |
| 3/2-WAY VALVE CONNECTION | ||
| 035 | N 007603012110 | SEAL RING |
| 3/2-WAY VALVE CONNECTION | ||
| 038 | A 3569902740 | WASHER |
| 3/2-WAY VALVE | ||
| 041 | A 0045454014 | SWITCH |
| SWITCH TO BEARING BRACKET | ||
| 044 | A 3562910050 | BUSHING |
| SWITCH TO BEARING BRACKET | ||
| 047 | A 3562910176 | WASHER |
| SWITCH TO BEARING BRACKET | ||
| 050 | A 3562900516 | PEDAL |
| CLUTCH | ||
| 050 | A 3562900516 | PEDAL |
| CLUTCH | ||
| 053 | A 3059920001 | BUSHING |
| CLUTCH PEDAL | ||
| 053 | A 3059920001 | BUSHING |
| CLUTCH PEDAL | ||
| 056 | A 0099976447 | SEAL RING |
| CLUTCH PEDAL | ||
| 056 | A 0099976447 | SEAL RING |
| CLUTCH PEDAL | ||
| 059 | A 0009817031 | JOINT BEARING |
| CLUTCH PEDAL | ||
| 059 | A 0009817031 | JOINT BEARING |
| CLUTCH PEDAL | ||
| 062 | A 3562900424 | PEDAL PLATE |
| CLUTCH | ||
| 062 | A 3562900424 | PEDAL PLATE |
| CLUTCH | ||
| 065 | A 3052910182 | PAD |
| PEDAL PLATE | ||
| 065 | A 3052910182 | PAD |
| PEDAL PLATE | ||
| 068 | A 1262770081 | COVERING |
| PEDAL PLATE | ||
| 068 | A 1262770081 | COVERING |
| PEDAL PLATE | ||
| 071 | N 304017010019 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| M 10X25 | ||
| 071 | N 304017010019 | SCREW |
| PEDAL PLATE TO PEDAL | ||
| M 10X25 | ||
| 074 | A 3012910241 | STOP |
| CLUTCH PEDAL | ||
| 074 | A 3012910241 | STOP |
| CLUTCH PEDAL | ||
| 074 | A 3012910241 | STOP |
| SENDER UNIT OPERATION | ||
| 074 | A 3012910241 | STOP |
| SENDER UNIT OPERATION | ||
| 077 | N 000439008218 | NUT |
| Repalced by: N 304035008001 | ||
| 077 | N 000439008218 | NUT |
| Repalced by: N 304035008001 | ||
| 077 | N 304035008001 | NUT |
| STOP | ||
| 077 | N 304035008001 | NUT |
| STOP | ||
| 077 | N 000439008218 | NUT |
| Repalced by: N 304035008001 | ||
| 077 | N 000439008218 | NUT |
| Repalced by: N 304035008001 | ||
| 077 | N 304035008001 | NUT |
| SENDER UNIT OPERATION | ||
| 077 | N 304035008001 | NUT |
| SENDER UNIT OPERATION | ||
| 080 | N 000988030009 | FITTED WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 080 | N 000988030009 | FITTED WASHER |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 083 | N 000983028001 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 083 | N 000983028001 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 086 | A 3059930610 | SPRING |
| CLUTCH PEDAL RESET | ||
| 086 | A 3059930610 | SPRING |
| CLUTCH PEDAL RESET | ||
| 089 | A 0004300518 | BRAKE PEDAL |
| 092 | A 0002920182 | PAD |
| 095 | A 0155454132 | CONTROL UNIT |
| STOP LIGHT | ||
| 098 | A 0004311949 | GUIDE BUSHING |
| 101 | A 0004311850 | BUSHING |
| 104 | A 0059973240 | SEAL RING |
| 107 | A 0004311950 | BUSHING |
| 110 | A 0014318193 | SPRING |
| 113 | A 0004340125 | PEDAL PLATE |
