Transporto priemonė: O530 - CITARO 12M, 1 TUER; VIN numerio dalis: 628080

Grupė: 95 SEATS - 015 PASSENGER SEAT, ONE-AND-A-HALF SEAT

#	Kodas	Pavadinimas

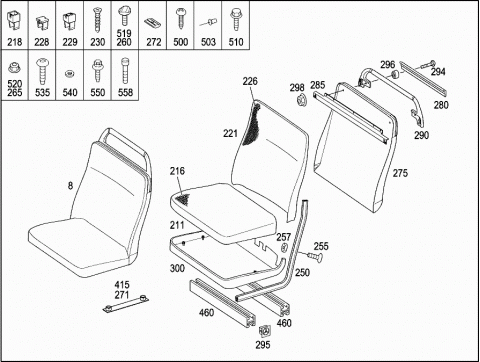

008	A 6289400801	SINGLE OCCUPANCY SEAT
		ONE-AND-A-HALF-PERSON SEAT,WITH GRAB HANDLE
008	A 6289400801	SINGLE OCCUPANCY SEAT
		ONE-AND-A-HALF-PERSON SEAT,WITH GRAB HANDLE
211	A 6289405221	SEAT CUSHION
		PASSENGER SEAT, ONE-AND-A-HALF SEAT
		TO A6289400801
211	A 6289405221	SEAT CUSHION
		PASSENGER SEAT, ONE-AND-A-HALF SEAT
		TO A6289400801
216	A 6289402546	COVER
		COVER TO SEAT CUSHION
		TO A6289405221
216	A 6289402546	COVER
		COVER TO SEAT CUSHION
		TO A6289405221
218	A 6289420414	BRACKET
		SEAT CUSHION,FRONT
		TO A6289405221
218	A 6289420414	BRACKET
		SEAT CUSHION,FRONT
		TO A6289405221
221	A 6289406331	BACKREST
		PASSENGER SEAT, ONE-AND-A-HALF SEAT
		TO A6289400801
221	A 6289406331	BACKREST
		PASSENGER SEAT, ONE-AND-A-HALF SEAT
		TO A6289400801
226	A 6289402447	COVER
		TO A6289406331
226	A 6289402447	COVER
		TO A6289406331
228	A 6289430914	BRACKET
		TOP BACKREST MOUNT
		TO A6289406331
228	A 6289430914	BRACKET
		TOP BACKREST MOUNT
		TO A6289406331
229	A 6289431014	BRACKET
		BOTTOM BACKREST MOUNT
		TO A6289406331
229	A 6289431014	BRACKET
		BOTTOM BACKREST MOUNT
		TO A6289406331
230	A 6289410071	SCREW
		SEAT MOUNTING
		3,9X22
230	A 6289410071	SCREW
		SEAT MOUNTING
		3,9X22
250	A 6289410506	FRAME PART
		PASSENGER SEAT, ONE-AND-A-HALF SEAT
250	A 6289410506	FRAME PART
		PASSENGER SEAT, ONE-AND-A-HALF SEAT
255	A 0009905931	SCREW
		M6 X 35 MM
255	A 0009905931	SCREW
		M6 X 35 MM
257	N 913012006000	NUT
		M6
257	N 913012006000	NUT
		M6
260	A 0009510071	SLOTTED SCREW
		M 8X42
260	A 0009510071	SLOTTED SCREW
		M 8X42
260	A 0009510271	SCREW
		M8X22
265	N 913012008001	NUT
		M8 TENSILOCK
265	N 913012008001	NUT
		M8 TENSILOCK
271	A 6289500011	PLATE
		SEAT MOUNTING
		M8 100/120 MM
271	A 6289500011	PLATE
		SEAT MOUNTING
		M8 100/120 MM
272	A 6289590170	SLIDE
		SEAT FRAMEWORK TO FLOOR
		M8 (AL)
275	A 6289430459	BACKREST SHELL
		PASSENGER SEAT, ONE-AND-A-HALF SEAT
275	A 6289430459	BACKREST SHELL
		PASSENGER SEAT, ONE-AND-A-HALF SEAT
280	A 6289400039	PANELLING
		PASSENGER SEAT, ONE-AND-A-HALF SEAT
280	A 6289400039	PANELLING
		PASSENGER SEAT, ONE-AND-A-HALF SEAT
285	A 6289430068	STRUT
285	A 6289430068	STRUT
290	A 6289400408	BACKREST BRACKET
		PASSENGER SEAT, ONE-AND-A-HALF SEAT
290	A 6289400408	BACKREST BRACKET
		PASSENGER SEAT, ONE-AND-A-HALF SEAT
294	A 6289410571	SCREW
		FASTENING FOR LINING
		M5X30
294	A 6289410571	SCREW
		FASTENING FOR LINING
		M5X30
295	A 6289410018	EDGE GUARD SECTION
295	A 6289410018	EDGE GUARD SECTION
296	A 6289430217	BUSHING
		FASTENING FOR LINING
298	N 913023005002	NUT
		FASTENING FOR LINING
		M5
298	N 913023005002	NUT
		FASTENING FOR LINING
		M5
300	A 6289420257	SEAT SHELL
		PASSENGER SEAT, ONE-AND-A-HALF SEAT
300	A 6289420257	SEAT SHELL
		PASSENGER SEAT, ONE-AND-A-HALF SEAT

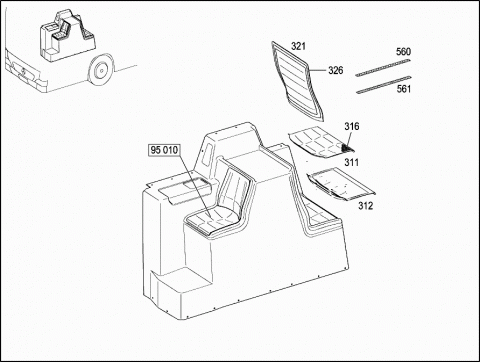

311	A 6289400321	SEAT CUSHION
		ONE AND A HALF SEAT, ON TANK LINING
311	A 6289400321	SEAT CUSHION
		ONE AND A HALF SEAT, ON TANK LINING
311	A 6289400321	SEAT CUSHION
		ONE AND A HALF SEAT, ON TANK LINING
312	A 6289420310	UPHOLSTERY PANEL
		TO A6289400321
312	A 6289420310	UPHOLSTERY PANEL
		TO A6289400321
312	A 6289420310	UPHOLSTERY PANEL
		TO A6289400321
316	A 6289400846	COVER
		TO A6289400321
316	A 6289400846	COVER
		TO A6289400321
316	A 6289400846	COVER
		TO A6289400321
321	A 6289400231	BACKREST
		ONE AND A HALF SEAT, ON TANK LINING
321	A 6289400231	BACKREST
		ONE AND A HALF SEAT, ON TANK LINING
321	A 6289400231	BACKREST
		ONE AND A HALF SEAT, ON TANK LINING
326	A 6289400447	COVER
		TO A6289400231
326	A 6289400447	COVER
		TO A6289400231
326	A 6289400447	COVER
		TO A6289400231
415	A 6289500011	PLATE
		SEAT MOUNTING
		M8 100/120 MM
460	A 6289410436	RAIL
		PASSENGER SEAT, ONE-AND-A-HALF SEAT
		730 MM
460	A 6289410436	RAIL
		PASSENGER SEAT, ONE-AND-A-HALF SEAT
		730 MM
460	A 6289511436	RAIL
		685 MM
500	N 000000000449	TAPPING SCREW
		3.5X19
500	N 000000003743	SCREW
		3,5 X 19 MM
500	N 000000003743	SCREW
		3,5 X 19 MM
503	A 0049901397	RIVET
		4,8X12,7
510	N 910105008017	HEXAGON HEAD BOLT
		M8X45
510	N 910105008017	HEXAGON HEAD BOLT
		M8X45
519	A 0009510071	SLOTTED SCREW
		M 8X42
520	N 913023008003	NUT
		SEAT MOUNTING
		M8
535	A 0009901129	SCREW
		M8X22, T40
535	A 0009901129	SCREW
		M8X22, T40
540	N 000000003250	WASHER
		8 MM
540	N 000000003250	WASHER
		8 MM
540	N 009021008100	WASHER
550	N 910143008001	SCREW
		SEAT MOUNTING
		M8X20
558	N 007984008036	SCREW
560	A 0089873825	PRESSURE LOCK
		62 BUTTONS
560	A 0089873825	PRESSURE LOCK
		62 BUTTONS
560	A 0089873825	PRESSURE LOCK
		62 BUTTONS
561	A 0089873925	PRESSURE LOCK
		26 BUTTONS
561	A 0089873925	PRESSURE LOCK
		26 BUTTONS
561	A 0089873925	PRESSURE LOCK
		26 BUTTONS

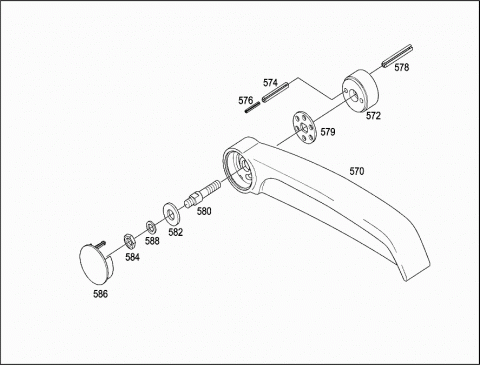

570	A 6299700104	ARMREST LESS COVER
		LEFT OR RIGHT
572	A 6299740220	SUPPORT
		WIDE
574	N 000000001090	ROLL PIN
		6 X 28
576	N 000000000921	ROLL PIN
		3,5 X 22
578	N 000000001610	ROLL PIN
		8 X 32
579	A 6299730036	SLIDE
580	A 6299740071	SCREW
		THREADED PIN
582	N 006902011102	WASHER
		11MM
584	A 0059901551	NUT
586	A 6299730228	CAP
		LEFT AND RIGHT
588	A 6299730096	UNDERLAYER
