Transporto priemonė: O580 TRAVEGO 15RHD; VIN numerio dalis: 629011

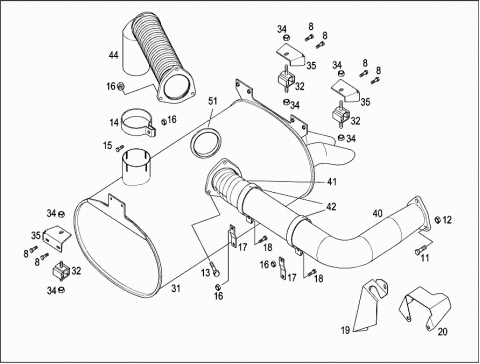

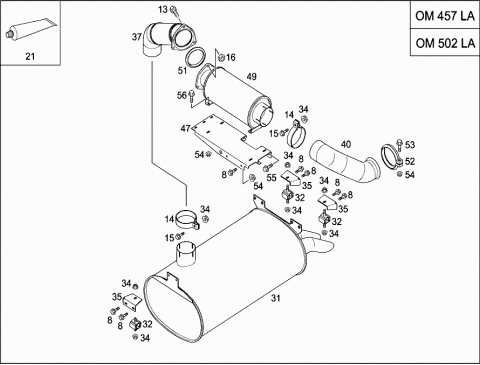

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | N 910105008026 | SCREW |
| M8X20MM | ||
| 011 | N 304017014001 | SCREW |
| M14X50MM | ||
| 012 | N 304032014000 | NUT |
| M14X50MM | ||
| 013 | N 308676012011 | SCREW |
| M12X1,5X50MM | ||
| 014 | A 6294910040 | CLAMP |
| Repalced by: A 0004921240 | ||
| 014 | A 0004921240 | CLAMP |
| EXHAUST SYSTEM | ||
| D=124,5MM | ||
| Repalced by: A 6554920140 | ||
| 014 | A 6554920140 | CLAMP |
| EXHAUST SYSTEM | ||
| D=124,5MM | ||
| 014 | A 6294910040 | CLAMP |
| Repalced by: A 0004921240 | ||
| 014 | A 0004921240 | CLAMP |
| 014 | A 6294910040 | CLAMP |
| Repalced by: A 0004921240 | ||
| 014 | A 0004921240 | CLAMP |
| D=124,5MM | ||
| Repalced by: A 6554920140 | ||
| 014 | A 6554920140 | CLAMP |
| 015 | N 910105012020 | SCREW |
| M12X1,5X35MM | ||
| 015 | N 910105012020 | SCREW |
| M12X1,5X35MM | ||
| Repalced by: N 910105010007 | ||
| 015 | N 910105010007 | SCREW |
| M10X35MM | ||
| 016 | N 910113012002 | NUT |
| M12X1,5 | ||
| Repalced by: N 910112010001 | ||
| 016 | N 910112010001 | NUT |
| M10X1,5 | ||
| 016 | N 910113012002 | NUT |
| M12X1,5 | ||
| 017 | A 6294920041 | BRACKET |
| 018 | N 910105012010 | HEXAGON HEAD BOLT |
| M12X1,5X40MM | ||
| 019 | A 6294920030 | SCREENING PLATE |
| 020 | A 6294920130 | SCREENING PLATE |
| 021 | A 0079893571 | ADHESIVE |
| THREAD LOCK | ||
| 50G | ||
| 031 | A 6294910000 | EXHAUST MUFFLER |
| 031 | A 6294910000 | EXHAUST MUFFLER |
| Repalced by: A 6294910300 | ||
| 031 | A 6294910300 | EXHAUST MUFFLER |
| 031 | A 6294900114 | EXHAUST MUFFLER |
| 032 | A 0004910285 | RUBBER MOUNTING |
| 034 | N 913023010002 | NUT |
| M10 | ||
| 034 | N 910112010001 | NUT |
| M10 | ||
| 035 | A 6294910041 | BRACKET |
| 037 | A 6294901110 | EXHAUST PIPE |
| Repalced by: A 6294901210 | ||
| 037 | A 6294901210 | EXHAUST PIPE |
| 038 | A 6294901910 | EXHAUST PIPE |
| Repalced by: A 6294902310 | ||
| 038 | A 6294902310 | EXHAUST PIPE |
| 040 | A 6294901010 | EXHAUST PIPE |
| Repalced by: A 6294900610 | ||
| 040 | A 6294900610 | EXHAUST PIPE |
| 040 | A 6294900210 | EXHAUST PIPE |
| Repalced by: A 6294900610 | ||
| 040 | A 6294900610 | EXHAUST PIPE |
| 041 | A 0004921883 | INSULATION |
| 042 | A 6294920040 | CLAMP |
| 044 | A 6294900310 | EXHAUST PIPE |
| 047 | A 6294910015 | CONSOLE |
| A 6294920141 | BRACKET | |
| 049 | A 6294910400 | MUFFLER |
| 051 | A 6294920080 | FLANGE GASKET |
| D140/116X18 | ||
| 052 | A 9429970290 | CLAMP |
| 052 | A 9429970290 | CLAMP |
| Repalced by: A 0009958602 | ||
| 052 | A 0009958602 | CLAMP |
| 053 | N 910105008010 | SCREW |
| M8X40MM | ||
| 054 | N 913023008003 | NUT |
| M8 | ||
| 055 | N 910105016029 | SCREW |
| M16X25MM | ||
| Repalced by: N 000000005555 | ||
| 055 | N 000000005555 | SCREW |
| M16X25MM | ||
| 056 | N 910105008041 | SCREW |
| M8X16MM | ||
| 060 | A 0009956302 | CLAMP |
| D=162 | ||
| Repalced by: A 0009959702 | ||
| 060 | A 0009959702 | CLAMP |
| D=162 | ||
