Mercedes-benz | iAUTO.lt

Transporto priemonė: O580 TRAVEGO 15RHD; VIN numerio dalis: 629011

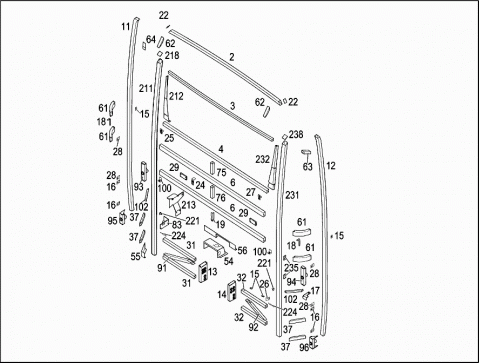

Grupė: 64 REAR PANEL

#	Kodas	Pavadinimas
002	A 6296420306	FRAME PART
003	A 6296420206	FRAME PART
		REAR WINDOW PANE,TOP
004	A 6296420106	FRAME PART
		REAR WINDOW FRAME ON PLATE, BOTTOM
		L = 2060 MM
006	A 6296420006	FRAME PART
		CENTRAL
011	A 6296400610	PILLAR
		LEFT
		L = 2955 MM
012	A 6296400710	PILLAR
		RIGHT
		L = 2955 MM
013	A 6296400033	STAY
		LEFT
014	A 6276400333	STAY
		RIGHT
015	A 6276160808	PERFORATED PLATE
		40 X 26 MM
016	A 6296410713	PLATE
		MOUNTING PLATE
		60 X 40 MM
017	A 6296410114	BRACKET
		L = 56 MM
018	A 6296420065	WELDING PIECE
019	A 6296400517	ANGLE
		CENTRAL
022	A 6276221311	PLATE
		20 X 150 MM
024	A 6296420209	BRACKET
		CENTRAL
025	A 6296420409	BRACKET
		LEFT
026	A 6276420911	PLATE
		50 X 45 MM
027	A 6296420309	BRACKET
		RIGHT
028	A 6296411613	PLATE
		MOUNTING PLATE
029	A 6296422411	PLATE
031	A 6296420015	GIRDER PART
		LEFT
		L = 613 MM
032	A 6296420115	GIRDER PART
		RIGHT
		L = 475 MM
037	A 6296430320	STRUT
		L = 238 MM
054	A 6296460031	CONSOLE
	Repalced by: A 6296460231
054	A 6296460231	CONSOLE
055	A 6296420032	ANGLE
056	A 6296420132	ANGLE
061	A 6296430220	STRUT
		L = 270 MM
062	A 6296430038	STAY
		L = 141 MM
063	A 6296430138	STAY
		RIGHT
		L = 112 MM
064	A 6296430238	STAY
		LEFT
		L = 112 MM
075	A 6296410310	PILLAR
		CENTRAL
		L = 186 MM
076	A 6296410410	PILLAR
		CENTRAL
		L = 325 MM
083	A 6296400817	ANGLE
		LEFT BOTTOM
	Repalced by: A 6296400951
083	A 6296400951	BRACKET
		LEFT BOTTOM
091	A 6296430020	STRUT
		LEFT
		L = 610 MM
092	A 6296430120	STRUT
		RIGHT
		L = 475 MM
093	A 6296400283	MOUNTING
094	A 6296400383	MOUNTING
095	A 6296400083	MOUNTING
096	A 6296400183	MOUNTING
	A 0019840619	WELDED PINS
		M 6 X 25
100	A 6296400417	ANGLE
		L = 45 MM
102	A 6296420016	REINFORCEMENT
		L = 255 MM
211	A 6296410110	PILLAR
		L = 2885 MM
212	A 6296440226	REST
		LEFT
213	A 6296411114	BRACKET
	Repalced by: A 6296400651
213	A 6296400651	BRACKET
218	A 6296410013	PLATE
		56 X 58 MM
221	A 6296400151	BRACKET
	A 0009845421	RIVETED NUT
		M 8 X 1,25
224	A 6296420024	PIN
		L = 105 MM
	Repalced by: A 6276410034
224	A 6276410034	PIN
		L = 100 MM
	A 0009845221	RIVETED NUT
		M 6 X 1,0
231	A 6296410810	PILLAR
		L = 2885 MM
232	A 6296440326	REST
		RIGHT
235	A 6296410713	PLATE
		MOUNTING PLATE
		60 X 40 MM
238	A 6296410113	PLATE
		38 X 47 MM
241	A 6296470884	SIDE PART
		LEFT TOP
244	A 6296470784	SIDE PART
		RIGHT TOP
247	A 6296470074	PARTITION PANEL
		LEFT AND RIGHT
250	A 6296470684	REAR ILLUMINATION MODULE
		LEFT
253	A 6296470484	REAR ILLUMINATION MODULE
		RIGHT
256	A 0099977981	GROMMET
		ID 8
259	N 304032008006	HEXAGON NUT
		M8
262	N 000125008445	WASHER
		8,4MM
265	N 009021006209	WASHER
		6,4MM
268	N 000912006040	SCREW
		M8X20MM
271	A 6296470341	COVER
		SLIP-ON MOUNT USED FOR SKI FIXTURE
274	A 6296470284	REAR STYLING CONV. KIT
277	N 304017008018	HEXAGON HEAD BOLT
		M8X35MM
280	N 000125008445	WASHER
		8,4MM
283	A 6296470374	PARTITION PANEL
		2090 X 732 MM
286	A 6296470612	ANGLE
		TOP, AT RADIATOR
		L = 935 MM
	A 6296470712	ANGLE
		RADIATOR BOTTOM
		107 X 60 MM
289	A 6296470812	ANGLE
		REAR WINDOW PANE
		L = 1843 MM
292	A 6296470912	ANGLE
		REAR WINDOW PANE
		L = 90 MM
295	A 6296020512	ANGLE
		L = 20 MM
298	A 6299850016	METAL SECTION
		LEFT BOTTOM
301	A 6296470078	RAIL
304	N 000000003260	WASHER
307	A 0006470098	SEAL
