Transporto priemonė: O580 TRAVEGO 16RHD; VIN numerio dalis: 629015

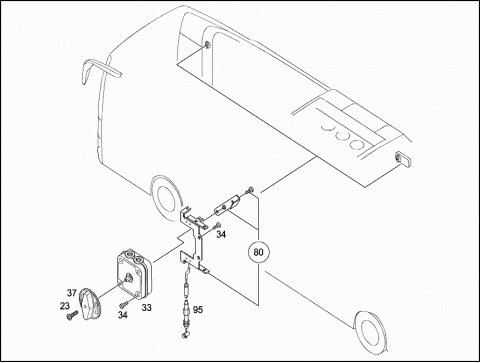

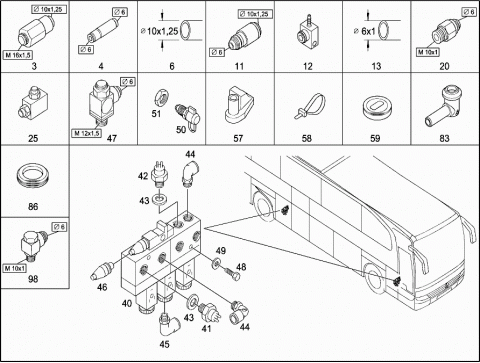

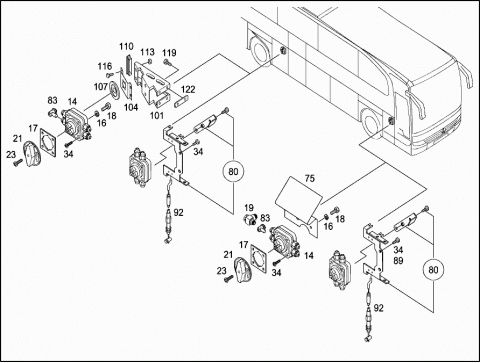

Grupė: 76 DOOR AND WINDOW ACCESSORIES - 060 DOOR CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 003 | A 0059974036 | VALVE |
| 003 | A 0059974036 | VALVE |
| 004 | A 0007605278 | VALVE |
| 004 | A 0007605278 | VALVE |
| 006 | A 0009873927 | PLASTIC PIPE |
| 10X1.25 | ||
| 006 | A 0009873927 | PLASTIC PIPE |
| 10X1.25 | ||
| 011 | A 0009974475 | THREADED UNION |
| 011 | A 0009974475 | THREADED UNION |
| 012 | A 6459901278 | CONNECTOR |
| 012 | A 6459901278 | CONNECTOR |
| 013 | A 0009872627 | PLASTIC PIPE |
| 6X1 | ||
| 013 | A 0009872627 | PLASTIC PIPE |
| 6X1 | ||
| 014 | A 0015538907 | VALVE |
| Repalced by: A 6287602157 | ||
| 014 | A 6287602157 | CONTROL COCK |
| 014 | A 0015538907 | VALVE |
| Repalced by: A 6287602157 | ||
| 014 | A 6287602157 | CONTROL COCK |
| 016 | A 0009943610 | LOCK |
| 016 | A 0009943610 | LOCK |
| 017 | A 0029872460 | RUBBER PAD |
| 017 | A 0029872460 | RUBBER PAD |
| 018 | A 0029901020 | SCREW |
| 018 | A 0029901020 | SCREW |
| 019 | A 0019971183 | SLEEVE |
| TO A0015538907 | ||
| 019 | A 0019971183 | SLEEVE |
| TO A0015538907 | ||
| 020 | A 0039905768 | FITTING |
| 020 | A 0039905768 | FITTING |
| 021 | A 0009977077 | ROTARY KNOB |
| 021 | A 0009977077 | ROTARY KNOB |
| 023 | A 0029901020 | SCREW |
| M5X10MM | ||
| 025 | A 0008050078 | VALVE |
| (SHUTTLE VALVE) | ||
| 025 | A 0008050078 | VALVE |
| (SHUTTLE VALVE) | ||
| 033 | A 0015538907 | VALVE |
| Repalced by: A 6287602157 | ||
| 033 | A 6287602157 | CONTROL COCK |
| 033 | A 0015538907 | VALVE |
| Repalced by: A 6287602157 | ||
| 033 | A 6287602157 | CONTROL COCK |
| 034 | A 0019909820 | HEXAL. SOCKET CSK. BOLT |
| 034 | A 0019909820 | HEXAL. SOCKET CSK. BOLT |
| 037 | A 0009977177 | ROTARY KNOB |
| 037 | A 0009977177 | ROTARY KNOB |
| 040 | A 0007605778 | VALVE |
| 040 | A 0007605778 | VALVE |
| 040 | A 0007607078 | VALVE |
| 041 | A 0007632910 | SWITCH |
| 041 | A 0007632910 | SWITCH |
| 042 | A 0007634210 | SWITCH |
| 3.5 BAR | ||
| 042 | A 0007634210 | SWITCH |
| 3.5 BAR | ||
| 042 | A 0008700481 | PRESSURE SWITCH |
| 043 | A 0007632054 | SEAL |
| 043 | A 0007632054 | SEAL |
| 044 | A 0009973771 | FITTING |
| 044 | A 0009973771 | FITTING |
| 3.5 BAR | ||
| 045 | A 0009973871 | FITTING |
| 045 | A 0009973871 | FITTING |
| 046 | A 0007630864 | DAMPER |
| 046 | A 0007630864 | DAMPER |
| 047 | A 0039907068 | FITTING |
| 047 | A 0039907068 | FITTING |
| 048 | N 910105005009 | HEXAGON HEAD BOLT |
| M 5X55 | ||
| 048 | N 910105005009 | SCREW |
| M 5X55 | ||
| 049 | N 000000003337 | WASHER |
| 049 | N 000000003337 | WASHER |
| 050 | A 0014312331 | TEST CONNECTION |
| M16X1.5/M16X1.5 | ||
| 050 | A 0014312331 | TEST CONNECTION |
| M16X1.5/M16X1.5 | ||
| 051 | A 0049906051 | NUT |
| M16X1.5 RAUFOSS | ||
| 051 | A 0049906051 | NUT |
| M16X1.5 RAUFOSS | ||
| 057 | A 0109883378 | RETAINING CLIP |
| 057 | A 0109883378 | RETAINING CLIP |
| 058 | A 0019978390 | CABLE TIE |
| 058 | A 0019978390 | CABLE TIE |
| 059 | A 0009876441 | RUBBER RING |
| WITH ELONGATED HOLE | ||
| 059 | A 0009876441 | RUBBER RING |
| WITH ELONGATED HOLE | ||
| 075 | A 6297520021 | COVERING |
| 080 | A 4107600057 | CONTROL COCK |
| 083 | A 0049904271 | ELBOW FITTING |
| TO A6287602157 | ||
| 083 | A 0049904271 | ELBOW FITTING |
| TO A6287602157 | ||
| 086 | A 0099978581 | GROMMET |
| 086 | A 0099978581 | GROMMET |
| 089 | Q 0200965243 | SCREW |
| M 6X12 | ||
| 092 | A 6277601304 | PULL |
| L=1830 MM | ||
| 092 | A 6277602204 | PULL |
| L=1400 MM | ||
| 095 | A 6277601704 | PULL |
| L=2330 MM | ||
| 098 | A 0039906768 | FITTING |
| 098 | A 0039906768 | FITTING |
| 101 | A 6297500514 | BRACKET |
| 101 | A 6297500514 | BRACKET |
| 101 | A 6297500414 | BRACKET |
| Repalced by: A 6327630414 | ||
| 101 | A 6327630414 | BRACKET |
| 101 | A 6297500414 | BRACKET |
| Repalced by: A 6327630414 | ||
| 101 | A 6327630414 | BRACKET |
| 104 | A 6297660219 | PLATE |
| 104 | A 6297660219 | PLATE |
| 107 | A 6297570098 | SEAL |
| Repalced by: A 6327570078 | ||
| 107 | A 6327570078 | SEAL |
| 107 | A 6297570098 | SEAL |
| Repalced by: A 6327570078 | ||
| 107 | A 6327570078 | SEAL |
| 110 | A 0039971686 | PLUG |
| 110 | A 0039971686 | PLUG |
| 113 | N 913023006002 | NUT |
| M 6 | ||
| 113 | N 913023006002 | NUT |
| M 6 | ||
| 116 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 116 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 116 | N 910105006004 | HEXAGON HEAD BOLT |
| M6X16 | ||
| Repalced by: N 910143006001 | ||
| 116 | N 910143006001 | HEXALOBULAR BOLT |
| M6X16 | ||
| 119 | N 910105006002 | HEXAGON HEAD BOLT |
| M 6X12 | ||
| 119 | N 910105006002 | HEXAGON HEAD BOLT |
| M 6X12 | ||
| 122 | A 6297540097 | PAD |
