Transporto priemonė: O580 TRAVEGO 17RHD; VIN numerio dalis: 629012

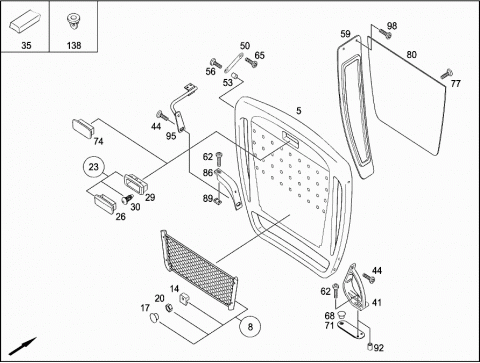

Grupė: 71 PARTITION PANEL - 180 GRIP RAILS AND PARTITION PANELS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 6297110401 | PARTITION PANEL |
| 005 | A 6327110301 | PARTITION PANEL |
| 008 | A 6298100549 | LUGGAGE NET |
| TOTAL RANGE OF DELIVERY | ||
| Repalced by: A 6328100149 | ||
| 008 | A 6328100149 | LUGGAGE NET |
| TOTAL RANGE OF DELIVERY | ||
| 008 | A 6328100149 | LUGGAGE NET |
| TOTAL RANGE OF DELIVERY | ||
| 014 | A 6298110307 | COVERING |
| 017 | A 6299870145 | LOCKING CAP |
| 020 | N 304032003001 | NUT |
| 023 | A 6298101130 | ASHTRAY |
| TOTAL RANGE OF DELIVERY | ||
| 026 | A 6298130158 | COVER |
| 029 | A 6298130258 | HOUSING |
| 030 | A 6298130028 | CLIP |
| ASHTRAY | ||
| 035 | A 6299870075 | INLAID STRIP |
| AT PARTITION PANEL | ||
| 041 | A 6297110045 | STAY |
| 044 | A 0009901129 | SCREW |
| M 8 X 22 T 40 | ||
| 050 | A 6297110612 | ANGLE |
| 053 | A 0009912740 | SPACER BUSH |
| L = 11 MM | ||
| 056 | A 0009901629 | SCREW, SPECIAL SHAPE |
| M8X28 | ||
| 059 | A 6277110023 | PANELLING |
| 062 | A 0009901729 | SCREW |
| M 8 X 40 T 40 | ||
| 065 | A 0009901429 | SCREW |
| M 6 X 35 T 30 | ||
| 068 | A 6297110290 | CAP |
| 068 | A 6297110090 | CAP |
| D = 18 MM | ||
| 071 | A 6297100043 | PLATE |
| 074 | A 6297110069 | ORNAMENTAL COVER |
| ASHTRAY | ||
| 077 | Q 0011032202 | SHEET METAL SCREW |
| 3,9 X 16 | ||
| Repalced by: N 000000000522 | ||
| 077 | N 000000000522 | SHEET METAL SCREW |
| 4.2X16 | ||
| 080 | A 6297100018 | PANELLING |
| 086 | A 6297110145 | STAY |
| 089 | A 6297110012 | ANGLE |
| 092 | A 0003280053 | SPACER TUBE |
| L = 18 MM | ||
| 095 | A 6277100031 | CONSOLE |
| RIGHT | ||
| 098 | A 0039902312 | SCREW |
| M 8 X 35 T 40 | ||
| 138 | A 0019908358 | NUT |
| M8 | ||
