Transporto priemonė: OC 1214; VIN numerio dalis: 341058
Grupė: 42 BRAKE SYSTEM - 001 BRAKES
43593
43594

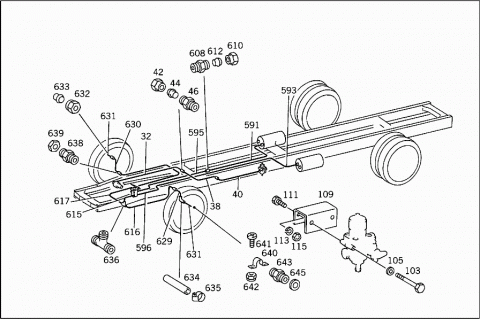

43595
43596
43597
43598
43599

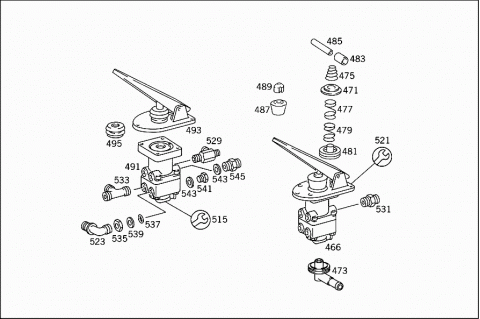

43600

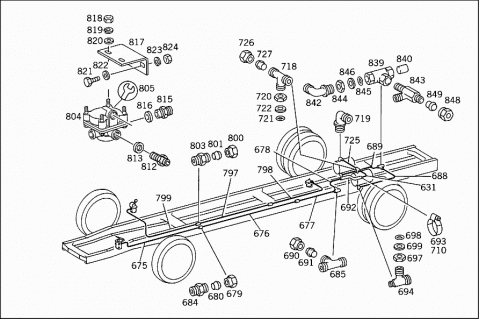

43601
43602

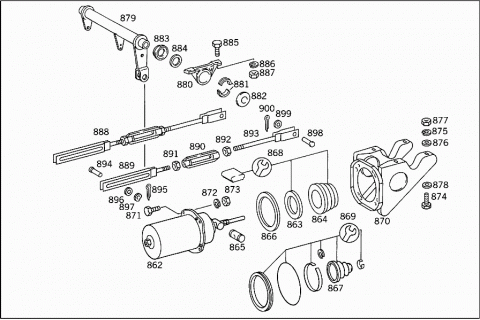

43603
43604
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
732.1
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
743.5
T YYYYYYYYYYYY PART NAME MISSING
FOR BRAKES,SEE UNIT STANDARD VERSION, MODEL:
743.6
003 N 074299026201 DOUBLE FITTING
AT AIR COMPRESSOR
003 A 3414297036 CONNECTOR
AT AIR COMPRESSOR
006 N 007603022102 SEAL RING
AT AIR COMPRESSOR
009 A 3414297740 BRACKET
COMPRESSED AIR LINE TOWARDS PRESSURE REGULATOR
012 A 3129952320 CLAMP
Repalced by: A 3049950120
012 A 3049950120 CLAMP
COMPRESSED AIR LINE TOWARDS PRESSURE REGULATOR
015 N 000933006183 SCREW
COMPRESSED AIR LINE TOWARDS PRESSURE REGULATOR
018 N 000125006421 WASHER
COMPRESSED AIR LINE TOWARDS PRESSURE REGULATOR
021 N 912004006102 LOCK WASHER
COMPRESSED AIR LINE TOWARDS PRESSURE REGULATOR
022 N 000934006007 NUT
COMPRESSED AIR LINE TOWARDS PRESSURE REGULATOR
024 A 3414205626 LINE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
024 A 3414307564 LINE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
027 N 915018018000 UNION NUT
030 N 003861018003 GLAND
032 A 3414308664 LINE
FROM AIR COMPRESSOR TO DOUBLE FITTING
034 A 3414208229 LINE
FROM AIR COMPRESSOR TO DOUBLE FITTING
036 A 3414308764 LINE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
038 A 3414208329 LINE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
040 A 3414208429 LINE
FROM PRESSURE REGULATOR TO DOUBLE FITTING
042 N 915017015100 UNION NUT
COMPRESSED AIR LINE TO AIR COMPRESSOR AND TO PRESSURE REGULATOR
044 N 003861015004 GLAND
COMPRESSED AIR LINE TO AIR COMPRESSOR AND TO PRESSURE REGULATOR
046 N 003902015001 CONNECTION FITTING
BETWEEN THE LINES
062 N 074297018302 THRUST RING
COMPRESSED AIR LINE TO AIR COMPRESSOR AND TO PRESSURE REGULATOR
064 N 915045015100 SEAL RING
COMPRESSED AIR LINE TO AIR COMPRESSOR AND TO PRESSURE REGULATOR
066 A 0004319206 PRESSURE REGULATOR
WITH TIRE INFLATING CONNECTION
066 A 0014310006 VALVE
"WABCO"
066 A 0014311206 VALVE
"KNORR"
066 A 0014319806 VALVE
"KNORR"
068 A 0025865043 REPAIR KIT
TO 000 431 92 06
068 A 0015864343 REPAIR KIT
TO 001 431 00 06
068 A 0004201371 REPAIR KIT
TO 001 431 98 06,001 431 12 06
070 A 0024304681 REPAIR KIT
VALVE KIT
TO 001 431 00 06
072 N 074301026202 ELBOW FITTING
AT PRESSURE REGULATOR
074 N 074301022201 ELBOW FITTING
AT PRESSURE REGULATOR
074 N 074301022302 ELBOW FITTING
AT PRESSURE REGULATOR
074 A 3414297638 ELBOW FITTING
AT PRESSURE REGULATOR
081 N 003910015001 BULKHEAD FITTING
ELBOW FITTING TO PRESSURE REGULATOR
083 N 007603022102 SEAL RING
ELBOW FITTING TO PRESSURE REGULATOR
085 A 3414297036 CONNECTOR
PRESSURE REGULATOR,CONNECTION "21"
087 N 007603022102 SEAL RING
PRESSURE REGULATOR,CONNECTION "21"
097 N 074305022202 NUT
AT PRESSURE REGULATOR
099 A 0004290227 THRUST RING
AT PRESSURE REGULATOR
101 A 0009870446 SEALING CORD
AT PRESSURE REGULATOR
103 N 000931008228 SCREW
PRESSURE REGULATOR TO BRACKET
105 N 000125008418 WASHER
PRESSURE REGULATOR TO BRACKET
107 A 3414307010 BRACKET
PRESSURE REGULATOR
109 A 3414207486 BRACKET
PRESSURE REGULATOR
111 N 000933008036 SCREW
PRESSURE REGULATOR BRACKET TO FRAME SIDE MEMBER
113 N 912004008104 LOCK WASHER
PRESSURE REGULATOR BRACKET TO FRAME SIDE MEMBER
115 N 000934008000 NUT
PRESSURE REGULATOR BRACKET TO FRAME SIDE MEMBER
117 A 3414205726 LINE
FROM PRESSURE REGULATOR TO TWO-CIRCUIT PROTECTIVE VALVE,CONNECTION "L"
117 A 3414205926 LINE
FROM PRESSURE REGULATOR TO TWO-CIRCUIT PROTECTIVE VALVE,CONNECTION "L"
117 A 3414307664 LINE
FROM PRESSURE REGULATOR TO T-FITTING
119 N 915018015000 UNION NUT
121 N 003861015004 GLAND
123 N 915065015101 THRUST RING
CONNECTION OF COMPRESSED AIR LINES
123 A 0004291027 THRUST RING
CONNECTION OF COMPRESSED AIR LINES
125 N 915045015100 SEAL RING
CONNECTION OF COMPRESSED AIR LINES
127 A 0004316806 VALVE
TWO-CIRCUIT PROTECTIVE VALVE
129 A 0007630454 SEAL
131 A 0004311981 VALVE DISC
135 A 0004315086 CUP
137 A 0004317987 PROTECTIVE CAP
139 A 3414308864 LINE
FROM PRESSURE REGULATOR TO FOURCIRCUIT PROTECTIVE VALVE
139 A 3414208429 LINE
FROM PRESSURE REGULATOR TO FOURCIRCUIT PROTECTIVE VALVE
141 N 915017015100 UNION NUT
143 N 003861015004 GLAND
145 A 0024314006 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
145 A 0014318706 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
KNORR
145 A 0024310106 VALVE
FOUR-CIRCUIT PROTECTIVE VALVE
KNORR
147 A 0035860943 REPAIR KIT
002 431 40 06
147 A 0035861043 REPAIR KIT
TO 001 431 87 06
147 A 0004201571 REPAIR KIT
TO 002 431 01 06
149 N 074305022202 NUT
FOUR-CIRCUIT PROTECTIVE VALVE TO SIDE MEMBER
151 N 003910015001 BULKHEAD FITTING
153 N 007603022102 SEAL RING
FOUR-CIRCUIT PROTECTION VALVE, CONNECTION "1"
155 N 003901012005 SCREW-IN FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
157 N 007603016105 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
159 A 3514297038 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
159 A 3089907171 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
159 N 074315012100 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
161 A 3419907470 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
163 A 3419907771 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
165 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,23,24"
Y YYYYYYYYYYYY PART NAME MISSING
SEE FIG. NO.:
100
167 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,23,24"
169 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,23,24"
169 A 3084297027 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS:
"22,23,24"
171 A 3414307565 LINE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO RELAY VALVE,CONNECTION:
"1"
171 A 3414207329 LINE
FROM 4-CIRCUIT PROTECT. VALVE,CONNECTION "23",TO RELAY VALVE,CONNECTION:
"1"
173 A 3414307665 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO T-FITTING
173 A 3414209029 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO T-FITTING
175 A 3414307865 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "24" TO T-FITTING
175 A 3414209731 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "24" TO T-FITTING
177 N 915017008100 UNION NUT
179 N 915017012100 UNION NUT
181 N 003861008005 GLAND
183 N 003861012007 GLAND
185 A 0009901070 T-FITTING
185 A 3454297132 T-FITTING
187 A 3414317274 PIN
AT T-FITTING
189 N 915017008100 UNION NUT
AT T-FITTING
191 N 003861008005 GLAND
AT T-FITTING
193 A 0089979082 HOSE
FROM T-FITTING TO PARKING BRAKE VALVE, CONNECTION:
"11"
193 A 0089979082 HOSE
FROM T-FITTING TO PARKING BRAKE VALVE, CONNECTION:
"12"
193 A 0089979082 HOSE
FROM PARKING BRAKE VALVE,CONNECTION "21",TO FITTING
"11"
193 A 0089979082 HOSE
FROM PARKING BRAKE VALVE,CONNECTION "23",TO FITTING
"11"
197 N 915017008100 UNION NUT
199 N 003861008005 GLAND
201 N 915062006000 SLEEVE
203 N 915052006001 BANJO UNION
205 A 6369900288 BANJO UNION
207 A 3514290132 T-FITTING
AT TWO-CIRCUIT PROTECTIVE VALVE
207 N 074302022202 T-FITTING
AT TWO-CIRCUIT PROTECTIVE VALVE
209 N 074299022302 DOUBLE FITTING
AT TWO-CIRCUIT PROTECTIVE VALVE
211 N 074298022202 DOUBLE FITTING
AT TWO-CIRCUIT PROTECTIVE VALVE
213 A 0004290227 THRUST RING
AT TWO-CIRCUIT PROTECTIVE VALVE
215 A 0009870446 SEALING CORD
AT TWO-CIRCUIT PROTECTIVE VALVE
217 N 074305022202 NUT
AT TWO-CIRCUIT PROTECTIVE VALVE
219 N 007603022102 SEAL RING
AT TWO-CIRCUIT PROTECTIVE VALVE

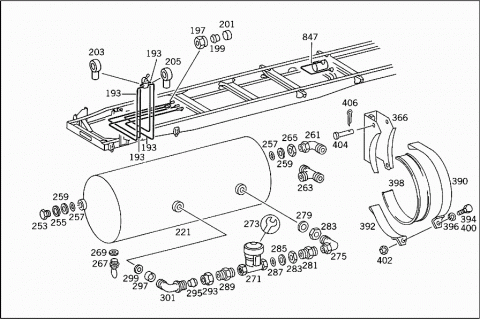

221 A 3524304405 RESERVOIR
FRONT AXLE
223 A 3414308964 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
225 A 3414309064 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR
227 N 915017012100 UNION NUT
245 N 000934006007 NUT
COMPRESSED AIR LINES ONE BELOW THE OTHER
247 A 3414307205 RESERVOIR
AIR RESERVOIR
40 L
249 N 074313012100 FITTING
AT AIR RESERVOIR
251 N 007603022102 SEAL RING
AT AIR RESERVOIR
253 N 000908022001 SCREW PLUG
FRONT AXLE AIR RESERVOIR
255 N 007603022100 SEAL RING
Repalced by: N 007603022102
255 N 007603022102 SEAL RING
FRONT AXLE AIR RESERVOIR
257 A 0009870446 SEALING CORD
FRONT AXLE AIR RESERVOIR
259 A 0004290227 THRUST RING
FRONT AXLE AIR RESERVOIR
261 N 074301022202 ELBOW FITTING
FRONT AXLE AIR RESERVOIR
263 A 0009971474 T-FITTING
FRONT AXLE AIR RESERVOIR
265 N 074305022202 NUT
FRONT AXLE AIR RESERVOIR
267 A 0004321107 VALVE
Repalced by: A 3514307581
267 A 3514307581 VALVE
Repalced by: A 0004322507
267 A 0004322507 VALVE
FRONT AXLE AIR RESERVOIR
267 A 0004322507 VALVE
FRONT AXLE AIR RESERVOIR
267 A 3454300181 VALVE
FRONT AXLE AIR RESERVOIR
267 A 3454300181 VALVE
FRONT AXLE AIR RESERVOIR
267 A 3454300281 VALVE
FRONT AXLE AIR RESERVOIR
267 A 3454300281 VALVE
FRONT AXLE AIR RESERVOIR
267 A 3414300071 SCREW
Repalced by: A 3454300081
267 A 3454300081 VALVE
Repalced by: A 0004322407
267 A 0004322407 VALVE
(INTAKE ADJUSTING SCREW)
267 A 0004322407 VALVE
(INTAKE ADJUSTING SCREW)
267 A 3454307281 VALVE
267 A 3454307281 VALVE
267 A 0004320607 VALVE
267 A 0004320607 VALVE
267 A 3514307781 VALVE
267 A 3514307781 VALVE
269 N 007603022102 SEAL RING
271 A 0014296144 VALVE
FRONT AXLE AIR RESERVOIR
271 A 0014290244 VALVE
FRONT AXLE AIR RESERVOIR
271 A 0014294144 VALVE
FRONT AXLE AIR RESERVOIR
271 A 0024295444 VALVE
FRONT AXLE AIR RESERVOIR
273 A 0015862642 REPAIR KIT
TO 001 429 41 44
273 A 0015862042 REPAIR KIT
TO 001 429 61 44
275 N 074301022302 ELBOW FITTING
FRONT AXLE AIR RESERVOIR
275 A 3414297638 ELBOW FITTING
FRONT AXLE AIR RESERVOIR
279 N 007603022102 SEAL RING
FRONT AXLE AIR RESERVOIR
281 N 074299022302 DOUBLE FITTING
FRONT AXLE AIR RESERVOIR
283 N 074305022202 NUT
FRONT AXLE AIR RESERVOIR
285 A 0004290227 THRUST RING
FRONT AXLE AIR RESERVOIR
287 A 0009870446 SEALING CORD
FRONT AXLE AIR RESERVOIR
289 N 074298022202 DOUBLE FITTING
FRONT AXLE AIR RESERVOIR
291 A 3414209436 LINE
FROM AIR RESERVOIR TO OVERFLOW VALVE
293 N 915018015000 UNION NUT
295 N 003861015004 GLAND
297 N 915065015101 THRUST RING
FRONT AXLE AIR RESERVOIR
297 A 0004291027 THRUST RING
FRONT AXLE AIR RESERVOIR
299 N 915045015100 SEAL RING
FRONT AXLE AIR RESERVOIR
301 N 074301022202 ELBOW FITTING
AT TWO-CIRCUIT PROTECTIVE VALVE

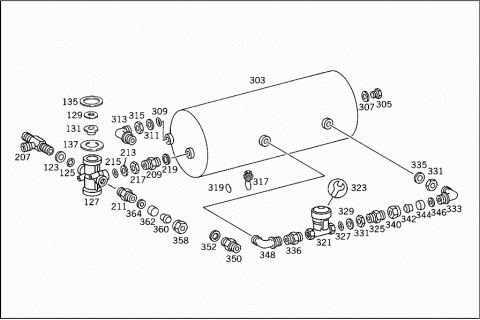

303 A 3124302905 RESERVOIR
REAR AXLE
305 N 000908022001 SCREW PLUG
REAR AXLE AIR RESERVOIR
307 N 007603022100 SEAL RING
Repalced by: N 007603022102
307 N 007603022102 SEAL RING
REAR AXLE AIR RESERVOIR
309 A 0009870446 SEALING CORD
REAR AXLE AIR RESERVOIR
311 A 0004290227 THRUST RING
REAR AXLE AIR RESERVOIR
313 N 074301022202 ELBOW FITTING
REAR AXLE AIR RESERVOIR
315 N 074305022202 NUT
317 A 0004321107 VALVE
Repalced by: A 3514307581
317 A 3514307581 VALVE
Repalced by: A 0004322507
317 A 0004322507 VALVE
REAR AXLE AIR RESERVOIR
317 A 3454307281 VALVE
REAR AXLE AIR RESERVOIR
317 A 3454300181 VALVE
317 A 0004320607 VALVE
REAR AXLE AIR RESERVOIR
317 A 3454300281 VALVE
317 A 3514307781 VALVE
REAR AXLE AIR RESERVOIR
317 A 3414300071 SCREW
Repalced by: A 3454300081
317 A 3454300081 VALVE
Repalced by: A 0004322407
317 A 0004322407 VALVE
(INTAKE ADJUSTING SCREW)
319 N 900397000201 RING
319 A 3459880066 RING
TO 345 430 01 81,72 81
321 A 0014294144 VALVE
REAR AXLE AIR RESERVOIR
321 A 0014296144 VALVE
REAR AXLE AIR RESERVOIR
321 A 0014290244 VALVE
REAR AXLE AIR RESERVOIR
321 A 0024295444 VALVE
REAR AXLE AIR RESERVOIR
323 A 0015862642 REPAIR KIT
REAR AXLE AIR RESERVOIR
TO 001 429 41 44
323 A 0015862042 REPAIR KIT
TO 001 429 61 44
325 N 074299022302 DOUBLE FITTING
REAR AXLE AIR RESERVOIR
325 N 074299022203 DOUBLE FITTING
REAR AXLE AIR RESERVOIR
327 A 0009870446 SEALING CORD
REAR AXLE AIR RESERVOIR
327 A 0009870446 SEALING CORD
REAR AXLE AIR RESERVOIR
329 A 0004290227 THRUST RING
REAR AXLE AIR RESERVOIR
329 A 0004290227 THRUST RING
REAR AXLE AIR RESERVOIR
331 N 074305022202 NUT
REAR AXLE AIR RESERVOIR
331 N 074305022202 NUT
REAR AXLE AIR RESERVOIR
333 N 074301022302 ELBOW FITTING
REAR AXLE AIR RESERVOIR
333 A 3414297638 ELBOW FITTING
335 N 007603022100 SEAL RING
Repalced by: N 007603022102
335 N 007603022102 SEAL RING
REAR AXLE AIR RESERVOIR
336 N 074298022202 DOUBLE FITTING
REAR AXLE AIR RESERVOIR
338 A 3124202836 LINE
FROM AIR RESERVOIR TO OVERFLOW VALVE
340 N 915018015000 UNION NUT
342 N 003861015004 GLAND
344 N 915065015101 THRUST RING
REAR AXLE AIR RESERVOIR
344 A 0004291027 THRUST RING
REAR AXLE AIR RESERVOIR
346 N 915045015100 SEAL RING
REAR AXLE AIR RESERVOIR
348 N 074301022202 ELBOW FITTING
REAR AXLE AIR RESERVOIR
350 N 074299022203 DOUBLE FITTING
REAR AXLE AIR RESERVOIR
352 N 007603022100 SEAL RING
REAR AXLE AIR RESERVOIR
354 A 3414208526 LINE
FROM TWO-CIRCUIT PROTECTIVE VALVE TO FRONT AXLE AIR RESERVOIR
356 A 3414207536 LINE
356 A 3414208032 LINE
FROM OVERFLOW VALVE TO AIR RESERVOIR
358 N 915018015000 UNION NUT
FROM TWO-CIRCUIT PROTECTIVE VALVE TO FRONT AXLE AIR RESERVOIR
360 N 003861015104 GLAND
FROM TWO-CIRCUIT PROTECTIVE VALVE TO FRONT AXLE AIR RESERVOIR
362 N 915065015101 THRUST RING
FROM TWO-CIRCUIT PROTECTIVE VALVE TO FRONT AXLE AIR RESERVOIR
362 A 0004291027 THRUST RING
FROM TWO-CIRCUIT PROTECTIVE VALVE TO FRONT AXLE AIR RESERVOIR
364 N 915045015100 SEAL RING
FROM TWO-CIRCUIT PROTECTIVE VALVE TO FRONT AXLE AIR RESERVOIR
366 A 3414307011 CONSOLE
AIR RESERVOIR
366 A 3414307011 CONSOLE
AIR RESERVOIR
390 A 3414300040 STRAP
Repalced by: A 3414307140
390 A 3414307140 STRAP
390 A 3414307140 STRAP
392 A 3414300140 STRAP
392 A 3414300140 STRAP
394 N 000961012038 SCREW
AIR RESERVOIR TO CONSOLE
396 N 000127012201 LOCK WASHER
AIR RESERVOIR TO CONSOLE
398 A 6634755620 PAD
AIR RESERVOIR TO CONSOLE
400 N 000931010282 SCREW
AIR RESERVOIR TO CONSOLE
400 N 000931010054 SCREW
AIR RESERVOIR TO CONSOLE
402 N 000934010000 NUT
AIR RESERVOIR TO CONSOLE
402 N 000934010005 NUT
AIR RESERVOIR TO CONSOLE
404 N 001434010024 PIN
AIR RESERVOIR TO CONSOLE
404 N 001444010208 PIN
AIR RESERVOIR TO CONSOLE
406 N 000094003201 COTTER PIN
AIR RESERVOIR TO CONSOLE
406 N 000094003207 COTTER PIN
AIR RESERVOIR TO CONSOLE

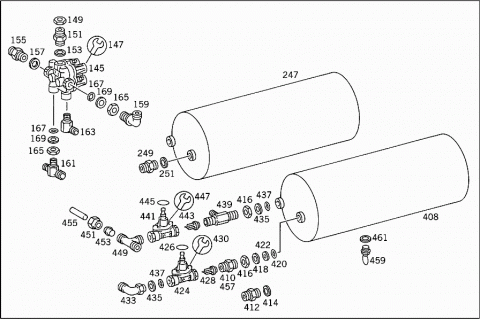

408 A 3414307205 RESERVOIR
SPRING LOAD ACCUMULATOR
410 N 074299022302 DOUBLE FITTING
SPRING LOAD ACCUMULATOR
412 N 074313012100 FITTING
SPRING LOAD ACCUMULATOR
414 N 007603022102 SEAL RING
SPRING LOAD ACCUMULATOR
416 N 074305022202 NUT
SPRING-LOADED BRAKE AIR RESERVOIR
418 N 007603022102 SEAL RING
SPRING-LOADED BRAKE AIR RESERVOIR
420 A 0009870446 SEALING CORD
SPRING-LOADED BRAKE AIR RESERVOIR
422 A 0004290227 THRUST RING
SPRING-LOADED BRAKE AIR RESERVOIR
424 A 0024290044 VALVE
SPRING-LOADED BRAKE AIR RESERVOIR
BOSCH
424 A 0014296544 VALVE
SPRING-LOADED BRAKE AIR RESERVOIR
WESTINGHOUSE
424 A 0014291944 VALVE
SPRING-LOADED BRAKE AIR RESERVOIR
424 A 0024297044 VALVE
SPRING-LOADED BRAKE AIR RESERVOIR
426 A 0004290745 DIAPHRAGM
TO 002 429 70 44
428 A 0024298844 VALVE
TO 002 429 70 44
430 A 0015862642 REPAIR KIT
TO 002 429 00 44
430 A 0015862042 REPAIR KIT
TO 001 429 65 44
433 N 074301022202 ELBOW FITTING
SPRING-LOADED BRAKE AIR RESERVOIR
435 A 0004290227 THRUST RING
SPRING-LOADED BRAKE AIR RESERVOIR
437 A 0009870446 SEALING CORD
SPRING-LOADED BRAKE AIR RESERVOIR
439 A 3414297132 T-FITTING
SPRING-LOADED BRAKE AIR RESERVOIR
441 A 0014299844 VALVE
BOSCH
441 A 0014295244 VALVE
WESTINGHOUSE
441 A 0004296344 VALVE
WESTINGHOUSE
441 A 0014297944 VALVE
GRAU
443 A 0024298841 FITTING
TO 001 429 79 44
A 0004290645 DIAPHRAGM
Repalced by: A 0004290745
445 A 0004290745 DIAPHRAGM
TO 001 429 79 44
447 A 0015862642 REPAIR KIT
TO 001 429 98 44
447 A 0015862042 REPAIR KIT
TO 001 429 52 44
447 A 0005863642 REPAIR KIT
TO 000 429 63 44
449 A 3609900070 T-FITTING
SPRING-LOADED BRAKE AIR RESERVOIR
449 A 3414297232 T-FITTING
SPRING-LOADED BRAKE AIR RESERVOIR
451 N 915017006100 UNION NUT
SPRING-LOADED BRAKE AIR RESERVOIR
453 N 003861006007 GLAND
SPRING-LOADED BRAKE AIR RESERVOIR
455 A 3414317274 PIN
SPRING-LOADED BRAKE AIR RESERVOIR
457 N 074299022301 DOUBLE FITTING
SPRING-LOADED BRAKE AIR RESERVOIR
459 A 3514307581 VALVE
Repalced by: A 0004322507
459 A 0004322507 VALVE
SPRING-LOADED BRAKE AIR RESERVOIR
459 A 0004322507 VALVE
SPRING-LOADED BRAKE AIR RESERVOIR
459 A 3454307281 VALVE
SPRING-LOADED BRAKE AIR RESERVOIR
459 A 3454307281 VALVE
SPRING-LOADED BRAKE AIR RESERVOIR
459 A 3454300081 VALVE
Repalced by: A 0004322407
459 A 0004322407 VALVE
SPRING-LOADED BRAKE AIR RESERVOIR
459 A 0004322407 VALVE
SPRING-LOADED BRAKE AIR RESERVOIR
459 A 3514307781 VALVE
SPRING-LOADED BRAKE AIR RESERVOIR
459 A 3514307781 VALVE
SPRING-LOADED BRAKE AIR RESERVOIR
459 A 3454300181 VALVE
SPRING-LOADED BRAKE AIR RESERVOIR
459 A 3454300181 VALVE
SPRING-LOADED BRAKE AIR RESERVOIR
459 A 3454300281 VALVE
SPRING-LOADED BRAKE AIR RESERVOIR
459 A 3454300281 VALVE
SPRING-LOADED BRAKE AIR RESERVOIR
459 A 0004320607 VALVE
SPRING-LOADED BRAKE AIR RESERVOIR
459 A 0004320607 VALVE
SPRING-LOADED BRAKE AIR RESERVOIR
461 N 007603022102 SEAL RING
SPRING-LOADED BRAKE AIR RESERVOIR

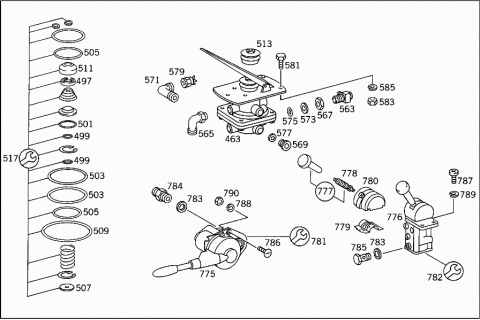

463 A 0014313805 BRAKE VALVE
466 A 0024313905 BRAKE VALVE
SERVICE BRAKE VALVE
"KNORR"
466 A 0024316205 BRAKE VALVE
SERVICE BRAKE VALVE
"WESTINGHOUSE"
471 A 0004311522 COVER
TO 002 431 39 05
473 A 0004311622 COVER
TO 002 431 39 05
475 A 0014317093 SPRING
TO 002 431 39 05
477 A 0014317193 SPRING
TO 002 431 39 05
479 A 0014317293 SPRING
TO 002 431 39 05
481 A 0004319483 PISTON
TO 002 431 39 05
483 A 0004310750 BUSHING
TO 002 431 39 05
485 A 0004312374 PIN
TO 002 431 39 05
487 A 0014311386 CUP
TO 002 431 39 05
489 A 0009910845 RING
TO 002 431 39 05
491 A 0024317805 BRAKE VALVE
SERVICE BRAKE VALVE
TO 002 431 62 05
493 A 0004300018 BRAKE PEDAL
TO 002 431 62 05
495 A 0004314887 PROTECTIVE CAP
TO 000 430 00 18
497 A 0004312088 VALVE SEAT
TO 001 431 38 05
499 A 0009874946 SEALING CORD
Repalced by: A 0009870446
499 A 0009870446 SEALING CORD
TO 001 431 38 05
501 A 0019872146 SEALING CORD
TO 001 431 38 05
503 A 0089975945 SEAL RING
TO 001 431 38 05
505 A 0089971845 SEAL RING
TO 001 431 38 05
507 A 0004312576 WASHER
TO 001 431 38 05
509 A 0089976045 SEAL RING
TO 001 431 38 05
511 A 0004310196 RUBBER SPRING
TO 001 431 38 05
513 A 0004314887 PROTECTIVE CAP
TO 001 431 38 05
515 A 0004306260 REPAIR KIT
LARGE SCOPE
TO 002 431 78 05
517 A 0005868643 REPAIR KIT
TO 001 431 38 05
521 A 0004304306 REPAIR KIT
TO 002 431 39 05
521 A 0014301260 REPAIR KIT
SMALL SCOPE
TO 002 431 39 05
523 A 3089907171 ELBOW FITTING
SERVICE BRAKE VALVE,CONNECTION:
"11,12"
523 A 3514297038 ELBOW FITTING
SERVICE BRAKE VALVE,CONNECTION:
"11,12"
523 N 074315012100 FITTING
SERVICE BRAKE VALVE,CONNECTION:
"11,12"
529 A 3419907370 T-FITTING
SERVICE BRAKE VALVE,CONNECTION:
"11,12"
531 A 3519907083 FITTING
"11,12"
533 A 0009909470 T-FITTING
SERVICE BRAKE VALVE,CONNECTION:
"22"
533 A 3419907670 T-FITTING
SERVICE BRAKE VALVE,CONNECTION:
"22"
535 N 080705016003 NUT
SERVICE BRAKE VALVE,CONNECTION:
"11,12"
535 N 080705016003 NUT
SERVICE BRAKE VALVE,CONNECTION:
"11,12"
537 A 0009971548 SEAL RING
SERVICE BRAKE VALVE,CONNECTION:
"11,12"
539 A 0004290927 THRUST RING
SERVICE BRAKE VALVE,CONNECTION:
"11,12,21,22"
539 A 3084297027 THRUST RING
"11,12"
541 N 007604016102 SCREW PLUG
SERVICE BRAKE VALVE,CONNECTION:
"22"
543 N 007603016105 SEAL RING
SERVICE BRAKE VALVE,CONNECTION:
"22"
545 N 074313006101 FITTING
SERVICE BRAKE VALVE,CONNECTION:
"21"
563 N 074302022304 T-FITTING
AT TRUCK-TRACTOR BRAKE VALVE
565 N 074301022202 ELBOW FITTING
AT TRUCK-TRACTOR BRAKE VALVE
567 N 074305022202 NUT
AT TRUCK-TRACTOR BRAKE VALVE
569 N 000908022001 SCREW PLUG
AT TRUCK-TRACTOR BRAKE VALVE
571 A 3609900071 ELBOW FITTING
AT TRUCK-TRACTOR BRAKE VALVE
571 A 3459907071 ELBOW FITTING
AT TRUCK-TRACTOR BRAKE VALVE
573 A 0004290227 THRUST RING
AT TRUCK-TRACTOR BRAKE VALVE
575 A 0009870446 SEALING CORD
AT TRUCK-TRACTOR BRAKE VALVE
577 N 007603022102 SEAL RING
AT TRUCK-TRACTOR BRAKE VALVE
579 A 0005456409 SWITCH
Repalced by: A 0007631410
579 A 0007631410 SWITCH
FITTING,CONNECTION "Z2"
579 A 0005456009 SWITCH
FITTING,CONNECTION "Z2"
"BOSCH"
579 A 3645457409 SWITCH
FITTING,CONNECTION "Z2"
"PREMA"
581 N 000933008153 SCREW
TRUCK-TRACTOR BRAKE VALVE TO CAB FLOOR
583 N 000934008000 NUT
TRUCK-TRACTOR BRAKE VALVE TO CAB FLOOR
585 N 912004008102 LOCK WASHER
TRUCK-TRACTOR BRAKE VALVE TO CAB FLOOR
587 N 074298022202 DOUBLE FITTING

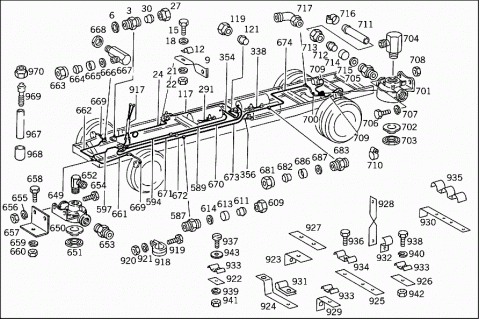

589 A 3414208626 LINE
FROM FRONT AXLE AIR RESERVOIR TO FITTING
589 A 3414208826 LINE
FROM FRONT AXLE AIR RESERVOIR TO FITTING
589 A 3414307764 LINE
FROM FRONT AXLE AIR RESERVOIR TO FITTING
591 A 3414309164 LINE
FROM AIR RESERVOIR TO DOUBLE FITTING
591 A 3414309866 LINE
FROM AIR RESERVOIR TO DOUBLE FITTING
593 A 3414309364 LINE
FROM AIR RESERVOIR TO DOUBLE FITTING
593 A 3414309966 LINE
FROM AIR RESERVOIR TO DOUBLE FITTING
594 A 3414208926 LINE
FROM FITTING TO CONNECTION "V1"
594 A 3414307864 LINE
FROM FITTING TO CONNECTION "V1"
595 A 3414309264 LINE
FROM FITTING TO BRAKE VALVE, CONNECTION:
"11"
595 A 3414208529 LINE
FROM FITTING TO BRAKE VALVE, CONNECTION:
"11"
596 A 3414309464 LINE
FROM FITTING TO BRAKE VALVE, CONNECTION:
"12"
596 A 3414208629 LINE
FROM FITTING TO BRAKE VALVE, CONNECTION:
"12"
597 A 3414209026 LINE
FROM TRUCK-TRACTOR BRAKE VALVE TO QUICK-RELEASE VALVE
597 A 3414307964 LINE
FROM TRUCK-TRACTOR BRAKE VALVE TO QUICK-RELEASE VALVE
608 A 0049971772 FITTING
AT INSIDE AIR RESERVOIR
609 N 915018015000 UNION NUT
610 N 915017012100 UNION NUT
610 N 915017012100 UNION NUT
610 N 915017012100 UNION NUT
611 N 003861015004 GLAND
612 N 003861012007 GLAND
612 N 003861012007 GLAND
612 N 003861012007 GLAND
613 N 915065015101 THRUST RING
CONNECTION OF COMPRESSED AIR LINES
613 A 0004291027 THRUST RING
CONNECTION OF COMPRESSED AIR LINES
614 N 915045015100 SEAL RING
CONNECTION OF COMPRESSED AIR LINES
615 A 3414309564 LINE
FROM BRAKE VALVE,CONNECTION "22",TO T-FITTING
616 A 3414309664 LINE
FROM T-FITTING TO BULKHEAD FITTING
617 A 3414309764 LINE
FROM T-FITTING TO BULKHEAD FITTING
629 A 3414309864 LINE
FROM FITTING TO BRAKE HOSE
630 A 3414309964 LINE
FROM FITTING TO BRAKE HOSE
631 A 3414308466 LINE
FROM BRAKE HOSE TO FRONT AXLE DIAPHRAGM CYLINDER
631 A 3414308566 LINE
FROM FITTING TO BRAKE HOSE
632 N 915017012100 UNION NUT
633 N 003861012007 GLAND
634 N 916027011003 HOSE
BETWEEN THE LINES
480MM
634 N 916027011017 HOSE
BETWEEN THE LINES
560MM
635 N 916017016001 CLAMP
LINE MOUNTING
636 N 003908012000 T-FITTING
BETWEEN THE LINES
638 N 003910012001 BULKHEAD FITTING
COMPRESSED AIR LINE THRU FRAME
639 N 080705018002 NUT
COMPRESSED AIR LINE THRU FRAME
640 A 3159955010 CLAMP
FRONT AXLE MOUNTING PARTS
641 N 007985006508 SCREW
FRONT AXLE MOUNTING PARTS
642 N 913004006002 NUT
FRONT AXLE MOUNTING PARTS
643 N 003901012005 SCREW-IN FITTING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
645 N 007603016105 SEAL RING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
649 A 3414317065 VALVE
650 A 3414317228 DIAPHRAGM
651 A 3414317160 SEAL RING
652 A 3414290238 ELBOW FITTING
AT VALVE
653 A 3414290339 CONNECTOR
AT VALVE
654 N 000933008108 SCREW
QUICK-RELEASE VALVE TO BRACKET
655 N 912004008102 LOCK WASHER
QUICK-RELEASE VALVE TO BRACKET
656 N 000934008010 NUT
QUICK-RELEASE VALVE TO BRACKET
657 A 3414317140 BRACKET
QUICK-RELEASE VALVE
658 N 000933010128 SCREW
BRACKET TO CROSS MEMBER
659 N 912004010102 LOCK WASHER
BRACKET TO CROSS MEMBER
660 N 000934010005 NUT
BRACKET TO CROSS MEMBER
661 A 3414209126 LINE
FROM QUICK-RELEASE VALVE TO LEFT ELBOW FITTING
661 A 3414308064 LINE
FROM QUICK-RELEASE VALVE TO LEFT ELBOW FITTING
662 A 3414209226 LINE
FROM QUICK-RELEASE VALVE TO RIGHT ELBOW FITTING
662 A 3414308164 LINE
FROM QUICK-RELEASE VALVE TO RIGHT ELBOW FITTING
663 N 915018010100 UNION NUT
664 A 3414290127 THRUST RING
Repalced by: N 003861010006
664 N 003861010009 GLAND
665 A 3414290027 THRUST RING
CONNECTION OF COMPRESSED AIR LINES
666 N 915045007100 SEAL RING
CONNECTION OF COMPRESSED AIR LINES
667 A 3414290438 ELBOW FITTING
LEFT AND RIGHT
668 A 3414310072 NUT
ANGLE TO FRAME
669 A 3414200248 BRAKE HOSE
FROM ELBOW FITTING TO LEFT AND RIGHT BRAKE CYLINDERS
670 A 3414209326 LINE
FROM REAR AXLE AIR RESERVOIR TO FITTING
670 A 3414209526 LINE
FROM REAR AXLE AIR RESERVOIR TO FITTING
670 A 3414308264 LINE
FROM REAR AXLE AIR RESERVOIR TO FITTING
671 A 3414209626 LINE
FROM FITTING TO CONNECTION "V2"
671 A 3414308364 LINE
FROM FITTING TO CONNECTION "V2"
672 A 3414209926 LINE
FROM TRUCK-TRACTOR BRAKE VALVE, CONNECTION "Z2",TO FITTING
672 A 3414308464 LINE
FROM TRUCK-TRACTOR BRAKE VALVE, CONNECTION "Z2",TO FITTING
673 A 3414207045 LINE
FROM DOUBLE FITTING TO DOUBLE FITTING
673 A 3414207245 LINE
FROM DOUBLE FITTING TO DOUBLE FITTING
673 A 3414308564 LINE
FROM DOUBLE FITTING TO DOUBLE FITTING
674 A 3414207345 LINE
FROM FITTING TO ELBOW FITTING
674 A 3414209537 LINE
675 A 3414208929 LINE
FROM TWO-CIRCUIT BRAKE VALVE TO FITTING
676 A 3414207029 LINE
FROM DOUBLE FITTING TO DOUBLE FITTING
677 A 3414307265 LINE
FROM FITTING TO T-FITTING
678 A 3414207229 LINE
FROM T-FITTING TO BRAKE HOSE
678 A 3414307465 LINE
FROM T-FITTING TO BRAKE HOSE
679 N 915017012100 UNION NUT
680 N 003861012007 GLAND
681 N 915018015000 UNION NUT
682 N 003861015004 GLAND
683 N 074298022202 DOUBLE FITTING
684 A 0049971772 FITTING
685 N 003908012000 T-FITTING
686 N 915065015101 THRUST RING
686 A 0004291027 THRUST RING
687 N 915045015100 SEAL RING
688 A 3414308565 LINE
TWO-WAY VALVE TO LEFT SPRING LOAD ACCUMULATOR CYLINDER
689 A 3414308665 LINE
TWO-WAY VALVE TO RIGHT SPRING LOAD ACCUMULATOR CYLINDER
690 N 915017012100 UNION NUT
691 N 003861012007 GLAND
692 N 916027011004 HOSE
LEFT & RIGHT BRAKE LINES
693 N 916017016001 CLAMP
694 A 0009904770 T-FITTING
DIAPHRAGM CYLINDER,CONNECTION:
"12"
694 A 3414297532 T-FITTING
DIAPHRAGM CYLINDER,CONNECTION:
"12"
697 N 080705016003 NUT
DIAPHRAGM CYLINDER,CONNECTION:
"12"
698 A 0009971548 SEAL RING
DIAPHRAGM CYLINDER,CONNECTION:
"12"
699 A 0004290927 THRUST RING
DIAPHRAGM CYLINDER,CONNECTION:
"12"
699 A 3084297027 THRUST RING
"12"
700 A 3464205148 BRAKE HOSE
701 A 3414317065 VALVE
REAR AXLE
702 A 3414317228 DIAPHRAGM
703 A 3414317160 SEAL RING
704 A 3414290238 ELBOW FITTING
QUICK-RELEASE VALVE
705 A 3414290339 CONNECTOR
QUICK-RELEASE VALVE
706 N 000933008108 SCREW
QUICK-RELEASE VALVE TO BRACKET
707 N 912004008102 LOCK WASHER
QUICK-RELEASE VALVE TO BRACKET
708 N 000934008010 NUT
QUICK-RELEASE VALVE TO BRACKET
709 A 3414297335 BRAKE HOSE
709 A 3414297535 BRAKE HOSE
709 N 916027011006 HOSE
LEFT AND RIGHT BRAKE HOSES
710 N 916018016001 CLAMP
Repalced by: N 916017016001
710 N 916017016001 CLAMP
LEFT AND RIGHT BRAKE HOSES
711 A 3414298401 LINE
712 N 003861010009 GLAND
713 N 915018010100 UNION NUT
714 A 3414290027 THRUST RING
715 N 915045007100 SEAL RING
716 N 900288017001 CLAMP
717 N 074301022201 ELBOW FITTING
718 A 0019901170 T-FITTING
DIAPHRAGM CYLINDER,CONNECTION:
"11"LINKS
719 A 3514297038 ELBOW FITTING
"11" RECHTS
719 A 3089907171 ELBOW FITTING
DIAPHRAGM CYLINDER,CONNECTION:
"11" RECHTS
719 N 074315012100 FITTING
DIAPHRAGM CYLINDER,CONNECTION:
"11" RECHTS
720 N 080705016003 NUT
DIAPHRAGM CYLINDER,CONNECTION:
"11"
721 A 0009971548 SEAL RING
DIAPHRAGM CYLINDER,CONNECTION:
"11"
722 A 0004290927 THRUST RING
DIAPHRAGM CYLINDER,CONNECTION:
"11"
722 A 3084297027 THRUST RING
DIAPHRAGM CYLINDER,CONNECTION:
"11"
725 A 3414308666 LINE
BETWEEN THE REAR AXLE BRAKE CYLINDERS
ANSCHLUSS "11"
726 N 915017012100 UNION NUT
727 N 003861012007 GLAND
728 A 3414208136 LINE
FROM AIR RESERVOIR T-FITTING TO FITTING
728 A 3414208336 LINE
FROM AIR RESERVOIR T-FITTING TO FITTING
728 A 3414309365 LINE
FROM AIR RESERVOIR T-FITTING TO FITTING
766 A 3414207845 LINE
FROM FITTING TO FITTING
767 A 3414208436 LINE
FROM FITTING TO BRAKE HOSE
768 A 3414208536 LINE
FROM HOSE TO HAND BRAKE VALVE
769 N 915017008100 UNION NUT
770 N 003861008005 GLAND
771 A 3414208636 LINE
FROM HAND BRAKE VALVE TO THE OPEN AIR
772 N 003870008010 UNION NUT
773 N 003861008005 GLAND
774 N 003902008001 CONNECTION FITTING
FROM AIR RESERVOIR TO HAND BRAKE VALVE
775 A 0004304781 VALVE
775 A 0004305581 VALVE
776 A 0014300181 VALVE
PARKING BRAKE VALVE
"WEST."
776 A 0014302881 VALVE
PARKING BRAKE VALVE
"KNORR"
777 A 0009972777 HANDLE
TO 001 430 01 81,WESTINGHOUSE
778 A 0004312139 LEVER
TO 001 430 01 81, WESTINGHOUSE
779 A 0014311887 PROTECTIVE CAP
TO 001 430 01 81,WESTINGHOUSE
780 A 0014310887 PROTECTIVE CAP
TO 001 430 01 81,WESTINGHOUSE
781 A 0025867843 REPAIR KIT
000 430 47 81
781 A 0005868043 REPAIR KIT
TO 000 430 55 81,NR.1020
781 A 0004305760 REPAIR KIT
TO 000 430 55 81,NR.1050
782 A 0034304781 REPAIR KIT
TO 001 430 01 81
782 A 0004307260 REPAIR KIT
TO 001 430 28 81
783 N 007603014102 SEAL RING
AT HAND BRAKE VALVE
784 A 0009972072 FITTING
Repalced by: A 0039979972
784 A 0039979972 FITTING
AT HAND BRAKE VALVE
785 N 915036010100 HOLLOW SCREW
AT HAND BRAKE VALVE
786 N 000964006023 SCREW
HAND BRAKE VALVE TO INSTRUMENT PANEL
787 N 007985008108 SCREW
AT BRACKET
788 N 000127006206 LOCK WASHER
HAND BRAKE VALVE TO INSTRUMENT PANEL
789 N 912004008102 LOCK WASHER
AT BRACKET
790 N 000934006007 NUT
HAND BRAKE VALVE TO INSTRUMENT PANEL
791 A 3414208736 LINE
FROM HAND BRAKE VALVE FITTING II TO COMPRESSED AIR HOSE
792 A 3414297435 BRAKE HOSE
793 N 900288012000 CLAMP
COMPRESSED AIR HOSE TO COMPRESSED AIR LINE
794 A 3414208836 LINE
FROM COMPRESSED AIR HOSE TO FITTING
795 A 3414208936 LINE
FROM HAND BRAKE VALVE TO RELAY VALVE
795 A 3414209036 LINE
FROM HAND BRAKE VALVE TO RELAY VALVE
796 A 3414209236 LINE
FROM FITTING TO RELAY VALVE
796 A 3414309465 LINE
FROM FITTING TO RELAY VALVE
797 A 3414308165 LINE
FROM T-FITTING TO T-FITTING
797 A 3414207629 LINE
FROM T-FITTING TO T-FITTING
798 A 3414308265 LINE
FROM T-FITTING TO RELAY VALVE, CONNECTION "4"
798 A 3414207729 LINE
FROM T-FITTING TO RELAY VALVE, CONNECTION "4"
799 A 3414308465 LINE
TWO-WAY VALVE T-FITTING,TEST CONNECTION
799 A 3414207829 LINE
TWO-WAY VALVE T-FITTING,TEST CONNECTION
800 N 915017008100 UNION NUT
801 N 003861008005 GLAND
802 N 003902008001 CONNECTION FITTING
FROM HAND BRAKE VALVE TO RELAY VALVE
802 N 003902008001 CONNECTION FITTING
FROM HAND BRAKE VALVE TO RELAY VALVE
803 A 0049971772 FITTING
804 A 0014296844 VALVE
RELAY VALVE
"WABCO"
804 A 0034295344 VALVE
RELAY VALVE
"KNORR"
804 A 0034293044 VALVE
RELAY VALVE
KNORR
805 A 0004205555 REPAIR KIT
SMALL SCOPE
TO 001 429 68 44
805 A 0005865742 REPAIR KIT
LARGE SCOPE
TO 001 429 68 44
805 A 0004201471 REPAIR KIT
TO 003 429 30 44
812 N 074313012100 FITTING
RELAY VALVE,CONNECTION "1"
813 N 007603022102 SEAL RING
RELAY VALVE,CONNECTION "1"
815 N 003901012005 SCREW-IN FITTING
RELAY VALVE,CONNECTION "2",RIGHT
816 N 007603016105 SEAL RING
817 A 3414317540 BRACKET
RELAY VALVE
818 N 000934008010 NUT
AT BRACKET
819 N 912004008102 LOCK WASHER
AT BRACKET
820 N 000125008417 WASHER
AT BRACKET
821 N 000933010092 SCREW
BRACKET TO CROSS MEMBER
822 N 000125010518 WASHER
BRACKET TO CROSS MEMBER
823 N 000127010202 LOCK WASHER
BRACKET TO CROSS MEMBER
824 N 000934010005 NUT
BRACKET TO CROSS MEMBER
825 A 3414317065 VALVE
826 A 3414317228 DIAPHRAGM
827 A 3414317160 SEAL RING
828 A 3414297138 ELBOW FITTING
829 A 3414297238 ELBOW FITTING
830 A 3414297338 ELBOW FITTING
831 A 3454298136 CONNECTOR
832 N 007603012112 SEAL RING
833 A 0005455414 SWITCH
833 A 3445457214 SWITCH
834 A 3414310040 BRACKET
QUICK-RELEASE VALVE
835 N 000934008010 NUT
836 N 912004008102 LOCK WASHER
837 N 000933008108 SCREW
838 A 0014298744 VALVE
TWO-WAY VALVE
839 A 0024299544 VALVE
TWO-WAY VALVE
WABCO
840 A 0004290782 VALVE
Repalced by: A 0004291182
840 A 0004291182 VALVE BODY
TO 002 429 95 44
841 A 0014302960 REPAIR KIT
TO 001 429 87 44
842 A 3514297038 ELBOW FITTING
TWO-WAY VALVE,CONNECTION:
"11,12"
842 A 3089907171 ELBOW FITTING
TWO-WAY VALVE,CONNECTION:
"11,12"
842 N 074315012100 FITTING
TWO-WAY VALVE,CONNECTION:
"11,12"
843 A 3419907570 T-FITTING
TWO-WAY VALVE,CONNECTION:
"2"
844 N 080705016003 NUT
TWO-WAY VALVE
845 A 0009971548 SEAL RING
TWO-WAY VALVE
846 A 0004290927 THRUST RING
TWO-WAY VALVE
846 A 3084297027 THRUST RING
TWO-WAY VALVE
847 A 3414308766 LINE
RIGHT BRAKE CYLINDER
ANSCHL "12"
848 N 915017012100 UNION NUT
CONNECTION OF COMPRESSED AIR LINES
849 N 003861012007 GLAND
CONNECTION OF COMPRESSED AIR LINES
850 A 3454298036 CONNECTOR
851 A 3454297936 CONNECTOR
852 A 3414297234 ADAPTER FITTING
853 A 3414209145 LINE
TWO-WAY VALVE T-FITTING,TEST CONNECTION
854 N 915065015101 THRUST RING
854 A 0004291027 THRUST RING
855 N 915045015100 SEAL RING
856 A 3414209245 LINE
FROM TWO-WAY VALVE TO LEFT BRAKE CYLINDER
857 A 3414209345 LINE
FROM TWO-WAY VALVE TO RIGHT BRAKE CYLINDER
858 N 915018015000 UNION NUT
859 N 003861015004 GLAND
860 N 915065015101 THRUST RING
CONNECTION OF COMPRESSED AIR LINES
860 A 0004291027 THRUST RING
861 N 915045015100 SEAL RING
CONNECTION OF COMPRESSED AIR LINES
862 A 0004312114 BRAKE CYLINDER
"BOSCH"
862 A 0014311314 BRAKE CYLINDER
"WESTINGHOUSE"
862 A 3454317214 BRAKE CYLINDER
"FRESINBRA"
A 0004310649 SLIDE
TO 000 431 21 14
863 A 0004310736 FILTER BOTTOM
TO 000 431 21 14
A 0004318186 CUP
Repalced by: A 0015864342
864 A 0014310786 CUP
Repalced by: A 0004312786
864 A 0004312786 CUP
TO 000 431 21 14
864 A 0004319186 CUP
Repalced by: A 0004312786
865 A 0004318583 PISTON
TO 000 431 21 14
866 A 0089977548 SEAL RING
TO 000 431 21 14
866 A 0049971740 SEAL RING
TO 000 431 21 14
867 A 0004318587 PROTECTIVE CAP
TO 001 431 13 14
868 H 983454310087 PROTECTIVE CAP
Repalced by: A 0004301808
868 A 0004301808 REPAIR KIT
TO 345 431 72 14
868 A 0015864342 REPAIR KIT
TO 000 431 21 14
869 H 983455860543 REPAIR KIT
Repalced by: A 0004301708
869 A 0004301708 REPAIR KIT
TO 345 431 72 14
869 A 0025861443 REPAIR KIT
TO 001 431 13 14
870 A 3604302411 CONSOLE
SPRING LOAD ACCUMULATOR CYLINDER
871 N 000933010034 SCREW
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
872 N 000127010205 LOCK WASHER
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
873 N 000934010000 NUT
SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET
874 N 000933010129 SCREW
875 N 000127010205 LOCK WASHER
876 N 000125010518 WASHER
877 N 000934010000 NUT
878 A 3609900040 WASHER
879 A 3454207180 BRAKE INTERMEDIATE SHAFT
880 A 3454207178 BEARING BRACKET
BRAKE INTERMEDIATE SHAFT
881 A 3024260083 SPHERICAL PIECE
882 N 000470052000 EXPANSION PLUG
883 A 3274270058 SEAL HOLDER
BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER
884 A 3279970040 SEAL RING
BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER
885 N 000961012020 SCREW
BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER
886 N 000127012203 LOCK WASHER
BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER
887 N 000934012004 NUT
BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER
888 A 3604200674 ROD
FROM BRAKE INTERMEDIATE SHAFT TO BRAKE LEVER AT REAR AXLE
889 A 3604200474 ROD
FROM BRAKE INTERMEDIATE SHAFT TO BRAKE LEVER AT REAR AXLE
890 A 3859960034 NUT
FROM BRAKE INTERMEDIATE SHAFT TO BRAKE LEVER AT REAR AXLE
891 N 000934012022 NUT
FROM BRAKE INTERMEDIATE SHAFT TO BRAKE LEVER AT REAR AXLE
892 N 000934012021 NUT
FROM BRAKE INTERMEDIATE SHAFT TO BRAKE LEVER AT REAR AXLE
893 A 3534200074 ROD
FROM BRAKE INTERMEDIATE SHAFT TO BRAKE LEVER AT REAR AXLE
894 A 3529910207 PIN
PULL ROD TO BRAKE INTERMEDIATE SHAFT
895 N 000094004041 COTTER PIN
PULL ROD TO BRAKE INTERMEDIATE SHAFT
896 N 000433013000 WASHER
PULL ROD TO BRAKE INTERMEDIATE SHAFT
897 N 900055012003 SPRING WASHER
PULL ROD TO BRAKE INTERMEDIATE SHAFT
898 A 3529910107 PIN
PULL ROD TO BRAKE LEVER,REAR AXLE
899 N 000433013000 WASHER
PULL ROD TO BRAKE LEVER,REAR AXLE
900 N 000094004041 COTTER PIN
PULL ROD TO BRAKE LEVER,REAR AXLE
901 A 0019971836 VALVE
Repalced by: A 0039971736
901 A 0039971736 VALVE
902 A 0015863843 REPAIR KIT
TO 001 997 18 36
902 A 0004305660 REPAIR KIT
TO 003 997 17 36,WABCO 472 123 11 10
903 A 3454298136 CONNECTOR
904 N 003911006100 FITTING
905 A 0019875046 SEALING CORD
906 A 0004290827 THRUST RING
907 N 080705012003 NUT
908 A 3414297040 BRACKET
SOLENOID VALVE
909 N 000933010016 SCREW
910 N 000127010205 LOCK WASHER
911 N 000934010000 NUT
912 N 000931008085 SCREW
SOLENOID VALVE TO BRACKET AT SUBSTRUCTURE
913 N 912004008104 LOCK WASHER
SOLENOID VALVE TO BRACKET AT SUBSTRUCTURE
914 N 000934008000 NUT
SOLENOID VALVE TO BRACKET AT SUBSTRUCTURE
915 A 3414209445 LINE
FROM T-FITTING TO SOLENOID VALVE
916 A 3414209545 LINE
FROM SOLENOID VALVE,CONNECTION "A",TO TWO-WAY VALVE
917 A 3415407161 ELECTRIC CABLE
918 A 0009951205 CLAMP
PRESSURE GAUGE LINE TO CAB FLOOR
919 N 000933006148 SCREW
PRESSURE GAUGE LINE TO CAB FLOOR
920 N 000934006007 NUT
PRESSURE GAUGE LINE TO CAB FLOOR
921 N 000127006206 LOCK WASHER
PRESSURE GAUGE LINE TO CAB FLOOR
922 A 3124761036 BRACKET
Repalced by: A 3124761236
922 A 3124761236 BRACKET
COMPRESSED AIR LINE MOUNTING
923 A 3414267140 BRACKET
COMPRESSED AIR LINE MOUNTING
924 A 3414297140 BRACKET
COMPRESSED AIR LINE MOUNTING
925 A 3414297240 BRACKET
COMPRESSED AIR LINE MOUNTING
926 A 3414297440 BRACKET
COMPRESSED AIR LINE MOUNTING
927 A 3414290442 BRACKET
COMPRESSED AIR LINE MOUNTING
928 A 3414297540 BRACKET
COMPRESSED AIR LINE MOUNTING
929 A 3414297640 BRACKET
Repalced by: A 3414267240
929 A 3414267240 BRACKET
COMPRESSED AIR LINE MOUNTING
930 A 3414297340 BRACKET
COMPRESSED AIR LINE MOUNTING
931 A 3609950101 CLAMP
COMPRESSED AIR LINE MOUNTING
931 A 3609950501 CLAMP
COMPRESSED AIR LINE MOUNTING
932 A 3129952420 CLAMP
COMPRESSED AIR LINE MOUNTING
933 A 3199950132 CLAMP
Repalced by: A 3379950332
933 A 3379950332 CLAMP
COMPRESSED AIR LINE MOUNTING
934 A 3219950332 CLAMP
COMPRESSED AIR LINE MOUNTING
935 A 3419950032 CLAMP
COMPRESSED AIR LINE MOUNTING
936 N 000933006130 SCREW
COMPRESSED AIR LINE MOUNTING
937 N 000084006197 SCREW
COMPRESSED AIR LINE MOUNTING
938 N 000933008036 SCREW
COMPRESSED AIR LINE MOUNTING
939 N 000127006203 LOCK WASHER
COMPRESSED AIR LINE MOUNTING
940 N 912004008104 LOCK WASHER
COMPRESSED AIR LINE MOUNTING
941 N 000934006007 NUT
COMPRESSED AIR LINE MOUNTING
942 N 000934008000 NUT
COMPRESSED AIR LINE MOUNTING
943 N 009021006104 WASHER
COMPRESSED AIR LINE MOUNTING

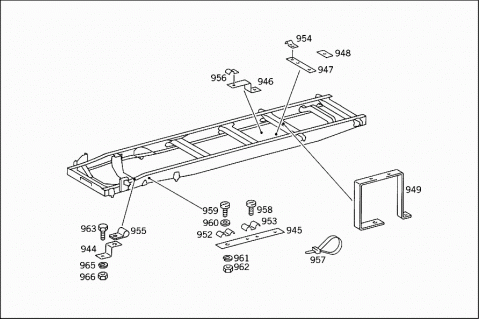

944 A 3414317740 BRACKET
COMPRESSED AIR LINE MOUNTING
945 A 3414317840 BRACKET
COMPRESSED AIR LINE MOUNTING
946 A 3414290340 BRACKET
COMPRESSED AIR LINE MOUNTING
947 A 3414318040 BRACKET
COMPRESSED AIR LINE MOUNTING
948 A 3414318140 BRACKET
COMPRESSED AIR LINE MOUNTING
949 A 3414318240 BRACKET
COMPRESSED AIR LINE MOUNTING
952 A 3379950332 CLAMP
COMPRESSED AIR LINE MOUNTING
953 A 3419957032 CLAMP
COMPRESSED AIR LINE MOUNTING
954 A 3419957320 CLAMP
COMPRESSED AIR LINE MOUNTING
955 A 3609950401 CLAMP
COMPRESSED AIR LINE MOUNTING
956 A 3129952420 CLAMP
COMPRESSED AIR LINE MOUNTING
957 A 0029972290 LOOM TIE
COMPRESSED AIR LINE MOUNTING
958 N 000084006197 SCREW
COMPRESSED AIR LINE MOUNTING
M 6X16
959 N 000084006160 SCREW
COMPRESSED AIR LINE MOUNTING
M 6X25
960 N 000125006421 WASHER
COMPRESSED AIR LINE MOUNTING
961 N 000127006203 LOCK WASHER
COMPRESSED AIR LINE MOUNTING
962 N 000934006007 NUT
COMPRESSED AIR LINE MOUNTING
963 N 000933010090 SCREW
COMPRESSED AIR LINE MOUNTING
965 N 000127010202 LOCK WASHER
COMPRESSED AIR LINE MOUNTING
966 N 000934010005 NUT
COMPRESSED AIR LINE MOUNTING
967 A 0089976082 HOSE
PRESSURE GAUGE LINE
560 MM
967 A 0089976082 HOSE
FROM SERVICE BRAKE VALVE TO INSTRUMENT CLUSTER
1135 MM
968 N 040621010200 INSULATING HOSE
PRESSURE GAUGE LINE
969 A 0019975072 FITTING
PRESSURE GAUGE LINE
969 A 3514297241 FITTING
970 N 915017006200 UNION NUT
PRESSURE GAUGE LINE
970 A 3514297029 UNION NUT
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
