Transporto priemonė: OC 1214; VIN numerio dalis: 341058

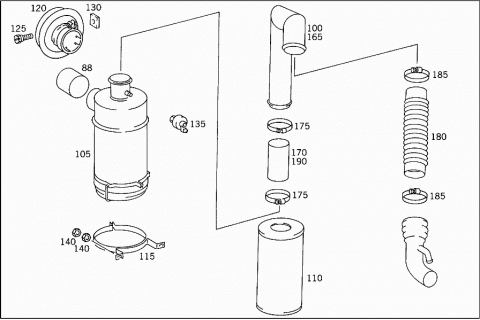

Grupė: 52 CHASSIS SHEET METAL - 001 SHEET METAL,AIR INTAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3529971382 | HOSE |
| 005 | A 3909977882 | HOSE |
| 010 | A 3410940102 | AIR CLEANER |
| 015 | A 0000940560 | SEAL RING |
| 020 | A 0000940160 | SEAL RING |
| 025 | A 0020943804 | FILTER ELEMENT |
| 030 | A 0010943106 | COVER |
| 035 | A 0000947703 | FILTER BOWL |
| 050 | A 0000949006 | COVER |
| 050 | A 3410947106 | COVER |
| 055 | A 0009905001 | SCREW |
| 060 | N 000557006000 | NUT |
| 065 | N 000933010026 | SCREW |
| AIR CLEANER TO FRAME | ||
| 070 | N 000125010518 | WASHER |
| AIR CLEANER TO FRAME | ||
| 075 | N 000127010205 | LOCK WASHER |
| AIR CLEANER TO FRAME | ||
| 080 | A 3419978190 | LOOM TIE |
| 085 | A 0010940182 | HOSE |
| 085 | A 3450947082 | HOSE |
| H 983450940182 | HOSE | |
| Repalced by: A 3450947182 | ||
| 088 | A 3450947182 | HOSE |
| 090 | A 3415287108 | AIR INTAKE PIPE |
| 095 | A 3419978090 | LOOM TIE |
| 80-95 MM | ||
| 100 | A 3415207606 | PIPE ELBOW |
| 105 | A 3410947401 | AIR CLEANER |
| 110 | A 3410947004 | FILTER ELEMENT |
| 115 | A 3410947041 | BRACKET |
| 120 | A 3410947006 | COVER |
| Repalced by: A 3410947106 | ||
| 120 | A 3410947106 | COVER |
| 120 | A 0000949006 | COVER |
| 125 | A 0009905001 | SCREW |
| 130 | N 000557006000 | NUT |
| 135 | A 0000940368 | VACUUM BOX |
| 140 | N 000934010040 | NUT |
| AIR CLEANER TO FRAME | ||
| 165 | A 3415207306 | PIPE ELBOW |
| 170 | A 3419977182 | HOSE |
| PIPE ELBOW TO AIR CLEANER | ||
| 175 | A 3419978190 | LOOM TIE |
| PIPE ELBOW TO AIR CLEANER | ||
| 100-115 MM | ||
| 180 | A 0000949682 | HOSE |
| RAIN DEFLECTOR TO DRY AIR CLEANER | ||
| 185 | A 3419978190 | LOOM TIE |
| 100-115 MM | ||
| 185 | N 916018100000 | CLAMP |
| 190 | A 3415287908 | AIR INTAKE PIPE |
