Transporto priemonė: OC 1214; VIN numerio dalis: 341058
Grupė: 25 CLUTCH

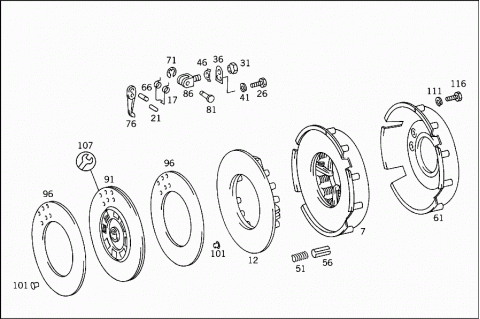

17118
17119
# Kodas Pavadinimas
007 A 0022509504 CLUTCH PRESSURE PLATE
007 A 0022509604 CLUTCH PRESSURE PLATE
007 A 3512507104 CLUTCH PRESSURE PLATE
012 A 0002524312 PRESSURE PLATE
Repalced by: A 0002527112
012 A 0002527112 PRESSURE PLATE
TO 002 250 95 04,96 04
012 A 0002528112 PRESSURE PLATE
TO 351 250 71 04
017 A 0002520827 SPRING
TO 000 252 43 12
017 A 0002524427 SPRING
TO 000 252 71 12
T YYYYYYYYYYYY PART NAME MISSING
TO 002 250 95 04,002 250 96 04
017 A 0002524627 SPRING
TO 351 250 71 04
021 A 0002521616 SPINDLE
TO 000 252 43 12
021 A 0002524016 SPINDLE
TO 000 252 71 12
021 A 0002524316 SPINDLE
TO 351 250 71 04
026 N 000085005106 SCREW
TO 002 250 95 04
026 A 0002522971 SCREW
TO 002 250 96 04
026 A 0002520015 SCREW
TO 351 250 71 04
031 A 0002522472 NUT
TO 002 250 95 04
031 A 0002523372 NUT
TO 002 250 96 04
031 A 0002524072 NUT
TO 351 250 71 04
036 A 0002520473 LOCK
Repalced by: A 0002521173
036 A 0002521173 LOCK
TO 002 250 95 05
036 A 0002521173 LOCK
TO 002 250 96 04
036 A 0002521673 LOCK
TO 351 250 71 04
041 N 912004005100 LOCK WASHER
TO 002 250 95 04
041 A 0009906047 LOCK WASHER
TO 351 250 71 04
046 A 0002520619 LEAF SPRING
TO 000 252 43 12
046 A 0002524319 LEAF SPRING
TO 000 252 71 12
046 A 0002525619 LEAF SPRING
TO 351 250 71 04
051 A 0002525120 PRESSURE SPRING
TO 002 250 95 04
051 A 0002525020 PRESSURE SPRING
TO 000 250 96 04
051 A 0002529120 PRESSURE SPRING
TO 351 250 71 04
056 A 0002520253 SPACER TUBE
TO 002 250 95 04,96 04
056 A 0002520350 BUSHING
TO 351 250 71 04
061 A 0002524332 HOUSING
TO 002 250 95 04
061 A 0002524432 HOUSING
TO 002 250 96 04
066 A 0002520318 ROLLER
TO 002 250 95 04,96 04
066 A 0002520818 ROLLER
TO 351 250 71 04
071 N 006799007007 LOCK PLATE
TO 002 250 95 04,96 04
071 A 0079940241 LOCK
TO 351 250 71 04
076 A 0002523713 RELEASE LEVER
TO 000 252 43 12
076 A 0002527113 RELEASE LEVER
TO 000 252 71 13
076 A 0002527313 RELEASE LEVER
TO 351 250 71 04
081 A 0002521716 SPINDLE
TO 000 252 43 12
081 A 0002524116 SPINDLE
TO 000 252 71 12
081 A 0002524416 SPINDLE
TO 351 250 71 04
086 A 0002522314 BRACKET
TO 000 252 43 12
086 A 0002523214 BRACKET
TO 000 252 71 12
086 A 0002523614 BRACKET
TO 351 250 71 04
A 3452507003 CLUTCH DISC
Repalced by: A 3452507403
091 A 3452507403 CLUTCH DISC
Repalced by: A 0072507103
091 A 0072507103 CLUTCH DISC
F+S
091 A 0022500403 CLUTCH DISC
Repalced by: A 0072502503
091 A 0072502503 CLUTCH DISC
F+S
091 A 0032508303 CLUTCH DISC
F + S
091 A 3512507003 CLUTCH DISC
WOBRON
096 A 0002525210 CLUTCH LINING
Repalced by: A 3452527010
096 A 3452527010 CLUTCH LINING
Repalced by: A 0002529010
096 A 0002529010 CLUTCH LINING
TO 002 250 04 03
101 N 007338005303 RIVET
TO 002 250 04 03
101 A 0002522175 RIVET
TO 002 250 04 03
101 A 0002521275 RIVET
TO 345 250 74 03,345 250 70 03
107 A 3455867025 REPAIR KIT
TO 345 250 74 03
111 N 912004008104 LOCK WASHER
CLUTCH TO FLYWHEEL
116 A 3522520071 SCREW
CLUTCH TO FLYWHEEL
116 A 3412527071 SCREW
CLUTCH TO FLYWHEEL
116 N 000931008045 SCREW
CLUTCH TO FLYWHEEL
121 A 3522500305 HOUSING
Repalced by: A 3522510201
121 A 3522510201 BELL HOUSING
BELL HOUSING
121 A 3452510301 BELL HOUSING
Repalced by: A 3412510501
121 A 3412510501 BELL HOUSING
BELL HOUSING
121 A 3512517501 BELL HOUSING
126 N 000939010027 STUD BOLT
STARTING MOTOR TO BELL HOUSING
126 N 000939010079 STUD BOLT
STARTING MOTOR TO BELL HOUSING
126 A 0009902605 STUD
Repalced by: A 6709900005
126 A 6709900005 STUD
STARTING MOTOR TO BELL HOUSING
131 N 000127012203 LOCK WASHER
BELL HOUSING TO CYLINDER CRANKCASE
136 N 900170012049 SCREW
BELL HOUSING TO CYLINDER CRANKCASE
141 N 900170012005 SCREW
BELL HOUSING TO CYLINDER CRANKCASE
146 N 000931012277 SCREW
BELL HOUSING TO CYLINDER CRANKCASE
151 A 0002503115 RELEASE BEARING
151 A 0002504015 RELEASE BEARING
151 A 3082507015 RELEASE BEARING
161 N 071428004102 SCREW-IN FITTING
166 A 3812500113 RELEASE LEVER
171 A 3029910015 BALL PIVOT
176 A 3402540013 SPRING LOCK
RELEASE LEVER TO RELEASE COLLAR
181 A 3059971982 HOSE
RELEASE COLLAR LUBRICATION
181 A 3089977182 HOSE
RELEASE COLLAR LUBRICATION
181 A 3949977182 HOSE
RELEASE COLLAR LUBRICATION
186 N 003871004100 UNION SCREW
RELEASE COLLAR LUBRICATION
191 N 003862004001 DOUBLE TAPER RING
RELEASE COLLAR LUBRICATION
196 N 071428004102 SCREW-IN FITTING
RELEASE COLLAR LUBRICATION
201 N 003411002001 GREASE CUP
RELEASE COLLAR LUBRICATION
206 A 6152540097 BOOT
211 A 3812540040 BRACKET
Repalced by: A 3522540040
211 A 3522540040 BRACKET
INSIDE
216 A 3522540135 BEARING
OUTSIDE
221 A 3812500043 BRACKET
Repalced by: A 3522500243
221 A 3522500243 BRACKET
Repalced by: A 3412500043
221 A 3412500043 BRACKET
OUTSIDE
226 N 912004008104 LOCK WASHER
BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING
231 N 000933008036 SCREW
BRACKET,BEARING,AND RELEASE LEVER TO BELL HOUSING
236 A 3602510004 END COVER
BELL HOUSING
241 N 000127006206 LOCK WASHER
END COVER TO BELL HOUSING
246 N 000933006015 SCREW
END COVER TO BELL HOUSING
251 A 3122511006 PROTECTIVE PLATE
Repalced by: A 3522510106
251 A 3522510106 PROTECTIVE PLATE
BELL HOUSING
256 N 000137006102 SPRING WASHER
261 N 000933006010 SCREW
266 A 3522510002 BELL HOUSING
LOWER PART
266 A 3522510102 BELL HOUSING
LOWER PART
266 A 3812510102 BELL HOUSING
LOWER PART
271 N 000137006102 SPRING WASHER
BELL HOUSING LOWER PART TO BELL HOUSING
276 N 000933006010 SCREW
BELL HOUSING LOWER PART TO BELL HOUSING
281 A 3102500155 COVER
286 N 912004008104 LOCK WASHER
COVER TO BELL HOUSING
291 N 000933008014 SCREW
COVER TO BELL HOUSING
296 A 0002957207 SLAVE CYLINDER
300 A 0002950233 ROD
302 A 0002952983 BOOT
304 A 3454317165 VALVE
306 A 3454317287 PROTECTIVE CAP
311 A 0005864329 REPAIR KIT
Repalced by: A 0002900811
311 A 0002900811 REPAIR KIT
SLAVE CYLINDER
316 N 000933010062 SCREW
CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE
321 N 000127010205 LOCK WASHER
CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE
326 N 000934010000 NUT
CLUTCH SLAVE CYLINDER TO INTERMEDIATE FLANGE
331 N 071805016300 SNAP RING
CLUTCH SLAVE CYLINDER TO RELEASE YOKE
336 N 071805016402 SECURING CLIP
CLUTCH SLAVE CYLINDER TO RELEASE YOKE
