Transporto priemonė: OC 1214; VIN numerio dalis: 341058
Grupė: 30 CONTROL

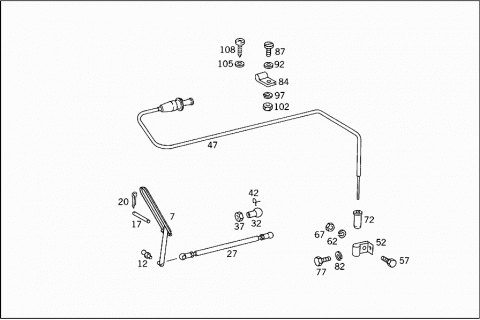

| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 3413007002 | PLATE |
| CONTROL | ||
| 012 | N 071803010209 | BALL PIVOT |
| 017 | A 3123011009 | PIN |
| 020 | N 000094002052 | COTTER PIN |
| 027 | A 3413000615 | ROD |
| 032 | N 071805010202 | BALL SOCKET |
| 037 | N 000934006007 | NUT |
| 042 | N 071805010403 | SECURING CLIP |
| ROD TO BALL PIVOT | ||
| 047 | A 3413007307 | KNOB |
| WITH SPINDLE | ||
| 052 | A 3523020020 | CLAMP |
| 057 | N 000933006010 | SCREW |
| WIRE CABLE TO MOUNTING CLAMP | ||
| 062 | N 000127006206 | LOCK WASHER |
| WIRE CABLE TO MOUNTING CLAMP | ||
| 067 | N 000934006007 | NUT |
| WIRE CABLE TO MOUNTING CLAMP | ||
| 072 | A 3413027091 | GROMMET |
| WIRE CABLE TO MOUNTING CLAMP | ||
| 077 | N 000933006223 | SCREW |
| MOUNTING CLAMP TO CYLINDER CRANKCASE, RIGHT REAR | ||
| 082 | N 000127006206 | LOCK WASHER |
| MOUNTING CLAMP TO CYLINDER CRANKCASE, RIGHT REAR | ||
| 084 | A 3609950101 | CLAMP |
| 087 | N 000084004108 | SCREW |
| WIRE CABLE TO MOUNTING CLAMP | ||
| 092 | N 009021004100 | WASHER |
| WIRE CABLE TO MOUNTING CLAMP | ||
| 097 | N 000127004206 | LOCK WASHER |
| WIRE CABLE TO MOUNTING CLAMP | ||
| 102 | N 000934004006 | NUT |
| WIRE CABLE TO MOUNTING CLAMP | ||
| 105 | N 000125003208 | WASHER |
| WIRE CABLE TO MOUNTING CLAMP | ||
| 108 | N 007981002242 | SHEET METAL SCREW |
| WIRE CABLE TO MOUNTING CLAMP |
