Transporto priemonė: OC 1214; VIN numerio dalis: 341058

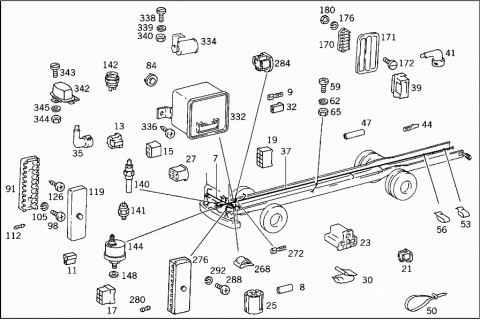

Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 3415407605 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 007 | A 3415407506 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 007 | A 3415409705 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 007 | A 3415407106 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 007 | A 3415407406 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 008 | A 0009970381 | GROMMET |
| PIN BUSHING | ||
| 008 | A 0009970581 | GROMMET |
| PIN BUSHING | ||
| 008 | A 0009970681 | GROMMET |
| PIN BUSHING | ||
| 009 | A 0005453826 | PIN BUSHING |
| LESS DETENT,BUT WITH CATCH FOR HOUSING | ||
| 2.5 MM | ||
| 009 | A 0005454026 | PIN BUSHING |
| WITH DETENT | ||
| 4-6 MM | ||
| 009 | A 0005454526 | PIN BUSHING |
| Repalced by: A 0005453726 | ||
| 009 | A 0005453726 | PIN BUSHING |
| WITH DETENT | ||
| 2.5 MM | ||
| 009 | A 0005453626 | PIN BUSHING |
| OFFSET | ||
| 4 MM | ||
| 009 | A 0005453726 | PIN BUSHING |
| WITH DETENT AND WITH CATCH FOR HOUSING | ||
| 2.5 MM | ||
| 009 | A 0005454626 | PIN BUSHING |
| 4-6 MM | ||
| 011 | A 0015458728 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 013 | A 0015458528 | PIN BUSHING HOUSING |
| 3-POLE | ||
| 015 | A 0015458428 | PIN BUSHING HOUSING |
| 4-POLE | ||
| 017 | A 0015458128 | PIN BUSHING HOUSING |
| 6-POLE | ||
| 019 | A 0015458328 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 021 | A 3445447060 | PROTECTIVE CAP |
| LOWER PART | ||
| 023 | A 0025459528 | PIN BUSHING HOUSING |
| Repalced by: A 0385452528 | ||
| 023 | A 0385452528 | PLUG |
| 3-POLE | ||
| 025 | A 0045451428 | PLUG |
| A 0065455528 | PIN BUSHING HOUSING | |
| Repalced by: A 3455457028 | ||
| 027 | A 3455457028 | PIN BUSHING HOUSING |
| 030 | A 0005440156 | CONTACT PIECE |
| 032 | A 0005451745 | BOOT |
| 035 | A 0005400681 | PLUG SOCKET |
| Repalced by: A 3805400181 | ||
| 035 | A 3805400181 | PLUG SOCKET |
| 037 | A 3415407809 | CABLE HARNESS |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 037 | A 3415408208 | CABLE HARNESS |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 037 | A 3415409808 | CABLE HARNESS |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 037 | A 3415408009 | CABLE HARNESS |
| FROM FRONT PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 039 | A 0015458228 | PLUG HOUSING |
| 041 | A 0005400681 | PLUG SOCKET |
| Repalced by: A 3805400181 | ||
| 041 | A 3805400181 | PLUG SOCKET |
| 041 | A 0005400781 | PLUG SOCKET |
| 044 | A 0025450628 | PLUG |
| 047 | A 0009970381 | GROMMET |
| 050 | A 0019978590 | LOOM TIE |
| Repalced by: A 0019978490 | ||
| 050 | A 0019978490 | LOOM TIE |
| 050 | A 0029972290 | LOOM TIE |
| 053 | A 3129951040 | CLAMP |
| Repalced by: A 3415467175 | ||
| 053 | A 3415467175 | CLAMP |
| STOP AND TAIL LAMP CABLES TO SIDE MEMBER | ||
| 056 | A 3219950040 | CLAMP |
| FOR FUEL/COMPRESSED-AIR DISPLAY & HAND BRAKE SWITCH | ||
| 059 | N 007985006192 | SCREW |
| FUEL GAUGE CABLE AND COMPRESSED AIR INDICATOR CABLE TO GROUND | ||
| 062 | N 000127006206 | LOCK WASHER |
| FUEL GAUGE CABLE AND COMPRESSED AIR INDICATOR CABLE TO GROUND | ||
| 065 | N 000934006007 | NUT |
| FUEL GAUGE CABLE AND COMPRESSED AIR INDICATOR CABLE TO GROUND | ||
| 068 | A 0005453013 | SWITCH |
| IGNITION AND LIGHT SWITCH | ||
| 071 | A 0005450376 | WASHER |
| 074 | A 0005451072 | NUT |
| 077 | A 0005451235 | KEY |
| 084 | A 0005453914 | SWITCH |
| STARTING MOTOR | ||
| 084 | A 3415457014 | SWITCH |
| STARTING MOTOR | ||
| 091 | A 3355450001 | FUSE BOX |
| 12-POLE | ||
| 098 | N 007985004136 | SCREW |
| ELECTRIC CABLE TO FUSE BOX | ||
| 105 | N 000127004205 | LOCK WASHER |
| ELECTRIC CABLE TO FUSE BOX | ||
| 112 | N 072581008101 | FUSE |
| 8 A | ||
| 112 | N 072581016100 | FUSE |
| Repalced by: A 0005458334 | ||
| 112 | A 0005458334 | FUSE |
| 16 A | ||
| 119 | A 0005451203 | CAP |
| 126 | N 007981004322 | SHEET METAL SCREW |
| FUSE BOX MOUNTING | ||
| 133 | A 0025404447 | INSTRUMENT CLUSTER |
| 140 | A 0015422317 | SENDER UNIT |
| Repalced by: A 3455427717 | ||
| 140 | A 3455427717 | SENDER UNIT |
| 141 | A 0005455414 | SWITCH |
| PARKING BRAKE CONTROL | ||
| 5.5 BAR | ||
| 141 | A 3445457214 | SWITCH |
| PARKING BRAKE CONTROL | ||
| 142 | A 0005456009 | SWITCH |
| STOP LIGHT | ||
| "BOSCH" | ||
| 142 | A 3645457409 | SWITCH |
| STOP LIGHT | ||
| "PREMA" | ||
| 144 | A 0015424917 | SENDER UNIT |
| Repalced by: A 0045428917 | ||
| 144 | A 0045428917 | SENDER UNIT |
| OIL PRESSURE GAUGE | ||
| 148 | N 007603014400 | SEAL RING |

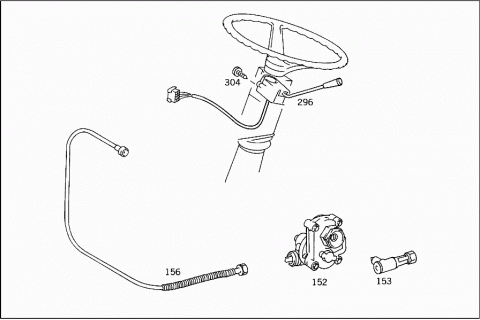

| 152 | A 3415427730 | ANGLE DRIVE |
| 152 | A 3415427530 | ANGLE DRIVE |
| 153 | A 3445420230 | ANGLE DRIVE |
| 153 | A 0005423430 | ANGLE DRIVE |
| 153 | A 0025427030 | ANGLE DRIVE |
| 156 | A 3415428507 | FLEXIBLE SHAFT |
| 156 | A 3415428807 | FLEXIBLE SHAFT |
| 160 | A 0075421906 | SPEEDOMETER |
| 170 | A 0005466141 | CABLE CONNECTOR |
| Repalced by: A 0005461741 | ||
| 170 | A 0005461741 | CABLE CONNECTOR |
| 171 | A 0005460781 | COVERING |
| WITH GASKET | ||
| TO 000 546 61 41 | ||
| 172 | N 000084004119 | SCREW |
| REAR CABLE CONNECTOR | ||
| 176 | N 912004004102 | LOCK WASHER |
| REAR CABLE CONNECTOR | ||
| 180 | N 000934004006 | NUT |
| REAR CABLE CONNECTOR | ||
| 184 | A 0005421425 | POTENTIOMETER |
| Repalced by: A 6155420125 | ||
| 184 | A 0005422125 | POTENTIOMETER |
| Repalced by: A 6155420125 | ||
| 184 | A 6155420125 | POTENTIOMETER |
| INSTRUMENT LIGHTING | ||
| 184 | A 3415427025 | POTENTIOMETER |
| "SCRAM" | ||
| 188 | A 0005421189 | KNOB |
| Repalced by: A 0005421889 | ||
| 188 | A 0005421889 | KNOB |
| 190 | A 0005450372 | NUT |
| TO 000 542 14 25,000 542 21 25 | ||
| 190 | A 0029906251 | NUT |
| TO 615 542 01 25 | ||
| 192 | A 3415457311 | SWITCH |
| 192 | A 3415457211 | SWITCH |
| 200 | A 3415467285 | PROTECTIVE TUBE |
| LENGTH AVAILABLE: | ||
| 1500 MM | ||
| 204 | A 3415407230 | POSITIVE CABLE |
| 204 | A 3415407530 | POSITIVE CABLE |
| 212 | A 3415407331 | NEG. CABLE |
| 212 | A 3415407431 | NEG. CABLE |

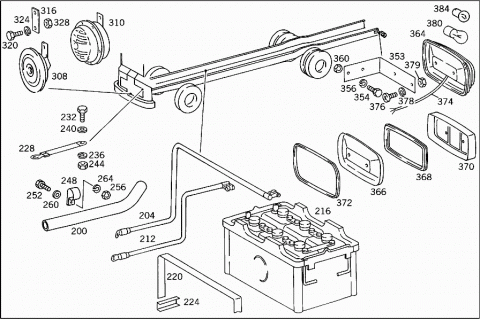

| 216 | A 3415417201 | BATTERY |
| 216 | A 3415417301 | BATTERY |
| 220 | A 3415417021 | STRAP |
| 224 | A 3419977095 | FASTENER |
| 228 | A 3515407041 | GROUND STRAP |
| 232 | N 000933010129 | SCREW |
| BATTERY CABLE AND GROUND STRAP TO SIDE MEMBER | ||
| 236 | N 000127010205 | LOCK WASHER |
| BATTERY CABLE AND GROUND STRAP TO SIDE MEMBER | ||
| 240 | N 009021010100 | WASHER |
| BATTERY CABLE AND GROUND STRAP TO SIDE MEMBER | ||
| 244 | N 000934010000 | NUT |
| BATTERY CABLE AND GROUND STRAP TO SIDE MEMBER | ||
| 248 | A 3419957001 | CLAMP |
| CABLE CONDUIT TO BRACKET | ||
| 252 | N 000933006024 | SCREW |
| CABLE CONDUIT TO BRACKET | ||
| 256 | N 000934006007 | NUT |
| CABLE CONDUIT TO BRACKET | ||
| 260 | N 009021006100 | WASHER |
| CABLE CONDUIT TO BRACKET | ||
| 264 | N 000127006206 | LOCK WASHER |
| CABLE CONDUIT TO BRACKET | ||
| 268 | A 3449887078 | CLIP |
| 268 | A 0009883378 | CLIP |
| 272 | A 0005453826 | PIN BUSHING |
| 276 | A 3215450301 | FUSE BOX |
| 280 | N 072581008100 | FUSE |
| 284 | A 3445447060 | PLUG SOCKET HOUSING |
| 288 | N 007985004136 | SCREW |
| 292 | N 000127004205 | LOCK WASHER |
| 296 | A 0035458124 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 298 | A 0005453914 | SWITCH |
| QUICK-RELEASE VALVE | ||
| 298 | A 3415457014 | SWITCH |
| QUICK-RELEASE VALVE | ||
| 300 | A 0015450214 | SWITCH |
| STARTING IN CAB | ||
| START | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 001 545 49 14 | ||
| 300 | A 3215450114 | SWITCH |
| STARTING IN CAB | ||
| 300 | A 3455457314 | SWITCH |
| STARTING IN CAB | ||
| 304 | N 007981004279 | SHEET METAL SCREW |
| 308 | A 3415427020 | HORN |
| Repalced by: A 3415427220 | ||
| 308 | A 3415427220 | HORN |
| KOVAL | ||
| 308 | A 0025426220 | HORN |
| Repalced by: A 0035423220 | ||
| 308 | A 0035423220 | HORN |
| BOSCH | ||
| 308 | A 0025426420 | HORN |
| HELLA | ||
| 310 | A 3415420020 | HORN |
| Repalced by: A 3415427120 | ||
| 310 | A 3415427120 | HORN |
| BARIFFI | ||
| 316 | A 3415427340 | BRACKET |
| HORN | ||
| 320 | N 000933010016 | SCREW |
| HORN TO BRACKET | ||
| 324 | N 000127010202 | LOCK WASHER |
| HORN TO BRACKET | ||
| 328 | N 000934010005 | NUT |
| HORN TO BRACKET | ||
| 332 | A 0025440932 | SENDER UNIT |
| Repalced by: A 0025447332 | ||
| 332 | A 0025447332 | SENDER UNIT |
| BLINKER SYSTEM | ||
| 332 | A 3515447032 | SENDER UNIT |
| Repalced by: A 0015447932 | ||
| 332 | A 0015447932 | SENDER UNIT |
| BLINKER SYSTEM | ||
| 334 | A 0025441332 | SENDER UNIT |
| BLINKER SYSTEM | ||
| 336 | N 007981004279 | SHEET METAL SCREW |
| BLINKER SENDER UNIT MOUNTING | ||
| 338 | N 000084005130 | SCREW |
| BLINKER SENDER UNIT MOUNTING | ||
| 339 | N 912004005100 | LOCK WASHER |
| BLINKER SENDER UNIT MOUNTING | ||
| 340 | N 000934005004 | NUT |
| BLINKER SENDER UNIT MOUNTING | ||
| 342 | A 3415457005 | RELAY |
| HEADLAMP | ||
| 343 | N 000084006424 | SCREW |
| 344 | N 000934006029 | NUT |
| 345 | N 912004006101 | LOCK WASHER |
| 347 | A 0025457124 | SWITCH,AUTOMATIC |
| Repalced by: A 0045450224 | ||
| 347 | A 0045450224 | SWITCH |
| (HAZARD WARNING LIGHT SWITCH) | ||
| 349 | A 0005453637 | BUTTON |
| HAZARD WARNING LIGHT SWITCH | ||
| 351 | N 072601012110 | BULB |
| TO 002 545 71 24 | ||
| 351 | N 072601012800 | BULB |
| Repalced by: A 3785440094 | ||
| 351 | A 3785440094 | BULB |
| TO 004 545 02 24 | ||
| 353 | A 3415247140 | BRACKET |
| TAIL LAMP | ||
| 354 | N 000933010128 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 356 | N 000127010202 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 360 | N 000934010040 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 364 | A 3415407270 | TAIL LAMP |
| 366 | A 3415447004 | TAIL LAMP |
| 368 | A 3415447080 | GASKET |
| 370 | A 3415447090 | LENS |
| 372 | A 3415447026 | RUBBER PAD |
| 374 | A 3415408308 | CABLE HARNESS |
| 376 | N 007985008148 | SCREW |
| TAIL LAMP TO BRACKET | ||
| 378 | N 912004008104 | LOCK WASHER |
| TAIL LAMP TO BRACKET | ||
| 379 | N 000934008000 | NUT |
| TAIL LAMP TO BRACKET | ||
| 380 | N 072601012190 | BULB |
| 12 V - 21 W | ||
| 384 | N 072601012701 | BULB |
| 12 V - 5 W | ||
| 392 | A 3785440094 | BULB |
| 12 V - 3 W | ||
| 392 | A 3785440094 | BULB |
| 12 V - 3 W | ||
| 396 | A 0015450615 | TELL-TALE LAMP |
| 396 | A 0015450615 | TELL-TALE LAMP |
| 398 | A 0009973535 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 398 | A 3089970035 | PLUG |
| TO PLUG THE FREE HOLES FOR TELL-TALE LAMP | ||
| 400 | A 0005451190 | LENS |
| HIGH BEAM | ||
| 404 | A 0005451290 | LENS |
| TRUCK-TRACTOR BLINKER | ||
| 408 | A 0005451790 | LENS |
| PARKING BRAKE | ||
| 412 | A 0005450190 | LENS |
| CHARGE CONTROL | ||
| 416 | A 0005452590 | LENS |
| AIR CLEANER | ||
| 418 | A 0005450890 | LENS |
| SUPPLY PRESSURE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
