Transporto priemonė: OC 1214; VIN numerio dalis: 341058

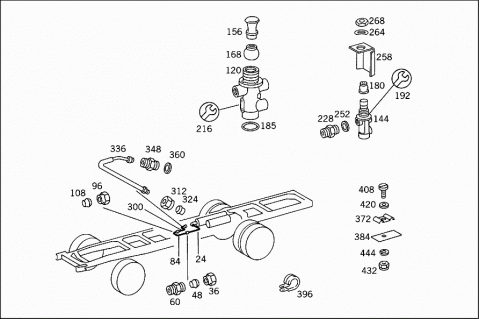

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
024	A 3414307264	LINE
		FROM OEVERFLOW VALVE TO FOOT OPERATED VALVE
036	N 915017006100	UNION NUT
048	N 003861006007	GLAND
060	A 3454298136	CONNECTOR
084	A 3414307364	LINE
		FROM DOUBLE FITTING TO OPERATING VALVE
096	N 915017006100	UNION NUT
108	N 003861006007	GLAND
120	A 0004342401	VALVE
		WABCO
144	A 0004340801	VALVE
	Repalced by: A 0004342401
144	A 3454347101	VALVE
		"WABCO DO BRASIL"
156	A 0009972077	HANDLE
		TO 000 434 24 01
168	A 0004340586	CUP
180	A 0004317387	PROTECTIVE CAP
		TO 000 434 08 01,345 434 71 01
185	A 0079972548	SEAL RING
		TO 000 434 24 01
192	H 983455860943	REPAIR KIT
	Repalced by: A 0034301281
192	A 0034301281	REPAIR KIT
		SMALL SCOPE
		0O 345 434 71 01,
192	A 0005869743	REPAIR KIT
		LARGE SCOPE
		TO 000 434 08 01, 345 434 71 01
216	A 0025869843	REPAIR KIT
		TO 000 434 24 01
228	A 3454298136	CONNECTOR
252	N 007603012112	SEAL RING
258	A 3604340044	PROTECTIVE PLATE
		OPERATING VALVE TO SIDE MEMBER SHELL
264	N 000137026200	SPRING WASHER
		OPERATING VALVE TO SIDE MEMBER SHELL
268	N 080705026000	NUT
		OPERATING VALVE TO SIDE MEMBER SHELL
300	A 3414307464	LINE
		FROM OPERATING VALVE TO CONNECTION FITTING
312	N 915017006100	UNION NUT
324	N 003861006007	GLAND
336	A 3215420035	HOSE
		AT COMPRESSED AIR CYLINDER,ENGINE
348	N 003902006001	CONNECTION FITTING
		AT COMPRESSED AIR CYLINDER,ENGINE
360	N 007603012111	SEAL RING
		AT COMPRESSED AIR CYLINDER,ENGINE
372	A 3219950832	CLAMP
		COMPRESSED AIR LINE MOUNTING
384	A 3124293340	BRACKET
		COMPRESSED AIR LINE MOUNTING
396	N 916016006201	CLAMP
		COMPRESSED AIR LINE MOUNTING
408	N 000084005131	SCREW
		COMPRESSED AIR LINE MOUNTING
420	N 000125005317	WASHER
		COMPRESSED AIR LINE MOUNTING
432	N 000934005004	NUT
		COMPRESSED AIR LINE MOUNTING
444	N 912004005100	LOCK WASHER
		COMPRESSED AIR LINE MOUNTING
