Transporto priemonė: OC 1214; VIN numerio dalis: 341058

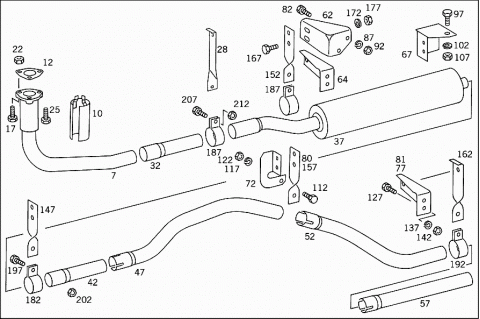

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 007 | A 3414907419 | EXHAUST PIPE |
| FRONT | ||
| 007 | A 3414907619 | EXHAUST PIPE |
| FRONT | ||
| 010 | A 3414907130 | PROTECTIVE PLATE |
| 012 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 012 | A 4424920280 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 017 | N 000931010282 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 022 | N 000934010000 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 025 | N 000931010102 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 028 | A 3414928441 | BRACKET |
| EXHAUST | ||
| 032 | A 3224920707 | CONNECTOR |
| CONNECTING PIPE | ||
| 032 | A 3414929607 | CONNECTOR |
| 032 | A 3414929707 | CONNECTOR |
| 037 | A 3414900215 | EXHAUST MUFFLER WITH PIPE |
| Repalced by: A 3414909015 | ||
| 037 | A 3414909015 | EXHAUST MUFFLER WITH PIPE |
| FRONT | ||
| A 3414907116 | EXHAUST MUFFLER WITH PIPE | |
| Repalced by: A 3414907216 | ||
| 037 | A 3414907216 | EXHAUST MUFFLER WITH PIPE |
| FRONT | ||
| 042 | A 3414927107 | CONNECTOR |
| REAR | ||
| 042 | A 3414927107 | CONNECTOR |
| FRONT | ||
| 042 | A 3414928907 | CONNECTOR |
| REAR | ||
| 042 | A 3414928907 | CONNECTOR |
| FRONT | ||
| 042 | A 3414927307 | CONNECTOR |
| REAR | ||
| 042 | A 3414928807 | CONNECTOR |
| 047 | A 3414920404 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 047 | A 3414927705 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 047 | A 3414928305 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 052 | A 3414927005 | REAR EXHAUST PIPE |
| CONNECTING PIPE | ||
| 057 | A 3414929004 | REAR EXHAUST PIPE |
| REAR | ||
| 062 | A 3454920016 | SUPPORT |
| EXHAUST PIPE | ||
| 064 | A 3414910016 | SUPPORT |
| EXHAUST PIPE | ||
| 067 | A 3414900040 | BRACKET |
| EXHAUST | ||
| 072 | A 3604921319 | BRACKET |
| 072 | A 3414928341 | BRACKET |
| 077 | A 3414927016 | SUPPORT |
| 080 | A 3414928541 | BRACKET |
| 081 | A 3414927416 | SUPPORT |
| 082 | N 000933008066 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 082 | N 000933008048 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 087 | N 912004008104 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 092 | N 000934008000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 097 | N 000933010026 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 102 | N 000127010205 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 107 | N 000934010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 112 | N 000933008025 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 117 | N 912004008104 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 122 | N 000934008000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 127 | N 000933008036 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 127 | N 000933008048 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| 137 | N 912004008104 | LOCK WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 142 | N 000934008000 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 147 | A 3604920841 | BRACKET |
| EXHAUST | ||
| 147 | A 3414927741 | BRACKET |
| EXHAUST | ||
| 152 | A 3604921519 | BRACKET |
| EXHAUST | ||
| 157 | A 3224921819 | BRACKET |
| EXHAUST | ||
| 162 | A 3414927641 | BRACKET |
| EXHAUST | ||
| 162 | A 3414927341 | BRACKET |
| EXHAUST | ||
| 167 | N 000933008025 | SCREW |
| BRACKET TO SUPPORT | ||
| 172 | N 912004008104 | LOCK WASHER |
| BRACKET TO SUPPORT | ||
| 177 | N 000934008000 | NUT |
| BRACKET TO SUPPORT | ||
| 182 | N 071555063502 | CLAMP |
| 187 | N 071555065502 | CLAMP |
| 63.5 | ||
| 192 | N 071555060503 | CLAMP |
| 60.5 | ||
| 197 | N 000933008153 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 202 | N 000934008000 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 207 | N 000933008048 | SCREW |
| CLAMP TO CONNECTOR | ||
| 212 | N 000934008000 | NUT |
| CLAMP TO CONNECTOR | ||
