Transporto priemonė: OC 1214; VIN numerio dalis: 341058

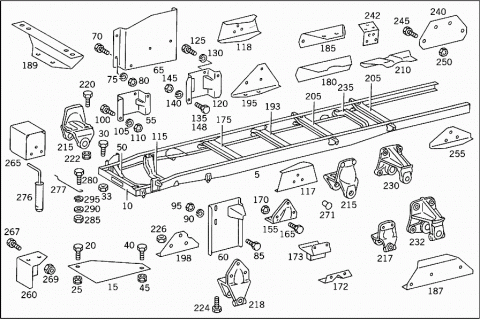

Grupė: 31 FRAME

#	Kodas	Pavadinimas
005	A 3413105201	FRAME
005	A 3413109401	FRAME
005	A 3413105101	FRAME
005	A 3413109601	FRAME
005	A 3413107802	FRAME
010	A 3413100022	CROSS MEMBER
		FRONT
015	A 3413120087	GUSSET PLATE
020	N 000933010016	SCREW
		GUSSET PLATE TO CROSS MEMBER
025	N 913004010008	NUT
		GUSSET PLATE TO CROSS MEMBER
030	N 000933010034	SCREW
		FRONT CROSS MEMBER TO SIDE MEMBERS
033	N 000934010000	NUT
		FRONT CROSS MEMBER TO SIDE MEMBERS
040	N 000961012008	SCREW
		FRONT CROSS MEMBER TO SIDE MEMBERS
045	N 913004012003	NUT
		FRONT CROSS MEMBER TO SIDE MEMBERS
050	A 3413127105	ENGINE CROSS MEMBER
		FRONT
055	A 3413120095	WEB
		ENGINE FRONT SUPPORT
060	A 3413100463	CONSOLE
		LEFT
065	A 3413100563	CONSOLE
		RIGHT
070	N 000933010129	SCREW
		CONSOLE TO SIDE MEMBER
075	N 000127010205	LOCK WASHER
		CONSOLE TO SIDE MEMBER
080	N 000934010000	NUT
		CONSOLE TO SIDE MEMBER
085	N 000933012008	SCREW
		CONSOLE TO SIDE MEMBER
090	N 000127012203	LOCK WASHER
		CONSOLE TO SIDE MEMBER
095	N 000934012021	NUT
		CONSOLE TO SIDE MEMBER
100	N 000933010026	SCREW
		ENGINE CROSS MEMBER TO FRAME
105	N 000127010205	LOCK WASHER
		ENGINE CROSS MEMBER TO FRAME
110	N 000934010000	NUT
		ENGINE CROSS MEMBER TO FRAME
115	A 3453120107	ENGINE CROSS MEMBER
		ENGINE CROSS MEMBER TO FRAME
117	A 3413117060	REINFORCEMENT
		SPRING STOP,LEFT
118	A 3413117160	REINFORCEMENT
		SPRING STOP,RIGHT
120	A 3523100209	BRACKET
		ENGINE REAR CROSS MEMBER TO REINFORCEMENT
125	N 000961012011	SCREW
		REINFORCEMENT TO SIDE MEMBER
130	N 000127012203	LOCK WASHER
		REINFORCEMENT TO SIDE MEMBER
135	N 000933010026	SCREW
		ENGINE REAR CROSS MEMBER TO REINFORCEMENT
140	N 000127010205	LOCK WASHER
		ENGINE REAR CROSS MEMBER TO REINFORCEMENT
145	N 000934010000	NUT
		ENGINE REAR CROSS MEMBER TO REINFORCEMENT
148	N 000933010034	SCREW
		ENGINE REAR CROSS MEMBER TO REINFORCEMENT
155	A 3443220036	STOP
		LEFT
155	A 3443220136	STOP
		RIGHT
165	N 000933010044	SCREW
		STOP TO SIDE MEMBER
170	N 000934010000	NUT
		STOP TO SIDE MEMBER
172	A 3523220008	STAY
		HELPER SPRING
	A 3443220208	STAY
	Repalced by: A 3413207029
173	A 3413207029	STOP
		LEFT FRONT SPRING
173	A 3413207129	STOP
		RIGHT FRONT SPRING
175	A 3223120110	CROSS MEMBER
	Repalced by: A 3603120015
175	A 3603120015	CROSS MEMBER
		NO. 4
175	A 3413127210	CROSS MEMBER
		NO.4
180	A 3223121052	ANGLE
		TO 322 312 01 10
180	A 3513127052	ANGLE
		TO 360 312 00 15
185	A 3223120452	ANGLE
		TO 322 312 01 10
185	A 3523120452	ANGLE
		TO 360 312 00 15
185	A 3413120352	ANGLE
187	A 3413127252	ANGLE
		LEFT
187	A 3413127352	ANGLE
		RIGHT
189	A 3413127084	SHIM
		INTERMEDIATE SHAFT BEARING
193	A 3223120110	CROSS MEMBER
	Repalced by: A 3603120015
193	A 3603120015	CROSS MEMBER
		INTERMEDIATE SHAFT BEARING
	A 3223121052	ANGLE
		TO 322 312 01 10
	A 3513127052	ANGLE
		TO 360 312 00 15
	A 3223120452	ANGLE
		TO 322 312 01 10
	A 3523120452	ANGLE
		TO 360 312 00 15
195	A 3413110553	ANGLE
		LEFT
195	A 3413111053	ANGLE
		RIGHT
198	A 3443220308	STAY
205	A 3223120217	CROSS MEMBER
	Repalced by: A 3513127117
210	A 3523120260	REINFORCEMENT
		CROSS MEMBER
	Y YYYYYYYYYYYY	PART NAME MISSING
		IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.:
		383 312 03 60
215	A 3413220101	FRONT SPRING BRACKET
		FRONT AND REAR
217	A 3443220301	FRONT SPRING BRACKET
		REAR
218	A 3443220501	FRONT SPRING BRACKET
		FRONT
220	N 000961012029	SCREW
		FRONT SPRING FRONT BRACKET TO SIDE MEMBER
220	N 000961012164	SCREW
		FRONT SPRING FRONT BRACKET TO SIDE MEMBER
222	N 913004012003	NUT
		FRONT SPRING FRONT BRACKET TO SIDE MEMBER
224	A 3219901901	SCREW
		FRONT SPRING FRONT BRACKET TO SIDE MEMBER
226	N 000934014008	NUT
		FRONT SPRING FRONT BRACKET TO SIDE MEMBER
230	A 3413250102	REAR SPRING BRACKET
232	A 3523250101	REAR SPRING BRACKET
235	A 3523100140	CROSS MEMBER
		REAR SHOCK ABSORBERS
235	A 3453107240	CROSS MEMBER
		REAR SHOCK ABSORBERS
235	A 3513107340	CROSS MEMBER
		REAR SHOCK ABSORBERS
240	A 3123121557	MOUNTING PLATE
		CROSS MEMBER TO SIDE MEMBERS
242	A 3413127057	MOUNTING PLATE
		CROSS MEMBER TO SIDE MEMBERS
245	N 000933010044	SCREW
		CROSS MEMBER TO SIDE MEMBERS
250	N 913004010008	NUT
		CROSS MEMBER TO SIDE MEMBERS
255	A 3413120052	ANGLE
		STOP TO REAR AXLE
260	A 3413100263	CONSOLE
		LEFT
265	A 3413100363	CONSOLE
		RIGHT
267	N 000933010026	SCREW
		LEFT CONSOLE TO FRAME
269	N 913004010008	NUT
		LEFT CONSOLE TO FRAME
271	N 910005010011	RIVET
		10X24 MM
271	N 910005010013	RIVET
		10X26 MM
271	N 910005010017	RIVET
		10X30 MM
271	N 910005012013	RIVET
		12X28 MM
271	N 910005010021	RIVET
		10X34 MM
271	N 910005012018	RIVET
		12X38 MM
271	N 910005012019	RIVET
		12X40 MM
271	N 910005012020	RIVET
		12X42 MM
271	N 910005014020	RIVET
		14X45 MM
271	N 910005014059	RIVET
		14X48 MM
276	A 3413150006	COUPLING PIN
277	A 3143150173	LOCK
280	N 000933008048	SCREW
		LOCK TO FRONT CROSS MEMBER
285	N 000934008000	NUT
		LOCK TO FRONT CROSS MEMBER
290	N 000125008413	WASHER
		LOCK TO FRONT CROSS MEMBER
295	N 912004008104	LOCK WASHER
		LOCK TO FRONT CROSS MEMBER
