Mercedes-benz | iAUTO.lt

Transporto priemonė: OC 1214; VIN numerio dalis: 341058

Grupė: 47 FUEL SYSTEM

#	Kodas	Pavadinimas

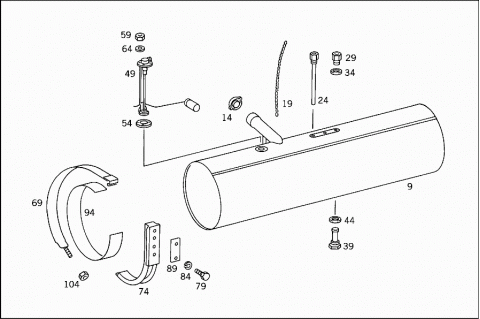

009	A 3414708201	FUEL TANK
014	A 3784700005	FILLER CAP
019	A 3414707031	CHAIN
		FILLER CAP TO FILLER NECK
024	A 3414707126	RISING PIPE
		AT TANK
029	A 3414717120	FITTING
034	N 007603016300	SEAL RING
039	A 3214700006	FUEL STRAINER
		AT TANK
039	A 3414707106	FUEL STRAINER
		AT TANK
044	N 007603035300	SEAL RING
049	A 0005426317	SENDER UNIT
		FUEL GAUGE
054	A 4044710080	GASKET
	Repalced by: A 3524710080
054	A 3524710080	GASKET
		FUEL GAUGE SENDER UNIT TO FUEL TANK
059	N 000934005000	NUT
		FUEL GAUGE SENDER UNIT TO FUEL TANK
064	A 0669970640	SEAL RING
		FUEL GAUGE SENDER UNIT TO FUEL TANK
069	A 3414707240	STRAP
		FUEL TANK
074	A 3414707042	SUPPORT
		FUEL TANK
079	N 000961014007	SCREW
		CONSOLE TO RIGHT SIDE MEMBER
084	N 000127014203	LOCK WASHER
		CONSOLE TO RIGHT SIDE MEMBER
089	A 3224750184	SHIM
	Repalced by: A 3514757219
089	A 3514757219	BASE
		CONSOLE TO RIGHT SIDE MEMBER
094	A 3379870014	RUBBER STRIP
		FUEL TANK TO CONSOLE
094	A 3379870014	RUBBER STRIP
		FUEL TANK TO CONSOLE
104	N 000934012004	NUT

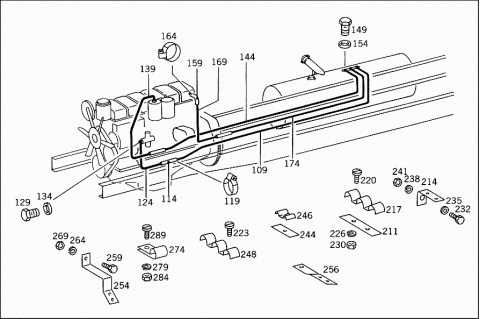

109	A 3414703064	LINE
		FROM FUEL TANK TO RUBBER HOSE
114	A 3124760026	HOSE
119	N 900264005507	LOOM TIE
124	A 3414708664	LINE
		FROM RUBBER HOSE TO FEED PUMP
129	N 915036010100	HOLLOW SCREW
		FUEL LINE TO FEED PUMP
134	N 007603014405	SEAL RING
		FUEL LINE TO FEED PUMP
139	A 3414708764	LINE
		FROM FUEL FILTER TO RUBBER HOSE
144	A 3414703264	LINE
		FROM RUBBER HOSE TO FUEL TANK
149	N 915036010100	HOLLOW SCREW
		FUEL LINE TO FUEL TANK
154	N 007603014405	SEAL RING
		FUEL LINE TO FUEL TANK
159	A 3125421083	HOSE
		LEAK LINE TO CYLINDER HEAD
164	N 900264005506	LOOM TIE
		LEAK LINE TO CYLINDER HEAD
169	A 3414708864	LINE
		FROM CYLINDER HEAD TO HOSE
174	A 3414703564	LINE
		FROM HOSE TO TANK
177	A 0089975482	HOSE
		FROM FUEL TANK TO FUEL PUMP
		11X15 MM
177	A 0089975482	HOSE
		FROM FUEL FILTER TO FUEL TANK
		11X15 MM
180	N 915052008000	BANJO UNION
		FUEL LINE
180	N 915052008000	BANJO UNION
		FUEL LINE
184	A 0019974972	FITTING
		FUEL LINE
188	N 915017010200	UNION NUT
		FUEL LINE
192	A 0089976082	HOSE
		LEAK RETURN
196	N 915052004004	BANJO UNION
		FUEL LINE
200	N 007604014106	SCREW PLUG
		FUEL LINE
208	A 0029972290	LOOM TIE
		FUEL LINE
	A 0019978590	LOOM TIE
	Repalced by: A 0019978490
208	A 0019978390	LOOM TIE
	Repalced by: A 0019978490
208	A 0019978490	LOOM TIE
		LINES TO SIDE MEMBER
211	A 3124761236	BRACKET
		FUEL LINE
214	A 3414767436	BRACKET
		FUEL LINE
217	A 3129950232	CLAMP
		FUEL LINE
220	N 000084006114	SCREW
		CLAMP TO BRACKET
		AM 6X20
223	N 000084006110	SCREW
		CLAMP TO BRACKET
		AM 6X16
226	N 000127006206	LOCK WASHER
		CLAMP TO BRACKET
230	N 000934006007	NUT
		CLAMP TO BRACKET
232	N 000933010026	SCREW
		BRACKET TO SIDE MEMBER
		M 10X22
235	N 000125010518	WASHER
		BRACKET TO SIDE MEMBER
238	N 000127010205	LOCK WASHER
		BRACKET TO SIDE MEMBER
241	N 000934010000	NUT
		BRACKET TO SIDE MEMBER
244	A 3124761036	BRACKET
	Repalced by: A 3124761236
244	A 3124761236	BRACKET
		FUEL LINE
246	A 3179950832	CLAMP
		FUEL LINE
248	A 3129950232	CLAMP
		FUEL LINE
254	A 3414767336	BRACKET
		FUEL LINE
256	A 3414768336	BRACKET
		FUEL LINE
257	A 3414768236	BRACKET
		FUEL LINE
259	N 000933008036	SCREW
		BRACKET TO SIDE MEMBER
		M 8X20
264	N 912004008104	LOCK WASHER
		BRACKET TO SIDE MEMBER
269	N 000934008000	NUT
		BRACKET TO SIDE MEMBER
274	A 3609950501	CLAMP
		COMPRESSED AIR LINE TO BRACKET
279	N 000127006206	LOCK WASHER
		COMPRESSED AIR LINE TO BRACKET
284	N 000934006007	NUT
		COMPRESSED AIR LINE TO BRACKET
289	N 000084006110	SCREW
		COMPRESSED AIR LINE TO BRACKET
		M 6X16
