Transporto priemonė: OC 1214; VIN numerio dalis: 341058

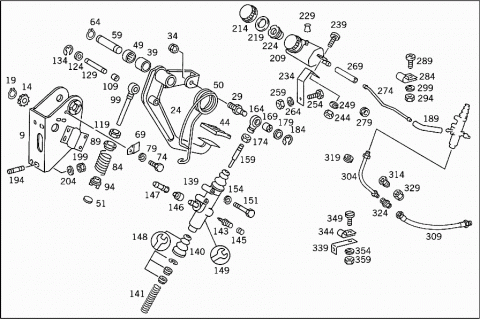

Grupė: 29 PEDALS - 001 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 009 | A 3812901319 | BEARING BRACKET |
| CLUTCH | ||
| 014 | A 3812910186 | STOP |
| 019 | N 000471016001 | LOCK RING |
| STOP TO BEARING BRACKET | ||
| 024 | A 3812900916 | PEDAL |
| 029 | A 3812910274 | PIN |
| 034 | N 913002008001 | NUT |
| 039 | A 3812910053 | SPACER TUBE |
| 044 | A 1102910182 | PAD |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 107 291 01 82 | ||
| 049 | A 0009815610 | NEEDLE BEARING |
| Repalced by: A 0119813410 | ||
| 049 | A 0119813410 | NEEDLE BEARING |
| 049 | A 0009811110 | NEEDLE BEARING |
| 050 | A 3819930710 | SPRING |
| 051 | A 3413017041 | STOP |
| 059 | A 3812940707 | PIVOT PIN |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 064 | N 000471020001 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 069 | A 3812910073 | LOCK |
| 074 | N 000933006220 | SCREW |
| LOCK TO BEARING BRACKET | ||
| 079 | N 000127006203 | LOCK WASHER |
| LOCK TO BEARING BRACKET | ||
| 084 | A 1109930501 | SPRING |
| 089 | A 1112910491 | SPRING RETAINER |
| TOP | ||
| 094 | A 3092910091 | SPRING RETAINER |
| 099 | A 3812910233 | ROD |
| 099 | A 3812910333 | ROD |
| 109 | A 0059814410 | NEEDLE BEARING |
| 109 | A 0059813810 | NEEDLE BEARING |
| 109 | A 0089811210 | NEEDLE BEARING |
| 119 | N 000439010221 | NUT |
| SPRING TO PUSH ROD | ||
| 124 | N 000433008403 | WASHER |
| PUSH ROD TO PEDAL | ||
| 129 | A 3812910574 | PIN |
| PUSH ROD TO PEDAL | ||
| 134 | N 006799006003 | LOCK PLATE |
| PUSH ROD TO PEDAL | ||
| 139 | A 0002956806 | MASTER CYLINDER |
| Repalced by: A 0012952906 | ||
| 139 | A 0012952906 | MASTER CYLINDER |
| Repalced by: A 0012956006 | ||
| 139 | A 0012956006 | MASTER CYLINDER |
| CLUTCH | ||
| 140 | A 0002953283 | BOOT |
| TO 001 295 29 06/60 06 | ||
| 141 | A 0049936001 | SPRING |
| TO 000 295 68 06 | ||
| 143 | A 0004310265 | VALVE |
| Repalced by: A 3454317165 | ||
| 143 | A 3454317165 | VALVE |
| TO 000 295 68 06 | ||
| 145 | A 0004212687 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 145 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 145 | A 3454317287 | PROTECTIVE CAP |
| TO 000 295 68 06 | ||
| 146 | A 0009974235 | PLUG |
| Repalced by: A 0009971186 | ||
| 146 | A 0009971186 | PLUG |
| TO 001 295 29 06/60 06 | ||
| 147 | A 0002950836 | INTERMEDIATE PIECE |
| TO 001 295 29 06/60 06 | ||
| 148 | A 0005863529 | REPAIR KIT |
| 149 | A 0002904667 | REPAIR KIT |
| LESS PISTON | ||
| 151 | N 000931006191 | SCREW |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 154 | N 000127006203 | LOCK WASHER |
| MASTER CYLINDER TO BEARING BRACKET | ||
| 159 | A 3812950033 | ROD |
| 164 | A 0009961145 | ARTICULATION PIECE |
| 164 | A 0009961045 | ARTICULATION PIECE |
| 169 | A 0059814410 | NEEDLE BEARING |
| 169 | A 0059813810 | NEEDLE BEARING |
| 169 | A 0089811210 | NEEDLE BEARING |
| 174 | N 000439008104 | NUT |
| YOKE TO ROD | ||
| 174 | N 000439008220 | NUT |
| YOKE TO ROD | ||
| 179 | N 000433008403 | WASHER |
| PISTON ROD TO LEVER | ||
| 184 | N 006799006003 | LOCK PLATE |
| PISTON ROD TO LEVER | ||
| 189 | A 0119976782 | HOSE |
| Repalced by: A 0009978952 | ||
| 189 | A 0009978952 | HOSE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 000 997 89 52 | ||
| 194 | N 000939008148 | STUD BOLT |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 199 | N 913004008004 | NUT |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 204 | N 000125008417 | WASHER |
| PEDAL UNIT TO WINDOW SILL GIRDER | ||
| 209 | A 0002951715 | RESERVOIR |
| CLUTCH | ||
| 214 | A 0002950116 | LOCKING CAP |
| 219 | A 0002950260 | SEAL RING |
| Repalced by: A 0009972940 | ||
| 219 | A 0009972940 | SEAL RING |
| 224 | A 0002950123 | STRAINER |
| Repalced by: A 0004314334 | ||
| 224 | A 0004314334 | STRAINER |
| 229 | A 0009885435 | CAP |
| 234 | A 3412950040 | BRACKET |
| 239 | N 007985006192 | SCREW |
| EXPANSION TANK TO BRACKET | ||
| 244 | N 000934006007 | NUT |
| EXPANSION TANK TO BRACKET | ||
| 249 | N 000127006206 | LOCK WASHER |
| EXPANSION TANK TO BRACKET | ||
| 254 | N 000933006024 | SCREW |
| BRACKET TO BODY | ||
| 259 | N 000934006007 | NUT |
| BRACKET TO BODY | ||
| 264 | N 000127006206 | LOCK WASHER |
| BRACKET TO BODY | ||
| 269 | A 0089971282 | HOSE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 000 997 89 52 | ||
| 274 | A 3412950013 | PIPE |
| FROM CLUTCH MASTER CYLINDER TO RESERVOIR | ||
| 279 | A 0009972881 | GROMMET |
| 284 | A 3609950301 | CLAMP |
| HYDRAULIC LINE | ||
| 289 | N 007985006193 | SCREW |
| HYDRAULIC LINE | ||
| 294 | N 000934006030 | NUT |
| HYDRAULIC LINE | ||
| 299 | N 000127006206 | LOCK WASHER |
| HYDRAULIC LINE | ||
| 304 | A 3412907013 | LINE |
| FROM COUPLING HALF TO CLUTCH SLAVE CYLINDER | ||
| 309 | A 3412907113 | LINE |
| FROM COUPLING HALF TO CLUTCH SLAVE CYLINDER | ||
| 314 | A 0004281072 | UNION SCREW |
| 319 | A 0009972681 | GROMMET |
| 324 | N 003902008001 | CONNECTION FITTING |
| 329 | N 915017008100 | UNION NUT |
| 329 | N 003870008004 | UNION NUT |
| 339 | A 3412957040 | BRACKET |
| 344 | A 3609950201 | CLAMP |
| Repalced by: A 3604300143 | ||
| 344 | A 3604300143 | CLAMP |
| Repalced by: N 916016008200 | ||
| 344 | N 916016008200 | CLAMP |
| 349 | N 000084006110 | SCREW |
| 354 | N 000127006206 | LOCK WASHER |
| 359 | N 000934006007 | NUT |
