Transporto priemonė: OC 1214; VIN numerio dalis: 341058

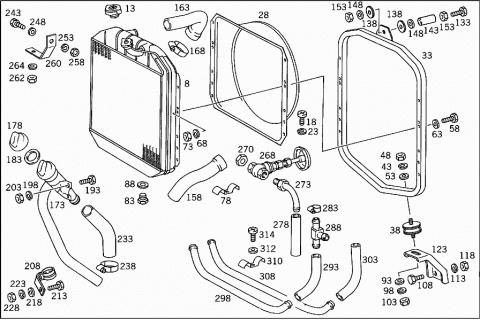

Grupė: 50 RADIATOR
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 3415010201 | RADIATOR |
| 008 | A 3415017601 | RADIATOR |
| 008 | A 3415017701 | RADIATOR |
| 013 | A 0005010215 | RADIATOR CAP |
| 013 | A 3445010315 | RADIATOR CAP |
| 018 | N 007985006193 | SCREW |
| 023 | N 912004006102 | LOCK WASHER |
| 028 | A 3415050055 | FAN SHROUD |
| 033 | A 3415007027 | SUPPORT |
| 033 | A 3415007527 | SUPPORT |
| 038 | A 3605040012 | RUBBER MOUNTING |
| 043 | N 000127010205 | LOCK WASHER |
| RUBBER BUFFER TO BASE FRAME | ||
| 048 | N 000934010000 | NUT |
| RUBBER BUFFER TO BASE FRAME | ||
| 053 | N 000125010518 | WASHER |
| RUBBER BUFFER TO BASE FRAME | ||
| 058 | N 000933008036 | SCREW |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 063 | N 000125008413 | WASHER |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 068 | N 912004008104 | LOCK WASHER |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 073 | N 000934008000 | NUT |
| FAN SHROUD,COVER PLATE,AND BASE FRAME TO RADIATOR | ||
| 078 | A 3219950332 | CLAMP |
| 083 | N 007604018102 | SCREW PLUG |
| 088 | N 007603018401 | SEAL RING |
| 093 | N 007349010001 | WASHER |
| RUBBER BUFFER TO BASE FRAME | ||
| 098 | N 000127010205 | LOCK WASHER |
| RUBBER BUFFER TO BASE FRAME | ||
| 103 | N 000934010000 | NUT |
| RUBBER BUFFER TO BASE FRAME | ||
| 108 | N 000933010105 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 108 | N 000933010128 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 113 | N 000127010205 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 118 | N 000934010000 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 123 | A 3415047140 | BRACKET |
| 133 | N 000933010115 | SCREW |
| Repalced by: N 000933010289 | ||
| 133 | N 000933010289 | SCREW |
| BASE FRAME TO BRACKET | ||
| 138 | A 3275045082 | RUBBER RING |
| 143 | A 3199910540 | SPACER TUBE |
| BASE FRAME TO BRACKET | ||
| 148 | N 009021010100 | WASHER |
| BASE FRAME TO BRACKET | ||
| 153 | N 000934010000 | NUT |
| BASE FRAME TO BRACKET | ||
| 158 | A 3405010082 | HOSE |
| FROM THERMOSTAT TO RADIATOR FILLER NECK | ||
| 163 | A 3405010482 | HOSE |
| Repalced by: A 3415017282 | ||
| 163 | A 3415010382 | HOSE |
| Repalced by: A 3415017282 | ||
| 163 | A 3415017282 | HOSE |
| FROM RADIATOR OUTLET TO WATER PUMP | ||
| 168 | N 916017040000 | CLAMP |
| Repalced by: N 000000000671 | ||
| 168 | N 000000000671 | CLAMP |
| 173 | A 3520101064 | OIL FILLER NECK |
| 178 | A 3520100168 | CAP |
| Repalced by: A 0000180702 | ||
| 178 | A 0000180702 | CAP |
| Repalced by: A 3440180168 | ||
| 178 | A 3440187002 | CAP |
| Repalced by: A 3440180168 | ||
| 178 | A 3440180168 | COVER |
| 183 | A 3520180180 | GASKET |
| Repalced by: A 0000180180 | ||
| A 3440187080 | GASKET | |
| Repalced by: A 0000180180 | ||
| 183 | A 0000180180 | GASKET |
| 193 | N 000933006024 | SCREW |
| 198 | N 000127006206 | LOCK WASHER |
| 203 | N 000934006007 | NUT |
| 208 | A 3520181140 | BRACKET |
| BREATHER PIPE | ||
| 213 | N 000933008036 | SCREW |
| BRACKET TO RADIATOR | ||
| 218 | N 000125008413 | WASHER |
| BRACKET TO RADIATOR | ||
| 223 | N 912004008104 | LOCK WASHER |
| BRACKET TO RADIATOR | ||
| 228 | N 000934008000 | NUT |
| BRACKET TO RADIATOR | ||
| 233 | A 3419970282 | HOSE |
| OIL FILLING | ||
| 238 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 238 | N 000000000670 | CLAMP |
| 243 | N 000933008036 | SCREW |
| OIL DIPSTICK TO RADIATOR | ||
| 248 | N 000125008413 | WASHER |
| OIL DIPSTICK TO RADIATOR | ||
| 253 | N 912004008104 | LOCK WASHER |
| OIL DIPSTICK TO RADIATOR | ||
| 258 | N 000934008000 | NUT |
| OIL DIPSTICK TO RADIATOR | ||
| 260 | A 3415067240 | BRACKET |
| LINE TO CROSS MEMBER | ||
| 262 | N 000934006007 | NUT |
| LINE TO CROSS MEMBER | ||
| 264 | N 000127006206 | LOCK WASHER |
| LINE TO CROSS MEMBER | ||
| 268 | A 3415067064 | VALVE |
| Repalced by: A 3418317132 | ||
| 268 | A 3418317132 | VALVE |
| FEED AND RETURN | ||
| 270 | A 3419907551 | NUT |
| 273 | A 3415007078 | PIPE ELBOW |
| FEED AND RETURN | ||
| 278 | N 900271015098 | HOSE |
| FEED AND RETURN | ||
| 283 | N 916017016000 | CLAMP |
| Repalced by: N 000000000666 | ||
| 283 | N 000000000666 | CLAMP |
| FEED AND RETURN | ||
| 288 | A 3415067059 | CONNECTING PIPE |
| FEED AND RETURN | ||
| 293 | N 900271015024 | HOSE |
| FEED AND RETURN | ||
| 298 | A 3415067160 | PIPE |
| FEED AND RETURN | ||
| 303 | N 900271015106 | HOSE |
| FEED AND RETURN | ||
| 308 | A 3415067260 | PIPE |
| FEED AND RETURN | ||
| 310 | A 3219950332 | CLAMP |
| LINE TO CROSS MEMBER | ||
| 312 | N 912004006102 | LOCK WASHER |
| LINE TO CROSS MEMBER | ||
| 314 | N 007985006716 | SCREW |
| LINE TO CROSS MEMBER | ||
