Transporto priemonė: OC 1214; VIN numerio dalis: 341058
Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|

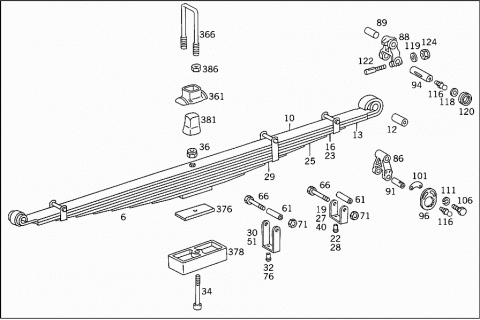

| 006 | A 3413200602 | FRONT SPRING |
| 9-LEAF | ||
| 006 | A 3413207002 | FRONT SPRING |
| 9-LEAF | ||
| 006 | A 3413207102 | FRONT SPRING |
| 10-LEAF | ||
| 010 | A 3413200994 | SPRING LEAF |
| NO.1 | ||
| 010 | A 3603200394 | SPRING LEAF |
| NO.1 | ||
| 012 | A 3203210250 | BUSHING |
| 012 | A 3523220050 | BUSHING |
| 012 | A 3853220050 | BUSHING |
| 013 | A 3413210512 | SPRING LEAF |
| NO.2 | ||
| 013 | A 3603210112 | SPRING LEAF |
| NO.2 | ||
| 016 | A 3413201094 | SPRING LEAF |
| NO. 3 | ||
| 016 | A 3603200494 | SPRING LEAF |
| NO.3 | ||
| 019 | A 3413217133 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 019 | A 0033212733 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 022 | N 910006008022 | RIVET |
| 023 | A 3413217013 | SPRING LEAF |
| NO.3 | ||
| 025 | A 3413210514 | SPRING LEAF |
| NO. 4 | ||
| 025 | A 3603210114 | SPRING LEAF |
| NO.4 | ||
| 025 | A 3413201394 | SPRING LEAF |
| 027 | A 0013216633 | SPRING CLAMP |
| 028 | N 910006008044 | RIVET |
| 029 | A 3603200594 | SPRING LEAF |
| NO.6 | ||
| 029 | A 3413201494 | SPRING LEAF |
| 030 | A 3413217833 | SPRING CLAMP |
| 032 | N 910006008044 | RIVET |
| 034 | N 004626012234 | SPRING BOLT |
| 034 | N 004626012199 | SPRING BOLT |
| 034 | N 004626012185 | SPRING BOLT |
| 036 | N 000934012043 | NUT |
| 040 | A 0033212733 | SPRING CLAMP |
| AT SPRING LEAF NO.3 | ||
| 040 | A 0013216633 | SPRING CLAMP |
| AT SPRING LEAF NO.4 | ||
| 051 | A 3413217033 | SPRING CLAMP |
| AT SPRING LEAF NO.6 | ||
| 051 | A 0033212633 | SPRING CLAMP |
| AT SPRING LEAF NO.6 | ||
| 051 | A 3413217833 | SPRING CLAMP |
| AT SPRING LEAF NO.7 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| INCLUDED IN PARTS KIT | ||
| A 360 320 05 94 | ||
| 061 | A 0003212353 | SPACER TUBE |
| SPRING CLAMP TO SPRING LEAF | ||
| 066 | N 000601008051 | SCREW |
| SPRING CLAMP TO SPRING LEAF | ||
| 071 | N 000934008045 | NUT |
| SPRING CLAMP TO SPRING LEAF | ||
| 076 | N 910006008044 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 086 | A 3213200063 | SHACKLE |
| 088 | A 3523200063 | SHACKLE |
| 089 | A 3523220050 | BUSHING |
| 089 | A 3853220050 | BUSHING |
| 091 | A 3213220030 | SHACKLE PIN |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 094 | A 3413227130 | SHACKLE PIN |
| Repalced by: A 3923227030 | ||
| 094 | A 3413227230 | SHACKLE PIN |
| Repalced by: A 3923227030 | ||
| 094 | A 3923227030 | SHACKLE PIN |
| FRONT SPRING TO FRONT-SPRING REAR BRACKET | ||
| 096 | A 3123220173 | LOCK |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 101 | A 3203220184 | SHIM |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 106 | N 000933008025 | SCREW |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 111 | N 912004008104 | LOCK WASHER |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 116 | N 071412010300 | GREASE NIPPLE |
| 116 | N 071412010100 | GREASE NIPPLE |
| 118 | A 3523230476 | WASHER |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 118 | A 3523230376 | WASHER |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 119 | N 000125010518 | WASHER |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 120 | A 0029973140 | SEAL RING |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 122 | A 3529900337 | BOLT |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||
| 124 | N 913002010008 | NUT |
| FRONT SPRING TO SPRING SHACKLE & SPRING BRACKETS | ||

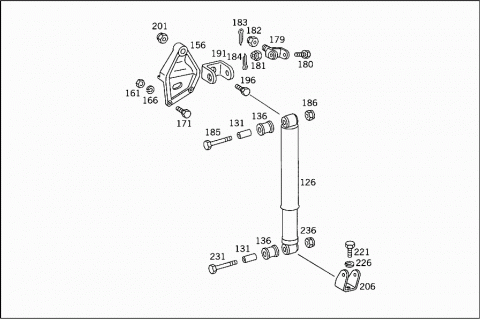

| 126 | A 0033230500 | SHOCK ABSORBER |
| FICHTEL + SACHS | ||
| 126 | A 3413237100 | SHOCK ABSORBER |
| FRIC-ROT | ||
| 130 | A 3443237100 | SHOCK ABSORBER |
| 130 | A 3453237200 | SHOCK ABSORBER |
| FRONT | ||
| 130 | A 3453237300 | SHOCK ABSORBER |
| FRONT | ||
| 131 | A 0003230453 | SPACER TUBE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 000 323 31 50,TO 003 323 05 00 | ||
| 131 | A 3513237050 | BUSHING |
| TO 341 323 71 00 | ||
| 133 | A 0083230053 | SPACER TUBE |
| TO 344 323 71 00 | ||
| 136 | A 0003232885 | RUBBER MOUNTING |
| TO 003 323 05 00 | ||
| 136 | A 3513237085 | RUBBER MOUNTING |
| TO 341 323 71 00 | ||
| 140 | A 0083230385 | RUBBER MOUNTING |
| TO 344 323 71 00 | ||
| 156 | A 3523232163 | BEARING BRACKET |
| SHOCK ABSORBER | ||
| 156 | A 3523232563 | BEARING BRACKET |
| SHOCK ABSORBER | ||
| 156 | A 3523232463 | BEARING BRACKET |
| SHOCK ABSORBER | ||
| 159 | A 3443200478 | CONSOLE |
| TOP | ||
| 161 | N 000934010000 | NUT |
| TOP BEARING BRACKET TO FRAME | ||
| 166 | N 000127010205 | LOCK WASHER |
| TOP BEARING BRACKET TO FRAME | ||
| 171 | N 000933010129 | SCREW |
| TOP BEARING BRACKET TO FRAME | ||
| 171 | N 000933010044 | SCREW |
| TOP BEARING BRACKET TO FRAME | ||
| 173 | A 3443230095 | REINFORCEMENT |
| TOP BEARING BRACKET TO FRAME | ||
| 174 | N 000961012156 | SCREW |
| TOP BEARING BRACKET TO FRAME | ||
| 175 | N 000961012122 | SCREW |
| TOP BEARING BRACKET TO FRAME | ||
| 178 | N 913004012003 | NUT |
| TOP BEARING BRACKET TO FRAME | ||
| 179 | A 3523230118 | END PIECE |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 180 | A 3409900002 | SCREW |
| 181 | N 000937024001 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 182 | N 000979016006 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 183 | N 000094005036 | COTTER PIN |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 184 | N 000094004055 | COTTER PIN |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 185 | A 3529903201 | SCREW |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 186 | N 913004020004 | NUT |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 191 | A 3523230340 | BRACKET |
| 196 | N 000960016059 | SCREW |
| BRACKET TO BEARING BRACKET | ||
| 198 | A 3529901340 | WASHER |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 198 | A 3453237076 | WASHER |
| SHOCK ABSORBER TO BEARING BRACKET | ||
| 201 | N 913004016004 | NUT |
| BRACKET TO BEARING BRACKET | ||
| 206 | A 3413237163 | BEARING BRACKET |
| Repalced by: A 3523231663 | ||
| 206 | A 3523231663 | BEARING BRACKET |
| LEFT BOTTOM | ||
| 206 | A 3413237263 | BEARING BRACKET |
| Repalced by: A 3523231763 | ||
| 206 | A 3523231763 | BEARING BRACKET |
| RIGHT BOTTOM | ||
| 218 | A 3443200578 | CONSOLE |
| BOTTOM | ||
| 221 | N 000961012052 | SCREW |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 226 | N 000127012201 | LOCK WASHER |
| BOTTOM BEARING BRACKET TO FRONT AXLE | ||
| 231 | A 3529900002 | SCREW |
| Repalced by: N 000960016059 | ||
| 231 | N 000960016059 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 236 | N 913004016004 | NUT |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 238 | A 3523230071 | SCREW |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 242 | N 000127016201 | LOCK WASHER |
| SHOCK ABSORBER TO LOWER BEARING BRACKET | ||
| 246 | A 3523231463 | BEARING BRACKET |
| Repalced by: A 3413237363 | ||
| 246 | A 3413237363 | BEARING BRACKET |
| STABILIZER | ||

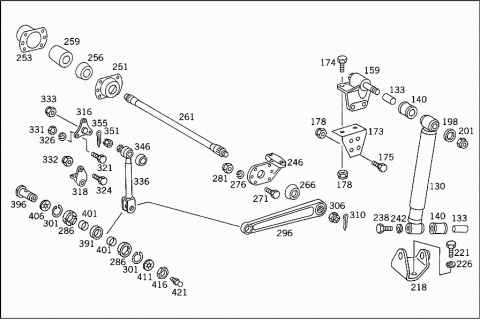

| 251 | A 3523230283 | HOUSING |
| STABILIZER | ||
| 251 | A 3403260082 | HOUSING |
| 253 | A 3403260182 | HOUSING |
| 256 | A 3603230085 | RUBBER MOUNTING |
| 256 | A 3523260181 | RUBBER MOUNTING |
| 259 | A 3523260081 | RUBBER MOUNTING |
| 261 | A 3603230065 | TORSION BAR |
| STABILIZER | ||
| 266 | A 3603230151 | SPACER RING |
| 271 | N 000933010094 | SCREW |
| HOUSING TO BEARING BRACKET | ||
| 271 | N 000933010279 | SCREW |
| HOUSING TO BEARING BRACKET | ||
| 276 | N 000127010202 | LOCK WASHER |
| HOUSING TO BEARING BRACKET | ||
| 281 | N 000934010040 | NUT |
| HOUSING TO BEARING BRACKET | ||
| 281 | N 913004010008 | NUT |
| HOUSING TO BEARING BRACKET | ||
| 286 | A 0009816631 | JOINT BEARING |
| STABILIZER | ||
| 286 | A 0009810731 | JOINT BEARING |
| STABILIZER | ||
| 286 | A 0009810931 | JOINT BEARING |
| STABILIZER | ||
| 296 | A 3603230869 | LEVER |
| STABILIZER | ||
| 301 | N 009045035001 | SNAP RING |
| STABILIZER | ||
| 306 | N 000937030000 | NUT |
| LEVER TO TORSION BAR | ||
| 310 | N 000094006324 | COTTER PIN |
| LEVER TO TORSION BAR | ||
| 316 | A 3603230663 | BEARING BRACKET |
| STABILIZER | ||
| 318 | A 3523230963 | BEARING BRACKET |
| STABILIZER | ||
| 321 | N 000933010044 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 324 | N 000933012125 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 324 | N 000933014046 | SCREW |
| BEARING BRACKET TO FRAME | ||
| 326 | N 000127010202 | LOCK WASHER |
| BEARING BRACKET TO FRAME | ||
| 331 | N 000934010040 | NUT |
| BEARING BRACKET TO FRAME | ||
| 332 | N 913004012004 | NUT |
| BEARING BRACKET TO FRAME | ||
| 332 | N 913004014007 | NUT |
| BEARING BRACKET TO FRAME | ||
| 333 | N 913004014000 | NUT |
| ROD TO BEARING BRACKET | ||
| 336 | A 3603200189 | ROD |
| 336 | A 3603200789 | ROD |
| A 3603201089 | ROD | |
| Repalced by: A 3453207389 | ||
| 336 | A 3453207389 | ROD |
| 336 | A 3453200089 | ROD |
| 336 | A 3453200189 | ROD |
| 336 | A 3453207189 | ROD |
| 346 | A 0003300185 | BOOT |
| TO 360 320 10 89,360 320 01 89 | ||
| 351 | N 000937014001 | NUT |
| TO 360 320 10 89,360 320 01 89 | ||
| 355 | N 000094003226 | COTTER PIN |
| TO 360 320 10 89,360 320 01 89 | ||
| 361 | A 3523220231 | PLATE |
| FRONT SPRINGS TO FRONT AXLE | ||
| 366 | A 3523510025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 366 | A 3413310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 366 | A 3383315125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 366 | A 3603310025 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 366 | A 3403510325 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 366 | A 3603510125 | U-BOLT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 376 | A 3443310028 | SHIM |
| 378 | A 3443220284 | SHIM |
| FRONT SPRINGS TO FRONT AXLE | ||
| 381 | A 3163240008 | HELPER SPRING |
| FRONT SPRINGS TO FRONT AXLE | ||
| 386 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 386 | N 000934018006 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 386 | N 913004018003 | NUT |
| FRONT SPRINGS TO FRONT AXLE | ||
| 391 | A 3603230460 | SEAL RING |
| ARTICULATED ROD TO LEVER | ||
| 396 | A 3603230274 | PIN |
| ARTICULATED ROD TO LEVER | ||
| 401 | A 3603230153 | SPACER TUBE |
| ARTICULATED ROD TO LEVER | ||
| 406 | N 006797021201 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 411 | N 006797021101 | TOOTHED WASHER |
| ARTICULATED ROD TO LEVER | ||
| 416 | N 000936020000 | NUT |
| ARTICULATED ROD TO LEVER | ||
| 421 | N 071412010100 | GREASE NIPPLE |
| PIN | ||

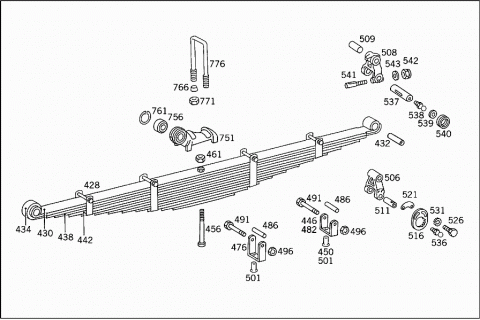

| 428 | A 3413200706 | REAR SPRING |
| 11-LEAF | ||
| 428 | A 3443200006 | REAR SPRING |
| 12-LEAF | ||
| 430 | A 3413201393 | SPRING LEAF |
| NO.1 | ||
| 430 | H 993413200593 | SPRING LEAF |
| NO.1 | ||
| 432 | A 3523250150 | BUSHING |
| 432 | A 3853250050 | BUSHING |
| 434 | A 3413240612 | SPRING LEAF |
| NO.2 | ||
| 434 | A 3443240012 | SPRING LEAF |
| NO.2 | ||
| 438 | A 3413240613 | SPRING LEAF |
| NO.3 | ||
| 438 | A 3443240013 | SPRING LEAF |
| NO.3 | ||
| 442 | A 3413201493 | SPRING LEAF |
| NO.4 | ||
| 442 | A 3443240014 | SPRING LEAF |
| NO.4 | ||
| 446 | A 3413217533 | SPRING CLAMP |
| Repalced by: A 3413217723 | ||
| 446 | A 3413217723 | SPRING LEAF |
| AT SPRING LEAF NO.4 | ||
| 450 | N 910006008022 | RIVET |
| 456 | N 004626012209 | SPRING BOLT |
| 456 | N 004626012111 | SPRING BOLT |
| 461 | N 000934012010 | NUT |
| 476 | A 3413217433 | SPRING CLAMP |
| Repalced by: A 3413217633 | ||
| 476 | A 3413217633 | SPRING CLAMP |
| AT SPRING LEAF NO.9 | ||
| 476 | A 3413240133 | SPRING CLAMP |
| AT SPRING LEAF NO.10 | ||
| 482 | A 0013217333 | SPRING CLAMP |
| AT SPRING LEAF NO.5 | ||
| 486 | A 0003212553 | SPACER TUBE |
| Repalced by: A 3413217053 | ||
| 486 | A 3413217053 | SPACER TUBE |
| SPRING CLAMP TO SPRING LEAF | ||
| 486 | A 0003213053 | SPACER TUBE |
| SPRING CLAMP TO SPRING LEAF | ||
| 491 | A 3419907430 | SCREW |
| SPRING CLAMP TO SPRING LEAF | ||
| 491 | N 000601010027 | SCREW |
| SPRING CLAMP TO SPRING LEAF | ||
| 496 | N 913004010008 | NUT |
| SPRING CLAMP TO SPRING LEAF | ||
| 496 | N 000934010000 | NUT |
| SPRING CLAMP TO SPRING LEAF | ||
| 501 | N 910006008043 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 501 | N 910006008024 | RIVET |
| SPRING CLAMP TO SPRING LEAF | ||
| 506 | A 3213200063 | SHACKLE |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 508 | A 3523200163 | SHACKLE |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 509 | A 3523250150 | BUSHING |
| 509 | A 3853250050 | BUSHING |
| 511 | A 3213220030 | SHACKLE PIN |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 516 | A 3123220173 | LOCK |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 521 | A 3203220184 | SHIM |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 526 | N 000933008025 | SCREW |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 531 | N 912004008104 | LOCK WASHER |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 536 | N 071412010300 | GREASE NIPPLE |
| 537 | A 3413257030 | SHACKLE PIN |
| Repalced by: A 3923257230 | ||
| 537 | A 3923257230 | SHACKLE PIN |
| REAR SPRING TO REAR SPRING FRONT BRACKET | ||
| 537 | A 3413257030 | SHACKLE PIN |
| Repalced by: A 3923257130 | ||
| 537 | A 3923257130 | SHACKLE PIN |
| SPRING SHACKLE TO SPRING REAR BRACKET | ||
| 537 | A 3923257130 | SHACKLE PIN |
| REAR SPRING TO SPRING SHACKLE | ||
| 538 | N 071412010100 | GREASE NIPPLE |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 539 | A 3523231076 | WASHER |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 4.2 MM | ||
| 539 | A 3523230976 | WASHER |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 4.0 MM | ||
| 540 | A 0029973040 | SEAL RING |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 541 | A 3529900337 | BOLT |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 542 | N 913002010008 | NUT |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||
| 543 | N 000125010518 | WASHER |
| REAR SPRING TO SPRING SHACKLE AND TO SPRING FRONT AND REAR BRACKETS | ||

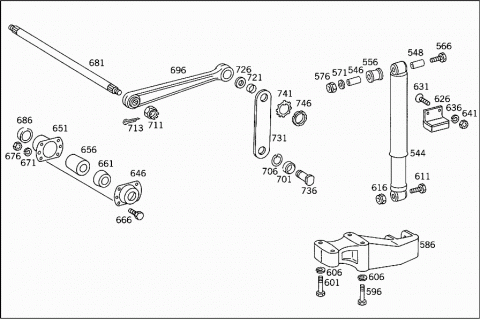

| 544 | A 0013266500 | SHOCK ABSORBER |
| BOGE | ||
| 544 | A 0013268500 | SHOCK ABSORBER |
| FICHTEL + SACHS | ||
| 544 | A 3453267200 | SHOCK ABSORBER |
| 544 | A 3453267700 | SHOCK ABSORBER |
| AMORTEX | ||
| 544 | A 3513267500 | SHOCK ABSORBER |
| FRIC-ROT | ||
| 546 | A 0003260750 | BUSHING |
| TO 001 326 65 00 | ||
| 548 | A 0003230553 | SPACER TUBE |
| TO | ||
| 001 326 85 00,345 326 72 00 | ||
| 556 | A 0003260268 | RUBBER BUFFER |
| Repalced by: A 0003230785 | ||
| 556 | A 0003230785 | RUBBER MOUNTING |
| TO 001 326 65 00,001 326 85 00 | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| TO 345 326 72 00 | ||
| 566 | A 3529901301 | SCREW |
| Repalced by: A 3979900001 | ||
| 566 | A 3979900001 | SCREW |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 571 | A 3529901540 | WASHER |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 576 | N 913004020003 | NUT |
| SHOCK ABSORBER TO CROSS MEMBER | ||
| 586 | A 3513260040 | BRACKET |
| Repalced by: A 3513260240 | ||
| 586 | A 3513260240 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| 586 | A 3413267140 | BRACKET |
| LEFT SHOCK ABSORBER | ||
| A 3513260140 | BRACKET | |
| Repalced by: A 3513260340 | ||
| 586 | A 3513260340 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 586 | A 3413267240 | BRACKET |
| RIGHT SHOCK ABSORBER | ||
| 596 | N 000960014247 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| 601 | N 000960014260 | SCREW |
| BRACKET TO SPRING SADDLE | ||
| 606 | N 000127014201 | LOCK WASHER |
| BRACKET TO SPRING SADDLE | ||
| 611 | A 3529901201 | SCREW |
| Repalced by: A 3859900101 | ||
| 611 | A 3859900101 | SCREW |
| SHOCK ABSORBER TO BRACKET | ||
| 616 | N 913004020003 | NUT |
| SHOCK ABSORBER TO BRACKET | ||
| 626 | A 3443500075 | RUBBER MOUNTING |
| STOP TO REAR AXLE | ||
| 631 | N 000964010003 | SCREW |
| RUBBER BUFFER TO FRAME | ||
| 636 | N 000127010202 | LOCK WASHER |
| RUBBER BUFFER TO FRAME | ||
| 641 | N 000934010040 | NUT |
| RUBBER BUFFER TO FRAME | ||
| 646 | A 3403260082 | HOUSING |
| OUTSIDE RUBBER MOUNTING | ||
| 651 | A 3403260182 | HOUSING |
| INSIDE RUBBER MOUNTING | ||
| 656 | A 3523260081 | RUBBER MOUNTING |
| 661 | A 3523260181 | RUBBER MOUNTING |
| 666 | N 000933010267 | SCREW |
| RUBBER MOUNTING TO FRAME | ||
| 671 | N 000127010202 | LOCK WASHER |
| RUBBER MOUNTING TO FRAME | ||
| 676 | N 000934010040 | NUT |
| RUBBER MOUNTING TO FRAME | ||
| 681 | A 3223260065 | TORSION BAR |
| REAR AXLE | ||
| 681 | A 3443260065 | TORSION BAR |
| REAR AXLE | ||
| 686 | A 3523230751 | SPACER RING |
| 686 | A 3523230251 | SPACER RING |
| 696 | A 3523260369 | LEVER |
| Repalced by: A 3453260269 | ||
| 696 | A 3453260269 | LEVER |
| STABILIZER | ||
| 701 | A 0009810831 | JOINT BEARING |
| 701 | A 0009811231 | JOINT BEARING |
| 706 | N 000472055000 | LOCK RING |
| 711 | N 000937028001 | NUT |
| 713 | N 000094005040 | COTTER PIN |
| 721 | A 3523260153 | SPACER TUBE |
| LEVER TO GUIDE PLATE | ||
| 726 | A 3603230560 | SEAL RING |
| LEVER TO GUIDE PLATE | ||
| 731 | A 3523260116 | LINK |
| LEVER TO GUIDE PLATE | ||
| 736 | A 3523260274 | PIN |
| LEVER TO GUIDE PLATE | ||
| 741 | N 070952035101 | LOCK PLATE |
| LEVER TO GUIDE PLATE | ||
| 746 | N 070852035000 | NUT |
| LEVER TO GUIDE PLATE | ||
| 751 | A 3523250331 | PLATE |
| 756 | A 0009810831 | JOINT BEARING |
| 756 | A 0009811231 | JOINT BEARING |
| 761 | N 000472055000 | LOCK RING |
| 766 | A 3279970026 | WASHER |
| REAR SPRING TO REAR AXLE | ||
| 771 | N 000934018006 | NUT |
| REAR SPRING TO REAR AXLE | ||
| A 3123514825 | U-BOLT | |
| Repalced by: A 3523511225 | ||
| 776 | A 3523511225 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
| 776 | A 3423510425 | U-BOLT |
| REAR SPRING TO REAR AXLE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
