Transporto priemonė: OC 1214; VIN numerio dalis: 341058
Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR STEERING,SEE UNIT STANDARD VERSION, MODEL: | ||
| 766.0 | ||

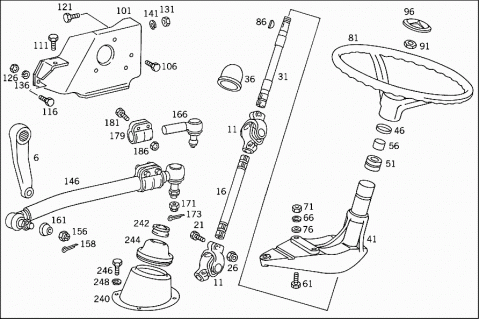

| 006 | A 3414630301 | PITMAN ARM |
| 22 MM | ||
| 011 | A 4214600457 | UNIVERSAL JOINT |
| Repalced by: A 3164600157 | ||
| A 3164600157 | UNIVERSAL JOINT | |
| Repalced by: A 3164600057 | ||
| 011 | A 3164600157 | UNIVERSAL JOINT |
| Repalced by: A 3164600057 | ||
| 011 | A 3164600057 | UNIVERSAL JOINT |
| 011 | A 3444607057 | UNIVERSAL JOINT |
| 011 | A 3444607157 | UNIVERSAL JOINT |
| 011 | A 3444607257 | UNIVERSAL JOINT |
| 016 | A 3524621101 | STEERING SHAFT |
| BOTTOM | ||
| 021 | A 3169900114 | SCREW |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 026 | N 913004008005 | NUT |
| UNIVERSAL JOINT TO STEERING COLUMN | ||
| 031 | A 3524620001 | STEERING SHAFT |
| TOP | ||
| 031 | A 3454627301 | STEERING SHAFT |
| TOP | ||
| 036 | A 3604620596 | BOOT |
| UNIVERSAL JOINT,TOP | ||
| 041 | A 3354600137 | BEARING |
| STEERING COLUMN BRACKET | ||
| 046 | A 3224620023 | COVER |
| 051 | A 3214620165 | RING |
| 056 | A 3124621150 | BUSHING |
| 061 | N 000931010282 | SCREW |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| M 10X40 | ||
| 066 | N 000127010205 | LOCK WASHER |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| 071 | N 000934010000 | NUT |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| 076 | N 000125010518 | WASHER |
| STEERING COLUMN BRACKET TO WINDOW SILL | ||
| 081 | A 3454600203 | STEERING WHEEL |
| Repalced by: A 3644607003 | ||
| 081 | A 3644607003 | STEERING WHEEL |
| BLACK | ||
| 081 | A 3454600303 | STEERING WHEEL |
| Repalced by: A 3644607003 | ||
| 081 | A 3644607003 | STEERING WHEEL |
| IVORY | ||
| 086 | N 006888005006 | WOODRUFF KEY |
| STEERING WHEEL TO STEERING COLUMN | ||
| 5X7.5 | ||
| 091 | N 000439022200 | NUT |
| STEERING WHEEL TO STEERING COLUMN | ||
| M 22X1.5 | ||
| 096 | A 0004641631 | CAP |
| TO 345 460 02 03 | ||
| 096 | A 0004641731 | CAP |
| TO 345 460 03 03 | ||
| 101 | A 3414600229 | STEERING BRACKET |
| 101 | A 3414607029 | STEERING BRACKET |
| 106 | A 3529901002 | SCREW |
| 111 | N 000961012027 | SCREW |
| STEERING BRACKET TO FRAME | ||
| M 12X1.5X35 | ||
| 116 | N 000961012029 | SCREW |
| STEERING BRACKET TO FRAME | ||
| M 12X1.5X40 | ||
| 121 | N 000933010044 | SCREW |
| STEERING BRACKET TO FRAME | ||
| M 10X28 | ||
| 126 | N 000934012004 | NUT |
| STEERING BRACKET TO FRAME | ||
| M 12X1.5 | ||
| 131 | N 000934010000 | NUT |
| STEERING BRACKET TO FRAME | ||
| M 10 | ||
| 136 | N 000127012203 | LOCK WASHER |
| STEERING BRACKET TO FRAME | ||
| 141 | N 000127010205 | LOCK WASHER |
| STEERING BRACKET TO FRAME | ||
| 146 | A 3414600005 | DRAG LINK |
| CONE DIA., | ||
| 22 MM | ||
| 156 | N 000937018004 | NUT |
| CONE DIA., | ||
| 22 MM | ||
| 158 | N 000094004026 | COTTER PIN |
| CONE DIA., | ||
| 22 MM | ||
| 161 | A 0003300285 | BOOT |
| CONE DIA., | ||
| 22 MM | ||
| 166 | A 0003303135 | JOINT |
| CONE DIA., | ||
| 22 MM | ||
| 166 | A 0003300385 | BOOT |
| CONE DIA., | ||
| 22 MM | ||
| 171 | N 000937018004 | NUT |
| CONE DIA., | ||
| 22 MM | ||
| 173 | N 000094004026 | COTTER PIN |
| CONE DIA., | ||
| 22 MM | ||
| 173 | N 000094004066 | COTTER PIN |
| 179 | A 0003381445 | CLAMP |
| 181 | N 000960012138 | SCREW |
| 186 | N 000935012002 | NUT |
| N 000094003221 | COTTER PIN | |

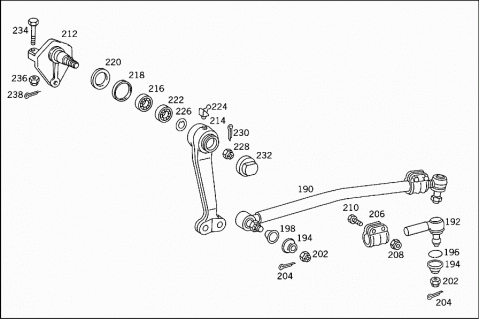

| 190 | A 3414607505 | DRAG LINK |
| LEMFOERDER | ||
| 190 | A 3414607605 | DRAG LINK |
| ADJUSTABLE | ||
| LEMFOERDER | ||
| 190 | A 3444608305 | DRAG LINK |
| ADJUSTABLE | ||
| NAKATA | ||
| 192 | A 3443307135 | JOINT |
| TO 344 460 83 05, NAKATA | ||
| 192 | A 0003309335 | JOINT |
| TO 341 460 76 05,LEMFOERDER | ||
| 194 | A 3443387056 | DUST CAP |
| TO 344 460 83 05,NAKATA | ||
| 194 | A 0009970997 | FASTENER |
| TO 341 460 75 05,LEMFOERDER | ||
| 194 | A 0009970997 | FASTENER |
| FIXED PART OF JOINT | ||
| TO 341 460 76 05,LEMFOERDER | ||
| 194 | A 0003300885 | BOOT |
| FIXED PART OF JOINT | ||
| TO 341 460 76 05 | ||
| 196 | A 3443387263 | CLAMPING RING |
| TO 344 460 83 05,NAKATA | ||
| 198 | A 3443387051 | SPACER RING |
| TO 344 460 83 05,NAKATA | ||
| 202 | N 000937018004 | NUT |
| 204 | N 000094004026 | COTTER PIN |
| 206 | A 3443387545 | CLAMP |
| TO 344 460 83 05,NAKATA | ||
| 206 | A 0009954944 | CLAMP |
| TO 341 460 76 05,LEMFOERDER | ||
| 208 | N 913004010008 | NUT |
| TO 344 460 83 05,NAKATA | ||
| 208 | N 913004012004 | NUT |
| TO 341 460 76 05,LEMFOERDER | ||
| 210 | N 000960010035 | SCREW |
| TO 344 460 83 05,NAKATA | ||
| 210 | N 000960012062 | SCREW |
| TO 341 460 76 05,LEMFOERDER | ||
| 212 | A 3224630011 | TRUNNION BEARING |
| 214 | A 3524630010 | STEERING INTERMEDIATE ARM |
| 216 | N 000720030206 | TAPERED ROLLER BEARING |
| 218 | A 3174630052 | SPACER WASHER |
| 220 | A 0079976446 | SEAL RING |
| 220 | A 3449978246 | SEAL RING |
| 222 | N 000720030205 | TAPERED ROLLER BEARING |
| 224 | N 071412010200 | GREASE NIPPLE |
| 226 | A 3174630062 | THRUST WASHER |
| INTERMEDIATE LEVER TO BEARING BRACKET | ||
| 228 | N 000937020001 | NUT |
| INTERMEDIATE LEVER TO BEARING BRACKET | ||
| 230 | N 000094004065 | COTTER PIN |
| INTERMEDIATE LEVER TO BEARING BRACKET | ||
| 232 | A 3214630033 | CAP |
| INTERMEDIATE LEVER TO BEARING BRACKET | ||
| 234 | A 3449900202 | SCREW |
| INTERMEDIATE LEVER TO FRAME | ||
| 236 | N 000935012001 | NUT |
| INTERMEDIATE LEVER TO FRAME | ||
| 238 | N 000094003217 | COTTER PIN |
| INTERMEDIATE LEVER TO FRAME | ||
| 240 | A 3414620096 | BOOT |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 240 | A 3414627096 | BOOT |
| 242 | A 3214620060 | SEAL RING |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 244 | A 3524620196 | BOOT |
| STEERING COLUMN TUBE THRU CAB FLOOR | ||
| 246 | N 000933006015 | SCREW |
| 248 | N 000127006206 | LOCK WASHER |

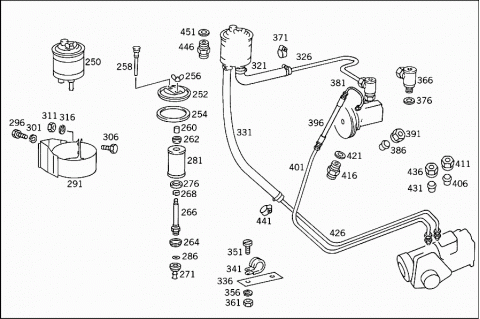

| 250 | A 3844667002 | TANK |
| 250 | A 0004664502 | TANK |
| 250 | A 0004663802 | TANK |
| 252 | A 0004662005 | COVER |
| 254 | A 0004660260 | SEAL RING |
| 256 | N 000315008008 | NUT |
| 258 | A 0004660218 | PIPE |
| 260 | A 0009870643 | RUBBER SLEEVE |
| 262 | A 0004660675 | CENTERING RING |
| 264 | A 0004660238 | COVER PLATE |
| 266 | A 0014664465 | FILTER CARRIER |
| Repalced by: A 0004610065 | ||
| 266 | A 0004610065 | FILTER SUPPORT |
| 268 | A 0004660153 | SPACER TUBE |
| 271 | A 0004660558 | CONNECTOR |
| 276 | A 0004660275 | WASHER |
| 281 | A 0004660604 | FILTER |
| 286 | A 0059970848 | SEAL RING |
| 291 | A 3414600035 | BRACKET |
| OIL TANK | ||
| TO 000 466 38 02,384 466 70 02 | ||
| 291 | A 3414607035 | BRACKET |
| OIL TANK | ||
| TO 000 466 45 02 | ||
| 296 | N 000933008036 | SCREW |
| BRACKET TO CAB | ||
| 301 | N 912004008104 | LOCK WASHER |
| BRACKET TO CAB | ||
| 306 | N 000933006056 | SCREW |
| OIL TANK TO BRACKET | ||
| 311 | N 000934006007 | NUT |
| OIL TANK TO BRACKET | ||
| 316 | N 000127006206 | LOCK WASHER |
| OIL TANK TO BRACKET | ||
| 321 | A 3609970982 | HOSE |
| 326 | A 3414600224 | LINE |
| FROM HOSE TO POWER STEERING PUMP | ||
| 331 | A 3419977782 | HOSE |
| 331 | A 3419978382 | HOSE |
| 336 | A 3529950448 | CLAMPING PIECE |
| 341 | N 916016012200 | CLAMP |
| 341 | N 916016015202 | CLAMP |
| 351 | N 000084006110 | SCREW |
| 356 | N 000127006206 | LOCK WASHER |
| 361 | N 000934006007 | NUT |
| 366 | N 915041022100 | SCREW CONNECTION |
| POWER STEERING PUMP | ||
| 371 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 371 | N 000000000667 | CLAMP |
| HOSE TO PIPE AND TO OIL TANK | ||
| 376 | N 007603026104 | SEAL RING |
| POWER STEERING PUMP | ||
| 381 | A 3414600324 | LINE |
| FROM PUMP TO HIGH PRESSURE HOSE | ||
| 386 | N 003861012007 | GLAND |
| 391 | N 915017012100 | UNION NUT |
| 396 | A 0109971682 | HOSE |
| Repalced by: A 0019972652 | ||
| 396 | A 0019972652 | HOSE |
| 396 | A 3459977382 | HOSE |
| 401 | A 3414600524 | LINE |
| FROM HOSE TO STEERING | ||
| 406 | N 003861012007 | GLAND |
| 411 | N 915017012100 | UNION NUT |
| 416 | N 003901012001 | SCREW-IN FITTING |
| 421 | N 007603016105 | SEAL RING |
| 426 | A 3414600424 | LINE |
| FROM STEERING TO HOSE | ||
| 431 | N 003861015004 | GLAND |
| 436 | N 915017015100 | UNION NUT |
| 441 | N 916017020000 | CLAMP |
| Repalced by: N 000000000667 | ||
| 441 | N 000000000667 | CLAMP |
| HOSE TO OIL LINE | ||
| 446 | N 003901015002 | SCREW-IN FITTING |
| 451 | N 007603018101 | SEAL RING |
