Transporto priemonė: OF 1113 INDONESIEN; VIN numerio dalis: 345052
Grupė: 42 BRAKES
44598
44599

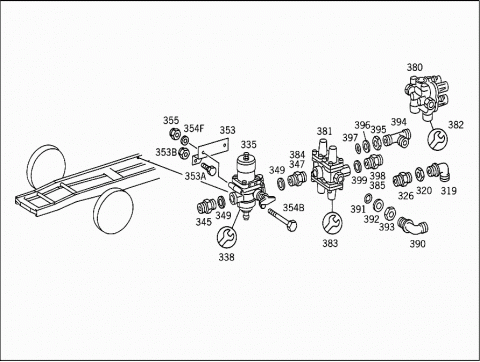

44600

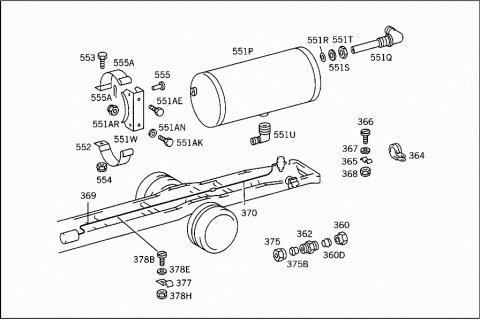

44601

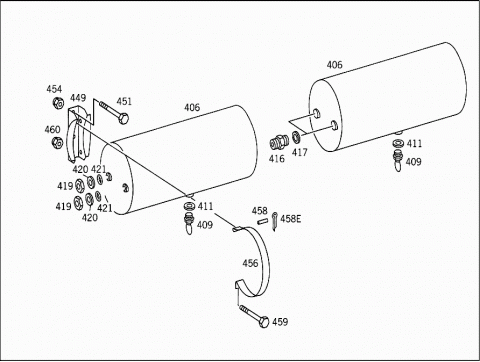

44602

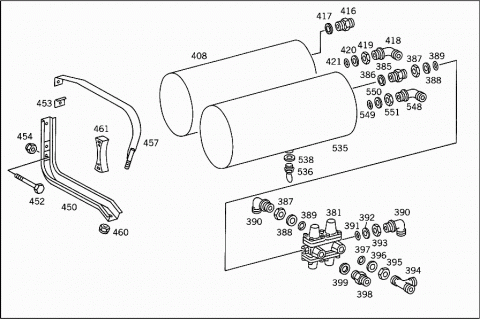

44603

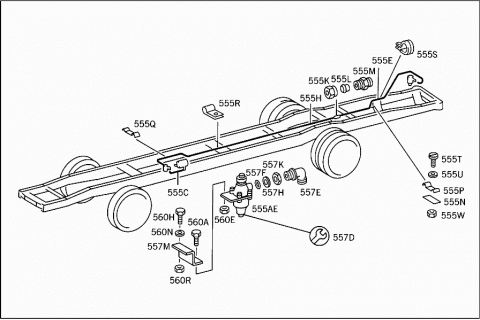

44604

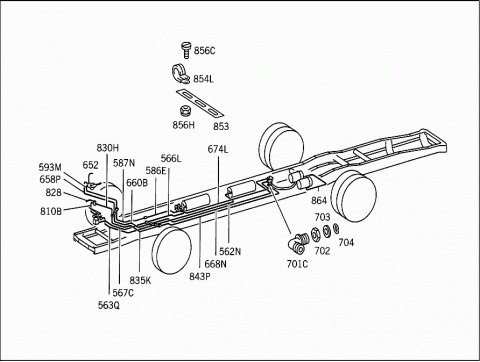

44605

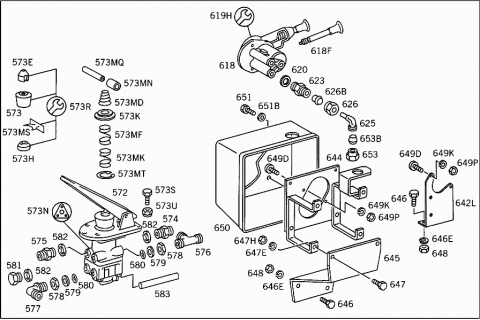

44606
44607

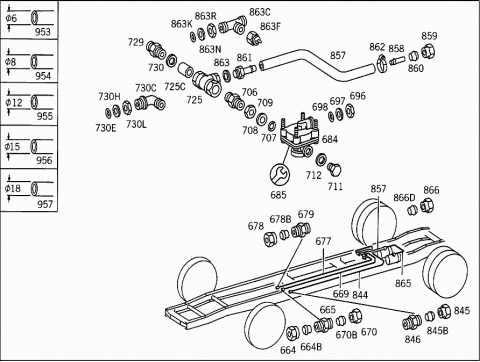

44608
44609
# Kodas Pavadinimas
T YYYYYYYYYYYY PART NAME MISSING
FOR FRONT WHEEL BRAKE,SEE UNIT STANDARD VERSION, MODEL:
"732"

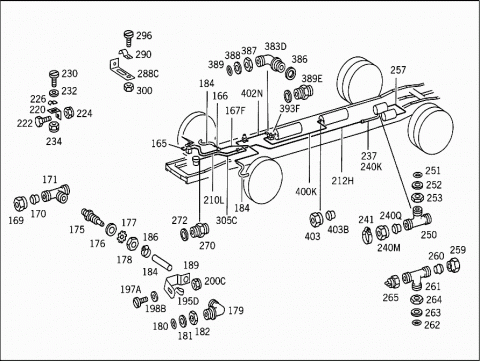

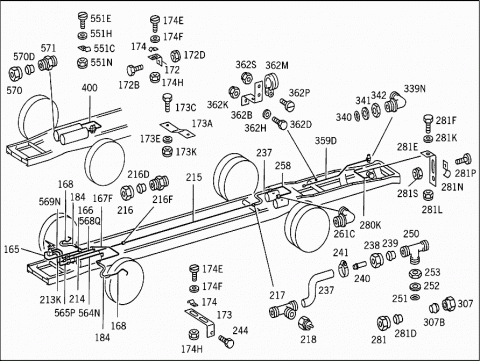

165 A 3444209332 LINE
FROM SERVICE BRAKE VALVE,CONNECTION "22",TO T-FITTING
165 A 3444202436 LINE
FROM SERVICE BRAKE VALVE,CONNECTION "22",TO T-FITTING
166 A 3444209928 LINE
FROM T-FITTING TO LEFT HOSE FITTING
12X1 MM
166 A 3444209928 LINE
FROM T-FITTING TO RIGHT HOSE FITTING
12X1 MM
167F A 3444202536 LINE
168 A 3454208632 LINE
FROM BRAKE HOSE TO FRONT AXLE DIAPHRAGM CYLINDER
12X1 MM
169 N 915017012100 UNION NUT
170 N 003861012007 GLAND
171 N 003908012000 T-FITTING
171 A 0009905270 T-FITTING
172 A 3454287040 BRACKET
COMPRESSED AIR LINE TO INTERMEDIATE SHAFT BEARING CROSS MEMBER
172B N 000933008271 SCREW
COMPRESSED AIR LINE TO INTERMEDIATE SHAFT BEARING CROSS MEMBER
172D N 913004008001 NUT
COMPRESSED AIR LINE TO INTERMEDIATE SHAFT BEARING CROSS MEMBER
173 A 3464295940 BRACKET
COMPRESSED AIR LINE TO SIDE MEMBER
173A A 3094760236 BRACKET
COMPRESSED AIR LINE TO SIDE MEMBER
173C N 000933008270 SCREW
COMPRESSED AIR LINE TO SIDE MEMBER
173E N 000125008417 WASHER
COMPRESSED AIR LINE TO SIDE MEMBER
173K N 913004008001 NUT
COMPRESSED AIR LINE TO SIDE MEMBER
174 A 3049951520 CLAMP
COMPRESSED AIR LINE TO BRACKET
Repalced by: A 1009950420
174 A 1009950420 CLAMP
COMPRESSED AIR LINE TO BRACKET
174 A 1009950420 CLAMP
COMPRESSED AIR LINE TO SIDE MEMBER
174 N 916016012200 CLAMP
COMPRESSED AIR LINE TO BRACKET
174 A 3459957901 CLAMP
COMPRESSED AIR LINE TO BRACKET
174E N 000084006429 SCREW
COMPRESSED AIR LINE TO BRACKET
174F N 000125006421 WASHER
COMPRESSED AIR LINE TO BRACKET
174H N 913004006002 NUT
COMPRESSED AIR LINE TO BRACKET
175 A 3454307379 CONNECTOR
176 N 000125017010 WASHER
HOSE FITTING TO FRONT AXLE SIDE MEMBER
177 N 006797016151 TOOTHED WASHER
HOSE FITTING TO FRONT AXLE SIDE MEMBER
178 N 080705016003 NUT
HOSE FITTING TO FRONT AXLE SIDE MEMBER
179 A 3089907171 ELBOW FITTING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
180 A 0009971548 SEAL RING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
181 A 0004290927 THRUST RING
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
182 N 080705016003 NUT
AT LEFT AND RIGHT DIAPHRAGM CYLINDERS
184 N 916027011005 HOSE
FROM BRAKE HOSE TO LEFT AND RIGHT FRONT WHEELS
11X530
186 A 3459977990 LOOM TIE
Repalced by: A 3459978890
186 A 3459978890 CLAMP
Repalced by: N 916017016000
186 N 916017016000 CLAMP
Repalced by: N 000000000666
186 N 000000000666 CLAMP
BRAKE HOSE MOUNTING
189 A 3454287840 BRACKET
RIGHT
189 A 3454287840 BRACKET
RIGHT
189 A 3454288240 BRACKET
LEFT
189 A 3454288240 BRACKET
LEFT
189 A 3454299840 BRACKET
COMPRESSED AIR LINE MOUNTING
189 A 3454299840 BRACKET
COMPRESSED AIR LINE MOUNTING
195D N 916016012200 CLAMP
AT DIAPHRAGM CYLINDER BRACKET
195D A 3459957901 CLAMP
197A N 000084006429 SCREW
AT DIAPHRAGM CYLINDER BRACKET
198B N 000125006421 WASHER
AT DIAPHRAGM CYLINDER BRACKET
198B N 000125006421 WASHER
AT DIAPHRAGM CYLINDER BRACKET
200C N 913004006002 NUT
AT DIAPHRAGM CYLINDER BRACKET
210L A 3444209432 LINE
FRONT LEFT AND BRAKE LINES
212H A 3444207333 LINE
FROM FITTING TO BRAKE HOSE
213K A 3444202236 LINE
FROM SERVICE BRAKE VALVE TO FITTING
214 A 3454206937 LINE
FROM FITTING TO FITTING
215 A 3454205037 LINE
FROM FITTING TO T-FITTING
12X1 MM
216 N 915017012100 UNION NUT
216D N 003861012007 GLAND
216F N 003902012001 CONNECTION FITTING
216F A 0029971472 FITTING
217 N 074317012301 FITTING
217 A 0009905370 T-FITTING
218 A 3445457114 SWITCH
Repalced by: A 0015454114
218 A 0015454114 SWITCH
220 A 3454287040 BRACKET
LINE TO CROSS MEMBER
222 N 000933008271 SCREW
LINE TO CROSS MEMBER
224 N 913004008001 NUT
LINE TO CROSS MEMBER
226 A 3459957901 CLAMP
226 N 916016012200 CLAMP
230 N 000084006422 SCREW
CLAMP TO BRACKET
232 N 000125006421 WASHER
CLAMP TO BRACKET
234 N 913004006002 NUT
CLAMP TO BRACKET
237 N 916027011006 HOSE
FROM T-FITTING TO COMBINATION CYLINDER ON THE RIGHT,CONNECTION:
"11",11X540
237 N 916027011008 HOSE
FROM T-FITTING TO COMBINATION CYLINDER ON THE RIGHT,CONNECTION:
"11"; 11X630
238 N 915017012100 UNION NUT
BRAKE HOSE
239 N 003861012007 GLAND
BRAKE HOSE
240 A 0004290541 FITTING
Repalced by: A 3454297041
240 A 3454297041 FITTING
BRAKE HOSE
240K A 3504208935 LINE
RIGHT COMBINATION CYLINDER,CONNECTION:
11
240M N 915017012100 UNION NUT
RIGHT COMBINATION CYLINDER,CONNECTION:
11
240Q N 003861012007 GLAND
RIGHT COMBINATION CYLINDER,CONNECTION:
11
241 A 3459977990 LOOM TIE
Repalced by: A 3459978890
241 A 3459978890 CLAMP
Repalced by: N 916017016000
241 N 916017016000 CLAMP
Repalced by: N 000000000666
241 N 000000000666 CLAMP
BRAKE HOSE
244 N 000933008036 SCREW
BRACKET TO SIDE MEMBER
250 A 0009904270 T-FITTING
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
251 A 0009971548 SEAL RING
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
252 A 0004290227 THRUST RING
Repalced by: A 0009940203
252 A 0009940203 THRUST RING
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
252 A 0004290927 THRUST RING
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
253 N 080705016003 NUT
RIGHT COMBINATION CYLINDER,CONNECTION:
"11,12"
257 A 3504208735 LINE
FROM LEFT COMBINATION CYL.,CONNECTION "11",TO RIGHT COMBIN. CYL.,CONNECTION:
"11"12X1 MM
258 A 3454307073 TUBE
FROM LEFT COMBINATION CYL.,CONNECTION "11",TO RIGHT COMBIN. CYL.,CONNECTION:
"11",12X1 MM
259 N 915017012100 UNION NUT
260 N 003861012007 GLAND
261 A 0009904770 T-FITTING
LEFT COMBINATION CYLINDER;CONNECTION:
"11,12"
261C A 3089907171 ELBOW FITTING
LEFT COMBINATION CYLINDER;CONNECTION:
"11,12"
262 A 0009971548 SEAL RING
LEFT COMBINATION CYLINDER;CONNECTION:
"11,12"
263 A 0004290227 THRUST RING
Repalced by: A 0009940203
263 A 0009940203 THRUST RING
LEFT COMBINATION CYLINDER;CONNECTION:
"11,12"
263 A 0004290927 THRUST RING
LEFT COMBINATION CYLINDER;CONNECTION:
"11,12"
264 N 080705016003 NUT
LEFT COMBINATION CYLINDER;CONNECTION:
"11,12"
265 A 0005455414 SWITCH
LEFT COMBINATION CYLINDER;CONNECTION:
"11,12"
265 A 3445457114 SWITCH
Repalced by: A 0015454114
265 A 0015454114 SWITCH
LEFT COMBINATION CYLINDER;CONNECTION:
"11,12"
265 A 3445457214 SWITCH
LEFT COMBINATION CYLINDER;CONNECTION:
"11,12"
270 A 3454298336 CONNECTOR
AT AIR COMPRESSOR
272 N 007603022102 SEAL RING
AT AIR COMPRESSOR
280K A 3444204936 LINE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
281 N 915017015100 UNION NUT
281D N 003861015004 GLAND
281E A 3524281740 BRACKET
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
281F N 000933008271 SCREW
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
281K N 000125008413 WASHER
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
281L N 913004008001 NUT
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
281N A 3049950220 CLAMP
COMPRESSED AIR LINE TO BRACKET
281P N 000084006429 SCREW
COMPRESSED AIR LINE TO BRACKET
281S N 913004006002 NUT
COMPRESSED AIR LINE TO BRACKET
288C A 3524281740 BRACKET
COMPRESSED AIR LINE TO BELL HOUSING
290 A 3049950220 CLAMP
COMPRESSED AIR LINE TO BELL HOUSING
296 N 000084006423 SCREW
COMPRESSED AIR LINE TO BELL HOUSING
300 N 913004006002 NUT
COMPRESSED AIR LINE TO BELL HOUSING
305C A 3444207433 LINE
FROM AIR COMPRESSOR TO PRESSURE REGULATOR
307 N 915017015100 UNION NUT
307B N 003861015004 GLAND
319 A 3454297838 ELBOW FITTING
320 N 074305022202 NUT
326 A 0019972372 FITTING
335 A 0014310006 PRESSURE REGULATOR
"WABCO"
335 A 0014319806 PRESSURE REGULATOR
"KNORR"
338 A 0015864343 REPAIR KIT
TO 001 431 00 06
338 A 0025866743 REPAIR KIT
Repalced by: A 0004201371
338 A 0004201371 REPAIR KIT
TO 001 431 98 06
339N A 3764297332 T-FITTING
AT PRESSURE REGULATOR
340 A 0009870446 O-RING
AT PRESSURE REGULATOR
341 A 0004290227 THRUST RING
AT PRESSURE REGULATOR
342 N 074305022202 NUT
AT PRESSURE REGULATOR
345 A 3454298336 CONNECTOR
AT PRESSURE REGULATOR
347 N 074313012100 FITTING
AT PRESSURE REGULATOR
347 A 0029971172 FITTING
Repalced by: A 3454307879
347 A 3454307879 CONNECTOR
AT PRESSURE REGULATOR
349 N 007603022102 SEAL RING
AT PRESSURE REGULATOR
353 A 3445917040 BRACKET
PRESSURE REGULATOR
353A N 000931008270 SCREW
BRACKET TO SIDE MEMBER
353B N 913004008001 NUT
BRACKET TO SIDE MEMBER
354B N 000931008370 SCREW
PRESSURE REGULATOR TO BRACKET
354F N 000125008413 WASHER
PRESSURE REGULATOR TO BRACKET
355 N 913004008001 NUT
PRESSURE REGULATOR TO BRACKET
359D A 3444205036 LINE
FROM PRESSURE REGULATOR TO FITTING
360 N 915017012100 UNION NUT
360D N 003861012007 GLAND
362 N 003902012001 CONNECTION FITTING
362 A 0029971472 FITTING
362B A 3454767036 BRACKET
FROM PRESSURE REGULATOR TO FITTING
362D N 000933008152 SCREW
FROM PRESSURE REGULATOR TO FITTING
362H N 000125008417 WASHER
FROM PRESSURE REGULATOR TO FITTING
362K N 913004008001 NUT
FROM PRESSURE REGULATOR TO FITTING
362M N 916016012200 CLAMP
COMPRESSED AIR LINE MOUNTING
362M A 3459957901 CLAMP
COMPRESSED AIR LINE MOUNTING
362P N 000084006425 SCREW
COMPRESSED AIR LINE MOUNTING
362S N 913004006002 NUT
COMPRESSED AIR LINE MOUNTING
364 N 916016012200 CLAMP
COMPRESSED AIR LINE MOUNTING
364 A 3459957901 CLAMP
COMPRESSED AIR LINE MOUNTING
365 A 3459957432 CLAMP
COMPRESSED AIR LINE TO CROSS MEMBER
366 N 000084006429 SCREW
COMPRESSED AIR LINE TO CROSS MEMBER
367 N 000125006421 WASHER
COMPRESSED AIR LINE TO CROSS MEMBER
368 N 913004006002 NUT
COMPRESSED AIR LINE TO CROSS MEMBER
369 A 3444204436 LINE
FROM FITTING TO AIR RESERVOIR
370 A 3444204536 LINE
FROM AIR RESERVOIR TO VALVE
375 N 915017012100 UNION NUT
375B N 003861012007 GLAND
377 A 3459957432 CLAMP
COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER
378B N 000084006429 SCREW
COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER
378E N 000125006421 WASHER
COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER
378H N 913004006002 NUT
COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER
380 A 0024310106 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
"KNORR"
381 A 0014318906 VALVE
(FOUR-CIRCUIT PROTECTIVE VALVE)
WABCO
382 A 0004301068 REPAIR KIT
Repalced by: A 0004201571
382 A 0004201571 REPAIR KIT
TO 002 431 01 06
383 A 0035860943 REPAIR KIT
TO 001 431 89 06
383D A 0009907771 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
383D N 074315012101 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
384 N 074313012100 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
384 A 0029971172 FITTING
Repalced by: A 3454307879
384 A 3454307879 CONNECTOR
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
385 A 3459977072 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
386 N 007603022102 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1,22"
387 N 080705022001 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
388 A 0004290227 THRUST RING
Repalced by: A 0009940203
388 A 0009940203 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
389 A 0009870446 O-RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"1"
389E A 3459977072 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
390 A 3089907171 ELBOW FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21,22"
391 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22"
392 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22"
393 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22"
393F N 007603022102 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION:
"21"
394 N 074317012200 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
394 A 0009904970 T-FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
395 N 080705016003 NUT
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
396 A 0004290927 THRUST RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
397 A 0009971548 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
398 N 074313006101 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
398 A 0029978172 FITTING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
399 N 007603016103 SEAL RING
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24"
400 A 3454204037 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "21",TO AIR RESERVOIR I
12X1 MM
400K A 3444309666 LINE
FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22"
402N A 3444209132 LINE
FROM PRESSURE REGULATOR TO FOURCIRCUIT PROTECTIVE VALVE
403 N 915017012100 UNION NUT
403B N 003861012007 GLAND
406 A 3454308005 RESERVOIR
Repalced by: A 3454308105
406 A 3454308105 RESERVOIR
AIR RESERVOIRS I AND II
408 A 3454327001 RESERVOIR
AIR RESERVOIR I
409 A 0004320807 VALVE
DRAIN
409 A 3644327107 VALVE
DRAIN
411 N 007603022102 SEAL RING
AT AIR RESERVOIR I
416 N 074313012100 FITTING
AT AIR RESERVOIR I
416 A 0029971172 FITTING
Repalced by: A 3454307879
416 A 3454307879 CONNECTOR
AT AIR RESERVOIR I
417 N 007603022102 SEAL RING
AT AIR RESERVOIR I
418 N 074315012101 FITTING
AT AIR RESERVOIRS I AND II
418 N 074315012101 FITTING
AT AIR RESERVOIR I
418 A 0009907771 ELBOW FITTING
AT AIR RESERVOIRS I AND II
418 A 0009907771 ELBOW FITTING
AT AIR RESERVOIR I
419 N 074305022202 HOLLOW SCREW
AT AIR RESERVOIR I
419 N 074305022202 HOLLOW SCREW
AT AIR RESERVOIRS I AND II
420 A 0004290227 THRUST RING
AT AIR RESERVOIR I
420 A 0004290227 THRUST RING
AT AIR RESERVOIRS I AND II
421 A 0009870446 O-RING
AT AIR RESERVOIR I
449 A 3224320115 CONSOLE
AIR RESERVOIR
450 A 3604301311 CONSOLE
AIR RESERVOIR
451 N 000961012160 SCREW
CONSOLE TO SIDE MEMBER
452 N 000961012106 SCREW
CONSOLE TO BRACKET
453 A 3454320026 PLATE
CONSOLE TO BRACKET
454 N 913004012009 NUT
CONSOLE TO SIDE MEMBER
454 N 913004012009 NUT
CONSOLE TO BRACKET
456 A 3224300140 STRAP
AIR RESERVOIR TO CONSOLE
457 A 3604300040 STRAP
AIR RESERVOIR TO CONSOLE
458 N 001434010024 PIN
AIR RESERVOIR TO CONSOLE
458E N 000094003026 COTTER PIN
AIR RESERVOIR TO CONSOLE
459 N 000931010282 SCREW
AIR RESERVOIR TO CONSOLE
460 N 913004010008 NUT
AIR RESERVOIR TO CONSOLE
460 N 000934010000 NUT
AIR RESERVOIR TO CONSOLE
461 A 3354320218 BASE
AIR RESERVOIR TO CONSOLE
535 A 3454327001 RESERVOIR
AIR RESERVOIR II
536 A 0004320807 VALVE
DRAIN VALVE
536 A 3644327107 VALVE
DRAIN VALVE
538 N 007603022102 SEAL RING
AT AIR RESERVOIR II
548 N 074315012101 FITTING
AT AIR RESERVOIR II
548 A 0009907771 ELBOW FITTING
AT AIR RESERVOIR II
549 A 0009870446 O-RING
AT AIR RESERVOIR II
550 A 0004290227 THRUST RING
AT AIR RESERVOIR II
551 N 074305022202 NUT
AT AIR RESERVOIR II
551C A 3049950532 CLAMP
AT AIR RESERVOIR II
551E N 000084006429 SCREW
AT AIR RESERVOIR II
551H N 000125006421 WASHER
AT AIR RESERVOIR II
551N N 913004006002 NUT
AT AIR RESERVOIR II
551P A 3764327101 RESERVOIR
AIR RESERVOIR III
551Q A 3454307579 CONNECTOR
Repalced by: A 3454307679
551Q A 3454307679 CONNECTOR
AT AIR RESERVOIR
551R A 0009870446 O-RING
AT AIR RESERVOIR
551S A 0004290227 THRUST RING
AT AIR RESERVOIR
551T N 074305022202 NUT
AT AIR RESERVOIR
551U A 3459907071 ELBOW FITTING
AT AIR RESERVOIR
551U A 3609900071 ELBOW FITTING
AT AIR RESERVOIR
551W A 3224320115 CONSOLE
AIR RESERVOIR III
551AE N 000961012160 SCREW
CONSOLE TO SIDE MEMBER
M 12X25
551AK N 000961012167 SCREW
CONSOLE TO SIDE MEMBER
M 12X28
551AN N 000125013012 WASHER
CONSOLE TO SIDE MEMBER
551AR N 913004012009 NUT
CONSOLE TO SIDE MEMBER
552 A 3224300140 STRAP
AIR RESERVOIR TO CONSOLE
553 N 000931010282 SCREW
STRAP TO CONSOLE
554 N 913004010008 NUT
STRAP TO CONSOLE
555 N 001444010208 PIN
STRAP TO CONSOLE
555A N 000094003026 COTTER PIN
STRAP TO CONSOLE
555C A 3444204336 LINE
FROM AIR RESERVOIR TO DRAIN VALVE
6X0.7 MM
555E A 3444204136 LINE
FROM T-FITTING TO FITTING
6X0.7 MM
555H A 3444204236 LINE
FROM FITTING TO DRAIN VALVE
6X0.7 MM
555K N 915017006100 UNION NUT
555L N 003861006007 GLAND
555M N 003902006001 CONNECTION FITTING
555N A 3179950148 CLAMPING PIECE
COMPRESSED AIR LINE TO COMPRESSED AIR LINE
555P A 3459957432 CLAMP
COMPRESSED AIR LINE TO COMPRESSED AIR LINE
555Q A 3444290240 CLAMP
COMPRESSED AIR LINE TO COMPRESSED AIR LINE
555R A 3609950101 CLAMP
COMPRESSED AIR LINE TO COMPRESSED AIR LINE
555S N 916016006201 CLAMP
COMPRESSED AIR LINE TO COMPRESSED AIR LINE
555S A 3459957801 CLAMP
COMPRESSED AIR LINE TO COMPRESSED AIR LINE
555T N 000084006422 SCREW
COMPRESSED AIR LINE TO COMPRESSED AIR LINE
555U N 000125006421 WASHER
COMPRESSED AIR LINE TO COMPRESSED AIR LINE
555W N 913004006002 NUT
COMPRESSED AIR LINE TO COMPRESSED AIR LINE
555AE A 0034293544 VALVE
Repalced by: A 0004295444
555AE A 0004295444 VALVE
AUTOMATIC DRAIN
A 0079970248 SEAL RING
17.3X2.4, TO 003 429 35 44
557D A 0005868342 REPAIR KIT
TO 000 429 54 44
557E A 3454297438 ELBOW FITTING
DRAIN VALVE
557H A 0004290827 THRUST RING
DRAIN VALVE
557K N 080705012000 NUT
DRAIN VALVE
557M A 3454267340 BRACKET
DRAIN VALVE
560A N 000933008271 SCREW
DRAIN VALVE TO BRACKET
560E N 913004008001 NUT
DRAIN VALVE TO BRACKET
560H N 000933008270 SCREW
BRACKET TO CROSS MEMBER
560N N 000125008417 WASHER
BRACKET TO CROSS MEMBER
560R N 913004008001 NUT
BRACKET TO CROSS MEMBER
562N A 3444209632 LINE
FROM AIR RESERVOIR I TO FITTING
563Q A 3444209532 LINE
FROM FITTING TO SERVICE BRAKE VALVE, CONNECTION:
"12"
564N A 3454204437 LINE
FROM AIR RESERVOIR I TO FITTING
565P A 3444203536 LINE
FROM FITTING TO SERVICE BRAKE VALVE, CONNECTION:
"11"
566L A 3444209232 LINE
FROM AIR RESERVOIR II TO FITTING
567C A 3444209732 LINE
FROM FITTING TO SERVICE BRAKE VALVE, CONNECTION:
"11"
568Q A 3454204237 LINE
FROM AIR RESERVOIR II TO FITTING
569N A 3444203136 LINE
FROM FITTING TO SERVICE BRAKE VALVE, CONNECTION:
"12"
570 N 915017012100 UNION NUT
570D N 003861012007 GLAND
571 N 003902012001 CONNECTION FITTING
571 A 0029971472 FITTING
572 A 0024313905 BRAKE VALVE
"KNORR"
573 A 0014311386 CUP
TO 002 431 39 05
573E A 0009910845 RING
TO 002 431 39 05
573H A 0004319483 PISTON
TO 002 431 39 05
573H A 0004318783 PISTON
573H A 0004318883 PISTON
573K A 0004311522 COVER
MAKE KNORR
TO 002 431 39 05
573K A 0004311622 COVER
MAKE KNORR
TO 002 431 39 05
573MD A 0014317093 SPRING
MAKE KNORR
TO 002 431 39 05
573MF A 0014317193 SPRING
MAKE KNORR
TO 002 431 39 05
573MK A 0014317293 SPRING
MAKE KNORR
TO 002 431 39 05
573MN A 0004310750 BUSHING
MAKE KNORR
TO 002 431 39 05
573MQ A 0004312374 PIN
MAKE KNORR
TO 002 431 39 05
573MS A 0019974286 PLUG
MAKE KNORR
TO 002 431 39 05
573MT A 0049949941 LOCK
TO 002 431 39 05
573N A 0004306260 REPAIR KIT
LARGE SCOPE
TO 002 431 62 05
573R A 0004307360 REPAIR KIT
Repalced by: A 0004304306
573R A 0004304306 REPAIR KIT
LARGE SCOPE
TO 002 431 39 05
573R A 0014301260 REPAIR KIT
SMALL SCOPE
TO 002 431 39 05
573S N 304017008010 SCREW
BRAKE VALVE
573U N 913004008001 NUT
BRAKE VALVE
574 N 003901012005 SCREW-IN FITTING
SERVICE BRAKE VALVE,CONNECTION:
"11,21"
574 A 0029971572 FITTING
SERVICE BRAKE VALVE,CONNECTION:
"11,21"
574 A 0029971572 FITTING
SERVICE BRAKE VALVE,CONNECTION:
"22"
575 N 074313006101 FITTING
SERVICE BRAKE VALVE,CONNECTION:
"11,12"
575 N 074313006101 FITTING
SERVICE BRAKE VALVE,CONNECTION:
"22"
575 A 0029978172 FITTING
"11,12"
576 N 074317012200 FITTING
SERVICE BRAKE VALVE,CONNECTION:
"12"
576 A 0009904970 T-FITTING
SERVICE BRAKE VALVE,CONNECTION:
"12"
577 A 3089907171 ELBOW FITTING
SERVICE BRAKE VALVE,CONNECTION:
"22"
578 N 080705016003 NUT
SERVICE BRAKE VALVE,CONNECTION:
"12",22"
579 A 0004290927 THRUST RING
SERVICE BRAKE VALVE,CONNECTION:
"12,22"
580 A 0009971548 SEAL RING
SERVICE BRAKE VALVE,CONNECTION:
"12,22"
581 N 007604016102 SCREW PLUG
SERVICE BRAKE VALVE,CONNECTION:
"21,22"
582 N 007603016103 SEAL RING
SERVICE BRAKE VALVE,CONNECTION:
"11,12,21,22"
583 A 3459978282 HOSE
BREATHER LINE
585H A 3444203036 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO T-FITTING
586E A 3444208332 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO FITTING
587N A 3444208732 LINE
588 N 915017008100 UNION NUT
588B N 003861008005 GLAND
589 A 0019972672 FITTING
589 N 003902008001 CONNECTION FITTING
590 A 0009901070 T-FITTING
590 A 3454297132 T-FITTING
591 A 0005455414 SWITCH
AT HAND BRAKE VALVE
591 A 3445457214 SWITCH
AT HAND BRAKE VALVE
592E A 3444202736 LINE
FROM HAND BRAKE VALVE,CONNECTION "1", TO CONNECTION FITTING
593M A 3444208232 LINE
FROM T-FITTING TO HAND BRAKE VALVE, CONNECTION:
"1"
594 N 915017008100 UNION NUT
594B N 003861008005 GLAND
595 A 3454297540 BRACKET
597 A 3379950032 CLAMP
COMPRESSED AIR LINE MOUNTING
599 N 000084006429 SCREW
COMPRESSED AIR LINE MOUNTING
601 N 000125006421 WASHER
COMPRESSED AIR LINE MOUNTING
603 N 913004006002 NUT
COMPRESSED AIR LINE MOUNTING
618 A 3454307381 VALVE
(HAND BRAKE VALVE)
WABCO
618F A 0009973277 HANDLE
TO 345 430 73 81
619H H 983455861043 REPAIR KIT
Repalced by: A 0034301181
619H A 0034301181 REPAIR KIT
SMALL SCOPE
TO 345 430 73 81
619H A 0005868043 REPAIR KIT
LARGE SCOPE
TO 345 430 73 81
A 0004305760 REPAIR KIT
HAND BRAKE VALVE
TO 000 430 55 81
620 N 007603014102 SEAL RING
AT HAND BRAKE VALVE
623 N 003901010001 SCREW-IN FITTING
AT HAND BRAKE VALVE
625 A 0459900071 ELBOW FITTING
Repalced by: A 3454297338
625 A 3454297338 ELBOW FITTING
AT HAND BRAKE VALVE
626 N 915017010100 UNION NUT
AT HAND BRAKE VALVE
626B N 003861010009 GLAND
AT HAND BRAKE VALVE
644 A 3444307010 BRACKET
HAND BRAKE VALVE
645 A 3454318740 BRACKET
HAND BRAKE VALVE
646 N 000933008280 SCREW
BRACKET TO CAB FLOOR
8X50 MM
646 N 000933008279 SCREW
BRACKET TO CAB FLOOR
8X40 MM
646E N 912004008104 LOCK WASHER
BRACKET TO CAB FLOOR
647 N 000933006046 SCREW
BRACKET TO BRACKET
647E N 000127006206 LOCK WASHER
BRACKET TO BRACKET
647H N 000934006006 NUT
BRACKET TO BRACKET
648 N 000934008045 NUT
BRACKET TO CAB FLOOR
649D N 000965006026 SCREW
HAND BRAKE VALVE TO BRACKET
649K N 000127006206 LOCK WASHER
HAND BRAKE VALVE TO BRACKET
649P N 000934006006 NUT
HAND BRAKE VALVE TO BRACKET
650 A 3446847027 PLATE
651 N 000964005002 SCREW
651B N 900056005202 COUNTERSUNK WASHER
652 A 3454207937 LINE
HAND BRAKE VALVE BLEEDING
8X0.7 MM
653 N 915017008100 UNION NUT
653B N 003861008005 GLAND
658P A 3444208432 LINE
FROM HAND BRAKE VALVE,CONNECTION "2", TO CONNECTION FITTING I
659E A 3444202836 LINE
FROM HAND BRAKE VALVE,CONNECTION "2", TO CONNECTION FITTING I
8X0.7 MM
660B A 3444208732 LINE
663C A 3444203736 LINE
FROM FITTING TO FITTING
8X0.7 MM
664 N 915017008100 UNION NUT
664B N 003861008005 GLAND
665 A 0019972672 FITTING
665 N 003902008001 CONNECTION FITTING
668N A 3444209032 LINE
FROM FITTING TO RELAY VALVE
8X0.7 MM
669 A 3454205437 LINE
FROM FITTING TO RELAY VALVE
8X0.7 MM
670 N 915017008100 UNION NUT
670B N 003861008005 GLAND
674L A 3444207033 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO FITTING
675D A 3444202636 LINE
FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO FITTING
677 A 3454204137 LINE
FROM FITTING TO RELAY VALVE
12X1 MM
678 N 915017012100 UNION NUT
678B N 003861012007 GLAND
679 N 003902012001 CONNECTION FITTING
679 A 0029971472 FITTING

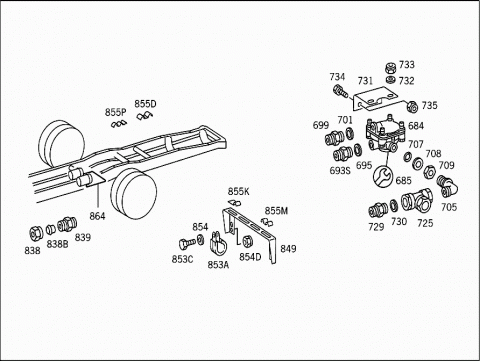

684 A 0014296844 VALVE
(RELAY VALVE)
"WABCO"
684 A 0034293044 VALVE
(RELAY VALVE)
"KNORR"
685 H 983455860842 REPAIR KIT
Repalced by: A 0004205555
685 A 0004205555 REPAIR KIT
SMALL SCOPE
TO 001 429 68 44
685 A 0005865742 REPAIR KIT
LARGE SCOPE
TO 001 429 68 44
685 A 0004305360 REPAIR KIT
Repalced by: A 0004201471
685 A 0004201471 REPAIR KIT
TO 003 429 30 44
693S N 074313012100 FITTING
RELAY VALVE,CONNECTION:
"1"
693S A 0029971172 FITTING
Repalced by: A 3454307879
693S A 3454307879 CONNECTOR
RELAY VALVE,CONNECTION:
"1"
695 N 007603022102 SEAL RING
RELAY VALVE,CONNECTION:
"1"
696 N 074305022202 NUT
RELAY VALVE,CONNECTION:
"V"
697 A 0004290227 THRUST RING
RELAY VALVE,CONNECTION:
"V"
698 A 0009870446 O-RING
RELAY VALVE,CONNECTION:
"V"
699 N 074313008102 FITTING
RELAY VALVE,CONNECTION:
"4"
699 A 0029979572 FITTING
RELAY VALVE,CONNECTION:
"4"
701 N 007603016103 SEAL RING
RELAY VALVE,CONNECTION:
"4"
701C A 3459907571 ELBOW FITTING
TWO-WAY VALVE,CONNECTION:
"V"
702 N 080705016003 NUT
TWO-WAY VALVE,CONNECTION:
"V"
703 A 0004290927 THRUST RING
TWO-WAY VALVE,CONNECTION:
"V"
704 A 0009971548 SEAL RING
TWO-WAY VALVE,CONNECTION:
"V"
705 A 0004294438 ELBOW FITTING
RELAY VALVE,CONNECTION:
"2"
706 A 3459977972 FITTING
RELAY VALVE,CONNECTION:
"2"
707 A 0009971548 SEAL RING
RELAY VALVE,CONNECTION:
"2"
708 A 0004290927 THRUST RING
RELAY VALVE,CONNECTION:
"2"
709 N 080705016003 NUT
RELAY VALVE,CONNECTION:
"2"
711 N 007604016102 SCREW PLUG
RELAY VALVE,CONNECTION:
"2"
712 N 007603016103 SEAL RING
RELAY VALVE,CONNECTION:
"2"
725 A 0024299544 VALVE
TWO-WAY VALVE
"WESTINGHOUSE"
725C A 0004291182 VALVE BODY
TO 002 429 95 44
729 N 074313008102 FITTING
TWO-WAY VALVE,CONNECTION:
"V"
729 A 0029979572 FITTING
TWO-WAY VALVE,CONNECTION:
"V"
730 N 007603016103 SEAL RING
TWO-WAY VALVE,CONNECTION:
"V"
730C A 3089907171 ELBOW FITTING
TWO-WAY VALVE,CONNECTION:
"Z"
730E A 0009971548 SEAL RING
TWO-WAY VALVE,CONNECTION:
"Z"
730H A 0004290927 THRUST RING
TWO-WAY VALVE,CONNECTION:
"Z"
730L N 080705016003 NUT
TWO-WAY VALVE,CONNECTION:
"Z"
731 A 3504311240 BRACKET
RELAY VALVE
732 N 000125008417 WASHER
RELAY VALVE TO BRACKET
733 N 913004008001 NUT
RELAY VALVE TO BRACKET
734 N 000933010254 SCREW
RELAY VALVE TO SIDE MEMBER
735 N 913004010008 NUT
RELAY VALVE TO SIDE MEMBER
810B A 3444208132 LINE
FROM SERVICE VALVE,CONNECTION "12",TO VENT VALVE,CONNECTION:
"1"
810C A 3444202936 LINE
FROM SERVICE VALVE,CONNECTION "12",TO VENT VALVE,CONNECTION:
"1"
811 N 915017008100 UNION NUT
811B N 003861008005 GLAND

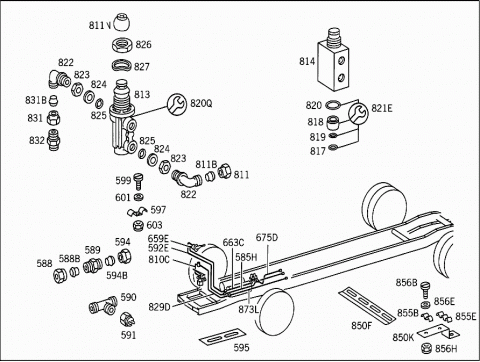

813 A 3454347001 VALVE
(OPERATING VALVE)
"WABCO DO BRASIL"
814 A 0004342901 VALVE
(OPERATING VALVE)
"KNORR"
816N A 0004317387 PROTECTIVE CAP
345 434 70 01
817 A 0109970948 SEAL RING
TO 000 434 29 01
818 A 0109971048 SEAL RING
TO 000 434 29 01
819 A 0109971148 SEAL RING
TO 000 434 29 01
820 A 0109971248 SEAL RING
TO 000 434 29 01
820Q H 983455860943 REPAIR KIT
Repalced by: A 0034301281
820Q A 0034301281 REPAIR KIT
SMALL SCOPE
345 434 70 01
820Q A 0005869743 REPAIR KIT
LARGE SCOPE
TO 345 434 70 01
821E A 0014301360 REPAIR KIT
Repalced by: A 0004304106
821E A 0004304106 REPAIR KIT
LARGE SCOPE
TO 000 434 29 01
821E A 0014301460 REPAIR KIT
SMALL SCOPE
TO 000 434 29 01
822 A 3444297038 ELBOW FITTING
AT OPERATING VALVE
823 N 080705012000 NUT
AT OPERATING VALVE
824 A 0004290827 THRUST RING
AT OPERATING VALVE
825 A 0019875046 SEALING CORD
AT OPERATING VALVE
826 N 074305026202 NUT
OPERATING VALVE TO BRACKET
827 N 000137027201 SPRING WASHER
OPERATING VALVE TO BRACKET
828 A 3454208537 LINE
OPERATING VALVE
8X0.7 MM
829D A 3444204036 LINE
FROM OPERATING VALVE TO CONNECTION FITTING I
830H A 3444208532 LINE
FROM OPERATING VALVE TO CONNECTION FITTING I
831 N 915017008100 UNION NUT
831B N 003861008005 GLAND
832 N 003902008001 CONNECTION FITTING
832 A 0019972672 FITTING
835K A 3444208632 LINE
FROM FITTING TO FITTING
837L A 3444203836 LINE
FROM FITTING TO FITTING
838 N 915017008100 UNION NUT
838B N 003861008005 GLAND
839 N 003902008001 CONNECTION FITTING
839 A 0019972672 FITTING
843P A 3444208932 LINE
FROM FITTING TO TWO-WAY VALVE
844 A 3454205337 LINE
FROM CONNECTION FITTING TO TWO-WAY VALVE
8X0.7 MM
845 N 915017008100 UNION NUT
845B N 003861008005 GLAND
846 N 003902008001 CONNECTION FITTING
846 A 0019972672 FITTING
849 A 3524290440 BRACKET
COMPRESSED AIR LINE MOUNTING
850F A 3524290840 BRACKET
Repalced by: A 3454299540
850F A 3454299540 BRACKET
COMPRESSED AIR LINE MOUNTING
850K A 3454290040 BRACKET
COMPRESSED AIR LINE MOUNTING
853 A 3454299640 BRACKET
COMPRESSED AIR LINE MOUNTING
853A A 3459957601 CLAMP
853A N 916016022202 CLAMP
853C N 000933008271 SCREW
COMPRESSED AIR LINE MOUNTING
M 8X20
853E N 304017008010 SCREW
COMPRESSED AIR LINE MOUNTING
M 8X25
854D N 913004008001 NUT
COMPRESSED AIR LINE MOUNTING
854L N 916016006201 CLAMP
COMPRESSED AIR LINE MOUNTING
854L A 3459957801 CLAMP
COMPRESSED AIR LINE MOUNTING
854L N 916016008200 CLAMP
COMPRESSED AIR LINE TO BRACKET
855B A 3379950032 CLAMP
COMPRESSED AIR LINE TO BRACKET
855D A 3459957432 CLAMP
COMPRESSED AIR LINE TO BRACKET
855E A 3444297340 BRACKET
COMPRESSED AIR LINE TO BRACKET
855K A 3049951520 CLAMP
COMPRESSED AIR LINE TO BRACKET
Repalced by: A 1009950420
855K A 1009950420 CLAMP
COMPRESSED AIR LINE TO BRACKET
855M A 3449950132 CLAMP
COMPRESSED AIR LINE TO BRACKET
855P A 3459957033 CLAMP
COMPRESSED AIR LINE TO BRACKET
856B N 000084006429 SCREW
COMPRESSED AIR LINE TO BRACKET
856C N 000084006422 SCREW
COMPRESSED AIR LINE TO BRACKET
856C N 000084006423 SCREW
COMPRESSED AIR LINE TO BRACKET
856E N 000125006421 WASHER
COMPRESSED AIR LINE TO BRACKET
856H N 913004006002 NUT
COMPRESSED AIR LINE TO BRACKET
857 N 916027011008 HOSE
FROM TWO-WAY VALVE,"Z" CONNECTION,TO RIGHT COMBINATION CYLINDER
"12",11X630
857 N 916027011006 HOSE
FROM TWO-WAY VALVE,"Z" CONNECTION,TO RIGHT COMBINATION CYLINDER
11X540
858 A 0004290541 FITTING
Repalced by: A 3454297041
858 A 3454297041 FITTING
BRAKE HOSE
859 N 915017012100 UNION NUT
BRAKE HOSE
860 N 003861012007 GLAND
BRAKE HOSE
861 N 074304016200 FITTING
BRAKE HOSE
862 A 3459977990 LOOM TIE
Repalced by: A 3459978890
862 A 3459978890 CLAMP
Repalced by: N 916017016000
862 N 916017016000 CLAMP
Repalced by: N 000000000666
862 N 000000000666 CLAMP
BRAKE HOSE
863 N 007603016103 SEAL RING
BRAKE HOSE TO TWO-WAY VALVE
863C A 0009904770 T-FITTING
BRAKE HOSE TO TWO-WAY VALVE
863F A 3445457214 SWITCH
BRAKE HOSE TO TWO-WAY VALVE
863F A 0005455414 SWITCH
BRAKE HOSE TO TWO-WAY VALVE
863K A 0009971548 SEAL RING
BRAKE HOSE TO TWO-WAY VALVE
863N A 0004290927 THRUST RING
BRAKE HOSE TO TWO-WAY VALVE
863R N 080705016003 NUT
BRAKE HOSE TO TWO-WAY VALVE
864 A 3454203749 LINE
FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION:
"12" 12X1 MM
864 A 3504208635 LINE
FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION:
"12"12X1 MM
865 A 3454204537 LINE
FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION:
"12" 12X1 MM
866 N 915017012100 UNION NUT
866D N 003861012007 GLAND
953 A 3084299401 LINE
6X0.7 MM
954 A 3084299501 LINE
8X0.7 MM
954 A 0004290301 LINE
8X1 MM
955 A 0004293501 LINE
12X1 MM
956 A 0004295101 LINE
15X1.5 MM
956 A 0004295201 LINE
15X1.5 MM
957 A 0004293701 LINE
18X1.5 MM
957 A 0004294201 LINE
18X1.5 MM
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
