Transporto priemonė: OF 1113 INDONESIEN; VIN numerio dalis: 345052

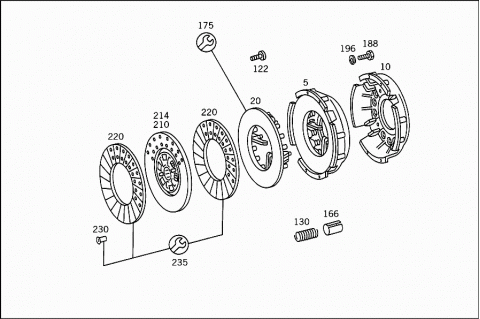

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3442500104 | CLUTCH PRESSURE PLATE |
| Repalced by: A 3442507104 | ||
| 005 | A 3442507104 | CLUTCH PRESSURE PLATE |
| 010 | A 0002524432 | HOUSING |
| 020 | A 0002524312 | PRESSURE PLATE |
| 122 | A 0002522971 | SCREW |
| 130 | A 0002525120 | PRESSURE SPRING |
| 166 | A 0002520253 | SPACER TUBE |
| 175 | H 983455860025 | REPAIR KIT |
| 188 | N 000931008377 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 196 | N 912004008100 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 210 | A 3452507403 | CLUTCH DISC |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 003 250 82 03 | ||
| 214 | A 3452507503 | CLUTCH DISC |
| 214 | A 0032508303 | CLUTCH DISC |
| 220 | A 0002529010 | CLUTCH LINING |
| 230 | A 3452527075 | RIVET |
| TO 345 250 74 03,345 250 75 03 | ||
| 230 | N 007338005303 | RIVET |
| TO 003 250 83 03 | ||
| 230 | A 0002522175 | RIVET |
| TO 003 250 83 03 | ||
| 230 | A 0002522575 | RIVET |
| TO 003 250 83 03 | ||
| 235 | A 3455867025 | REPAIR KIT |
| TO 345 250 74 03,345 250 75 03 | ||

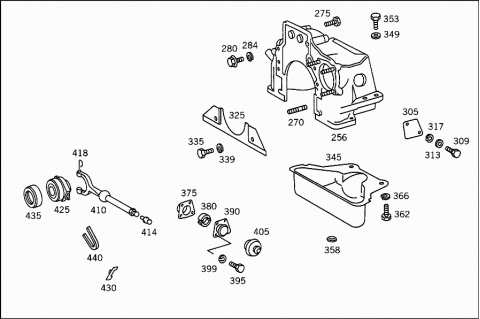

| 256 | A 3452510301 | BELL HOUSING |
| 256 | A 3452511401 | BELL HOUSING |
| 270 | A 0009902605 | STUD |
| Repalced by: A 0009904805 | ||
| 270 | A 0009904805 | STUD |
| 270 | N 000939010116 | STUD BOLT |
| 275 | N 000931012277 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 280 | N 900170012005 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 284 | N 912004012101 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 305 | A 3522510004 | END COVER |
| 309 | N 000933008271 | SCREW |
| COVER TO BELL HOUSING | ||
| 313 | N 000125008417 | WASHER |
| COVER TO BELL HOUSING | ||
| 317 | N 912004008103 | LOCK WASHER |
| COVER TO BELL HOUSING | ||
| 325 | A 3522510106 | PROTECTIVE PLATE |
| 335 | N 000933006223 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 339 | N 000137006204 | SPRING WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 345 | A 3812510102 | BELL HOUSING |
| LOWER PART | ||
| 349 | A 3609901840 | WASHER |
| ENGINE TO REAR RUBBER MOUNTING | ||
| TO 345 251 03 01 | ||
| 353 | N 000961014101 | SCREW |
| ENGINE TO REAR RUBBER MOUNTING | ||
| TO 345 251 03 01 | ||
| 358 | A 3129971681 | GROMMET |
| 362 | N 000933006223 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 366 | N 000137006002 | SPRING WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 375 | A 3522540040 | BRACKET |
| INSIDE | ||
| 380 | A 3522540135 | BEARING |
| 390 | A 3452500043 | BRACKET |
| OUTSIDE | ||
| 395 | N 000933008271 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 399 | N 912004008100 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 405 | A 3142540197 | BOOT |
| 410 | A 3522500213 | RELEASE LEVER |
| 410 | A 3022930011 | RELEASE YOKE |
| 410 | A 3452540508 | RELEASE LEVER |
| 414 | A 3029910015 | BALL PIVOT |
| 418 | A 3402540013 | SPRING LOCK |
| RELEASE LEVER TO RELEASE BEARING | ||
| 425 | A 3452500115 | RELEASE BEARING |
| Repalced by: A 3402500215 | ||
| 425 | A 3402500215 | RELEASE BEARING |
| 430 | A 3452547033 | COVER |
| TO 345 250 01 15 | ||
| 430 | A 3052540033 | COVER |
| TO 345 250 01 15 | ||
| 435 | A 0002540020 | RELEASE BEARING |
| 435 | A 0002540120 | RELEASE BEARING |
| 435 | A 3452547020 | RELEASE BEARING |
| 440 | A 3129870110 | STRIP |
| 440 | A 3409830010 | STRIP |
| 440 | A 3409830010 | STRIP |
