Transporto priemonė: OF 1113 INDONESIEN; VIN numerio dalis: 345052

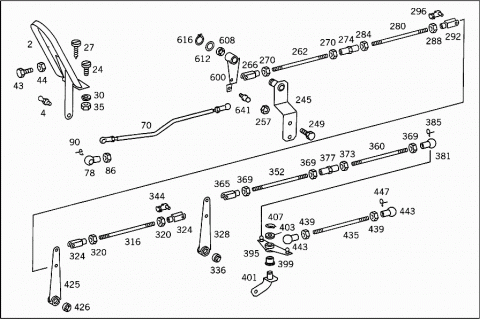

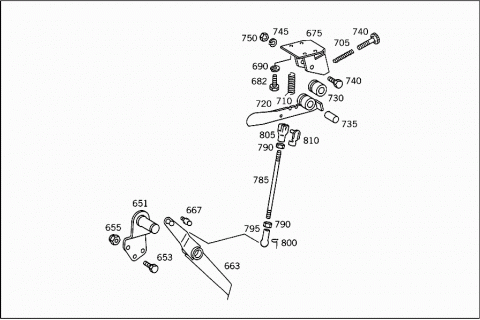

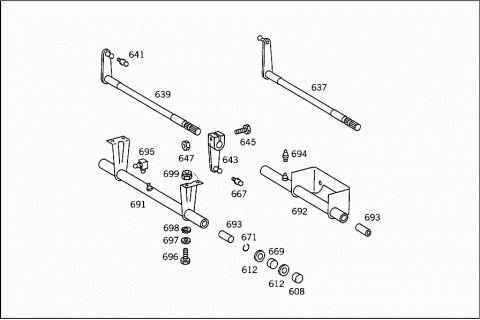

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 3453000002 | PLATE |
| 004 | N 071803010206 | BALL PIVOT |
| 024 | N 000084006422 | SCREW |
| PEDAL TO CAB FLOOR | ||
| 027 | N 007971005209 | SHEET METAL SCREW |
| PEDAL TO CAB FLOOR | ||
| 030 | N 000127006203 | LOCK WASHER |
| PEDAL TO CAB FLOOR | ||
| 035 | N 000934006006 | NUT |
| PEDAL TO CAB FLOOR | ||
| 043 | N 000931010264 | SCREW |
| STOP TO CONTROL LEVER | ||
| 044 | N 913004010008 | NUT |
| STOP TO CONTROL LEVER | ||
| 070 | A 3453007915 | ROD |
| 070 | A 3603000815 | ROD |
| ACCELERATOR PEDAL TO LEVER | ||
| 078 | N 071805010202 | BALL SOCKET |
| 086 | N 000934006006 | NUT |
| 090 | N 071805010402 | SECURING CLIP |
| 245 | A 3453007540 | BRACKET |
| 249 | N 000933010129 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 257 | N 913004010008 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 262 | N 900331006250 | PULL ROD |
| REVERSING LEVER | ||
| 6X4900X50/50 | ||
| 266 | N 071752006001 | YOKE |
| REVERSING LEVER | ||
| 270 | N 000934006007 | NUT |
| REVERSING LEVER | ||
| 274 | A 3219960034 | NUT |
| 280 | N 900331006275 | PULL ROD |
| FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER | ||
| 6X930X50/50 | ||
| 284 | N 000934006006 | NUT |
| FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER | ||
| 288 | N 000934006007 | NUT |
| FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER | ||
| 292 | N 071752006001 | YOKE |
| FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER | ||
| 296 | N 918001006000 | PIN |
| PULL ROD TO LEVER AND TO INTERMEDIATE LEVER | ||
| A 3523003915 | ROD | |
| PULL ROD TO LEVER II | ||
| 316 | N 900331006205 | PULL ROD |
| PULL ROD TO LEVER II | ||
| 320 | N 000934006007 | NUT |
| PULL ROD TO LEVER II | ||
| 324 | N 071752006001 | YOKE |
| PULL ROD TO LEVER II | ||
| 328 | A 3523002525 | LEVER |
| (INTERMEDIATE LEVER) | ||
| 336 | A 3213010050 | BUSHING |
| 344 | N 918001006000 | PIN |
| PULL ROD TO LEVER | ||
| A 3453007715 | ROD | |
| FROM INTERMEDIATE LEVER TO REVERSING LEVER | ||
| A 3523004015 | ROD | |
| FROM INTERMEDIATE LEVER II TO CONTROL LEVER | ||
| 352 | N 900331006191 | PULL ROD |
| FROM INTERMEDIATE LEVER II TO CONTROL LEVER | ||
| 6X600X30/30,TO 352 300 40 15 | ||
| 352 | N 900331006950 | PULL ROD |
| FROM INTERMEDIATE LEVER TO REVERSING LEVER | ||
| 6X950X30/30,TO 345 300 77 15 | ||
| 360 | N 900331006106 | PULL ROD |
| FROM INTERMEDIATE LEVER II TO CONTROL LEVER | ||
| 6X155X30/30,TO 352 300 40 15 | ||
| 365 | N 071752006001 | YOKE |
| 369 | N 000934006007 | NUT |
| 373 | N 000934006004 | NUT |
| TO 352 300 40 15 | ||
| 377 | A 3219960034 | NUT |
| TO 352 300 40 15 | ||
| 381 | N 071805010202 | BALL SOCKET |
| FROM TURNBUCKLE NUT TO ENGINE | ||
| 385 | N 071805010402 | SECURING CLIP |
| PULL ROD TO LEVER II | ||
| 395 | A 3643000025 | LEVER |
| LEFT CONTROL LEVER | ||
| 399 | A 3023010150 | BUSHING |
| 401 | A 3453007336 | BEARING BRACKET |
| 403 | A 3023010076 | WASHER |
| 407 | N 000471014000 | LOCK RING |
| 425 | A 3523002425 | LEVER |
| (INTERMEDIATE LEVER) | ||
| 426 | A 3213010050 | BUSHING |
| A 3023001915 | ROD | |
| CONTROL,REAR | ||
| A 3443000415 | ROD | |
| FROM ACCELERATOR PEDAL TO SHAFT | ||
| 435 | N 900331006152 | PULL ROD |
| CONTROL,REAR | ||
| 6X130X30/30,TO 302 300 19 15 | ||
| 435 | N 900331006298 | PULL ROD |
| FROM ACCELERATOR PEDAL TO SHAFT | ||
| 6X200X30/30,TO 344 300 04 15 | ||
| 439 | N 000934006006 | NUT |
| CONTROL,REAR | ||
| 443 | N 071805010202 | BALL SOCKET |
| CONTROL,REAR | ||
| 447 | N 071805010402 | SECURING CLIP |
| CONTROL,REAR | ||
| 600 | A 3453007225 | LEVER |
| ACCELERATOR PEDAL CONTROL | ||
| 608 | A 3443020150 | BUSHING |
| 612 | N 000988018003 | FITTED WASHER |
| LEVER TO BRACKET | ||
| 616 | N 000471018000 | LOCK RING |
| LEVER TO BRACKET | ||
| 637 | A 3453008325 | LEVER |
| 639 | A 3453008025 | LEVER |
| 641 | N 071803010205 | BALL PIVOT |
| 643 | A 3520700521 | LEVER |
| 645 | N 000933006225 | SCREW |
| LEVER TO SHAFT | ||
| 647 | N 000934006006 | NUT |
| LEVER TO SHAFT | ||
| 651 | A 3453007236 | BEARING BRACKET |
| 653 | N 000933008272 | SCREW |
| BEARING BRACKET TO GUSSET PLATE | ||
| 655 | N 913004008001 | NUT |
| BEARING BRACKET TO GUSSET PLATE | ||
| 663 | A 3443007317 | LEVER |
| 667 | N 071803010209 | BALL PIVOT |
| 669 | A 3443020150 | BUSHING |
| 671 | N 000471018000 | LOCK RING |
| 675 | A 3453007040 | BRACKET |
| MANUAL CONTROL | ||
| 682 | N 000933006220 | SCREW |
| BRACKET TO WINDOW SILL SUPPORT | ||
| 690 | N 000127006203 | LOCK WASHER |
| BRACKET TO WINDOW SILL SUPPORT | ||
| 691 | A 3453007520 | SHAFT |
| ACCELERATOR CONTROL | ||
| 691 | A 3453007320 | SHAFT |
| ACCELERATOR CONTROL | ||
| 692 | A 3453007740 | BRACKET |
| ACCELERATOR CONTROL | ||
| 693 | A 3444340150 | BUSHING |
| 693 | A 3524340150 | BUSHING |
| 694 | N 071412010100 | GREASE NIPPLE |
| 695 | N 071412010300 | GREASE NIPPLE |
| 696 | N 000933008301 | SCREW |
| Repalced by: A 0079900801 | ||
| 696 | A 0079900801 | SCREW |
| BRACKET TO PEDESTAL | ||
| 696 | N 000933008271 | SCREW |
| BRACKET TO PEDESTAL | ||
| 697 | N 000125008417 | WASHER |
| BRACKET TO PEDESTAL | ||
| 698 | N 912004008104 | LOCK WASHER |
| BRACKET TO PEDESTAL | ||
| 699 | N 913004008001 | NUT |
| BRACKET TO PEDESTAL | ||
| 700 | A 3224300071 | SCREW |
| 700 | A 3454307071 | SCREW |
| 705 | A 1829930601 | SPRING |
| 710 | A 3209930301 | SPRING |
| 720 | A 3213002625 | LEVER |
| MANUAL CONTROL | ||
| 730 | A 3213010450 | BUSHING |
| 735 | A 3213010550 | BUSHING |
| LEVER TO BRACKET | ||
| 740 | N 000931008366 | SCREW |
| LEVER TO BRACKET | ||
| 745 | N 912004008104 | LOCK WASHER |
| LEVER TO BRACKET | ||
| 750 | N 000934008000 | NUT |
| LEVER TO BRACKET | ||
| A 3453007815 | ROD | |
| 785 | N 900331006185 | PULL ROD |
| FROM LEVER TO BEARING BRACKET | ||
| 6X343X30/30 | ||
| 790 | N 000934006007 | NUT |
| FROM LEVER TO BEARING BRACKET | ||
| 795 | N 071805010202 | BALL SOCKET |
| FROM LEVER TO BEARING BRACKET | ||
| 800 | N 071805010402 | SECURING CLIP |
| FROM LEVER TO BEARING BRACKET | ||
| 805 | N 071752006001 | YOKE |
| FROM LEVER TO BEARING BRACKET | ||
| 810 | N 918001006000 | PIN |
| PULL ROD TO LEVER | ||
