Transporto priemonė: OF 1113 INDONESIEN; VIN numerio dalis: 345052
Grupė: 54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
| # | Kodas | Pavadinimas |
|---|---|---|

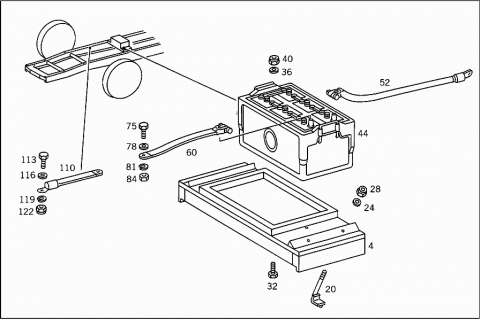

| 004 | A 3455407116 | BATTERY SUPPORT |
| 020 | A 3455400026 | SCREW |
| BRACKET TO FRAME | ||
| 020 | A 3455400026 | SCREW |
| BRACKET TO FRAME | ||
| 024 | N 009021013101 | WASHER |
| BRACKET TO FRAME | ||
| 024 | N 009021013101 | WASHER |
| BRACKET TO FRAME | ||
| 028 | N 913004012004 | NUT |
| BRACKET TO FRAME | ||
| 028 | N 913004012004 | NUT |
| BRACKET TO FRAME | ||
| 032 | A 3459900029 | SCREW |
| BATTERY MOUNTING | ||
| 036 | N 009021010100 | WASHER |
| BATTERY MOUNTING | ||
| 040 | N 913004010008 | NUT |
| BATTERY MOUNTING | ||
| 044 | A 3215410001 | BATTERY |
| Repalced by: A 3645410001 | ||
| 044 | A 3215410101 | BATTERY |
| Repalced by: A 3645410001 | ||
| 044 | A 3645410001 | BATTERY |
| LESS ACID | ||
| 12 V,180 AH | ||
| 052 | A 0455400330 | POSITIVE CABLE |
| Repalced by: A 3445407130 | ||
| 052 | A 3445407130 | POSITIVE CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 052 | A 3455400030 | POSITIVE CABLE |
| FROM BATTERY TO STARTING MOTOR | ||
| 060 | A 3455400031 | NEG. CABLE |
| FROM BATTERY TO SIDE MEMBER | ||
| 075 | N 000933012098 | SCREW |
| ELECTRIC CABLE TO FRAME LEFT SIDE MEMBER | ||
| 075 | N 000933012056 | SCREW |
| ELECTRIC CABLE TO FRAME LEFT SIDE MEMBER | ||
| 078 | N 009021013101 | WASHER |
| ELECTRIC CABLE TO FRAME LEFT SIDE MEMBER | ||
| 081 | N 000127012201 | LOCK WASHER |
| ELECTRIC CABLE TO FRAME LEFT SIDE MEMBER | ||
| 084 | N 000934012000 | NUT |
| ELECTRIC CABLE TO FRAME LEFT SIDE MEMBER | ||
| 110 | A 3455400041 | GROUND STRAP |
| BELL HOUSING | ||
| 113 | N 000933010092 | SCREW |
| GROUND STRAP TO RIGHT SIDE MEMBER | ||
| M 10X20 | ||
| 113 | N 000933010094 | SCREW |
| GROUND STRAP TO RIGHT SIDE MEMBER | ||
| M 10X40 | ||
| 116 | N 009021010102 | WASHER |
| GROUND STRAP TO RIGHT SIDE MEMBER | ||
| 119 | N 000127010202 | LOCK WASHER |
| GROUND STRAP TO RIGHT SIDE MEMBER | ||
| 122 | N 913004010008 | NUT |
| GROUND STRAP TO RIGHT SIDE MEMBER | ||

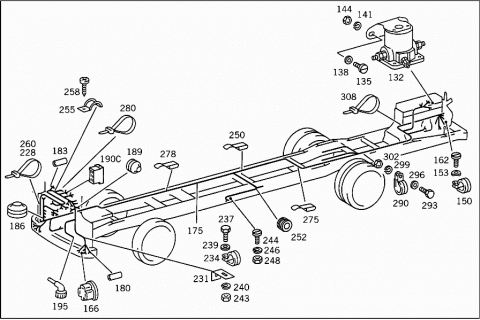

| 132 | A 3455450005 | RELAY |
| STARTING | ||
| 135 | N 000084006110 | SCREW |
| RELAY | ||
| 138 | N 000125006417 | WASHER |
| RELAY | ||
| 141 | N 000127006206 | LOCK WASHER |
| RELAY | ||
| 144 | N 000934006007 | NUT |
| RELAY | ||
| 150 | N 916016022203 | CLAMP |
| AT ALTERNATOR | ||
| 150 | A 3459958301 | CLAMP |
| AT ALTERNATOR | ||
| 153 | N 000137005102 | SPRING WASHER |
| AT ALTERNATOR | ||
| 162 | N 000084005177 | SCREW |
| AT ALTERNATOR | ||
| 166 | A 3445447060 | PLUG SOCKET HOUSING |
| 173 | A 3455407306 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 175 | A 3455409505 | CABLE HARNESS |
| MAIN CABLE HARNESS | ||
| 180 | A 0009970381 | GROMMET |
| 183 | A 0009970581 | GROMMET |
| 186 | A 0459970081 | GROMMET |
| 189 | A 1869970481 | GROMMET |
| 189A | A 3449977181 | GROMMET |
| 190 | A 0005440156 | CONTACT PIECE |
| 190A | A 0015453028 | PIN BUSHING HOUSING |
| 8-POLE | ||
| 190C | A 0045457428 | PLUG |
| 6-POLE | ||
| 190D | A 0015451028 | PIN BUSHING HOUSING |
| BIPOLAR | ||
| 193 | A 0005454526 | PIN BUSHING |
| Repalced by: A 0005453726 | ||
| 193 | A 0005453726 | PIN BUSHING |
| 193 | A 0005453826 | PIN BUSHING |
| 193 | A 0005454626 | PIN BUSHING |
| 195 | A 0005400181 | PLUG SOCKET |
| 196 | A 0005451745 | BOOT |
| 196 | A 0005440060 | PROTECTIVE CAP |
| 225 | A 3529950040 | CLAMP |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 228 | A 3459977290 | LOOM TIE |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 228 | A 3449977290 | LOOM TIE |
| BRANCH-OFF TO HEADLAMPS | ||
| 231 | A 3524661340 | BRACKET |
| BRANCH-OFF TO HEADLAMPS | ||
| 234 | N 916016022202 | CLAMP |
| BRANCH-OFF TO HEADLAMPS | ||
| 234 | A 3459957601 | CLAMP |
| BRANCH-OFF TO HEADLAMPS | ||
| 237 | N 000933008071 | SCREW |
| CLAMP TO BRACKET | ||
| 239 | N 000125008413 | WASHER |
| CLAMP TO BRACKET | ||
| 240 | N 912004008100 | LOCK WASHER |
| CLAMP TO BRACKET | ||
| 243 | N 000934008000 | NUT |
| CLAMP TO BRACKET | ||
| 244 | N 000084006110 | SCREW |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| 244 | N 000084006197 | SCREW |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| 246 | N 000127006203 | LOCK WASHER |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| 248 | N 000934006007 | NUT |
| GROUND CABLE FO FUEL GAUGE SENDER UNIT TO FRAME | ||
| 250 | A 3449880078 | CLIP |
| ELECTRIC CABLE TO CROSS MEMBER | ||
| 252 | A 3129970481 | GROMMET |
| FUEL-GAUGE-SENDER-UNIT CABLE THRU SIDE MEMBER | ||
| 255 | A 3449957120 | CLAMP |
| MAIN CABLE HARNESS TO FRONT RIGHT FRONTPANEL PILLAR | ||
| 258 | N 007981004226 | SHEET METAL SCREW |
| MAIN CABLE HARNESS TO FRONT RIGHT FRONTPANEL PILLAR | ||
| 260 | A 3449977290 | LOOM TIE |
| MAIN CABLE HARNESS TO FRONT RIGHT FRONTPANEL PILLAR | ||
| 275 | A 3045461275 | CLAMP |
| MAIN CABLE HARNESS TO CROSS MEMBER | ||
| 278 | A 3219950040 | CLAMP |
| BRANCH-OFF TO FUEL GAUGE SENDER UNIT THRU SIDE MEMBER | ||
| 280 | A 3459977690 | LOOM TIE |
| 280 | A 0019978490 | LOOM TIE |
| 290 | N 916016022202 | CLAMP |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 290 | A 3459957601 | CLAMP |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 293 | N 000933008152 | SCREW |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 296 | N 009021008100 | WASHER |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 296 | N 009021005104 | WASHER |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 299 | N 912004008100 | LOCK WASHER |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 302 | N 000934008000 | NUT |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 308 | A 3449977290 | LOOM TIE |
| ELECTRIC CABLE TO SIDE MEMBER | ||
| 308 | A 3449977290 | LOOM TIE |
| STOP LIGHT SWITCH BRANCH-OFF TO PEDESTAL | ||
| 308 | A 3449977290 | LOOM TIE |
| STOP LIGHT SWITCH BRANCH-OFF TO HAND BRAKE SWITCH | ||

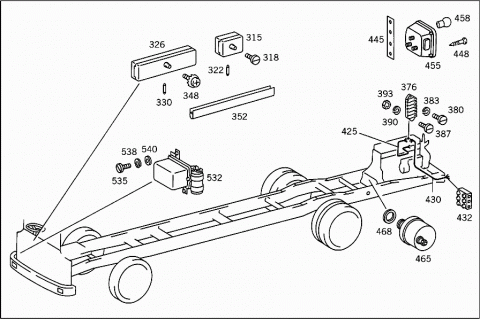

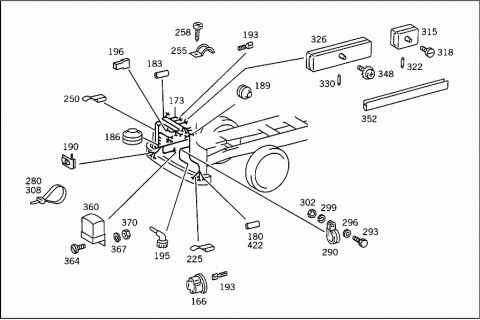

| 315 | A 3455450001 | FUSE BOX |
| 315 | A 3455457301 | FUSE BOX |
| 318 | N 000084005114 | SCREW |
| 322 | A 3085450234 | FUSE |
| 8 A | ||
| 322 | A 3085450334 | FUSE |
| 15 A | ||
| A 3215450301 | FUSE BOX | |
| Repalced by: A 3455458301 | ||
| 326 | A 3455458301 | FUSE BOX |
| 330 | A 3085450234 | FUSE |
| 8 A | ||
| 330 | A 3085450334 | FUSE |
| 15 A | ||
| 348 | N 914028004100 | COMBINATION BOLT |
| CABLE TO FUSE BOX | ||
| 352 | A 3089870072 | EDGE GUARD SECTION |
| 100 MM | ||
| 352 | A 3089870172 | EDGE GUARD SECTION |
| 360 | A 0021545006 | REGULATOR AND CUT-OUT |
| Repalced by: A 0021546206 | ||
| 360 | A 0021546206 | REGULATOR AND CUT-OUT |
| (ELECTRONIC FIELD REGULATOR) | ||
| 364 | N 000084006118 | SCREW |
| REGULATOR AND CUT-OUT TO APPARATUS PLATE | ||
| 367 | N 000127006203 | LOCK WASHER |
| REGULATOR AND CUT-OUT TO APPARATUS PLATE | ||
| 370 | N 000934006007 | NUT |
| REGULATOR AND CUT-OUT TO APPARATUS PLATE | ||
| 376 | A 0005461741 | CABLE CONNECTOR |
| REAR | ||
| 380 | N 000085004127 | SCREW |
| CABLE CONNECTOR | ||
| 383 | N 000127004206 | LOCK WASHER |
| CABLE CONNECTOR | ||
| 387 | N 000084004423 | SCREW |
| CABLE CONNECTOR | ||
| 390 | N 000127004206 | LOCK WASHER |
| CABLE CONNECTOR | ||
| 393 | N 000934004000 | NUT |
| CABLE CONNECTOR | ||

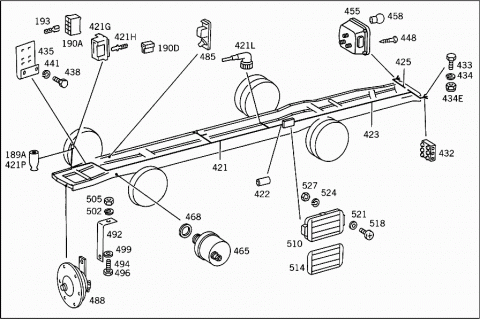

| 421 | A 3445408632 | ELECTRIC CABLE |
| FROM PLUG CONNECTION TO REAR CABLE CONNECTOR | ||
| 421G | A 0025457628 | PLUG |
| 421H | A 0015453228 | PLUG |
| 421L | A 0005400181 | PLUG SOCKET |
| 421P | A 3449977181 | GROMMET |
| 422 | A 0009970381 | GROMMET |
| 423 | A 3455400627 | ELECTRIC CABLE |
| LEFT TAIL LAMP | ||
| 425 | A 3455400727 | ELECTRIC CABLE |
| RIGHT TAIL LAMP | ||
| 430 | A 3455400827 | ELECTRIC CABLE |
| LEFT TAIL LAMP | ||
| 432 | N 072586003200 | CABLE CONNECTOR |
| TAIL LAMP CABLE,LEFT AND RIGHT | ||
| 432 | A 3445467341 | CABLE CONNECTOR |
| TAIL LAMP CABLE,LEFT AND RIGHT | ||
| 433 | N 000933010089 | SCREW |
| TAIL LAMP GROUND CABLE TO FRAME SIDE MEMBER | ||
| 433 | N 000933010145 | SCREW |
| TAIL LAMP GROUND CABLE TO FRAME SIDE MEMBER | ||
| 434 | N 000127010202 | LOCK WASHER |
| TAIL LAMP GROUND CABLE TO FRAME SIDE MEMBER | ||
| 434E | N 913004010008 | NUT |
| TAIL LAMP GROUND CABLE TO FRAME SIDE MEMBER | ||
| 435 | A 3455400873 | BRACKET |
| FRONT PLUG CONNECTION | ||
| 438 | N 000933006024 | SCREW |
| BRACKET | ||
| 441 | N 000127006203 | LOCK WASHER |
| BRACKET | ||
| 445 | A 3445447038 | BRACKET |
| TAIL LAMP | ||
| 448 | N 000096005018 | WOOD SCREW |
| TAIL LAMP | ||
| 455 | A 3445447503 | TAIL LAMP |
| BLINKER AND STOP LIGHTS | ||
| IAM | ||
| 458 | N 072601012190 | BULB |
| 12 V 21 W | ||
| 458 | N 072601012190 | BULB |
| 12 V 21 W | ||
| 458 | N 072601012190 | BULB |
| 12 V 21 W | ||
| 458 | N 072601012701 | BULB |
| 12 V 5 W | ||
| 458 | A 3085440394 | BULB |
| 12 V 5 W | ||
| 458 | N 072601012210 | BULB |
| 12 V,21/5 W | ||
| 458 | N 072601012210 | BULB |
| 12 V,21/5 W | ||
| 465 | A 3455427317 | SENDER UNIT |
| OIL PRESSURE | ||
| 465 | A 0045428917 | SENDER UNIT |
| OIL PRESSURE | ||
| 468 | N 007603014402 | SEAL RING |
| 485 | A 3455427023 | BUZZER |
| 488 | A 3445427120 | HORN |
| 488 | A 3445427520 | HORN |
| 488 | A 3445427720 | HORN |
| 492 | A 3445460043 | BRACKET |
| HORN | ||
| 494 | N 000933010129 | SCREW |
| HORN TO ENGINE CROSS MEMBER | ||
| 496 | N 000933010034 | SCREW |
| HORN TO ENGINE CROSS MEMBER | ||
| 499 | N 000125010517 | WASHER |
| HORN TO ENGINE CROSS MEMBER | ||
| 502 | N 000127010202 | LOCK WASHER |
| HORN TO ENGINE CROSS MEMBER | ||
| 505 | N 000934010000 | NUT |
| HORN TO ENGINE CROSS MEMBER | ||
| 510 | A 0005466141 | CABLE CONNECTOR |
| REAR,6-POLE | ||
| 514 | A 0005460781 | COVERING |
| WITH GASKET | ||
| 518 | N 007985004129 | SCREW |
| 521 | N 009021004100 | WASHER |
| 524 | N 000127004206 | LOCK WASHER |
| 527 | N 000934004000 | NUT |
| 532 | A 0015421019 | RELAY |
| DECLUTCHING START RELAY | ||
| 535 | N 007985006513 | SCREW |
| DECLUTCHING START RELAY | ||
| 538 | N 000127006206 | LOCK WASHER |
| DECLUTCHING START RELAY | ||
| 540 | A 3609902340 | WASHER |
| DECLUTCHING START RELAY | ||

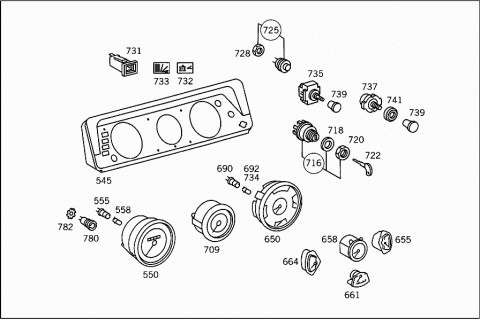

| 545 | A 3456800189 | INSTRUMENT PANEL |
| 550 | A 3215420206 | SPEEDOMETER |
| 550 | A 3445427206 | SPEEDOMETER |
| 550 | A 3215420106 | SPEEDOMETER |
| 550 | A 3445427106 | SPEEDOMETER |
| 555 | A 3455440093 | LAMP SOCKET |
| 558 | N 072601012800 | BULB |
| 12 V 2 W | ||

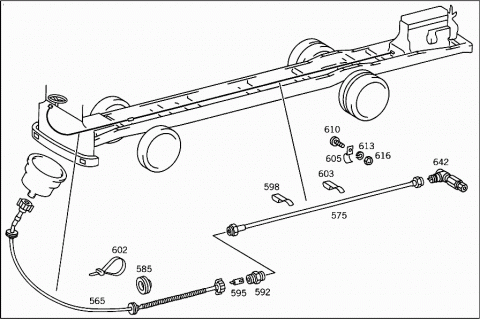

| 565 | A 0035423307 | FLEXIBLE SHAFT |
| 565 | A 3455428407 | FLEXIBLE SHAFT |
| 565 | A 0035426907 | FLEXIBLE SHAFT |
| FRONT | ||
| 575 | A 3455427407 | FLEXIBLE SHAFT |
| REAR | ||
| 575 | A 3455428007 | FLEXIBLE SHAFT |
| REAR | ||
| 585 | A 1869970781 | GROMMET |
| FLEXIBLE SHAFT THRU FIRE WALL | ||
| 592 | A 3455420046 | CONNECTOR |
| 595 | A 0005420547 | COUPLER |
| 598 | A 3045461275 | CLAMP |
| FLEXIBLE SHAFT TO FRAME SIDE MEMBER | ||
| 602 | A 3459977390 | LOOM TIE |
| FLEXIBLE SHAFT TO COMPRESSED AIR LINE | ||
| 602 | A 0019978290 | LOOM TIE |
| FLEXIBLE SHAFT TO COMPRESSED AIR LINE | ||
| 602 | A 3449977290 | LOOM TIE |
| FLEXIBLE SHAFT TO PRESSURE GAUGE LINE | ||
| 603 | A 3529950040 | CLAMP |
| FLEXIBLE SHAFT TO FRAME SIDE MEMBER | ||
| 605 | A 3129952020 | CLAMP |
| FLEXIBLE SHAFT TO TRANSMISSION | ||
| 610 | N 007985005170 | SCREW |
| FLEXIBLE SHAFT TO TRANSMISSION | ||
| 613 | N 912004005100 | LOCK WASHER |
| FLEXIBLE SHAFT TO TRANSMISSION | ||
| 616 | N 000934005000 | NUT |
| FLEXIBLE SHAFT TO TRANSMISSION | ||
| A 3455424930 | ANGLE DRIVE | |
| Repalced by: A 3445420230 | ||
| 642 | A 3445420230 | ANGLE DRIVE |
| 650 | A 3455408347 | INSTRUMENT CLUSTER |
| 655 | H 983455420005 | TEMPERATURE GAUGE |
| 658 | A 0015422208 | AIR PRESSURE GAUGE |
| 661 | H 983455420003 | FUEL GAUGE DASH UNIT |
| 664 | H 983455420002 | OIL PRESSURE GAUGE |
| TO 045 540 03 47 | ||
| 690 | A 3455440193 | LAMP SOCKET |
| 690 | A 3455440093 | LAMP SOCKET |
| 692 | N 072601012800 | BULB |
| 12 V 2 W | ||

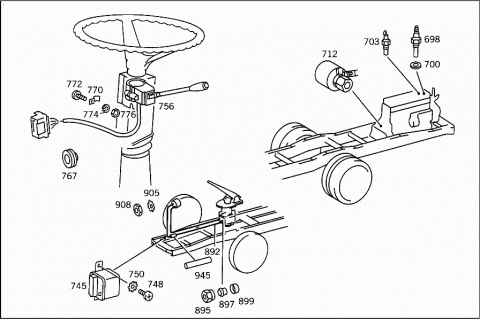

| 698 | A 0025425917 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 698 | A 3455427517 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 698 | A 0015422317 | SENDER UNIT |
| Repalced by: A 3455427717 | ||
| 698 | A 3455427717 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 698 | A 3455427417 | SENDER UNIT |
| TEMPERATURE GAUGE | ||
| 700 | N 007603014402 | SEAL RING |
| 703 | A 0025456324 | SWITCH,AUTOMATIC |
| TEMPERATURE | ||
| 703 | A 3455458224 | SWITCH,AUTOMATIC |
| TEMPERATURE | ||
| A 3455457324 | SWITCH,AUTOMATIC | |
| Repalced by: A 3455457824 | ||
| 703 | A 3455457824 | SWITCH,AUTOMATIC |
| TEMPERATURE | ||
| 703 | A 0045455524 | SWITCH,AUTOMATIC |
| 709 | A 0005424816 | TACHOMETER |
| 709 | A 3455420016 | TACHOMETER |
| 712 | A 0015422417 | SENDER UNIT |
| TO 000 542 48 16 | ||
| 712 | A 3455420017 | SENDER UNIT |
| TO 345 542 00 16 | ||
| 716 | A 0005451213 | SWITCH BOX |
| 716 | A 3455457013 | SWITCH BOX |
| 716 | A 3455457113 | SWITCH BOX |
| 718 | A 0445450176 | WASHER |
| 720 | A 0445450072 | NUT |
| 722 | A 0005451235 | KEY |
| 722 | A 3455457035 | KEY |
| 722 | A 3455457135 | KEY |
| 725 | A 3455450114 | SWITCH |
| STARTING MOTOR | ||
| 725 | A 3455457714 | SWITCH |
| STARTING MOTOR | ||
| 728 | A 0089901451 | NUT |
| 725 | A 3455459714 | SWITCH |
| STARTING MOTOR | ||
| 731 | A 3455457015 | TELL-TALE LAMP |
| LESS LENS | ||
| 732 | A 0025452790 | LENS |
| AIR CLEANER | ||
| 733 | A 0005452590 | LENS |
| FAILURE | ||
| 734 | N 072601012800 | BULB |
| TELL-TALE LAMP | ||
| 12 V,2 W | ||
| 735 | A 3445457111 | SWITCH |
| PANE WIPER | ||
| 737 | A 0005455111 | SWITCH |
| INTERIOR LIGHTING | ||
| 737 | A 0005455111 | SWITCH |
| INSTRUMENT LIGHTING | ||
| 737 | A 0005455111 | SWITCH |
| FOGLAMP | ||
| 739 | A 0005450537 | BUTTON |
| PUSH-PULL SWITCH | ||
| 741 | A 0005450272 | NUT |
| PUSH-PULL SWITCH | ||
| 745 | A 3445447232 | SENDER UNIT |
| BLINKER | ||
| 748 | N 007985006161 | SCREW |
| BLINKER SENDER UNIT | ||
| 750 | N 006797006145 | TOOTHED WASHER |
| BLINKER SENDER UNIT | ||
| 756 | A 3455457124 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| 756 | A 3455457424 | SWITCH,AUTOMATIC |
| STEERING COLUMN MOUNTED | ||
| "BECKER DO BRASIL" | ||
| 767 | A 3149970281 | GROMMET |
| STEERING COLUMN MOUNTED SWITCH CABLE | ||
| 770 | A 3129952020 | CLAMP |
| STEERING COLUMN MOUNTED SWITCH CABLE | ||
| 772 | N 007985005168 | SCREW |
| STEERING COLUMN MOUNTED SWITCH CABLE | ||
| 774 | N 912004005101 | LOCK WASHER |
| STEERING COLUMN MOUNTED SWITCH CABLE | ||
| 776 | N 000934005000 | NUT |
| STEERING COLUMN MOUNTED SWITCH CABLE | ||
| 780 | A 3445457125 | PLUG SOCKET |
| HAND LAMP | ||
| 782 | N 006797019101 | TOOTHED WASHER |
| PRESSURE GAUGE LINE,SUPPLY TANK PRESSURE | ||
| 892 | A 3445407861 | ELECTRIC CABLE |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| 895 | N 915017006100 | UNION NUT |
| 897 | N 003861006007 | GLAND |
| 899 | N 915062004000 | SLEEVE |
| 899 | A 0009920105 | BUSHING |
| 905 | N 006797012153 | TOOTHED WASHER |
| PRESSURE GAUGE LINE TO FIRE WALL | ||
| 908 | N 080705012003 | NUT |
| PRESSURE GAUGE LINE TO FIRE WALL | ||
| 945 | A 3084299401 | LINE |
| 6X0.7 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
