Transporto priemonė: OF 1113 INDONESIEN; VIN numerio dalis: 345052

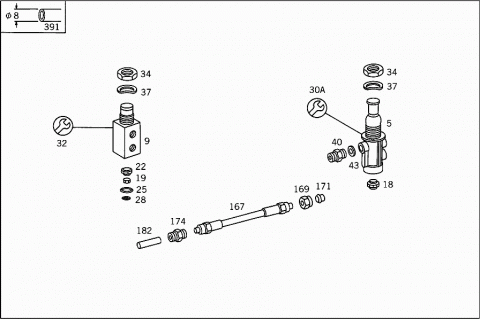

Grupė: 43 EXHAUST BRAKE

#	Kodas	Pavadinimas
005	A 3454347001	VALVE
		"WABCO DO BRASIL"
009	A 0004342901	VALVE
		"KNORR"
	A 0009971977	HANDLE
		TO 000 434 23 01
	A 0004340586	CUP
		TO 000 434 23 01
018	A 0004317387	PROTECTIVE CAP
		TO 345 434 70 01
019	A 0109970948	SEAL RING
		TO 000 434 29 01
022	A 0109971048	SEAL RING
		TO 000 434 29 01
025	A 0109971148	SEAL RING
		TO 000 434 29 01
028	A 0109971248	SEAL RING
		TO 000 434 29 01
	A 0079972448	SEAL RING
		TO 000 434 23 01
	A 0079972548	SEAL RING
		TO 000 434 23 01
	H 983455860943	REPAIR KIT
	Repalced by: A 0034301281
030A	A 0034301281	REPAIR KIT
		SMALL SCOPE
		TO 345 434 70 01
030A	A 0005869743	REPAIR KIT
		LARGE SCOPE
		TO 345 434 70 01
	A 0025869843	REPAIR KIT
		TO 000 434 23 01
032	A 0014301360	REPAIR KIT
	Repalced by: A 0004304106
032	A 0004304106	REPAIR KIT
		LARGE SCOPE
		TO 000 434 29 01
032	A 0014301460	REPAIR KIT
		SMALL SCOPE
		TO 000 434 29 01
034	N 074305026202	NUT
		VENT VALVE TO PEDESTAL FLOOR
		M 26X1.5
037	N 000137027201	SPRING WASHER
		VENT VALVE TO PEDESTAL FLOOR
040	A 3454298136	CONNECTOR
		AT OPERATING VALVE
043	N 007603012113	SEAL RING
		AT OPERATING VALVE
044	A 3444207732	LINE
		FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24",TO FITTING
045	A 3444207832	LINE
		FROM FITTING TO T-FITTING
053	A 3444203436	LINE
		FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24",TO FITTING
		6X0.7 MM
055	N 915017006100	UNION NUT
057	N 003861006007	GLAND
060	N 003902006001	CONNECTION FITTING
066	N 003908006001	T-FITTING
066	A 0009903470	T-FITTING
069	N 915005004003	LOCKING CONE
072	N 915020012000	NUT
090	N 916016006201	CLAMP
		COMPRESSED AIR LINE MOUNTING
090	A 3459957801	CLAMP
		COMPRESSED AIR LINE MOUNTING
090	A 3459957432	CLAMP
		COMPRESSED AIR LINE MOUNTING
093	N 000084006429	SCREW
		COMPRESSED AIR LINE MOUNTING
095	N 000125006421	WASHER
		COMPRESSED AIR LINE MOUNTING
097	N 913004006002	NUT
		COMPRESSED AIR LINE MOUNTING
101	A 3444209730	LINE
		FROM T-FITTING TO VENT VALVE, CONNECTION:
		"1"
108	A 3444203636	LINE
		FROM T-FITTING TO VENT VALVE, CONNECTION:
		"1" 6X0.7 MM
109	N 915017006100	UNION NUT
111	N 003861006007	GLAND
115	A 3444209930	LINE
		FROM VENT VALVE CONNECTION "2" TO FITTING
121	A 3444203336	LINE
		FROM VENT VALVE CONNECTION "2" TO FITTING
123	N 915017006100	UNION NUT
125	N 003861006007	GLAND
128	N 003902006001	CONNECTION FITTING
137	N 916016006201	CLAMP
		COMPRESSED AIR LINE MOUNTING
137	A 3459957801	CLAMP
143	N 000084006429	SCREW
		COMPRESSED AIR LINE MOUNTING
149	N 000125006421	WASHER
		COMPRESSED AIR LINE MOUNTING
155	N 913004006002	NUT
		COMPRESSED AIR LINE MOUNTING
158	A 3444203936	LINE
		FROM DOUBLE FITTING I TO DOUBLE FITTING II
		6X0.7 MM
164	A 3444205536	LINE
		FROM DOUBLE FITTING II TO DOUBLE FITTING III
167	A 3454200048	BRAKE HOSE
		FROM FITTING TO FITTING
169	N 915017006100	UNION NUT
171	N 003861006007	GLAND
174	N 003902006001	CONNECTION FITTING
182	A 3444207632	LINE
		FROM FITTING TO COMPRESSED AIR CYLINDER,ENGINE
186	A 3444205136	LINE
		FROM DOUBLE FITTING III TO EXHAUST BRAKE CYLINDER
191	N 915017006100	UNION NUT
194	N 003861006007	GLAND
205	A 3454297438	ELBOW FITTING
		EXHAUST BRAKE CYLINDER
207	N 080705012000	NUT
		EXHAUST BRAKE CYLINDER
209	A 0004290827	THRUST RING
		EXHAUST BRAKE CYLINDER
211	A 0019875046	SEALING CORD
		EXHAUST BRAKE CYLINDER
214	A 3179950148	CLAMPING PIECE
220	N 916016006201	CLAMP
		COMPRESSED AIR LINE MOUNTING
220	A 3459957801	CLAMP
		COMPRESSED AIR LINE MOUNTING
223	A 3459957432	CLAMP
		COMPRESSED AIR LINE MOUNTING
229	N 000084006429	SCREW
		COMPRESSED AIR LINE MOUNTING
235	N 000125006421	WASHER
		COMPRESSED AIR LINE MOUNTING
241	N 913004006002	NUT
		COMPRESSED AIR LINE MOUNTING
391	A 3084299401	LINE
		6X0.7 MM
391	A 3084299501	LINE
		8X0.7 MM
