Transporto priemonė: OF 1113 INDONESIEN; VIN numerio dalis: 345052

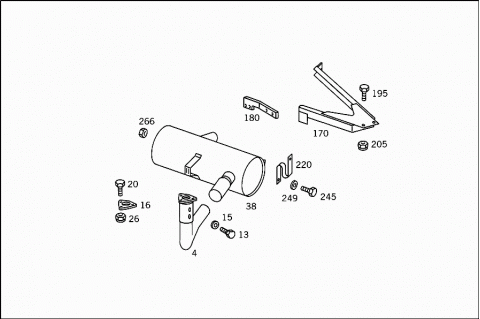

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 004 | A 3454907019 | EXHAUST PIPE |
| FRONT | ||
| 012 | A 3444927230 | PROTECTIVE PLATE |
| 013 | N 000933006010 | SCREW |
| 015 | N 000125006417 | WASHER |
| 016 | A 3444920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | N 000931012051 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 026 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 038 | A 3454907201 | EXHAUST MUFFLER |
| 170 | A 3454907234 | SUPPORT |
| EXHAUST MUFFLER | ||
| 180 | A 3454917619 | BRACKET |
| REAR EXHAUST PIPE | ||
| 195 | N 000933010034 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X25 | ||
| 195 | N 000933010267 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X28 | ||
| 205 | N 913004010008 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 220 | A 3444927026 | CLAMPING PIECE |
| EXHAUST MUFFLER SUSPENSION | ||
| 245 | N 000961008021 | SCREW |
| DAMPING PAD TO BRACKET AND TO MUFFLER | ||
| 249 | N 009021008100 | WASHER |
| DAMPING PAD TO BRACKET AND TO MUFFLER | ||
| 266 | N 913004008011 | NUT |
| Repalced by: N 910113008007 | ||
| 266 | N 910113008007 | NUT |
| DAMPING PAD TO BRACKET AND TO MUFFLER | ||
| 280 | A 3444900719 | EXHAUST PIPE |
| FRONT | ||
| 284 | A 3024900030 | PROTECTIVE PLATE |
| 288 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 288 | A 4424920280 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 292 | N 000931010264 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 292 | N 000931010422 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 298 | A 3459900151 | NUT |
| Repalced by: N 913004010000 | ||
| 298 | N 913004010000 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 305 | A 3454927007 | CONNECTOR |
| FRONT | ||
| 310 | A 3604900101 | EXHAUST MUFFLER |
| 315 | A 3454928002 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 322 | A 3454929104 | REAR EXHAUST PIPE |
| REAR | ||
| 326 | A 3454927107 | CONNECTOR |
| CENTRAL PART | ||
| 334 | A 3124911016 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 340 | H 983454910116 | SUPPORT |
| Repalced by: A 3454917316 | ||
| 340 | A 3454917316 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 353 | N 000933008274 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X22 | ||
| 353 | N 000933008270 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| 354 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 360 | A 3454917041 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 364 | A 3454928141 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 370 | A 3604921519 | BRACKET |
| Repalced by: A 3454927241 | ||
| 370 | A 3454927241 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 370 | A 3454928641 | BRACKET |
| EXHAUST SYSTEM | ||
| 371 | A 3444917019 | BRACKET |
| EXHAUST SYSTEM | ||
| 371 | A 3454927119 | BRACKET |
| EXHAUST SYSTEM | ||
| 372 | N 000933008271 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X20 | ||
| 372 | N 000933008274 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 8X22 | ||
| 372 | N 000933008274 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X22 | ||
| 396 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 396 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 382 | N 071555065500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 65.5 MM | ||
| 390 | A 3274920040 | CLAMP |
| Repalced by: N 071555063500 | ||
| 390 | N 071555063500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 63.5 MM | ||
| 390 | N 071555060500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 60.5 MM | ||
| 394 | N 000933008270 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 394 | N 000931008370 | SCREW |
| CLAMP TO SIDE MEMBER | ||
| 396 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 396 | N 913004008001 | NUT |
| CLAMP TO SIDE MEMBER | ||
| 401 | A 3028880026 | SLEEVE |
| CLAMP TO SIDE MEMBER | ||
