Transporto priemonė: OF 1113 INDONESIEN; VIN numerio dalis: 345052
Grupė: 31 FRAME

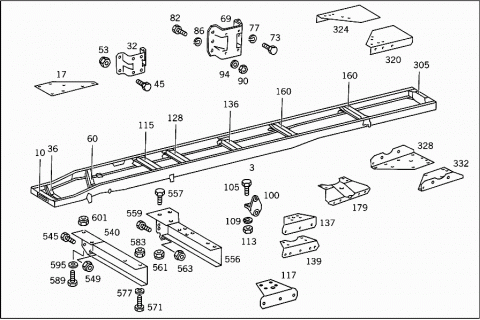

29423

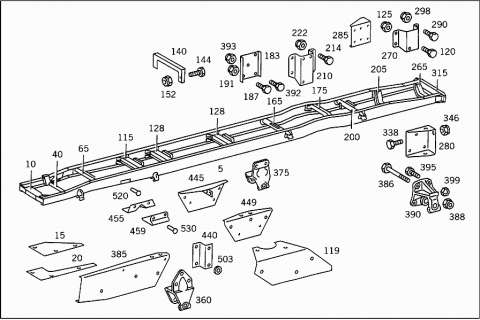

29424
# Kodas Pavadinimas
003 A 3443109005 FRAME
005 A 3503107102 FRAME
010 A 3453127001 CROSS MEMBER
NO.1
015 A 3523120087 GUSSET PLATE
FRONT TOP
017 A 3523120387 GUSSET PLATE
FRONT BOTTOM
020 A 3523122187 GUSSET PLATE
FRONT BOTTOM
032 A 3523120240 BRACKET
036 A 3453120205 ENGINE CROSS MEMBER
NO.2
040 A 3453107337 CROSS MEMBER
GEARSHIFT MECHANISM
NO.2
045 N 000933010254 SCREW
ENGINE CORSS MEMBER TO BRACKET
053 N 913004010008 NUT
ENGINE CORSS MEMBER TO BRACKET
060 A 3453120107 ENGINE CROSS MEMBER
NO.3
065 A 3453107027 CROSS MEMBER
NO.3
069 A 3523100209 BRACKET
073 N 000961012151 SCREW
ENGINE CROSS MEMBER TO SIDE MEMBERS
077 N 000127012201 LOCK WASHER
ENGINE CROSS MEMBER TO SIDE MEMBERS
082 N 000933010257 SCREW
ENGINE CORSS MEMBER TO BRACKET
082 N 000933010267 SCREW
ENGINE CORSS MEMBER TO BRACKET
086 N 000127010202 LOCK WASHER
ENGINE CORSS MEMBER TO BRACKET
090 N 000934010000 NUT
ENGINE CORSS MEMBER TO BRACKET
094 N 000125010517 WASHER
ENGINE CORSS MEMBER TO BRACKET
100 A 3523230963 BEARING BRACKET
STABILIZER
105 N 000961012027 SCREW
BEARING BRACKET TO SIDE MEMBER
109 N 000127012201 LOCK WASHER
BEARING BRACKET TO SIDE MEMBER
113 N 000934012004 NUT
BEARING BRACKET TO SIDE MEMBER
115 A 3453100436 CROSS MEMBER
NO.4
115 A 3443107136 CROSS MEMBER
NO.4
117 A 3523120452 ANGLE
TO 344 310 71 36
119 A 3453110460 REINFORCEMENT
LEFT
119 A 3443117660 REINFORCEMENT
LEFT
119 A 3453110560 REINFORCEMENT
RIGHT
119 A 3443117760 REINFORCEMENT
RIGHT
120 N 000933010254 SCREW
120 N 000933010257 SCREW
120 N 000933008036 SCREW
BRACKET TO CROSS MEMBER
NO.4
125 N 913004010008 NUT
125 N 913004008001 NUT
BRACKET TO CROSS MEMBER
128 A 3453107136 CROSS MEMBER
INTERMEDIATE SHAFT BEARING
NO.5,6
136 A 3453107336 CROSS MEMBER
NO. 5
137 A 3523120052 ANGLE
TOP
139 A 3523120552 ANGLE
BOTTOM
140 A 3524290440 BRACKET
144 N 000933008268 SCREW
BRACKET TO CROSS MEMBER
NO.5-6
152 N 913004008001 NUT
BRACKET TO CROSS MEMBER
160 A 3453127317 CROSS MEMBER
NO.7,8
165 A 3453107138 CROSS MEMBER
NO.7
175 A 3453107440 CROSS MEMBER
NO.8
179 A 3453127360 REINFORCEMENT
183 A 3523112760 REINFORCEMENT
CROSS MEMBER TO SIDE MEMBERS
187 N 000963010034 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 10X25
187 N 000933010129 SCREW
CROSS MEMBER TO SIDE MEMBERS
M 10X30
187 N 913004010008 NUT
CROSS MEMBER TO SIDE MEMBERS
191 N 913004010008 NUT
CROSS MEMBER TO SIDE MEMBERS
200 A 3453107542 CROSS MEMBER
NO.9
205 A 3453120107 ENGINE CROSS MEMBER
NO.10
210 A 3523120940 BRACKET
214 N 000933010257 SCREW
ENGINE CORSS MEMBER TO BRACKET
222 N 913004010008 NUT
ENGINE CORSS MEMBER TO BRACKET
265 A 3453120205 ENGINE CROSS MEMBER
FRONT
270 A 3523120740 BRACKET
LEFT
270 A 3523120840 BRACKET
RIGHT
280 A 3523130825 CONSOLE
REAR CROSS MEMBER,LEFT
285 A 3523130925 CONSOLE
REAR CROSS MEMBER,RIGHT
290 N 000933010257 SCREW
ENGINE CORSS MEMBER TO BRACKET
298 N 913004010008 NUT
ENGINE CORSS MEMBER TO BRACKET
305 A 3453127235 CROSS MEMBER
NO.9
315 A 3453127435 CROSS MEMBER
(REAR CROSS MEMBER)
NO.12
320 A 3443120087 GUSSET PLATE
LEFT
324 A 3443120187 GUSSET PLATE
RIGHT
328 A 3453127487 GUSSET PLATE
RIGHT
332 A 3453127587 GUSSET PLATE
LEFT
338 N 000961012164 SCREW
CROSS MEMBER TO CONSOLE
M 12X28
338 N 000961012168 SCREW
CROSS MEMBER TO CONSOLE
M 12X32
346 N 913004012008 NUT
CROSS MEMBER TO CONSOLE
360 A 3523220801 FRONT SPRING BRACKET
FRONT
375 A 3523220201 FRONT SPRING BRACKET
REAR
385 A 3453110260 REINFORCEMENT
LEFT
385 A 3453110360 REINFORCEMENT
RIGHT
386 A 3559900501 SCREW
REAR SPRING BRACKET TO SIDE MEMBER
388 N 913004014005 NUT
REAR SPRING BRACKET TO SIDE MEMBER
390 A 3523250101 REAR SPRING BRACKET
392 N 000933010254 SCREW
CROSS MEMBER TO SIDE MEMBERS
393 N 913004010008 NUT
CROSS MEMBER TO SIDE MEMBERS
395 A 3409900201 SCREW
REAR SPRING BRACKET TO SIDE MEMBER
399 N 000934014020 NUT
REAR SPRING BRACKET TO SIDE MEMBER
440 A 3454327140 BRACKET
445 A 3453100057 PLATE
449 A 3453230295 REINFORCEMENT
455 A 3523220008 STAY
HELPER SPRING
459 A 3453220008 STAY
HELPER SPRING
503 A 3529902240 WASHER
BRACKET AND REINFORCEMENT TO SIDE MEMBER
520 N 910005010001 RIVET
10X24 MM
520 N 910005010002 RIVET
10X26 MM
520 N 910005010003 RIVET
10X28 MM
520 N 910005010019 RIVET
10X32 MM
520 N 910005010005 RIVET
10X34 MM
520 N 910005010005 RIVET
10X34 MM
530 N 910005012012 RIVET
12X26MM
530 N 910005012001 RIVET
12X28 MM
530 N 910005012002 RIVET
12X30 MM
530 N 910005012076 RIVET
12X34 MM
530 N 910005012017 RIVET
12X36 MM
530 N 910005014032 RIVET
14X30 MM
530 N 910005014043 RIVET
14X48 MM
530 N 910005014044 RIVET
14X50 MM
540 A 3453107167 BODY SUPPORT
FRONT
545 N 000933010254 SCREW
FRONT CROSS MEMBER TO SIDE MEMBERS
549 N 913004010008 NUT
FRONT CROSS MEMBER TO SIDE MEMBERS
556 A 3453107067 BODY SUPPORT
REAR
557 N 000961012164 SCREW
BODY REAR SUPPORT TO SIDE MEMBER
559 N 000933010267 SCREW
BODY REAR SUPPORT TO SIDE MEMBER
561 N 913004012008 NUT
BODY REAR SUPPORT TO SIDE MEMBER
563 N 913004010008 NUT
BODY REAR SUPPORT TO SIDE MEMBER
571 N 000933010094 SCREW
DRIVER'S SEAT PEDESTAL
M 10X40
571 N 000933010129 SCREW
DRIVER'S SEAT PEDESTAL
M 10X30
571 N 000933010145 SCREW
DRIVER'S SEAT PEDESTAL
M 10X35
571 N 000933010261 SCREW
DRIVER'S SEAT PEDESTAL
M 10X45
577 N 000125010517 WASHER
DRIVER'S SEAT PEDESTAL
583 N 913004010008 NUT
DRIVER'S SEAT PEDESTAL
589 N 000961012156 SCREW
DRIVER'S SEAT PEDESTAL
595 N 000125013012 WASHER
DRIVER'S SEAT PEDESTAL
601 N 913004012008 NUT
DRIVER'S SEAT PEDESTAL
