Transporto priemonė: OF 1113 INDONESIEN; VIN numerio dalis: 345052
Grupė: 47 FUEL SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

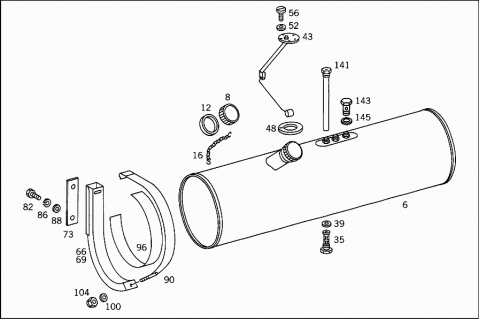

| 006 | A 3444709801 | FUEL TANK |
| 006 | A 3444707902 | FUEL TANK |
| LESS SENDER UNIT | ||
| 140 L | ||
| 006 | A 3444707902 | FUEL TANK |
| LESS SENDER UNIT | ||
| 140 L | ||
| 006 | A 3444706101 | FUEL TANK |
| LESS SENDER UNIT | ||
| 140 L | ||
| 006 | A 3444706101 | FUEL TANK |
| LESS SENDER UNIT | ||
| 140 L | ||
| 008 | A 3444700205 | FILLER CAP |
| 012 | A 3444710679 | SEAL RING |
| 016 | A 3034700031 | CHAIN |
| 035 | A 3504700006 | FUEL STRAINER |
| 039 | A 0029977245 | SEAL RING |
| 043 | A 0015426117 | SENDER UNIT |
| Repalced by: A 3455427617 | ||
| 043 | A 3455427617 | SENDER UNIT |
| Repalced by: A 3455427917 | ||
| 043 | A 3455427917 | SENDER UNIT |
| TANK | ||
| 043 | A 3445427217 | SENDER UNIT |
| TANK | ||
| 048 | A 3524710080 | GASKET |
| 052 | A 0669970640 | SEAL RING |
| 056 | N 000084005410 | SCREW |
| 066 | A 3454707842 | SUPPORT |
| 069 | A 3444700142 | SUPPORT |
| 069 | A 3454707942 | SUPPORT |
| 073 | A 3224750184 | SHIM |
| CONSOLE TO SIDE MEMBER | ||
| 082 | N 000961014088 | SCREW |
| CONSOLE TO SIDE MEMBER | ||
| 086 | N 000127014201 | LOCK WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 088 | A 3449900140 | WASHER |
| CONSOLE TO SIDE MEMBER | ||
| 090 | A 3454700140 | STRAP |
| A 3459837391 | CARDBOARD | |
| FUEL TANK TO CONSOLE | ||
| 096 | A 3454757384 | SHIM |
| 096 | A 3454757384 | SHIM |
| 100 | N 000125013012 | WASHER |
| STRAP TO SUPPORT | ||
| 104 | N 000934012004 | NUT |
| STRAP TO SUPPORT | ||
| 104 | N 913004012008 | NUT |
| STRAP TO SUPPORT | ||
| 105A | A 0089975482 | HOSE |
| FEED & RETURN | ||
| 105B | A 3084767023 | DISTRIBUTOR |
| 105D | N 040621020200 | INSULATING HOSE |
| 2100 MM | ||
| 106 | A 0009905088 | BANJO UNION |
| 106A | A 3084767124 | CONNECTOR |
| 108 | N 915017010200 | UNION NUT |
| 110 | A 0009904088 | BANJO UNION |
| Repalced by: N 915052008000 | ||
| 110 | N 915052008000 | BANJO UNION |
| 112 | A 3084767026 | HOSE |
| Repalced by: A 3449977582 | ||
| 112 | A 3449977582 | HOSE |
| Repalced by: A 3769978182 | ||
| 112 | A 3769978182 | HOSE |
| 114 | N 900288010000 | CLAMP |
| 116 | A 4069975081 | GROMMET |
| 116 | A 3609970181 | GROMMET |
| 118 | N 040621012208 | INSULATING HOSE |
| 10 MM | ||
| 118 | N 040621012207 | INSULATING HOSE |
| 141 | A 3444707226 | RISING PIPE |
| FUEL LINE TO FUEL TANK | ||
| 143 | N 915036012101 | HOLLOW SCREW |
| FUEL LINE TO FUEL TANK | ||
| 145 | N 007603016301 | SEAL RING |
| FUEL LINE TO FUEL TANK | ||
| 145 | N 007603016301 | SEAL RING |
| FUEL LINE TO FUEL TANK | ||
| 145 | N 007603016301 | SEAL RING |
| FUEL LINE TO FUEL TANK | ||
| 145 | N 007603016105 | SEAL RING |
| FUEL LINE TO FUEL TANK | ||
| 145 | N 007603016105 | SEAL RING |
| FUEL LINE TO FUEL TANK | ||
| 147 | A 0009950905 | CLAMP |
| LINE MOUNTING | ||
| 147 | A 0009950905 | CLAMP |
| FUEL LINE TO SIDE MEMBER | ||
| 149 | N 000933008270 | SCREW |
| FUEL LINE TO SIDE MEMBER | ||
| 151 | N 000125008417 | WASHER |
| FUEL LINE TO SIDE MEMBER | ||
| 153 | N 913004008001 | NUT |
| FUEL LINE TO SIDE MEMBER | ||
| 155 | A 3454290040 | BRACKET |
| FUEL LINE | ||
| 157 | N 000933008271 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 159 | N 913004008001 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 161 | A 0009950905 | CLAMP |
| FUEL LINE TO BRACKET AND TO CROSS MEMBER | ||
| 163 | N 000084006114 | SCREW |
| FUEL LINE TO BRACKET | ||
| 163 | N 000933006221 | SCREW |
| FUEL LINE TO BRACKET | ||
| 163 | N 000933006221 | SCREW |
| FUEL LINE TO CROSS MEMBER | ||
| 165 | N 000125006421 | WASHER |
| FUEL LINE TO BRACKET | ||
| 165 | N 000125006421 | WASHER |
| FUEL LINE TO CROSS MEMBER | ||
| 167 | N 913004006002 | NUT |
| FUEL LINE TO BRACKET | ||
| 167 | N 913004006002 | NUT |
| FUEL LINE TO CROSS MEMBER | ||
| 169 | N 915036010100 | HOLLOW SCREW |
| FUEL LINE TO ENGINE | ||
| 171 | N 915035000007 | SEAL RING |
| FUEL LINE TO ENGINE | ||
| 184 | N 915036010100 | HOLLOW SCREW |
| FUEL LINE TO FEED PUMP | ||
| 185 | N 915035000007 | SEAL RING |
| FUEL LINE TO FEED PUMP | ||
| 223 | N 900288010000 | CLAMP |
| LEAK LINE | ||
| 227 | A 3449977290 | LOOM TIE |
| LINE MOUNTING | ||
