Transporto priemonė: OF 1113 INDONESIEN; VIN numerio dalis: 345052

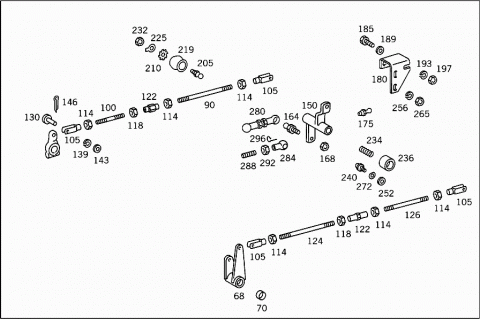

Grupė: 29 PEDALS - 001 PEDAL ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3452907519 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 010 | A 3452907120 | BEARING |
| 025 | A 3529900080 | SCREW |
| 031 | A 3452907416 | PEDAL |
| CLUTCH | ||
| 031 | A 3452907216 | PEDAL |
| CLUTCH | ||
| 032 | A 3452927150 | BUSHING |
| 034 | N 071412010100 | GREASE NIPPLE |
| 035 | A 3442910041 | STOP |
| 037 | A 3202940051 | SPACER RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 038 | N 000471038000 | LOCK RING |
| CLUTCH PEDAL TO BEARING BRACKET | ||
| 056 | A 3452907133 | BRACKET |
| 057 | N 000961012152 | SCREW |
| BRACKET TO STEERING BRACKET | ||
| 057A | N 000127012201 | LOCK WASHER |
| BRACKET TO STEERING BRACKET | ||
| 058 | N 000961012156 | SCREW |
| BEARING TUBE TO BRACKET | ||
| 059 | N 000960012353 | SCREW |
| BEARING TUBE TO BRACKET | ||
| 060 | N 000960012362 | SCREW |
| Repalced by: N 000960012335 | ||
| 060 | N 000960012335 | SCREW |
| BEARING TUBE TO BRACKET | ||
| 061 | N 913004012008 | NUT |
| BEARING TUBE TO BRACKET | ||
| 068 | A 3452907128 | LEVER |
| CLUTCH | ||
| 070 | A 3213010050 | BUSHING |
| 090 | N 900331010528 | PULL ROD |
| 100 | N 900331010529 | PULL ROD |
| PULL ROD TO CLUTCH LEVER | ||
| 100 | N 900331010547 | PULL ROD |
| 105 | A 0009961501 | YOKE |
| 114 | N 000934010000 | NUT |
| PULL ROD TO CLUTCH LEVER | ||
| 118 | N 000934010003 | NUT |
| LEFT | ||
| 122 | N 001479010000 | TURNBUCKLE |
| 124 | A 3219961425 | ROD |
| FRONT | ||
| 126 | A 3219961525 | ROD |
| REAR | ||
| 130 | N 001444010211 | PIN |
| 139 | N 900055010001 | SPRING WASHER |
| PULL ROD TO CLUTCH LEVER | ||
| 143 | N 000433010500 | WASHER |
| PULL ROD TO CLUTCH LEVER | ||
| 146 | N 000094003027 | COTTER PIN |
| PULL ROD TO CLUTCH LEVER | ||
| 150 | A 3442907428 | LEVER |
| CLUTCH LINKAGE | ||
| 164 | A 3529910415 | BALL PIVOT |
| Repalced by: A 3029910015 | ||
| 164 | A 3029910015 | BALL PIVOT |
| 168 | N 000936012006 | NUT |
| 175 | N 071412008101 | GREASE NIPPLE |
| 180 | A 3442937236 | BEARING BRACKET |
| 185 | N 000961012020 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 189 | N 000125013008 | WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 193 | N 000127012201 | LOCK WASHER |
| BEARING BRACKET TO SIDE MEMBER | ||
| 197 | N 000934012004 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
| 205 | A 3449917615 | BALL PIVOT |
| DOUBLE LEVER TO TRANSMISSION CASE COVER | ||
| 210 | N 006797014150 | TOOTHED WASHER |
| 219 | A 3442937060 | SEAL RING |
| DOUBLE LEVER TO TRANSMISSION CASE COVER | ||
| 225 | N 000463015002 | LOCK PLATE |
| DOUBLE LEVER TO TRANSMISSION CASE COVER | ||
| 232 | N 000934014000 | NUT |
| DOUBLE LEVER TO TRANSMISSION CASE COVER | ||
| 234 | A 3209930301 | SPRING |
| DOUBLE LEVER TO BEARING BRACKET | ||
| 236 | A 3442930150 | BUSHING |
| DOUBLE LEVER TO BEARING BRACKET | ||
| 240 | A 3449917215 | BALL PIVOT |
| DOUBLE LEVER TO BEARING BRACKET | ||
| 252 | A 3442937077 | WASHER |
| DOUBLE LEVER TO BEARING BRACKET | ||
| 256 | N 000127014201 | LOCK WASHER |
| DOUBLE LEVER TO BEARING BRACKET | ||
| 265 | A 3449900751 | NUT |
| DOUBLE LEVER TO BEARING BRACKET | ||
| 272 | N 000125015012 | WASHER |
| DOUBLE LEVER TO BEARING BRACKET | ||
| 280 | A 3522901039 | ROD |
| BOTTOM | ||
| 284 | N 071805016202 | BALL SOCKET |
| 288 | N 900331010201 | PULL ROD |
| 292 | N 000934010000 | NUT |
| 296 | N 071805016402 | SECURING CLIP |
| 305 | A 3522900126 | SHAFT |
| CLUTCH LINKAGE | ||
| 310 | N 000933010129 | SCREW |
| PIN TO CHASSIS | ||
| 318 | N 913004010008 | NUT |
| PIN TO CHASSIS | ||
| 325 | A 3219900040 | WASHER |
| DOUBLE LEVER TO PIN | ||
| 329 | N 000471020000 | LOCK RING |
| DOUBLE LEVER TO PIN | ||
| 333 | N 071412010300 | GREASE NIPPLE |
| DOUBLE LEVER TO PIN | ||
| 340 | N 900331010530 | PULL ROD |
| FROM DOUBLE LEVER TO TURNBUCKLE NUT | ||
| 345 | N 000934010000 | NUT |
| FROM DOUBLE LEVER TO TURNBUCKLE NUT | ||
| 349 | A 0009961501 | YOKE |
| FROM DOUBLE LEVER TO TURNBUCKLE NUT | ||
| 353 | A 3459960034 | NUT |
| FROM DOUBLE LEVER TO TURNBUCKLE NUT | ||
| 360 | N 900331010528 | PULL ROD |
| FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER I | ||
| 364 | N 000934010000 | NUT |
| FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER I | ||
| 368 | N 000934010003 | NUT |
| FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER I | ||
| 372 | A 0009961501 | YOKE |
| FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER I | ||
| 380 | N 001444010211 | PIN |
| PULL ROD TO LEVER | ||
| 384 | N 900055010001 | SPRING WASHER |
| PULL ROD TO LEVER | ||
| 388 | N 000433010500 | WASHER |
| PULL ROD TO LEVER | ||
| 394 | N 000094003027 | COTTER PIN |
| PULL ROD TO LEVER | ||
| 400 | A 3452900127 | LEVER |
| CLUTCH LINKAGE | ||
| 410 | A 3213010050 | BUSHING |
| 415 | A 3212900031 | PIVOT PIN |
| 432 | A 3219900040 | WASHER |
| 440 | N 000471020000 | LOCK RING |
| 452 | N 071412010300 | GREASE NIPPLE |
| 456 | N 000933008274 | SCREW |
| PIVOT PIN TO FRAME | ||
| 464 | N 913004008001 | NUT |
| PIVOT PIN TO FRAME | ||
| 470 | N 900331010529 | PULL ROD |
| FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II | ||
| 474 | A 0009961501 | YOKE |
| FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II | ||
| 478 | N 000934010000 | NUT |
| FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II | ||
| 490 | N 001444010211 | PIN |
| FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II | ||
| 494 | N 900055010001 | SPRING WASHER |
| FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II | ||
| 498 | N 000433010500 | WASHER |
| FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II | ||
| 506 | N 000094003027 | COTTER PIN |
| FROM INTERMEDIATE LEVER I TO INTERMEDIATE LEVER II | ||
| 510 | A 3452900227 | LEVER |
| INTERMEDIATE LEVER II | ||
| 525 | A 3213010050 | BUSHING |
| 545 | A 3212900031 | PIVOT PIN |
| 549 | N 071412010300 | GREASE NIPPLE |
| INTERMEDIATE LEVER II TO PIVOT PIN | ||
| 553 | A 3219900040 | WASHER |
| INTERMEDIATE LEVER II TO PIVOT PIN | ||
| 557 | N 000471020000 | LOCK RING |
| INTERMEDIATE LEVER II TO PIVOT PIN | ||
| 562 | N 000933008274 | SCREW |
| PIVOT PIN TO FRAME | ||
| 570 | N 913004008001 | NUT |
| PIVOT PIN TO FRAME | ||
| 580 | N 900331010607 | PULL ROD |
| FROM INTERMEDIATE LEVER II TO RELEASE YOKE | ||
| 584 | N 000934010000 | NUT |
| FROM INTERMEDIATE LEVER II TO RELEASE YOKE | ||
| 588 | N 000934010003 | NUT |
| FROM INTERMEDIATE LEVER II TO RELEASE YOKE | ||
| 592 | A 0009961501 | YOKE |
| FROM INTERMEDIATE LEVER II TO RELEASE YOKE | ||
| 596 | A 3459960034 | NUT |
| FROM INTERMEDIATE LEVER II TO RELEASE YOKE | ||
| 602 | A 3459900038 | SCREW |
| FROM INTERMEDIATE LEVER II TO RELEASE YOKE | ||
| 650 | N 001444010211 | PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 654 | N 900055010001 | SPRING WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 658 | N 000433010500 | WASHER |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 662 | N 000094003027 | COTTER PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 665 | N 000125015012 | WASHER |
| PULL ROD TO RELEASE YOKE | ||
| 669 | N 000094004050 | COTTER PIN |
| PULL ROD TO RELEASE YOKE | ||
| 672 | A 3649937310 | SPRING |
| CLUTCH | ||
| 760 | A 3522900324 | PEDAL PLATE |
| CLUTCH | ||
| 765 | A 3202925082 | PAD |
| 770 | N 000933010034 | SCREW |
| CLUTCH PEDAL | ||
| 785 | A 3453000040 | BRACKET |
| CLUTCH LINKAGE | ||
| 789 | A 3173010085 | RUBBER BUFFER |
| 793 | A 3442910085 | BUSHING |
| 798 | N 000933010129 | SCREW |
| BEARING BRACKET TO SIDE MEMBER | ||
| 806 | N 913004010008 | NUT |
| BEARING BRACKET TO SIDE MEMBER | ||
