Transporto priemonė: OF 1113 INDONESIEN; VIN numerio dalis: 345052
Grupė: 41 PROPELLER SHAFT

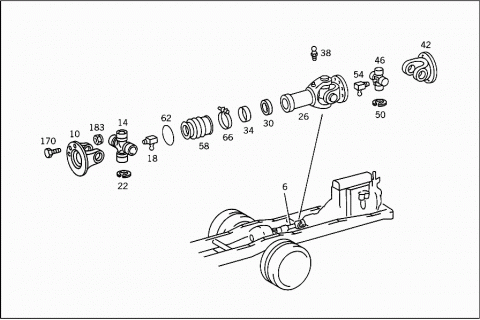

41328

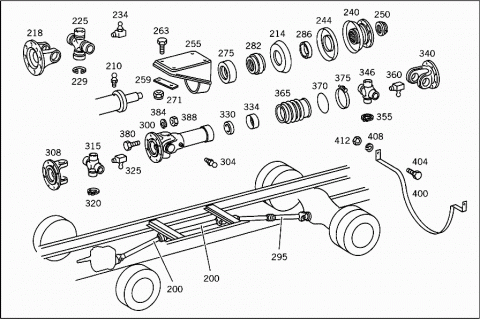

41329
# Kodas Pavadinimas
006 A 3454108602 PROPELLER SHAFT
FROM TRANSMISSION TO REAR AXLE
983 MM
010 A 3524110011 DRIVE FLANGE
FRONT PROPELLER SHAFT
014 A 3454107031 UNIVERSAL JOINT CROSS
018 N 071412008300 GREASE NIPPLE
UNIVERSAL JOINT CROSS
018 A 3459977288 GREASE NIPPLE
UNIVERSAL JOINT CROSS
022 A 3449947135 SNAP RING
AS REQUIRED
2.500 MM
022 A 3129941135 SNAP RING
AS REQUIRED
2.500 MM
022 A 3449947235 SNAP RING
AS REQUIRED
2.525 MM
022 A 3449947335 SNAP RING
AS REQUIRED
2.550 MM
022 A 3129941635 SNAP RING
AS REQUIRED
2.550 MM
022 A 3449947435 SNAP RING
AS REQUIRED
2.575 MM
022 A 3449947535 SNAP RING
AS REQUIRED
2.600 MM
022 A 3129941335 SNAP RING
AS REQUIRED
2.600 MM
022 A 3449947635 SNAP RING
AS REQUIRED
2.625 MM
022 A 3449947735 SNAP RING
AS REQUIRED
2.650 MM
022 A 3129941435 SNAP RING
AS REQUIRED
2.650 MM
022 A 3449947835 SNAP RING
AS REQUIRED
022 A 3449947935 SNAP RING
AS REQUIRED
2.700 MM
022 A 3129941535 SNAP RING
AS REQUIRED
2.700 MM
022 A 3449948035 SNAP RING
AS REQUIRED
2.725 MM
022 A 3449948135 SNAP RING
AS REQUIRED
2.750 MM
022 A 3129941735 SNAP RING
AS REQUIRED
2.750 MM
026 A 3454107108 UNIVERSAL JOINT YOKE
REAR PROPELLER SHAFT
030 A 3374130080 SEAL RING
PROPELLER SHAFT
034 A 3214110158 SEAL HOLDER
PROPELLER SHAFT
038 N 071412008101 GREASE NIPPLE
PROPELLER SHAFT
042 A 3524110011 DRIVE FLANGE
REAR PROPELLER SHAFT
046 A 3454107031 UNIVERSAL JOINT CROSS
050 A 3449947135 SNAP RING
AS REQUIRED
2.500 MM
050 A 3129941135 SNAP RING
AS REQUIRED
2.500 MM
050 A 3449947235 SNAP RING
AS REQUIRED
2.525 MM
050 A 3449947335 SNAP RING
AS REQUIRED
2.550 MM
050 A 3129941635 SNAP RING
AS REQUIRED
2.550 MM
050 A 3449947435 SNAP RING
AS REQUIRED
2.575 MM
050 A 3449947535 SNAP RING
AS REQUIRED
2.600 MM
050 A 3129941335 SNAP RING
AS REQUIRED
2.600 MM
050 A 3449947635 SNAP RING
AS REQUIRED
2.625 MM
050 A 3449947735 SNAP RING
AS REQUIRED
2.650 MM
050 A 3129941435 SNAP RING
AS REQUIRED
2.650 MM
050 A 3449947835 SNAP RING
AS REQUIRED
2.675 MM
050 A 3449947935 SNAP RING
AS REQUIRED
2.700 MM
050 A 3129941535 SNAP RING
AS REQUIRED
2.700 MM
050 A 3449948035 SNAP RING
AS REQUIRED
2.725 MM
050 A 3449948135 SNAP RING
AS REQUIRED
2.750 MM
050 A 3129941735 SNAP RING
AS REQUIRED
2.750 MM
054 N 071412008300 GREASE NIPPLE
UNIVERSAL JOINT CROSS
054 A 3459977288 GREASE NIPPLE
UNIVERSAL JOINT CROSS
058 A 3024100080 BOOT
REAR PROPELLER SHAFT
062 A 3214110053 WIRE RING
BOOT TO PROPELLER SHAFT
066 N 916002078100 CLAMP
BOOT TO PROPELLER SHAFT
066 A 3449979790 CLAMP
BOOT TO PROPELLER SHAFT
170 A 3529900401 SCREW
PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
183 N 913004010014 NUT
PROPELLER SHAFT TO TRANSMISSION AND TO REAR AXLE
200 A 3444100304 PROPELLER SHAFT
FROM TRANSMISSION TO INTERMEDIATE SHAFT BEARING I
811 MM
200 A 3444101701 PROPELLER SHAFT
FROM INTERMEDIATE BEARING I TO INTERMEDIATE BEARING II
1531 MM
210 N 071412008100 GREASE NIPPLE
PROPELLER SHAFT
214 A 3524130061 PROTECTIVE CAP
PROPELLER SHAFT
218 A 3524110011 DRIVE FLANGE
PROPELLER SHAFT
225 A 3454107031 UNIVERSAL JOINT CROSS
229 A 3449947135 SNAP RING
AS REQUIRED
2.500 MM
229 A 3129941135 SNAP RING
AS REQUIRED
2.500 MM
229 A 3449947235 SNAP RING
AS REQUIRED
2.525 MM
229 A 3449947335 SNAP RING
AS REQUIRED
2.550 MM
229 A 3129941635 SNAP RING
AS REQUIRED
2.550 MM
229 A 3449947435 SNAP RING
AS REQUIRED
2.575 MM
229 A 3449947535 SNAP RING
AS REQUIRED
2.600 MM
229 A 3129941335 SNAP RING
AS REQUIRED
2.600 MM
229 A 3449947635 SNAP RING
AS REQUIRED
2.625 MM
229 A 3449947735 SNAP RING
AS REQUIRED
2.650 MM
229 A 3129941435 SNAP RING
AS REQUIRED
2.650 MM
229 A 3449947835 SNAP RING
AS REQUIRED
2.675 MM
229 A 3449947935 SNAP RING
AS REQUIRED
2.700 MM
229 A 3129941535 SNAP RING
AS REQUIRED
2.700 MM
229 A 3449948035 SNAP RING
AS REQUIRED
229 A 3449948135 SNAP RING
AS REQUIRED
2.750 MM
229 A 3129941735 SNAP RING
AS REQUIRED
2.750 MM
234 N 071412008300 GREASE NIPPLE
UNIVERSAL JOINT CROSS
234 A 3459977288 GREASE NIPPLE
UNIVERSAL JOINT CROSS
240 A 3524100130 CENTERING FLANGE
INTERMEDIATE BEARING
244 A 3524130061 PROTECTIVE CAP
250 A 3449907050 NUT
FOLLOWER FLANGE TO PROPELLER SHAFT
255 A 3454107340 BRACKET
INTERMEDIATE BEARING
255 A 3444107040 BRACKET
INTERMEDIATE BEARING
259 A 3524130011 REINFORCEMENT
BRACKET TO CROSS MEMBER
263 N 000961010010 SCREW
BRACKET TO CROSS MEMBER
271 N 913002010202 NUT
BRACKET TO CROSS MEMBER
275 A 3524130012 RUBBER MOUNTING
INTERMEDIATE BEARING
282 A 3524100051 BALL BEARING
INTERMEDIATE BEARING
282 A 3454100051 BALL BEARING
INTERMEDIATE BEARING
286 A 3124131231 BEARING RING
INTERMEDIATE BEARING
295 A 3444101602 PROPELLER SHAFT
FROM INTERMEDIATE BEARING II TO REAR AXLE
1775 MM
300 A 3444100008 UNIVERSAL JOINT YOKE
REAR PROPELLER SHAFT
304 N 071412008100 GREASE NIPPLE
REAR PROPELLER SHAFT
308 A 3524110011 DRIVE FLANGE
REAR PROPELLER SHAFT
315 A 3454107031 UNIVERSAL JOINT CROSS
320 A 3449947135 SNAP RING
AS REQUIRED
2.500 MM
320 A 3129941135 SNAP RING
AS REQUIRED
2.500 MM
320 A 3449947235 SNAP RING
AS REQUIRED
2.525 MM
320 A 3449947335 SNAP RING
AS REQUIRED
2.550 MM
320 A 3129941635 SNAP RING
AS REQUIRED
2.550 MM
320 A 3449947435 SNAP RING
AS REQUIRED
2.575 MM
320 A 3449947535 SNAP RING
AS REQUIRED
2.600 MM
320 A 3129941335 SNAP RING
AS REQUIRED
2.600 MM
320 A 3449947635 SNAP RING
AS REQUIRED
2.625 MM
320 A 3449947735 SNAP RING
AS REQUIRED
2.650 MM
320 A 3129941435 SNAP RING
AS REQUIRED
2.650 MM
320 A 3449947835 SNAP RING
AS REQUIRED
2.675 MM
320 A 3449947935 SNAP RING
AS REQUIRED
2.700 MM
320 A 3129941535 SNAP RING
AS REQUIRED
2.700 MM
320 A 3449948035 SNAP RING
AS REQUIRED
2.725 MM
320 A 3449948135 SNAP RING
AS REQUIRED
2.750 MM
320 A 3129941735 SNAP RING
AS REQUIRED
2.750 MM
325 N 071412008300 GREASE NIPPLE
UNIVERSAL JOINT CROSS
325 A 3459977288 GREASE NIPPLE
UNIVERSAL JOINT CROSS
330 A 3374130080 SEAL RING
REAR PROPELLER SHAFT
334 A 3214110158 SEAL HOLDER
REAR PROPELLER SHAFT
340 A 3524110011 DRIVE FLANGE
REAR PROPELLER SHAFT
346 A 3454107031 UNIVERSAL JOINT CROSS
355 A 3449947135 SNAP RING
AS REQUIRED
2.500 MM
355 A 3129941135 SNAP RING
AS REQUIRED
2.500 MM
355 A 3449947235 SNAP RING
AS REQUIRED
2.525 MM
355 A 3449947335 SNAP RING
AS REQUIRED
2.550 MM
355 A 3129941635 SNAP RING
AS REQUIRED
2.550 MM
355 A 3449947435 SNAP RING
AS REQUIRED
2.575 MM
355 A 3449947535 SNAP RING
AS REQUIRED
2.600 MM
355 A 3129941335 SNAP RING
AS REQUIRED
2.600 MM
355 A 3449947635 SNAP RING
AS REQUIRED
2.625 MM
355 A 3449947735 SNAP RING
AS REQUIRED
2.650 MM
355 A 3129941435 SNAP RING
AS REQUIRED
2.650 MM
355 A 3449947835 SNAP RING
AS REQUIRED
2.675 MM
355 A 3449947935 SNAP RING
AS REQUIRED
2.700 MM
355 A 3129941535 SNAP RING
AS REQUIRED
2.700 MM
355 A 3449948035 SNAP RING
AS REQUIRED
2.725 MM
355 A 3449948135 SNAP RING
AS REQUIRED
2.750 MM
355 A 3129941735 SNAP RING
AS REQUIRED
2.750 MM
360 N 071412008300 GREASE NIPPLE
UNIVERSAL JOINT CROSS
360 A 3459977288 GREASE NIPPLE
UNIVERSAL JOINT CROSS
365 A 3524100080 BOOT
REAR PROPELLER SHAFT
365 A 3454107280 BOOT
REAR PROPELLER SHAFT
370 A 3214110053 WIRE RING
BOOT TO PROPELLER SHAFT
375 N 916017070000 CLAMP
Repalced by: N 000000000674
375 N 000000000674 CLAMP
BOOT TO PROPELLER SHAFT
375 A 3449979790 CLAMP
BOOT TO PROPELLER SHAFT
380 A 3529900401 SCREW
PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
384 N 000127010202 LOCK WASHER
PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
388 N 000934010042 NUT
PROPELLER SHAFT TO TRANSMISSION, INTERMEDIATE BEARING,AND REAR AXLE
400 A 3454137244 REBOUND STRAP
REAR PROPELLER SHAFT
404 N 000933010034 SCREW
RETAINING STRAP TO SIDE MEMBER
408 N 000127010202 LOCK WASHER
RETAINING STRAP TO SIDE MEMBER
412 N 000934010000 NUT
RETAINING STRAP TO SIDE MEMBER
