Transporto priemonė: OF 1113 INDONESIEN; VIN numerio dalis: 345052
Grupė: 46 STEERING

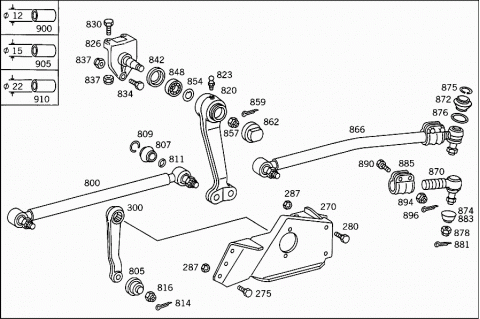

53408

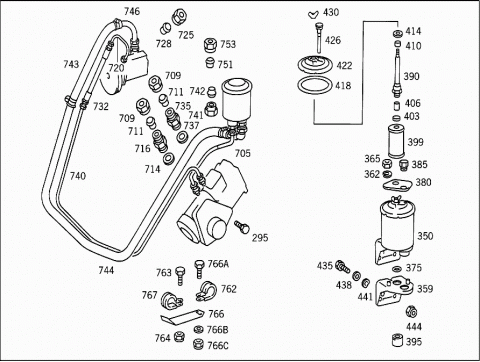

53409

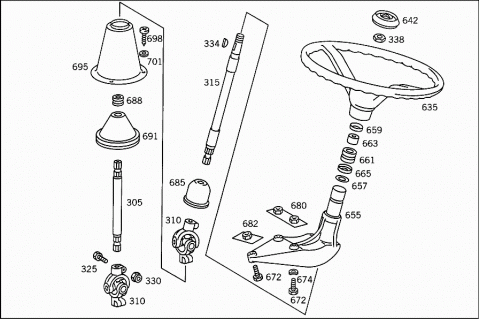

53410

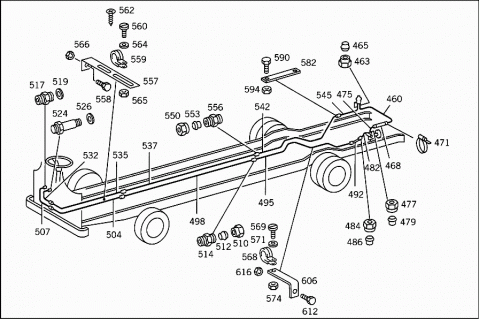

53411
# Kodas Pavadinimas
270 A 3454607129 STEERING BRACKET
275 N 000961012168 SCREW
STEERING BRACKET TO FRAME
12X1.5X32
275 N 000961012179 SCREW
STEERING BRACKET TO FRAME
12X1.5X38
280 N 000961012027 SCREW
STEERING BRACKET TO FRAME
12X1.5X35
280 N 000961012029 SCREW
M 12X1.5X40
287 N 913004012008 NUT
STEERING BRACKET TO FRAME
295 A 3529900012 SCREW
STEERING TO STEERING BRACKET
300 A 3454637501 PITMAN ARM
300 A 3454637401 PITMAN ARM
BALL-NUT-TYPE HYDRAULIC POWER STEERING
305 A 3454620001 STEERING SHAFT
BOTTOM
310 A 3444607057 UNIVERSAL JOINT
310 A 3444607157 UNIVERSAL JOINT
310 A 3444607257 UNIVERSAL JOINT
315 A 3454627301 STEERING SHAFT
TOP
325 A 3169900114 SCREW
UNIVERSAL JOINT TO STEERING COLUMN
330 N 913004008005 NUT
UNIVERSAL JOINT TO STEERING COLUMN
334 N 006888005006 WOODRUFF KEY
STEERING WHEEL TO STEERING COLUMN
338 N 000439022201 NUT
STEERING WHEEL TO STEERING COLUMN
350 A 3644667002 TANK
359 A 0004660640 BRACKET
362 N 000127008205 LOCK WASHER
365 N 000934008035 NUT
375 A 0059970848 SEAL RING
380 A 0004660095 STRUT
385 A 0004660571 FITTING
390 A 0004610065 FILTER SUPPORT
395 A 0004660458 CONNECTOR
395 A 0004660358 CONNECTOR
399 A 0004660204 FILTER
Repalced by: A 0001842225
399 A 0001842225 FILTER ELEMENT
403 A 0004660675 CENTERING RING
406 A 0009870643 RUBBER SLEEVE
410 A 0004660153 SPACER TUBE
414 A 0004660275 WASHER
418 A 0004660260 SEAL RING
422 A 0004664405 COVER
426 A 0004660067 OIL DIPSTICK
430 A 0009901562 NUT
Repalced by: A 0009901662
430 A 0009901662 NUT
435 N 000933010253 SCREW
OIL TANK TO BRACKET
438 N 000125010517 WASHER
OIL TANK TO BRACKET
441 N 000127010202 LOCK WASHER
OIL TANK TO BRACKET
444 N 000934010035 NUT
OIL TANK TO BRACKET
X XXXXXXXXXXXX PART NAME MISSING
OIL LINES
460 A 3454607988 LINE
FROM OIL TANK TO HOSE
463 N 915017022100 UNION NUT
465 N 003861022004 GLAND
468 A 0069971282 HOSE
Repalced by: A 3609970982
468 A 3609970982 HOSE
468 A 3459977982 HOSE
471 A 3509978990 LOOM TIE
AS REQUIRED
471 A 3449978490 LOOM TIE
AS REQUIRED
475 A 3454602924 LINE
FROM HOSE TO PUMP
477 N 915017022100 UNION NUT
479 N 003861022004 GLAND
482 A 3454602724 LINE
FROM OIL PUMP TO HIGH PRESSURE HOSE
15X1.5 MM
484 N 915017015100 UNION NUT
486 N 003861015004 GLAND
492 A 3649978282 HOSE
FROM PUMP TO DELIVERY LINE
492 A 3059971082 HOSE
FROM PUMP TO DELIVERY LINE
492 A 0139971182 HOSE
FROM PUMP TO DELIVERY LINE
495 A 3454607088 LINE
FROM HOSE TO DOUBLE FITTING I
498 A 3454609924 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
504 A 3454609124 LINE
FROM DOUBLE FITTING II TO DOUBLE FITTING III
507 A 3454609224 LINE
FROM DOUBLE FITTING III TO STEERING
510 N 915017015100 UNION NUT
512 N 003861015004 GLAND
514 N 003902015000 CONNECTION FITTING
517 A 3529970671 FITTING
STEERING
519 N 007603016103 SEAL RING
STEERING
524 A 3459970172 FITTING
STEERING
526 N 007603018101 SEAL RING
STEERING
532 A 3454609324 LINE
FROM STEERING TO DOUBLE FITTING I
22X1.5 MM
535 A 3454609424 LINE
FROM DOUBLE FITTING I TO DOUBLE FITTING II
537 A 3454601024 LINE
FROM DOUBLE FITTING II TO DOUBLE FITTING III
542 A 3454609724 LINE
FROM DOUBLE FITTING III TO DOUBLE FITTING IV
545 A 3454609824 LINE
FROM DOUBLE FITTING IV TO OIL TANK
550 N 915017022100 UNION NUT
553 N 003861022004 GLAND
556 N 003902022000 CONNECTION FITTING
557 A 3504297340 BRACKET
558 N 000933008271 SCREW
559 N 916016022203 CLAMP
559 A 3459958301 CLAMP
559 N 916016015202 CLAMP
559 A 3459957701 CLAMP
560 N 000084006423 SCREW
560 N 000084006425 SCREW
562 N 007971005211 SHEET METAL SCREW
564 N 000125006421 WASHER
565 N 913004006002 NUT
566 N 913004008001 NUT
568 N 916016022203 CLAMP
BRACKET TO SUPPORT
568 A 3459958301 CLAMP
BRACKET TO SUPPORT
568 N 916016015202 CLAMP
568 A 3459957701 CLAMP
569 N 000084006423 SCREW
571 N 000125006421 WASHER
574 N 913004006002 NUT
582 A 3454660140 BRACKET
BRACKET TO CROSS MEMBER
590 N 000933010128 SCREW
BRACKET TO CROSS MEMBER
594 N 913004010008 NUT
BRACKET TO CROSS MEMBER
606 A 3454660240 BRACKET
612 N 000933010254 SCREW
BRACKET TO SIDE MEMBER
616 N 000934010004 NUT
BRACKET TO SIDE MEMBER
635 A 3454607003 STEERING WHEEL
635 A 0004641101 STEERING WHEEL
642 A 3454647131 CAP
642 A 0004642631 CAP
655 A 3444607237 BEARING
STEERING SHAFT
657 A 3764620075 WASHER
659 A 3454627023 COVER
661 A 3454627065 RING
663 A 3454627050 BUSHING
665 A 3454627028 BEARING RING
672 N 000931010273 SCREW
STEERING COLUMN BRACKET TO WINDOW SILL
674 N 000137010202 SPRING WASHER
STEERING COLUMN BRACKET TO WINDOW SILL
680 A 3454607089 BRACKET
682 A 3454607189 BRACKET
685 A 3604620596 BOOT
UNIVERSAL JOINT,TOP
688 A 3214620060 SEAL RING
STEERING COLUMN TUBE THRU CAB FLOOR
691 A 3524620196 BOOT
STEERING COLUMN TUBE THRU CAB FLOOR
695 A 3454620096 BOOT
698 N 007981004226 SHEET METAL SCREW
BOOT TO CAB FLOOR
701 N 000125006421 WASHER
BOOT TO CAB FLOOR
705 A 3454607488 LINE
FROM STEERING TO OIL TANK
709 N 915017015100 UNION NUT
711 N 003861015004 GLAND
714 N 007603018101 SEAL RING
LINE TO STEERING
716 A 3459977171 FITTING
LINE TO STEERING
720 A 3444608624 LINE
FROM PUMP TO HOSE
12X1.5 MM
725 N 915017012100 UNION NUT
728 N 003861012007 GLAND
732 A 3459977382 HOSE
732 A 0019972652 HOSE
735 A 0029971572 FITTING
735 N 003901012005 SCREW-IN FITTING
737 N 007603016105 SEAL RING
740 A 3454607388 LINE
FROM HIGH PRESSURE HOSE TO STEERING
741 N 915017012100 UNION NUT
742 N 003861012007 GLAND
743 A 3609970982 HOSE
FROM OIL TANK TO PUMP
743 A 3459977982 HOSE
FROM OIL TANK TO PUMP
744 A 3454607688 LINE
FROM OIL TANK TO SUCTION LINE HOSE
746 A 3454607588 LINE
LINE TO OIL PUMP
751 N 003861022004 GLAND
753 N 915017022100 UNION NUT
762 A 3449978490 CLAMP
Repalced by: A 3509978190
762 A 3509978190 LOOM TIE
HOSE TO SUCTION LINE
762 A 3509978990 LOOM TIE
HOSE TO SUCTION LINE
762 N 916016012200 CLAMP
OIL LINES
762 A 3459958501 CLAMP
OIL LINES
762 N 916016015202 CLAMP
OIL LINES
762 A 3459957701 CLAMP
OIL LINES
763 N 000933006220 SCREW
764 N 913004006002 NUT
766 A 3454290040 BRACKET
OIL LINE TO CROSS MEMBER
766A N 000933008271 SCREW
OIL LINE TO CROSS MEMBER
766A N 000933006221 SCREW
OIL LINE TO CROSS MEMBER
766B N 000125008417 WASHER
OIL LINE TO CROSS MEMBER
766C N 913004008001 NUT
OIL LINE TO CROSS MEMBER
766C N 913004006002 NUT
OIL LINE TO CROSS MEMBER
767 N 916016015202 CLAMP
OIL LINE TO CROSS MEMBER
767 A 3459957701 CLAMP
OIL LINE TO CROSS MEMBER
767 N 916016022203 CLAMP
OIL LINE TO CROSS MEMBER
767 A 3459958301 CLAMP
OIL LINE TO CROSS MEMBER
800 A 3454600705 DRAG LINK
800 A 3454609305 DRAG LINK
800 A 3454607405 DRAG LINK
Repalced by: A 3844608505
800 A 3844608505 DRAG LINK
FRONT
"NAKATA"
800 A 3844608505 DRAG LINK
FRONT
"NAKATA"
805 A 3643307085 BOOT
TO 345 460 93 05,345 460 07 05
807 A 3503387056 DUST CAP
TO 345 460 74 05
807 A 3503387056 DUST CAP
TO 345 460 74 05
807 A 3453387156 DUST CAP
TO 384 460 85 05
807 A 3453387156 DUST CAP
TO 384 460 85 05
809 A 3503387263 CLAMPING RING
TO 345 460 74 05
809 A 3503387263 CLAMPING RING
TO 345 460 74 05
809 A 3503387163 CLAMPING RING
TO 345 460 74 05
809 A 3503387163 CLAMPING RING
TO 345 460 74 05
A 3453387051 SPACER RING
TO 384 460 85 05
A 3453387051 SPACER RING
TO 384 460 85 05
811 A 3643387082 RUBBER RING
Repalced by: A 0003381463
811 A 0003381463 CLAMPING RING
TO 345 460 93 05
N 000094004066 COTTER PIN
TO 345 460 06 05
814 N 000094004065 COTTER PIN
816 N 000937020011 NUT
820 A 3554630110 STEERING INTERMEDIATE ARM
STEERING
823 N 071412010200 GREASE NIPPLE
STEERING INTERMEDIATE ARM
826 A 3524630011 TRUNNION BEARING
STEERING INTERMEDIATE ARM
830 N 000960012047 SCREW
INTERMEDIATE LEVER TO FRAME
834 N 000961012122 SCREW
INTERMEDIATE LEVER TO FRAME
837 N 913004012009 NUT
INTERMEDIATE LEVER TO FRAME
842 N 006504042100 RADIAL SEAL RING
Repalced by: A 0079976446
842 A 0079976446 SEAL RING
STEERING INTERMEDIATE ARM
848 N 000720030206 TAPERED ROLLER BEARING
STEERING INTERMEDIATE ARM
848 N 000720030205 TAPERED ROLLER BEARING
STEERING INTERMEDIATE ARM
854 A 3174630062 THRUST WASHER
INTERMEDIATE LEVER TO BEARING BRACKET
857 N 000937020000 NUT
INTERMEDIATE LEVER TO BEARING BRACKET
859 N 000094004066 COTTER PIN
INTERMEDIATE LEVER TO BEARING BRACKET
862 A 3214630033 CAP
INTERMEDIATE LEVER TO BEARING BRACKET
866 A 3554601305 DRAG LINK
LEMFOERDER,EHRENREICH
866 A 3454608205 DRAG LINK
NAKATA
866 A 3454607905 DRAG LINK
NAKATA
866 A 3454608005 DRAG LINK
NAKATA
875 A 3503387063 CLAMPING RING
FIXED PART OF JOINT
TO 345 460 82 05,345 460 80 05
874 A 3643307085 BOOT
FIXED PART OF JOINT
TO 355 460 13 05,345 460 79 05
872 A 3503387056 DUST CAP
FIXED PART OF JOINT
TO 345 460 82 05,345 460 80 05
878 N 000937020000 NUT
FIXED PART OF JOINT
881 N 000094004065 COTTER PIN
FIXED PART OF JOINT
870 A 0004600148 DRAG LINK END
SCREWED PART OF JOINT
TO 355 460 13 05
870 A 3503307035 JOINT
SCREWED PART OF JOINT
TO 345 460 82 05,345 460 80 05
870 A 0003303235 JOINT
SCREWED PART OF JOINT
TO 345 460 79 05
876 A 3503387051 SPACER RING
SCREWED PART OF JOINT
TO 345 460 82 05
876 A 3503387063 CLAMPING RING
SCREWED PART OF JOINT
TO 345 460 80 05
878 N 000937020000 NUT
SCREWED PART OF JOINT
881 N 000094004065 COTTER PIN
SCREWED PART OF JOINT
883 A 3503387056 DUST CAP
SCREWED PART OF JOINT
TO 355 460 13 05,345 460 82 05
883 A 3503387056 DUST CAP
SCREWED PART OF JOINT
TO 345 460 80 05
883 A 3643307085 BOOT
SCREWED PART OF JOINT
TO 345 460 79 05
885 A 0003381445 CLAMP
TO 355 460 13 05
885 A 3503387045 CLAMP
TO 345 460 82 05
885 A 3453387245 CLAMP
TO 345 460 79 05,345 460 80 05
890 N 000960012350 SCREW
TO 355 460 13 05,M 12X58 S
890 N 000960012062 SCREW
TO 345 460 82 05;M12X55
890 N 000960012075 SCREW
TO 345 460 80 05,M 12X60
890 N 000960012123 SCREW
TO 345 460 79 05,M 12X65
894 N 000935012014 NUT
TO 355 460 13 05,345 460 79 05
894 N 913004012002 NUT
TO 345 460 82 05,345 460 80 05
896 N 000094003024 COTTER PIN
TO 355 460 13 05,345 460 79 05
900 A 0004294901 LINE
12X1.5 MM
905 A 0004295101 LINE
15X1.5 MM
905 A 0004295201 LINE
15X1.5 MM
910 A 0004294801 LINE
22X1.5 MM
