Transporto priemonė: OF 1113 INDONESIEN; VIN numerio dalis: 345052
Grupė: 26 TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR TRANSMISSION, SEE SPARE PARTS LIST 713.4 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |

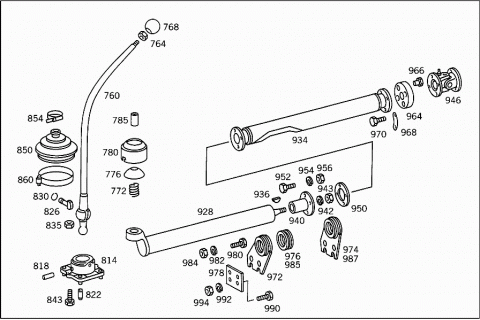

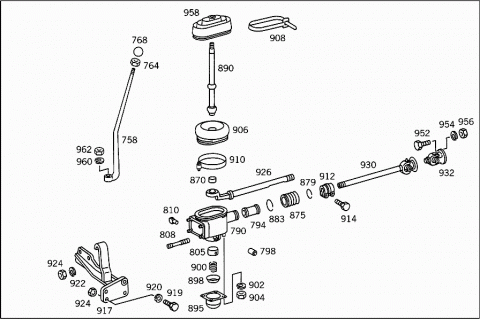

| REMOTE GEARSHIFT MECHANISM | ||
| 758 | A 3522670401 | SHIFT LEVER |
| 760 | A 3022600139 | SHIFT LEVER |
| 764 | N 000936010002 | NUT |
| 768 | A 3442600040 | HANDLE |
| 768 | A 3222600040 | HANDLE |
| 768 | A 3452607140 | HANDLE |
| 772 | A 3179930501 | SPRING |
| 776 | A 3022670008 | SPHERICAL PIECE |
| 780 | A 3082680005 | COVER |
| 785 | A 3129970982 | HOSE |
| 790 | A 3452600172 | SHIFT CASE |
| 794 | A 3522680050 | BUSHING |
| 798 | A 3522680250 | BUSHING |
| 805 | A 3522680335 | BEARING |
| 808 | N 000835008005 | STUD |
| M 8X18 | ||
| 808 | N 000835008008 | STUD |
| M 8X20 | ||
| 810 | A 3142680249 | SLIDE |
| 814 | A 3222603214 | TRANSMISSION CASE COVER |
| 818 | N 001473005012 | GROOVED PIN |
| 822 | N 000007008205 | CYLINDRICAL PIN |
| 826 | A 3212670025 | SLIDING BLOCK |
| 826 | A 3442677025 | SLIDING BLOCK |
| 830 | N 009045008002 | SNAP RING |
| 835 | N 913004008001 | NUT |
| CASE COVER TO BEARING BRACKET | ||
| 843 | N 000933008270 | SCREW |
| CASE COVER TO BEARING BRACKET | ||
| 850 | A 1362670296 | BOOT |
| SHIFT LEVER | ||
| 854 | A 3449977290 | LOOM TIE |
| BOOT TO SHIFTING ROD | ||
| 860 | N 900264005528 | LOOM TIE |
| BOOT TO SHIFTING ROD | ||
| 870 | A 3522680450 | BUSHING |
| 875 | A 3522680097 | BOOT |
| 879 | N 009045028001 | SNAP RING |
| 883 | N 009045055000 | SNAP RING |
| 890 | A 3522670102 | SHIFT LEVER LOWER PART |
| LOWER PART | ||
| 895 | A 3522680005 | COVER |
| 898 | A 3022670008 | SPHERICAL PIECE |
| 900 | A 3179930501 | SPRING |
| 902 | N 912004008104 | LOCK WASHER |
| BOOT TO SHIFT CASE | ||
| 904 | N 000934008000 | NUT |
| 906 | A 3522680497 | BOOT |
| SHIFT CASE | ||
| 908 | A 3449977290 | LOOM TIE |
| BOOT TO SHIFTING ROD | ||
| 910 | N 900264005524 | LOOM TIE |
| BOOT TO SHIFT CASE | ||
| 912 | A 3142680388 | CLAMPING PIECE |
| SHIFTING TUBE | ||
| 914 | N 000933010058 | SCREW |
| 917 | A 3452607562 | BRACKET |
| SHIFT CASE | ||
| 919 | N 000931010094 | SCREW |
| 919 | N 000931010089 | SCREW |
| 920 | N 000127010202 | LOCK WASHER |
| 922 | N 912004008104 | LOCK WASHER |
| SHIFT CASE TO BRACKET | ||
| 924 | N 000934008000 | NUT |
| SHIFT CASE TO BRACKET | ||
| 926 | A 3522602033 | SHIFTING ROD |
| Repalced by: A 3452600533 | ||
| 926 | A 3452600533 | SHIFTING ROD |
| FRONT | ||
| 928 | A 3452607133 | SHIFTING ROD |
| FRONT | ||
| 6760 MM | ||
| 930 | A 3452607933 | SHIFTING ROD |
| REAR | ||
| 932 | A 3442687189 | JOINT |
| 932 | A 3452687089 | JOINT |
| 934 | A 3452607033 | SHIFTING ROD |
| REAR | ||
| 1079 MM | ||
| 936 | N 006888005006 | WOODRUFF KEY |
| FLANGE TO SHIFTING TUBE | ||
| 940 | A 3212680228 | CONNECTOR |
| AT SHIFTING TUBE | ||
| 942 | N 000127012201 | LOCK WASHER |
| FLANGE TO SHIFTING TUBE | ||
| 943 | N 000934012022 | NUT |
| FLANGE TO SHIFTING TUBE | ||
| 946 | A 3442687089 | JOINT |
| 946 | A 3442687289 | JOINT |
| 950 | A 3212680552 | SPACER WASHER |
| AS REQUIRED | ||
| 2 MM | ||
| 950 | A 3212680452 | SPACER WASHER |
| AS REQUIRED | ||
| 3 MM | ||
| 950 | A 3212680352 | SPACER WASHER |
| AS REQUIRED | ||
| 5 MM | ||
| 952 | A 3179900301 | SCREW |
| JOINT TO SHIFTING TUBE | ||
| 954 | N 912004008104 | LOCK WASHER |
| JOINT TO SHIFTING TUBE | ||
| 956 | N 000934008010 | NUT |
| JOINT TO SHIFTING TUBE | ||
| 958 | A 3522670296 | BOOT |
| 958 | A 3522670396 | BOOT |
| Repalced by: A 3442677096 | ||
| 958 | A 3442677096 | BOOT |
| 960 | N 000127012201 | LOCK WASHER |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 962 | N 000934012000 | NUT |
| SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART | ||
| 964 | A 3442600075 | CONNECTOR |
| 966 | A 3222680150 | BUSHING |
| 968 | A 3222680073 | LOCK |
| CONNECTOR | ||
| 970 | A 3219900601 | SCREW |
| 972 | A 3522600084 | GUIDE |
| SHIFTING TUBE | ||
| NO.I | ||
| 974 | A 3522600684 | GUIDE |
| SHIFTING TUBE | ||
| NO.III | ||
| 976 | A 3022680050 | BUSHING |
| 978 | A 3522681236 | BRACKET |
| SHIFTING TUBE | ||
| 980 | N 000933008152 | SCREW |
| SHIFTING TUBE | ||
| 982 | N 912004008104 | LOCK WASHER |
| SHIFTING TUBE | ||
| 984 | N 000934008010 | NUT |
| SHIFTING TUBE | ||
| 985 | A 3022680050 | BUSHING |
| SHIFTING TUBE | ||
| 987 | A 3452607084 | GUIDE |
| SHIFTING TUBE | ||
| 990 | N 000933008271 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 992 | N 912004008104 | LOCK WASHER |
| BRACKET TO CROSS MEMBER | ||
| 994 | N 000934008010 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 996 | N 000933014050 | SCREW |
| TRANSMISSION TO BELL HOUSING | ||
| 998 | N 000127014201 | LOCK WASHER |
| TRANSMISSION TO BELL HOUSING | ||
