Transporto priemonė: OF 1115; VIN numerio dalis: 384091

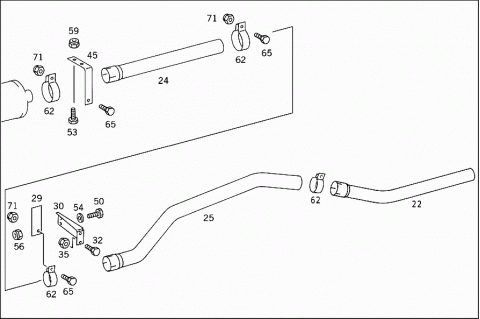

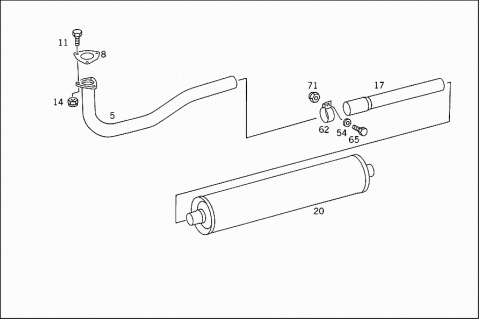

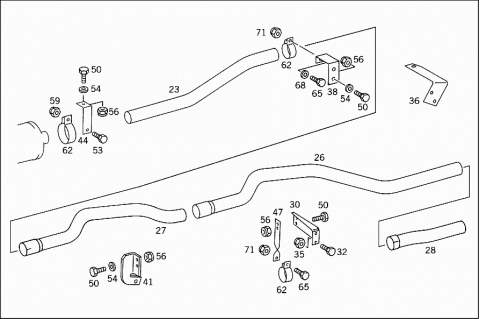

Grupė: 49 EXHAUST SYSTEM - 030 EXHAUST PIPE TO SUBSTRUCTURE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3844900619 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3844909119 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3844907719 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3844907719 | EXHAUST PIPE |
| 005 | A 3844907919 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3844908619 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3844908619 | EXHAUST PIPE |
| 005 | A 3844908919 | EXHAUST PIPE |
| FRONT | ||
| 005 | A 3844908919 | EXHAUST PIPE |
| 005 | A 3844907419 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 3504920080 | FLANGE GASKET |
| Repalced by: A 6004920080 | ||
| 008 | A 6004920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO TURBOCHARGER | ||
| 008 | A 6004920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 011 | N 910105012011 | SCREW |
| FRONT EXHAUST PIPE TO TURBOCHARGER | ||
| M 12X1,5X60 | ||
| 011 | N 000933012131 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X40 | ||
| 014 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO TURBOCHARGER | ||
| 014 | N 913004012018 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 017 | A 3844928903 | FRONT EXHAUST PIPE |
| FROM CONNECTOR TO EXHAUST MUFFLER | ||
| 017 | A 3844927103 | FRONT EXHAUST PIPE |
| FROM CONNECTOR TO EXHAUST MUFFLER | ||
| 017 | A 3844927803 | FRONT EXHAUST PIPE |
| FROM CONNECTOR TO EXHAUST MUFFLER | ||
| 017 | A 3844927803 | FRONT EXHAUST PIPE |
| FROM CONNECTOR TO EXHAUST MUFFLER | ||
| 017 | A 3844928203 | FRONT EXHAUST PIPE |
| FROM CONNECTOR TO EXHAUST MUFFLER | ||
| 017 | A 3844927303 | FRONT EXHAUST PIPE |
| FROM CONNECTOR TO EXHAUST MUFFLER | ||
| 020 | A 3844907501 | EXHAUST MUFFLER |
| 020 | A 3844900201 | EXHAUST MUFFLER |
| 020 | A 3824907001 | EXHAUST MUFFLER |
| 020 | A 3824907201 | EXHAUST MUFFLER |
| 020 | A 3844907001 | EXHAUST MUFFLER |
| 020 | A 3844907401 | EXHAUST MUFFLER |
| 020 | A 3924907001 | EXHAUST MUFFLER |
| 020 | A 3924907201 | EXHAUST MUFFLER |
| 022 | A 3844923004 | REAR EXHAUST PIPE |
| CENTRAL EXHAUST PIPE | ||
| 025 | A 3844928707 | CONNECTOR |
| CENTRAL EXHAUST PIPE | ||
| 023 | A 3844927807 | CONNECTOR |
| CENTRAL EXHAUST PIPE | ||
| 023 | A 3844927807 | CONNECTOR |
| CENTRAL EXHAUST PIPE | ||
| 024 | A 3844929604 | REAR EXHAUST PIPE |
| CONNECTION OF REAR EXHAUST PIPES | ||
| NO.1 | ||
| 023 | A 3844928407 | CONNECTOR |
| CONNECTION OF REAR EXHAUST PIPES | ||
| NO.1 | ||
| 023 | A 3844928607 | CONNECTOR |
| CONNECTION OF REAR EXHAUST PIPES | ||
| NO.1 | ||
| 023 | A 3844929207 | CONNECTOR |
| CONNECTION OF REAR EXHAUST PIPES | ||
| NO.1 | ||
| 023 | A 3844927907 | CONNECTOR |
| CONNECTION OF REAR EXHAUST PIPES | ||
| NO.1 | ||
| 023 | A 3844929107 | CONNECTOR |
| CONNECTION OF REAR EXHAUST PIPES | ||
| NO.1 | ||
| 023 | A 3844929404 | REAR EXHAUST PIPE |
| CONNECTION OF REAR EXHAUST PIPES | ||
| NO.1 | ||
| 023 | A 3844927707 | CONNECTOR |
| CONNECTION OF REAR EXHAUST PIPES | ||
| NO.1 | ||
| 024 | A 3844929007 | CONNECTOR |
| CENTRAL EXHAUST PIPE | ||
| 024 | A 3844928907 | CONNECTOR |
| CENTRAL EXHAUST PIPE | ||
| 025 | A 3844923104 | REAR EXHAUST PIPE |
| 026 | A 3844927104 | REAR EXHAUST PIPE |
| NO.3 | ||
| 026 | A 3844927104 | REAR EXHAUST PIPE |
| 026 | A 3844927304 | REAR EXHAUST PIPE |
| NO.3 | ||
| 026 | A 3844929904 | REAR EXHAUST PIPE |
| NO.3 | ||
| 026 | A 3844927204 | REAR EXHAUST PIPE |
| NO.3 | ||
| 022 | A 3844929504 | REAR EXHAUST PIPE |
| NO.3 | ||
| 026 | A 3844927504 | REAR EXHAUST PIPE |
| NO.3 | ||
| 026 | A 3844929704 | REAR EXHAUST PIPE |
| NO.3 | ||
| 026 | A 3844928904 | REAR EXHAUST PIPE |
| NO.3 | ||
| 026 | A 3844929204 | REAR EXHAUST PIPE |
| NO.3 | ||
| 027 | A 3844928604 | REAR EXHAUST PIPE |
| NO.2 | ||
| 027 | A 3844929104 | REAR EXHAUST PIPE |
| NO.2 | ||
| 028 | A 3844928704 | REAR EXHAUST PIPE |
| NO.4 | ||
| 028 | A 3844929304 | REAR EXHAUST PIPE |
| NO.4 | ||
| 029 | A 3844907134 | SUPPORT |
| EXHAUST PIPE SUSPENSION | ||
| 030 | A 3454927316 | SUPPORT |
| EXHAUST PIPE SUSPENSION | ||
| 032 | N 910105008039 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| 032 | N 000933008282 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X20 | ||
| 032 | N 000933008273 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X30 | ||
| 035 | N 913023008003 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 036 | A 3844929841 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 038 | A 3844927241 | BRACKET |
| Repalced by: A 3844907040 | ||
| 038 | A 3844907040 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 038 | A 3844907040 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 038 | A 3844929141 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 038 | A 3844928941 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 041 | A 3454928141 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 044 | A 3844927341 | BRACKET |
| CENTRAL EXHAUST PIPE TO SUPPORT | ||
| 045 | A 3844929641 | BRACKET |
| EXHAUST PIPE TO SUPPORT | ||
| 045 | A 3844929741 | BRACKET |
| EXHAUST PIPE TO SUPPORT | ||
| 047 | A 3844928141 | BRACKET |
| CENTRAL EXHAUST PIPE TO SUPPORT | ||
| 047 | A 3844928841 | BRACKET |
| CENTRAL EXHAUST PIPE TO SUPPORT | ||
| 047 | A 3454927241 | BRACKET |
| EXHAUST PIPE TO SUPPORT | ||
| 047 | A 3764920141 | BRACKET |
| EXHAUST PIPE TO SUPPORT | ||
| 047 | A 3444927119 | BRACKET |
| EXHAUST PIPE TO SUPPORT | ||
| 047 | A 3444927219 | BRACKET |
| EXHAUST PIPE TO SUPPORT | ||
| 047 | A 3764920841 | BRACKET |
| FRONT EXHAUST PIPE | ||
| 047 | A 3764920242 | BRACKET |
| REAR EXHAUST PIPE TO SIDE MEMBER | ||
| 050 | N 000933008282 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 8X20 | ||
| 050 | N 000933008282 | SCREW |
| BRACKET TO SUPPORT | ||
| 050 | N 910105008039 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X25 | ||
| 053 | N 000933010129 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 10X30 | ||
| 053 | N 000933010302 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 10X25 | ||
| 053 | N 000933010269 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| M 10X35 | ||
| 054 | N 000125008418 | WASHER |
| BRACKET TO SUPPORT | ||
| 056 | N 913023008003 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 056 | N 913023008003 | NUT |
| BRACKET TO SUPPORT | ||
| 059 | N 913023010011 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 062 | A 3844927240 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 062 | N 071555075500 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 75,5 MM | ||
| 062 | N 071555090500 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 90,5 MM | ||
| 062 | N 071555090500 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 90,5 MM | ||
| 062 | N 071555094500 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 94,5 MM | ||
| 062 | N 071555094500 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 94,5 MM | ||
| 062 | A 3844927140 | CLAMP |
| EXHAUST PIPE TO BRACKET | ||
| 062 | N 071555100500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 100,5 MM | ||
| 062 | N 071555100500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 100,5 MM | ||
| 062 | N 071555104500 | CLAMP |
| CENTRAL EXHAUST PIPE TO BRACKET | ||
| 104,5 MM | ||
| 062 | N 071555104500 | CLAMP |
| CENTRAL EXHAUST PIPE TO BRACKET | ||
| 104,5 MM | ||
| 062 | N 071555104500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 065 | N 000933010129 | SCREW |
| EXHAUST SYSTEM TO SUBSTRUCTURE | ||
| M 10X30 | ||
| 065 | N 000933010174 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 10X25 | ||
| 065 | N 000933008273 | SCREW |
| REAR EXHAUST PIPE TO BRACKET | ||
| M 8X30 | ||
| 068 | N 000125008417 | WASHER |
| REAR EXHAUST PIPE TO BRACKET | ||
| 071 | N 913023010011 | NUT |
| EXHAUST SYSTEM TO SUBSTRUCTURE | ||
| 071 | N 913023008003 | NUT |
| REAR EXHAUST PIPE TO BRACKET | ||
