Transporto priemonė: OF 1313/1314; VIN numerio dalis: 345050

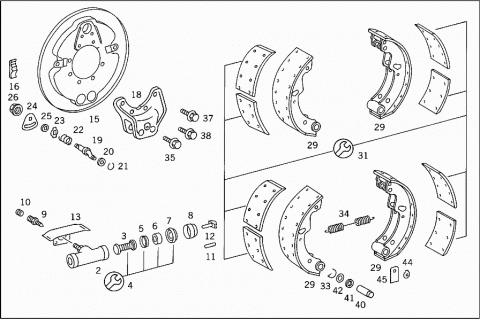

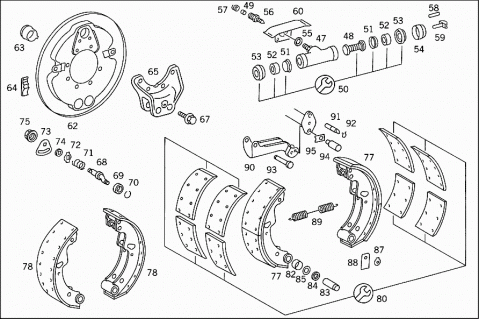

Grupė: 42 BRAKES
| # | Kodas | Pavadinimas |
|---|---|---|
| 002 | A 0454200118 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0034207918 | ||
| 002 | A 0034207918 | WHEEL BRAKE CYLINDER |
| 46.83 MM "TEVES" | ||
| 002 | A 0084203018 | WHEEL BRAKE CYLINDER |
| 46.83 MM "TEVES" | ||
| 002 | A 3454207118 | WHEEL BRAKE CYLINDER |
| 46.83 MM "VARGA" | ||
| 002 | A 0084203118 | WHEEL BRAKE CYLINDER |
| 46.83 MM "KUGELFISCHER" | ||
| 003 | A 0084200390 | SPRING |
| TO 045 420 01 18,345 420 71 18 | ||
| 003 | A 0004233193 | SPRING |
| TO 003 420 79 18 | ||
| 004 | A 0085861442 | REPAIR KIT |
| TO 045 420 01 18,345 420 71 18 | ||
| 004 | H 983455860042 | REPAIR KIT |
| Repalced by: A 0005862842 | ||
| 004 | A 0005862842 | REPAIR KIT |
| TO 003 420 79 18 | ||
| 004 | A 0025863443 | REPAIR KIT |
| TO 008 420 31 18 | ||
| 005 | A 0004231686 | CUP |
| Repalced by: A 3454237086 | ||
| 005 | A 3454237086 | CUP |
| TO 003 420 79 18 | ||
| 005 | A 0004210660 | SEAL RING |
| TO 345 420 71 18 | ||
| 006 | A 0084230483 | PISTON |
| Repalced by: A 3454237083 | ||
| 006 | A 3454237083 | PISTON |
| TO 0034207918,0454200118,3454207118 | ||
| 007 | A 0004232183 | PISTON |
| Repalced by: A 3454237083 | ||
| 007 | A 0004232187 | PROTECTIVE CAP |
| Repalced by: A 3454237087 | ||
| 007 | A 3454237087 | PROTECTIVE CAP |
| TO 003 420 79 18 | ||
| 007 | A 0004215087 | PROTECTIVE CAP |
| TO 008 420 31 18 | ||
| 007 | A 0004214386 | CUP |
| TO 345 420 71 18 | ||
| 008 | A 0004215387 | PROTECTIVE CAP |
| TO 008 420 31 18 | ||
| 008 | A 0004213087 | PROTECTIVE CAP |
| Repalced by: A 3454237020 | ||
| 008 | A 0004213087 | PROTECTIVE CAP |
| TO 045 420 01 18 | ||
| 008 | A 3454237020 | PROTECTIVE PLATE |
| TO 345 420 71 18 | ||
| 009 | A 0004202155 | BLEEDER VALVE |
| Repalced by: A 0004310265 | ||
| 009 | A 0004310265 | VALVE |
| Repalced by: A 3454317165 | ||
| 009 | A 0004212065 | BLEEDER VALVE |
| Repalced by: A 3454317165 | ||
| 009 | A 3454317065 | VALVE |
| TO 003 420 79 18 | ||
| 009 | A 3454317165 | VALVE |
| TO 345 420 71 18,008 420 31 18 | ||
| 010 | A 0004212687 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 010 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 010 | A 3454317287 | PROTECTIVE CAP |
| TO 0034207918,0084203118,3454207118 | ||
| 010 | A 0004214987 | PROTECTIVE CAP |
| TO 345 420 71 18 | ||
| 011 | A 0004231388 | THRUST PIN |
| TO 045 420 01 18 | ||
| 012 | A 3024210088 | THRUST PIN |
| TO 003 420 79 18,345 420 71 18 | ||
| 013 | A 3024210020 | PROTECTIVE PLATE |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| N 000933010174 | SCREW | |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| N 000127010202 | LOCK WASHER | |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| 015 | A 3024200916 | BRAKE ANCHOR PLATE |
| Repalced by: A 3024201116 | ||
| 015 | A 3024201116 | BRAKE ANCHOR PLATE |
| 016 | A 3094210211 | PLUG |
| N 000933010270 | SCREW | |
| BRAKE ANCHOR PLATE TO BRAKE ANCHOR | ||
| N 000127010202 | LOCK WASHER | |
| BRAKE ANCHOR PLATE TO BRAKE ANCHOR | ||
| 018 | A 3024210506 | BRAKE ANCHOR |
| 018 | A 3024210606 | BRAKE ANCHOR |
| 019 | A 3024230419 | ADJUSTING PIN |
| 020 | A 3024210029 | SLIDE |
| 021 | A 3124211073 | LOCK |
| 022 | A 3029930501 | SPRING |
| 023 | A 3024210176 | WASHER |
| 024 | A 3024200386 | BRACKET |
| Repalced by: H 983454200086 | ||
| 024 | H 983454200086 | BRACKET |
| Repalced by: A 3454200086 | ||
| 024 | A 3454200086 | BRACKET |
| Repalced by: A 3024210473 | ||
| 024 | A 3024210473 | LOCK |
| 025 | A 3024210076 | WASHER |
| 026 | A 3029900150 | NUT |
| Repalced by: A 3029900250 | ||
| 026 | A 3029900250 | NUT |
| N 914001010002 | COMBINATION BOLT | |
| ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE | ||
| A 3604203320 | BRAKE SHOE | |
| WITH LINING | ||
| A 3604204420 | BRAKE SHOE | |
| Repalced by: A 3454207620 | ||
| A 3454207620 | BRAKE SHOE | |
| WITH LINING | ||
| "LONAFLEX" | ||
| 029 | A 3024201619 | BRAKE SHOE |
| Repalced by: A 3024202219 | ||
| 029 | A 3024202219 | BRAKE SHOE |
| LESS LINING | ||
| A 3604210610 | BRAKE LINING | |
| Repalced by: A 3454217010 | ||
| A 3454217010 | BRAKE LINING | |
| STANDARD | ||
| 15.5 MM,LONAFLEX | ||
| A 3454217310 | BRAKE LINING | |
| STANDARD | ||
| 15.7 MM,FRAS-LE | ||
| A 3604210710 | BRAKE LINING | |
| Repalced by: A 3454217110 | ||
| A 3454217110 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 16.5 MM,LONAFLEX | ||
| A 3454217410 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 16.7 MM,FRAS-LE | ||
| A 3604210810 | BRAKE LINING | |
| Repalced by: A 3454217210 | ||
| A 3454217210 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 17.5 MM,LONAFLEX | ||
| A 3454217510 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 17.7 MM,FRAS-LE | ||
| 031 | A 3455867842 | REPAIR KIT |
| Repalced by: A 3644210610 | ||
| 031 | A 3455867942 | REPAIR KIT |
| Repalced by: A 3644210610 | ||
| 031 | A 3644210610 | BRAKE LINING |
| (BRAKE LINING SET);STANDARD | ||
| 15.5 MM | ||
| 031 | A 3455868642 | REPAIR KIT |
| Repalced by: A 3644210710 | ||
| 031 | A 3455868842 | REPAIR KIT |
| Repalced by: A 3644210710 | ||
| 031 | A 3644210710 | BRAKE LINING |
| (BRAKE LINING SET);REPAIR SIZE I | ||
| 16.5 MM | ||
| 031 | A 3455868742 | REPAIR KIT |
| Repalced by: A 3644210810 | ||
| 031 | A 3455868942 | REPAIR KIT |
| Repalced by: A 3644210810 | ||
| 031 | A 3644210810 | BRAKE LINING |
| (BRAKE LINING SET);REPAIR SIZE II | ||
| 17.5 MM | ||
| A 3079900197 | RIVET | |
| Repalced by: N 007338008211 | ||
| A 3459907197 | RIVET | |
| Repalced by: N 007338008211 | ||
| N 007338008211 | RIVET | |
| Repalced by: A 3079900197 | ||
| A 3079900197 | RIVET | |
| 15 MM | ||
| N 007338008212 | RIVET | |
| 18 MM | ||
| 033 | A 3024210050 | BUSHING |
| 033 | A 3024210150 | BUSHING |
| 034 | A 3414210092 | SPRING |
| Repalced by: A 3459937110 | ||
| 034 | A 3459937110 | SPRING |
| BRAKE SHOE | ||
| 035 | A 3603320171 | SCREW |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| N 000935018001 | NUT | |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| N 000094004026 | COTTER PIN | |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| 037 | A 3029900204 | SCREW |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| 038 | A 3029900804 | SCREW |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| N 000935012003 | NUT | |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| N 000094003217 | COTTER PIN | |
| FRONT WHEEL BRAKE TO STEERING KNUCKLE | ||
| 040 | A 3024210974 | PIN |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 040 | A 3024211074 | PIN |
| Repalced by: A 3464211174 | ||
| 040 | A 3464211174 | PIN |
| Repalced by: A 3454217074 | ||
| 040 | A 3454217074 | PIN |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 041 | A 3024211252 | SPACER WASHER |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 042 | A 3029970145 | SEAL RING |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 042 | A 3029970445 | SEAL RING |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| N 000933010294 | SCREW | |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| N 000933010270 | SCREW | |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 044 | A 3029940010 | LOCK |
| Repalced by: A 3469940209 | ||
| 044 | A 3469940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 044 | N 000093010502 | LOCK PLATE |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 044 | A 3029940009 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 045 | A 3029940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 045 | A 3649947009 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT WHEEL BRAKE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR WHEEL BRAKE | ||
| 047 | A 0454200018 | WHEEL BRAKE CYLINDER |
| Repalced by: A 0034208018 | ||
| 047 | A 0034208018 | WHEEL BRAKE CYLINDER |
| 50.80 MM | ||
| 047 | A 0094204118 | WHEEL BRAKE CYLINDER |
| 50.80 MM | ||
| 047 | A 3454207218 | WHEEL BRAKE CYLINDER |
| 50.8 MM | ||
| 048 | A 0084200290 | GUIDE |
| Repalced by: A 3454237093 | ||
| 048 | A 3454237093 | SPRING |
| TO 045 420 00 18 | ||
| 048 | A 0004231993 | SPRING |
| TO 003 420 80 18 | ||
| 049 | A 0084210389 | FILLER |
| TO 345 420 72 18 | ||
| 050 | H 983455860142 | REPAIR KIT |
| Repalced by: A 0085861342 | ||
| 050 | A 0085861342 | REPAIR KIT |
| TO 0034208018,0454200018,3454207218 | ||
| 051 | A 0004210386 | CUP |
| TO 003 420 80 18 | ||
| 051 | A 0004214486 | CUP |
| TO 345 420 72 18 | ||
| 052 | A 0084230583 | PISTON |
| TO 045 420 00 18 | ||
| 052 | A 0004232583 | PISTON |
| TO 003 420 80 18 | ||
| 053 | A 0004232587 | PROTECTIVE CAP |
| TO 003 420 80 18 | ||
| 054 | A 0004232787 | PROTECTIVE CAP |
| TO 003 420 80 18 | ||
| 054 | A 0004210820 | PROTECTIVE PLATE |
| TO 345 420 72 18 | ||
| 055 | A 0004210560 | SEAL RING |
| TO 345 420 72 18 | ||
| 056 | A 0004310265 | VALVE |
| Repalced by: A 3454317165 | ||
| 056 | A 3454317165 | VALVE |
| 056 | A 0004212065 | BLEEDER VALVE |
| Repalced by: A 3454317165 | ||
| 056 | A 3454317165 | VALVE |
| TO 345 420 72 18 | ||
| 057 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 057 | A 3454317287 | PROTECTIVE CAP |
| TO 003 420 80 18,045 420 00 18 | ||
| 057 | A 0004214987 | PROTECTIVE CAP |
| TO 345 420 72 18 | ||
| 058 | A 0004231388 | THRUST PIN |
| TO 045 420 00 18 | ||
| 059 | A 3024210088 | THRUST PIN |
| TO 003 420 80 18 | ||
| 059 | A 3024210088 | THRUST PIN |
| TO 345 420 72 18 | ||
| 060 | A 3024210020 | PROTECTIVE PLATE |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| N 000933010174 | SCREW | |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| N 000127010202 | LOCK WASHER | |
| WHEEL CYLINDER TO BRAKE ANCHOR PLATE | ||
| 062 | A 3024203317 | BRAKE ANCHOR PLATE |
| LEFT | ||
| 062 | A 3454207017 | BRAKE ANCHOR PLATE |
| Repalced by: A 3024203017 | ||
| 062 | A 3024203017 | BRAKE ANCHOR PLATE |
| LEFT | ||
| 062 | A 3024203217 | BRAKE ANCHOR PLATE |
| RIGHT | ||
| 062 | A 3454207117 | BRAKE ANCHOR PLATE |
| Repalced by: A 3024203117 | ||
| 062 | A 3024203117 | BRAKE ANCHOR PLATE |
| RIGHT | ||
| 063 | A 3024270054 | PIPE SOCKET |
| 064 | A 3094210211 | PLUG |
| 065 | A 3024230706 | BRAKE ANCHOR |
| 065 | A 3024230806 | BRAKE ANCHOR |
| N 000961012106 | SCREW | |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| N 000127012201 | LOCK WASHER | |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| N 000934012013 | NUT | |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| M12 X 1,5 MM | ||
| N 912004016101 | LOCK WASHER | |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| N 000934016003 | NUT | |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 067 | A 3029900504 | SCREW |
| BRAKE ANCHOR PLATE TO REAR AXLE | ||
| 068 | A 3024230419 | ADJUSTING PIN |
| 068 | A 3024230319 | ADJUSTING PIN |
| 069 | A 3024210029 | SLIDE |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 302 421 01 29 | ||
| 070 | A 3124211073 | LOCK |
| 071 | A 3029930501 | SPRING |
| 071 | A 3029930701 | SPRING |
| 072 | A 3024210176 | WASHER |
| 073 | A 3024200386 | BRACKET |
| Repalced by: H 983454200086 | ||
| 073 | H 983454200086 | BRACKET |
| Repalced by: A 3454200086 | ||
| 073 | A 3454200086 | BRACKET |
| Repalced by: A 3024210473 | ||
| 073 | A 3024210473 | LOCK |
| 074 | A 3024210076 | WASHER |
| 075 | A 3029900150 | NUT |
| Repalced by: A 3029900250 | ||
| 075 | A 3029900250 | NUT |
| N 914001010002 | COMBINATION BOLT | |
| ADJUSTING ECCENTRIC TO BRAKE ANCHOR PLATE | ||
| A 3454207320 | BRAKE SHOE | |
| WITH LINING | ||
| 077 | A 3604202920 | BRAKE SHOE |
| WITH LINING | ||
| 077 | A 3604204520 | BRAKE SHOE |
| Repalced by: A 3604209120 | ||
| 077 | A 3454207020 | BRAKE SHOE |
| WITH LINING | ||
| 077 | A 3604209120 | BRAKE SHOE |
| WITH LINING | ||
| "JURID" | ||
| 078 | A 3024202019 | BRAKE SHOE |
| LESS LINING | ||
| 078 | A 3024201719 | BRAKE SHOE |
| Repalced by: A 3024202119 | ||
| 078 | A 3024202119 | BRAKE SHOE |
| LESS LINING | ||
| A 3454217010 | BRAKE LINING | |
| STANDARD | ||
| 15.5 MM,LONAFLEX | ||
| A 3454217310 | BRAKE LINING | |
| STANDARD | ||
| 15.7 MM,FRAS-LE | ||
| A 3604231310 | BRAKE LINING | |
| Repalced by: A 3454237010 | ||
| A 3454237010 | BRAKE LINING | |
| STANDARD | ||
| 15.5 MM,LONAFLEX | ||
| A 3454237310 | BRAKE LINING | |
| STANDARD | ||
| 15.7 MM,FRAS-LE | ||
| A 3604230010 | BRAKE LINING | |
| STANDARD | ||
| 15.7 MM,JURID | ||
| A 3454217110 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 16.5 MM,LONAFLEX | ||
| A 3454217410 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 16.7 MM,FRAS-LE | ||
| A 3454237110 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 16.5 MM,LONAFLEX | ||
| A 3454237410 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 16.7 MM,FRAS-LE | ||
| A 3604230110 | BRAKE LINING | |
| REPAIR SIZE I | ||
| 16.7 MM,JURID | ||
| A 3454217210 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 17.5 MM,LONAFLEX | ||
| A 3454217510 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 17.7 MM,FRAS-LE | ||
| A 3454237210 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 17.5 MM,LONAFLEX | ||
| A 3454237510 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 17.7 MM,FRAS-LE | ||
| A 3604230210 | BRAKE LINING | |
| REPAIR SIZE II | ||
| 17.7 MM,JURID | ||
| 080 | A 3455867842 | REPAIR KIT |
| Repalced by: A 3644210610 | ||
| 080 | A 3455867942 | REPAIR KIT |
| Repalced by: A 3644210610 | ||
| 080 | A 3644210610 | BRAKE LINING |
| (BRAKE LINING SET);STANDARD | ||
| 15.5 MM | ||
| 080 | A 3455868042 | REPAIR KIT |
| Repalced by: A 3644230310 | ||
| 080 | A 3455868142 | REPAIR KIT |
| Repalced by: A 3644230310 | ||
| 080 | A 3455868242 | REPAIR KIT |
| Repalced by: A 3644230310 | ||
| 080 | A 3644230310 | BRAKE LINING |
| (BRAKE LINING SET);STANDARD | ||
| 15.7 MM | ||
| 080 | A 3455868642 | REPAIR KIT |
| Repalced by: A 3644210710 | ||
| 080 | A 3455868842 | REPAIR KIT |
| Repalced by: A 3644210710 | ||
| 080 | A 3644210710 | BRAKE LINING |
| (BRAKE LINING SET);REPAIR SIZE I | ||
| 16.5 MM | ||
| 080 | A 3455869342 | REPAIR KIT |
| Repalced by: A 3644230410 | ||
| 080 | A 3455869542 | REPAIR KIT |
| Repalced by: A 3644230410 | ||
| 080 | A 3455867843 | REPAIR KIT |
| Repalced by: A 3644230410 | ||
| 080 | A 3644230410 | BRAKE LINING |
| (BRAKE LINING SET);REPAIR SIZE I | ||
| 16.7 MM | ||
| 080 | A 3455868742 | REPAIR KIT |
| Repalced by: A 3644210810 | ||
| 080 | A 3455868942 | REPAIR KIT |
| Repalced by: A 3644210810 | ||
| 080 | A 3644210810 | BRAKE LINING |
| (BRAKE LINING SET);REPAIR SIZE II | ||
| 17.5 MM | ||
| 080 | A 3455869442 | REPAIR KIT |
| Repalced by: A 3644230510 | ||
| 080 | A 3455869642 | REPAIR KIT |
| Repalced by: A 3644230510 | ||
| 080 | A 3455867943 | REPAIR KIT |
| Repalced by: A 3644230510 | ||
| 080 | A 3644230510 | BRAKE LINING |
| (BRAKE LINING SET);REPAIR SIZE II | ||
| 17.7 MM | ||
| N 007338008211 | RIVET | |
| Repalced by: A 3079900197 | ||
| A 3079900197 | RIVET | |
| 15 MM | ||
| N 007338008212 | RIVET | |
| 18 MM | ||
| 082 | A 3024210050 | BUSHING |
| 082 | A 3024210150 | BUSHING |
| 083 | A 3024210974 | PIN |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 083 | A 3024211074 | PIN |
| Repalced by: A 3464211174 | ||
| 083 | A 3464211174 | PIN |
| Repalced by: A 3454217074 | ||
| 083 | A 3454217074 | PIN |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 084 | A 3024211252 | SPACER WASHER |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 085 | A 3029970145 | SEAL RING |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 085 | A 3029970445 | SEAL RING |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| N 000933010294 | SCREW | |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| N 000933010270 | SCREW | |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 087 | N 000093010502 | LOCK PLATE |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 087 | A 3029940010 | LOCK |
| Repalced by: A 3469940209 | ||
| 087 | A 3469940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 087 | A 3029940009 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 088 | A 3029940209 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 088 | A 3649947009 | LOCK |
| BRAKE SHOE TO BRAKE ANCHOR | ||
| 089 | A 3029930610 | SPRING |
| BRAKE SHOE | ||
| 090 | A 3024201419 | THRUST SHACKLE |
| Repalced by: A 3024203419 | ||
| 090 | A 3024201419 | THRUST SHACKLE |
| Repalced by: A 3024203519 | ||
| 090 | A 3024203419 | THRUST SHACKLE |
| LEFT | ||
| 090 | A 3024203519 | THRUST SHACKLE |
| RIGHT | ||
| 091 | A 3024230118 | PIVOT PIN |
| Repalced by: A 3024230618 | ||
| 091 | A 3024230618 | PIVOT PIN |
| BRAKE SHAFT TO BRAKE SHOE | ||
| 092 | A 3459947035 | SNAP RING |
| BRAKE SHAFT TO BRAKE SHOE | ||
| 093 | A 3024230074 | PIN |
| Repalced by: A 3024230774 | ||
| 093 | A 3024230774 | PIN |
| THRUST SHACKLE TO BRAKE SHOE | ||
| 094 | A 3024230474 | PIN |
| Repalced by: A 3024230874 | ||
| 094 | A 3024230874 | PIN |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| 095 | A 3029940109 | LOCK |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| N 000471018000 | LOCK RING | |
| THRUST SHACKLE TO BRAKE SHOE | ||
| N 000933008005 | SCREW | |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| N 912004008100 | LOCK WASHER | |
| BRAKE SHAFT TO THRUST SHACKLE | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| HYDRAULIC BRAKE | ||

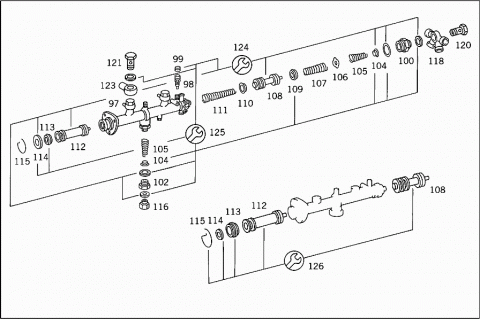

| 097 | A 0014309801 | BRAKE MASTER CYLINDER |
| Repalced by: A 3454307901 | ||
| 097 | A 0024307101 | BRAKE MASTER CYLINDER |
| Repalced by: A 3454307801 | ||
| 097 | A 3454307801 | BRAKE MASTER CYLINDER |
| VARGA | ||
| 098 | A 0004200055 | BLEEDER VALVE |
| Repalced by: A 3454317165 | ||
| 098 | A 0004310265 | VALVE |
| Repalced by: A 3454317165 | ||
| 098 | A 3454317165 | VALVE |
| 099 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 099 | A 3454317287 | PROTECTIVE CAP |
| 100 | A 0084310575 | THREADED UNION |
| Repalced by: A 3454237284 | ||
| 100 | A 3454237284 | FITTING |
| TO 002 430 71 01,345 430 78 01 | ||
| N 007603050101 | SEAL RING | |
| 102 | A 0084310275 | THREADED UNION |
| Repalced by: A 3454237184 | ||
| 102 | A 3454237184 | FITTING |
| TO 002 430 71 01,345 430 78 01 | ||
| N 007603032101 | SEAL RING | |
| TO 002 430 71 01,345 430 78 01 | ||
| 104 | A 0084300081 | VALVE |
| Repalced by: A 3454307081 | ||
| 104 | A 3454307081 | VALVE |
| TO 002 430 71 01 | ||
| 105 | A 0084310893 | SPRING |
| Repalced by: A 3454317093 | ||
| 105 | A 3454317093 | SPRING |
| TO 002 430 71 01,345 430 78 01 | ||
| 106 | A 0084310376 | WASHER |
| Repalced by: A 3454317176 | ||
| 106 | A 3454317176 | WASHER |
| TO 002 430 71 01,345 430 78 01 | ||
| 107 | A 0084311493 | SPRING |
| Repalced by: A 3454317293 | ||
| 107 | A 3454317293 | SPRING |
| TO 002 430 71 01,345 430 78 01 | ||
| 108 | A 0084310883 | PISTON |
| Repalced by: A 3454317083 | ||
| 108 | A 3454317083 | PISTON |
| TO 002 430 71 01 | ||
| 109 | A 0084310686 | CUP |
| Repalced by: A 3454317186 | ||
| 109 | A 3454317186 | CUP |
| TO 002 430 71 01 | ||
| 110 | A 0084310689 | SPRING RETAINER |
| Repalced by: A 3454317089 | ||
| 110 | A 3454317089 | SPRING RETAINER |
| TO 002 430 71 01,345 430 78 01 | ||
| 111 | H 983454310093 | SPRING |
| Repalced by: A 3454317193 | ||
| 111 | A 3454317193 | SPRING |
| TO 002 430 71 01,345 430 78 01 | ||
| 112 | A 0084310983 | PISTON |
| Repalced by: A 3454317183 | ||
| 112 | A 3454317183 | PISTON |
| TO 002 430 71 01 | ||
| 113 | A 0084310686 | CUP |
| Repalced by: A 3454317186 | ||
| 113 | A 3454317186 | CUP |
| TO 002 430 71 01 | ||
| 114 | A 0084310476 | WASHER |
| Repalced by: A 3454317076 | ||
| 114 | A 3454317076 | WASHER |
| TO 002 430 71 01 | ||
| 115 | A 0084310394 | LOCK |
| Repalced by: A 3454317194 | ||
| 115 | A 3454317194 | LOCK |
| AS REQUIRED | ||
| 115 | A 3454317094 | LOCK |
| TO 345 430 78 01 | ||
| 116 | A 0084230084 | FITTING |
| TO 002 430 71 01 | ||
| 116 | A 0004230184 | FITTING |
| TO 001 430 98 01 | ||
| N 007603014102 | SEAL RING | |
| 118 | A 0084280024 | DISTRIBUTOR |
| Repalced by: A 3454287024 | ||
| 118 | A 3454287024 | DISTRIBUTOR |
| TO 002 430 71 01 | ||
| 118 | A 0004280124 | DISTRIBUTOR |
| TO 001 430 98 01 | ||
| N 007603014102 | SEAL RING | |
| 120 | A 0004280026 | HOLLOW SCREW |
| Repalced by: A 3454287126 | ||
| 120 | A 3454287126 | HOLLOW SCREW |
| 121 | A 0084280126 | HOLLOW SCREW |
| TO 002 430 71 01 | ||
| 121 | A 0004280126 | HOLLOW SCREW |
| TO 001 430 98 01 | ||
| N 007603022102 | SEAL RING | |
| 123 | A 0084280030 | CONNECTOR |
| TO 002 430 71 01 | ||
| 123 | A 0004280130 | CONNECTOR |
| TO 001 430 98 01 | ||
| 124 | A 0455860242 | REPAIR KIT |
| Repalced by: A 3455867342 | ||
| 124 | A 3455867142 | REPAIR KIT |
| Repalced by: A 3455867342 | ||
| 124 | A 3455867342 | REPAIR KIT |
| MAJOR | ||
| TO 002 430 71 01,345 430 78 01 | ||
| 125 | A 0455860342 | REPAIR KIT |
| Repalced by: A 3455867242 | ||
| 125 | A 3455867242 | REPAIR KIT |
| MINOR;MAKE VARGA | ||
| TO 002 430 71 01 | ||
| 125 | A 3455867442 | REPAIR KIT |
| MINOR | ||
| TO 345 430 78 01 | ||
| 126 | A 0005864943 | REPAIR KIT |
| 127 | A 3454307001 | BRAKE MASTER CYLINDER |
| Repalced by: A 3454307701 | ||
| 127 | A 3444307301 | BRAKE MASTER CYLINDER |
| Repalced by: A 3454307701 | ||
| 127 | A 3454307701 | BRAKE MASTER CYLINDER |
| VARGA | ||
| 128 | A 3454307101 | BRAKE MASTER CYLINDER |
| Repalced by: A 0024302701 | ||
| 128 | A 3444307501 | BRAKE MASTER CYLINDER |
| Repalced by: A 0024302701 | ||
| 128 | A 0024302701 | BRAKE MASTER CYLINDER |
| TEVES | ||
| 129 | A 3454287226 | HOLLOW SCREW |
| Repalced by: A 3454287126 | ||
| 129 | A 3454287126 | HOLLOW SCREW |
| TO 344 430 73 01 | ||
| 130 | A 3454287524 | DISTRIBUTOR |
| Repalced by: A 3454288024 | ||
| 130 | A 3454288024 | DISTRIBUTOR |
| TO 344 430 73 01 | ||
| 130 | A 3454288024 | DISTRIBUTOR |
| TO 344 430 73 01 | ||
| 131 | A 0084311083 | PISTON |
| 132 | A 0004314283 | PISTON |
| TO 002 430 27 01 | ||
| 133 | A 0084310476 | WASHER |
| Repalced by: A 3454317076 | ||
| 133 | A 3454317076 | WASHER |
| TO 344 430 73 01 | ||
| 134 | A 0004310376 | WASHER |
| TO 002 430 27 01 | ||
| 135 | A 0084310786 | CUP |
| TO 344 430 73 01 | ||
| 136 | A 0039975246 | SEAL RING |
| TO 002 430 27 01 | ||
| 137 | A 0004310194 | LOCK |
| TO 002 430 27 01 | ||
| 137 | A 3454317194 | LOCK |
| TO 345 430 77 01,345 431 71 94 | ||
| 138 | A 3454317165 | VALVE |
| 139 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 139 | A 3454317287 | PROTECTIVE CAP |
| TO 344 430 73 01,345 430 77 01 | ||
| 140 | A 0084310675 | THREADED UNION |
| TO 344 430 73 01,345 430 77 01 | ||
| 141 | A 0004311075 | THREADED UNION |
| TO 002 430 27 01 | ||
| 142 | A 0004300381 | VALVE |
| TO 002 430 27 01 | ||
| A 0009930605 | SPRING | |
| TO 002 430 27 01 | ||
| 144 | A 0004311776 | WASHER |
| TO 002 430 27 01 | ||
| 145 | A 0009941835 | SNAP RING |
| TO 002 430 27 01 | ||
| 146 | A 3454317393 | SPRING |
| TO 002 430 27 01,345 430 77 01 | ||
| 146 | A 3454317393 | SPRING |
| TO 344 430 73 01 | ||
| 147 | A 0004310389 | SPRING RETAINER |
| TO 002 430 27 01 | ||
| 148 | A 0084310576 | WASHER |
| Repalced by: A 3454317376 | ||
| 148 | A 3454317376 | WASHER |
| TO 344 430 73 01,002 430 27 01 | ||
| 149 | A 0084310886 | CUP |
| Repalced by: A 3454317286 | ||
| 149 | A 3454317286 | CUP |
| TO 344 430 73 01,002 430 27 01 | ||
| 150 | A 3454287030 | CONNECTOR |
| TO 344 430 73 01 | ||
| 151 | A 3454287026 | HOLLOW SCREW |
| TO 344 430 73 01 | ||
| N 007603022102 | SEAL RING | |
| TO 344 430 73 01 | ||
| N 007603050101 | SEAL RING | |
| TO 344 430 73 01 | ||
| N 007603040102 | SEAL RING | |
| TO 002 430 27 01,345 430 77 01 | ||
| N 007603040102 | SEAL RING | |
| TO 344 430 73 01 | ||
| N 007603014102 | SEAL RING | |
| TO 344 430 73 01 | ||
| 153 | A 0455860542 | REPAIR KIT |
| MINOR | ||
| TO 344 430 73 01,345 430 77 01 | ||
| 153 | A 0455860442 | REPAIR KIT |
| MAJOR | ||
| TO 344 430 73 01,345 430 77 01 | ||
| 154 | A 0005861743 | REPAIR KIT |
| TO 002 430 27 01 | ||
| A 0004230184 | FITTING | |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| TO 345 430 79 01 | ||
| A 0004230184 | FITTING | |
| REAR AXLE BRAKE CIRCUIT | ||
| TO 345 430 77 01 | ||
| 156 | A 3454237084 | FITTING |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| TO 345 430 78 01 | ||
| 156 | A 3454237084 | FITTING |
| REAR AXLE BRAKE CIRCUIT | ||
| TO 345 430 77 01 | ||
| 157 | A 0004280026 | HOLLOW SCREW |
| Repalced by: A 3454287126 | ||
| 157 | A 3454287126 | HOLLOW SCREW |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| TO 345 430 78 01,77 01 | ||
| 157 | A 3454287126 | HOLLOW SCREW |
| FRONT AXLE BRAKE CIRCUIT | ||
| TO 002 430 27 01 | ||
| 158 | A 3454287624 | DISTRIBUTOR |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| TO 345 430 78 01 | ||
| 158 | A 3454287624 | DISTRIBUTOR |
| FRONT AXLE BRAKE CIRCUIT | ||
| TO 002 430 27 01 | ||
| 158 | A 3454287024 | DISTRIBUTOR |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| TO 345 430 79 01 | ||
| 158 | A 3454287024 | DISTRIBUTOR |
| FRONT AXLE BRAKE CIRCUIT | ||
| TO 345 430 77 01 | ||
| N 007603014106 | SEAL RING | |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| 160 | A 0004280126 | HOLLOW SCREW |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| TO 345 430 79 01 | ||
| 160 | A 3454287026 | HOLLOW SCREW |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| TO 345 430 78 01 | ||
| 161 | A 0004280130 | CONNECTOR |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| TO 345 430 79 01,002 430 27 01 | ||
| 161 | A 3454287030 | CONNECTOR |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| TO 345 430 78 01,345 430 77 01 | ||
| N 007603022102 | SEAL RING | |
| BRAKE LINE TO BRAKE MASTER CYLINDER | ||
| N 000934010000 | NUT | |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| N 000125010517 | WASHER | |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| N 000127010202 | LOCK WASHER | |
| MASTER CYLINDER TO BRAKE BOOSTER | ||
| 163 | A 3454310140 | BRACKET |
| BRAKE MASTER CYLINDER | ||
| 164 | A 3454310540 | BRACKET |
| MASTER CYLINDER BRACKET | ||
| N 000933010269 | SCREW | |
| MASTER CYLINDER BRACKET TO SIDE MEMBER | ||
| N 000933010129 | SCREW | |
| MASTER CYLINDER BRACKET TO SIDE MEMBER | ||
| N 000125010517 | WASHER | |
| MASTER CYLINDER BRACKET TO SIDE MEMBER | ||
| N 000127010202 | LOCK WASHER | |
| MASTER CYLINDER BRACKET TO SIDE MEMBER | ||
| N 000934010000 | NUT | |
| MASTER CYLINDER BRACKET TO SIDE MEMBER | ||
| N 000934010000 | NUT | |
| BRAKE CYLINDER AND BRAKE MASTER CYLINDER TO BRACKET | ||
| N 000125010517 | WASHER | |
| BRAKE CYLINDER AND BRAKE MASTER CYLINDER TO BRACKET | ||
| N 000127010202 | LOCK WASHER | |
| BRAKE CYLINDER AND BRAKE MASTER CYLINDER TO BRACKET | ||

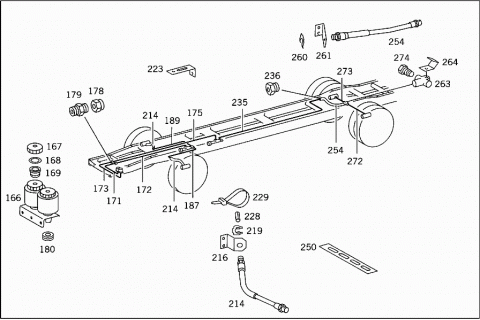

| 166 | A 0084310502 | RESERVOIR |
| Repalced by: A 3454300002 | ||
| 166 | A 3454300002 | RESERVOIR |
| FLUID RESERVOIR | ||
| 166 | A 3454307002 | RESERVOIR |
| FLUID RESERVOIR | ||
| TO 345 430 78 01 | ||
| 167 | A 0084310233 | FILLER CAP |
| TO 008 431 05 02 | ||
| 168 | A 0089970240 | SEAL RING |
| TO 008 431 05 02 | ||
| 169 | A 0084310334 | STRAINER |
| Repalced by: A 3084317034 | ||
| 169 | A 3084317034 | STRAINER |
| TO 008 431 05 02 | ||
| N 007985006512 | SCREW | |
| FLUID RESERVOIR TO FIRE WALL | ||
| N 000933006220 | SCREW | |
| FLUID RESERVOIR TO FIRE WALL | ||
| N 000125006420 | WASHER | |
| FLUID RESERVOIR TO FIRE WALL | ||
| N 000127006203 | LOCK WASHER | |
| FLUID RESERVOIR TO FIRE WALL | ||

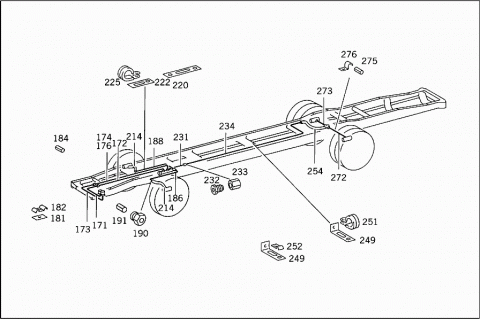

| 171 | A 0454201829 | LINE |
| Repalced by: A 3454207028 | ||
| 171 | H 983454200029 | LINE |
| Repalced by: A 3454207028 | ||
| 171 | A 3454207028 | LINE |
| FROM FLUID RESERVOIR TO CONNECTOR | ||
| 8X0.7 MM | ||
| 171 | H 983454200229 | LINE |
| Repalced by: A 3454208530 | ||
| 171 | A 3454208530 | LINE |
| FROM FLUID RESERVOIR TO CONNECTOR | ||
| 8X0.7 MM | ||
| 172 | A 0454201729 | LINE |
| Repalced by: A 3454203228 | ||
| 172 | H 983454200429 | LINE |
| Repalced by: A 3454208630 | ||
| 172 | A 3454208630 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 8X0.7 MM | ||
| 172 | A 3454203228 | LINE |
| 8X0.7 MM | ||
| 172 | A 3454203228 | LINE |
| FROM CONNECTOR TO BRAKE MASTER CYLINDER,FRONT AXLE BRAKE CIRCUIT | ||
| 8X0.7 MM | ||
| 173 | A 0454201929 | LINE |
| Repalced by: A 3454207128 | ||
| 173 | H 983454200129 | LINE |
| Repalced by: A 3454207128 | ||
| 173 | A 3454207128 | LINE |
| FROM FLUID RESERVOIR TO CONNECTOR | ||
| 8X0.7 MM | ||
| 173 | H 983454200329 | LINE |
| Repalced by: A 3454208730 | ||
| 173 | A 3454208730 | LINE |
| FROM FLUID RESERVOIR TO CONNECTOR | ||
| 8X0.7 MM | ||
| 174 | A 0454201629 | LINE |
| Repalced by: A 3454207428 | ||
| 174 | A 3454207428 | LINE |
| 8X0.7 MM | ||
| 175 | A 3454203428 | LINE |
| FROM CONNECTOR TO BRAKE MASTER CYLINDER,REAR AXLE BRAKE CIRCUIT | ||
| 8X0.7 MM | ||
| 176 | H 983454200529 | LINE |
| Repalced by: A 3454208830 | ||
| 176 | A 3454208830 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 8X0.7 MM | ||
| N 915017008100 | UNION NUT | |
| N 003861008005 | GLAND | |
| 178 | A 0009971173 | FITTING |
| 179 | N 003902008001 | CONNECTION FITTING |
| 179 | N 003902008004 | CONNECTION FITTING |
| 179 | A 0019972672 | FITTING |
| 180 | A 3029970381 | GROMMET |
| BRAKE LINE THRU CAB FLOOR | ||
| 180 | A 1869970481 | GROMMET |
| BRAKE LINE THRU CAB FLOOR | ||
| 181 | A 3124761036 | BRACKET |
| Repalced by: A 3124761236 | ||
| 181 | A 3124761236 | BRACKET |
| BRAKE LINE MOUNTING | ||
| 182 | A 3379950332 | CLAMP |
| BRAKE LINE MOUNTING | ||
| N 007985006515 | SCREW | |
| BRAKE LINE MOUNTING | ||
| N 000934006006 | NUT | |
| BRAKE LINE MOUNTING | ||
| 184 | A 3059970382 | HOSE |
| N 900288014002 | CLAMP | |
| A 0009959101 | CLAMP | |
| Repalced by: N 916016008203 | ||
| N 916016008203 | CLAMP | |
| BRAKE LINE TO BRACKET | ||
| N 916016008203 | CLAMP | |
| BRAKE LINE TO BRACKET | ||
| N 007981004252 | SHEET METAL SCREW | |
| BRAKE LINE MOUNTING | ||
| N 007985005171 | SCREW | |
| BRAKE LINE MOUNTING | ||
| N 007985005133 | SCREW | |
| BRAKE LINE MOUNTING | ||
| N 000125005315 | WASHER | |
| BRAKE LINE MOUNTING | ||
| N 000125005315 | WASHER | |
| BRAKE LINE MOUNTING | ||
| N 009021005104 | WASHER | |
| BRAKE LINE MOUNTING | ||
| N 000127005001 | LOCK WASHER | |
| BRAKE LINE MOUNTING | ||
| N 000127005001 | LOCK WASHER | |
| BRAKE LINE MOUNTING | ||
| N 000934005008 | NUT | |
| BRAKE LINE MOUNTING | ||
| N 000934005008 | NUT | |
| BRAKE LINE MOUNTING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE BRAKE CIRCUIT | ||
| 186 | A 0454201228 | LINE |
| Repalced by: A 3454208930 | ||
| 186 | A 3454208930 | LINE |
| FROM MASTER CYLINDER TO FRONT LEFT BRAKE HOSE | ||
| 6X0.7 MM | ||
| 186 | A 0454201429 | LINE |
| Repalced by: A 3454207528 | ||
| 186 | A 3454207528 | LINE |
| FROM MASTER CYLINDER TO FRONT LEFT BRAKE HOSE | ||
| 6X0.7 MM | ||
| 187 | A 3454202828 | LINE |
| FROM MASTER CYLINDER TO FRONT LEFT BRAKE HOSE | ||
| 6X0.7 MM | ||
| 188 | A 0454201328 | LINE |
| Repalced by: A 3454209030 | ||
| 188 | A 3454209030 | LINE |
| FROM MASTER CYLINDER TO FRONT RIGHT BRAKE HOSE | ||
| 6X0.7 MM | ||
| 188 | A 0454201529 | LINE |
| Repalced by: A 3454207628 | ||
| 188 | A 3454207628 | LINE |
| FROM MASTER CYLINDER TO FRONT RIGHT BRAKE HOSE | ||
| 6X0.7 MM | ||
| 189 | A 3454202928 | LINE |
| FROM MASTER CYLINDER TO FRONT RIGHT BRAKE HOSE | ||
| 6X0.7 MM | ||
| 190 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 190 | A 0004280072 | UNION SCREW |
| 191 | A 3129970582 | HOSE |
| 192 | A 3444209828 | LINE |
| FROM SERVICE BRAKE VALVE,CONNECTION "22",TO T-FITTING | ||
| 12X1 MM | ||
| 192 | A 3444209828 | LINE |
| FROM SERVICE BRAKE VALVE,CONNECTION "22",TO T-FITTING | ||
| 12X1 MM | ||
| 192 | A 3444203337 | LINE |
| FROM SERVICE BRAKE VALVE,CONNECTION "22",TO T-FITTING | ||
| 192 | A 3444206145 | LINE |
| FROM SERVICE BRAKE VALVE,CONNECTION "22",TO T-FITTING | ||
| 192 | A 3444202436 | LINE |
| FROM SERVICE BRAKE VALVE,CONNECTION "22",TO T-FITTING | ||
| 193 | A 3444209928 | LINE |
| FROM T-FITTING TO LEFT HOSE FITTING | ||
| 12X1 MM | ||
| 194 | A 3444309566 | LINE |
| FROM T-FITTING TO RIGHT HOSE FITTING | ||
| 12X1 MM | ||
| 195 | A 3444202536 | LINE |
| 196 | A 3454208632 | LINE |
| FROM BRAKE HOSE TO FRONT AXLE DIAPHRAGM CYLINDER | ||
| 12X1 MM | ||
| N 915017012100 | UNION NUT | |
| N 003861012007 | GLAND | |
| 198 | N 003908012000 | T-FITTING |
| 198 | N 003908012003 | T-FITTING |
| 198 | A 0009905270 | T-FITTING |
| 199 | A 3454287040 | BRACKET |
| COMPRESSED AIR LINE TO INTERMEDIATE SHAFT BEARING CROSS MEMBER | ||
| 199 | A 3454287040 | BRACKET |
| COMPRESSED AIR LINE TO FRONT AXLE CROSS MEMBER | ||
| N 000933008317 | SCREW | |
| COMPRESSED AIR LINE TO INTERMEDIATE SHAFT BEARING CROSS MEMBER | ||
| N 000933008282 | SCREW | |
| COMPRESSED AIR LINE TO FRONT AXLE CROSS MEMBER | ||
| N 913004008001 | NUT | |
| COMPRESSED AIR LINE TO INTERMEDIATE SHAFT BEARING CROSS MEMBER | ||
| N 913004008001 | NUT | |
| COMPRESSED AIR LINE TO FRONT AXLE CROSS MEMBER | ||

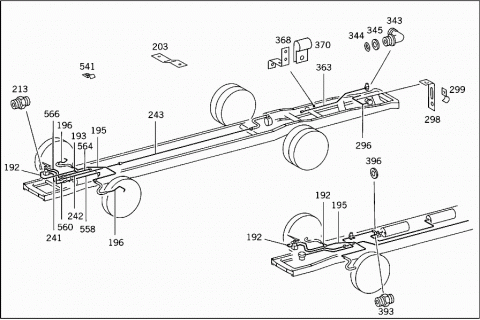

| 201 | A 3464295940 | BRACKET |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| 201 | A 3464295940 | BRACKET |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| A 3464295640 | BRACKET | |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| 203 | A 3094760236 | BRACKET |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| N 000933008288 | SCREW | |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| N 000125008417 | WASHER | |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| N 913004008001 | NUT | |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| 205 | A 3049951520 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| Repalced by: A 1009950420 | ||
| 205 | A 1009950420 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 205 | A 1009950420 | CLAMP |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| N 007985006515 | SCREW | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 000125006420 | WASHER | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 913004006001 | NUT | |
| COMPRESSED AIR LINE TO BRACKET | ||
| 207 | A 3454307379 | CONNECTOR |
| N 000125017010 | WASHER | |
| HOSE FITTING TO FRONT AXLE SIDE MEMBER | ||
| N 006797016152 | TOOTHED WASHER | |
| HOSE FITTING TO FRONT AXLE SIDE MEMBER | ||
| N 000936016003 | NUT | |
| HOSE FITTING TO FRONT AXLE SIDE MEMBER | ||
| 209 | A 3089907171 | ELBOW FITTING |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| 209 | A 3849907071 | ELBOW FITTING |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| 210 | A 0009971548 | SEAL RING |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| 211 | A 0004290927 | THRUST RING |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| N 007603016103 | SEAL RING | |
| N 000936016003 | NUT | |
| AT LEFT AND RIGHT DIAPHRAGM CYLINDERS | ||
| 213 | N 003901012005 | SCREW-IN FITTING |
| 213 | N 003901012014 | SCREW-IN FITTING |
| 213 | A 0029971572 | FITTING |
| 214 | A 0004288735 | BRAKE HOSE |
| 214 | A 0014285235 | BRAKE HOSE |
| N 916027011005 | HOSE | |
| FROM BRAKE HOSE TO LEFT AND RIGHT FRONT WHEELS | ||
| 11X530 | ||
| 216 | A 3224280140 | BRACKET |
| BRAKE HOSE | ||
| N 000933008282 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 912004008100 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 000934008000 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 218 | A 3459977990 | LOOM TIE |
| Repalced by: A 3459978890 | ||
| 218 | A 3459978890 | CLAMP |
| BRAKE HOSE MOUNTING | ||
| 219 | A 0004280473 | BRACKET |
| BRAKE HOSE TO BRACKET | ||
| 220 | A 3524281640 | BRACKET |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| 221 | A 3454287840 | BRACKET |
| RIGHT | ||
| 221 | A 3454287840 | BRACKET |
| RIGHT | ||
| 221 | A 3454288240 | BRACKET |
| LEFT | ||
| 221 | A 3454288240 | BRACKET |
| LEFT | ||
| 221 | A 3454299840 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 221 | A 3454299840 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 222 | A 0454290440 | BRACKET |
| Repalced by: A 3454297640 | ||
| 222 | A 3454297640 | BRACKET |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| 223 | A 3524281740 | BRACKET |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| N 000933006220 | SCREW | |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| N 000933008282 | SCREW | |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| N 000127006203 | LOCK WASHER | |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| N 912004008100 | LOCK WASHER | |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| N 000934006006 | NUT | |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| N 000934008000 | NUT | |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| 225 | A 0009952401 | CLAMP |
| Repalced by: N 916016006201 | ||
| 225 | N 916016006201 | CLAMP |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| 225 | A 3459957801 | CLAMP |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| 226 | N 916016012200 | CLAMP |
| AT DIAPHRAGM CYLINDER BRACKET | ||
| 226 | A 3459957901 | CLAMP |
| A 0009954501 | CLAMP | |
| Repalced by: N 916016006200 | ||
| N 916016006200 | CLAMP | |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| N 007985006515 | SCREW | |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| N 007985006515 | SCREW | |
| AT DIAPHRAGM CYLINDER BRACKET | ||
| N 007985005171 | SCREW | |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| N 000125006420 | WASHER | |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| N 000125006420 | WASHER | |
| AT DIAPHRAGM CYLINDER BRACKET | ||
| N 000125006420 | WASHER | |
| AT DIAPHRAGM CYLINDER BRACKET | ||
| N 000125005315 | WASHER | |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| N 000127006203 | LOCK WASHER | |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| N 000127005001 | LOCK WASHER | |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| N 000934006006 | NUT | |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| N 913004006001 | NUT | |
| AT DIAPHRAGM CYLINDER BRACKET | ||
| N 000934005008 | NUT | |
| MASTER-CYLINDER-TO-RIGHT-FRONT-WHEEL BRAKE LINE | ||
| 228 | A 3129970582 | HOSE |
| Repalced by: A 3449978082 | ||
| 228 | A 3449978082 | HOSE |
| BRAKE LINE THRU SIDE MEMBER | ||
| 229 | A 3129950935 | CLAMP |
| Repalced by: A 3459977290 | ||
| 229 | A 3459977290 | LOOM TIE |
| BRAKE LINE THRU SIDE MEMBER | ||
| N 007985004181 | SCREW | |
| BRAKE LINE THRU SIDE MEMBER | ||
| N 000934004014 | NUT | |
| BRAKE LINE THRU SIDE MEMBER | ||
| 231 | A 0454200930 | LINE |
| Repalced by: A 3454209130 | ||
| 231 | A 3454209130 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 6X0.7 MM | ||
| 231 | A 0454201329 | LINE |
| Repalced by: A 3454207828 | ||
| 231 | A 3454207828 | LINE |
| FROM MASTER CYLINDER TO CONNECTOR | ||
| 6X0.7 MM | ||
| 232 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 232 | A 0004280072 | UNION SCREW |
| 233 | A 0004280531 | CONNECTOR |
| Repalced by: A 0004292736 | ||
| 233 | A 0004292736 | CONNECTOR |
| Repalced by: A 3454297836 | ||
| 233 | A 3454297836 | CONNECTOR |
| 234 | A 0454200830 | LINE |
| Repalced by: A 3454209230 | ||
| 234 | A 3454209230 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 6X0.7 M | ||
| 234 | A 0454201229 | LINE |
| Repalced by: A 3454207728 | ||
| 234 | A 3454207728 | LINE |
| FROM CONNECTOR TO BRAKE HOSE AT REAR AXLE | ||
| 6X0.7 MM | ||
| 235 | A 3454203328 | LINE |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| 6X0.7 MM | ||
| 235 | A 3454204428 | LINE |
| Repalced by: A 3454209228 | ||
| 235 | A 3454209228 | LINE |
| FROM MASTER CYLINDER TO BRAKE HOSE AT REAR AXLE | ||
| 6X0.7 MM | ||
| 236 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 236 | A 0004280072 | UNION SCREW |
| 237 | A 3454204249 | LINE |
| FROM SERVICE BRAKE VALVE,CONNECTION "21",TO FITTING | ||
| 12X1 MM | ||
| 238 | A 3454204149 | LINE |
| FROM FITTING TO FITTING | ||
| 12X1 MM | ||
| 239 | A 3454208133 | LINE |
| FROM FITTING TO BRAKE HOSE | ||
| 12X1 MM | ||
| 240 | A 3454204337 | LINE |
| FROM SERVICE BRAKE VALVE TO FITTING | ||
| 12X1 MM | ||
| 241 | A 3444203237 | LINE |
| BRAKE CYLINDER | ||
| "21" | ||
| 241 | A 3444206045 | LINE |
| 241 | A 3444202236 | LINE |
| BRAKE CYLINDER | ||
| "21" | ||
| 242 | A 3454206937 | LINE |
| FROM FITTING TO FITTING | ||
| 243 | A 3454205037 | LINE |
| FROM FITTING TO FITTING | ||
| 12X1 MM | ||
| 243 | A 3454205137 | LINE |
| FROM FITTING TO FITTING | ||
| 12X1 MM | ||
| 243 | A 3454205237 | LINE |
| FROM FITTING TO FITTING | ||
| 12X1 MM | ||
| N 915017012100 | UNION NUT | |
| N 003861012007 | GLAND | |
| N 003902012001 | CONNECTION FITTING | |
| 245 | N 003902012003 | CONNECTION FITTING |
| 245 | A 0029971472 | FITTING |
| 246 | N 074317012301 | FITTING |
| 246 | N 074317012301 | FITTING |
| FROM FITTING TO FITTING | ||
| 246 | A 0009905370 | T-FITTING |
| 246 | A 0009905370 | T-FITTING |
| FROM FITTING TO FITTING | ||
| 247 | A 3445457114 | SWITCH |
| Repalced by: A 0015454114 | ||
| 247 | A 0015454114 | SWITCH |
| 247 | A 0015454114 | SWITCH |
| FROM FITTING TO FITTING | ||
| N 003902012001 | CONNECTION FITTING | |
| FROM FITTING TO FITTING | ||
| N 003902012003 | CONNECTION FITTING | |
| FROM FITTING TO FITTING | ||
| A 0029971472 | FITTING | |
| FROM FITTING TO FITTING | ||
| 249 | A 3524281740 | BRACKET |
| MASTER-CYLINDER-TO-REAR-AXLE BRAKE LINE | ||
| 249 | A 3524281740 | BRACKET |
| FROM FITTING TO BRAKE HOSE | ||
| 250 | A 0454290540 | BRACKET |
| Repalced by: A 3524290840 | ||
| 250 | A 3524290840 | BRACKET |
| Repalced by: A 3454299540 | ||
| 250 | A 3454299540 | BRACKET |
| 251 | A 0009952401 | CLAMP |
| Repalced by: N 916016006201 | ||
| 251 | N 916016006201 | CLAMP |
| MASTER-CYLINDER-TO-REAR-AXLE BRAKE LINE | ||
| 251 | A 3459957801 | CLAMP |
| 252 | A 3049951520 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| Repalced by: A 1009950420 | ||
| 252 | A 1009950420 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| A 0009954501 | CLAMP | |
| Repalced by: N 916016006200 | ||
| N 916016006200 | CLAMP | |
| BRAKE LINE TO CROSS MEMBER | ||
| N 916016006200 | CLAMP | |
| BRAKE LINE TO CROSS MEMBER | ||
| A 0009959001 | CLAMP | |
| Repalced by: N 916016006205 | ||
| N 916016006205 | CLAMP | |
| A 0009958501 | CLAMP | |
| Repalced by: N 916016015203 | ||
| N 916016015202 | CLAMP | |
| A 0009959101 | CLAMP | |
| Repalced by: N 916016008203 | ||
| N 916016008202 | CLAMP | |
| N 007985006515 | SCREW | |
| MASTER-CYLINDER-TO-REAR-AXLE BRAKE LINE | ||
| N 007985006515 | SCREW | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 007985005171 | SCREW | |
| BRAKE LINE TO CROSS MEMBER | ||
| N 007985005171 | SCREW | |
| BRAKE LINE TO CROSS MEMBER | ||
| N 000125005315 | WASHER | |
| BRAKE LINE TO CROSS MEMBER | ||
| N 000125005315 | WASHER | |
| BRAKE LINE TO CROSS MEMBER | ||
| N 000127006203 | LOCK WASHER | |
| MASTER-CYLINDER-TO-REAR-AXLE BRAKE LINE | ||
| N 000125006420 | WASHER | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 000127005001 | LOCK WASHER | |
| BRAKE LINE TO CROSS MEMBER | ||
| N 000127005001 | LOCK WASHER | |
| BRAKE LINE TO CROSS MEMBER | ||
| N 000934006006 | NUT | |
| MASTER-CYLINDER-TO-REAR-AXLE BRAKE LINE | ||
| N 913004006001 | NUT | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 000934005008 | NUT | |
| BRAKE LINE TO CROSS MEMBER | ||
| N 000934005008 | NUT | |
| BRAKE LINE TO CROSS MEMBER | ||
| N 000933008050 | SCREW | |
| MASTER-CYLINDER-TO-REAR-AXLE BRAKE LINE | ||
| N 000933008317 | SCREW | |
| FROM FITTING TO BRAKE HOSE | ||
| N 007985006502 | SCREW | |
| N 000125006420 | WASHER | |
| N 912004008100 | LOCK WASHER | |
| MASTER-CYLINDER-TO-REAR-AXLE BRAKE LINE | ||
| N 000127006203 | LOCK WASHER | |
| N 000934008000 | NUT | |
| MASTER-CYLINDER-TO-REAR-AXLE BRAKE LINE | ||
| N 913004008001 | NUT | |
| FROM FITTING TO BRAKE HOSE | ||
| N 000934006006 | NUT | |
| 254 | A 0004284335 | BRAKE HOSE |
| 254 | A 0014283135 | BRAKE HOSE |
| 254 | A 0014281235 | BRAKE HOSE |
| 254 | A 0014284935 | BRAKE HOSE |
| N 916027011003 | HOSE | |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11",13X270 | ||
| N 916027011010 | HOSE | |
| FROM FITTING TO RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11",11X750 | ||
| N 916027011008 | HOSE | |
| FROM T-FITTING TO COMBINATION CYLINDER ON THE RIGHT,CONNECTION: | ||
| "11"; 11X630 | ||
| N 915017012100 | UNION NUT | |
| BRAKE HOSE | ||
| N 915017012100 | UNION NUT | |
| BRAKE HOSE | ||
| N 003861012007 | GLAND | |
| BRAKE HOSE | ||
| N 003861012007 | GLAND | |
| BRAKE HOSE | ||
| 256 | A 0004290541 | FITTING |
| Repalced by: A 3454297041 | ||
| 256 | A 3454297041 | FITTING |
| FROM FITTING TO RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| 256 | A 3454297041 | FITTING |
| FROM FITTING TO RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| 257 | A 3504208935 | LINE |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| 11 | ||
| N 915017012100 | UNION NUT | |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| 11 | ||
| N 003861012007 | GLAND | |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| 11 | ||
| 259 | A 3459977990 | LOOM TIE |
| Repalced by: A 3459978890 | ||
| 259 | A 3459978890 | CLAMP |
| FROM FITTING TO RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| 260 | A 0004280473 | BRACKET |
| BRAKE HOSE | ||
| 261 | A 3124281040 | BRACKET |
| BRAKE HOSE | ||
| N 000933008282 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 000933008282 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 912004008100 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 912004008100 | LOCK WASHER | |
| BRACKET TO SIDE MEMBER | ||
| N 000934008000 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| N 000934008000 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| 263 | A 0004290437 | DISTRIBUTOR |
| 263 | A 3454297037 | DISTRIBUTOR |
| 264 | A 3524280740 | BRACKET |
| DISTRIBUTOR | ||
| N 000933008273 | SCREW | |
| DISTRIBUTOR TO BRACKET | ||
| N 912004008100 | LOCK WASHER | |
| DISTRIBUTOR TO BRACKET | ||
| N 000934008000 | NUT | |
| DISTRIBUTOR TO BRACKET | ||
| 266 | A 0009904270 | T-FITTING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| 266 | A 0009904270 | T-FITTING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| 267 | A 0009971548 | SEAL RING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| 268 | A 0004290927 | THRUST RING |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| N 000936016003 | NUT | |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| A 0019905370 | T-FITTING | |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| N 007603016103 | SEAL RING | |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| N 915036012200 | HOLLOW SCREW | |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| N 915036012203 | HOLLOW SCREW | |
| RIGHT COMBINATION CYLINDER,CONNECTION: | ||
| "11,12" | ||
| 272 | A 3274205030 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 6X0.7 MM | ||
| 272 | A 0454201129 | LINE |
| Repalced by: A 3454207338 | ||
| 272 | A 3454207328 | LINE |
| FROM DISTRIBUTOR TO LEFT REAR WHEEL | ||
| 6X0.7 MM | ||
| 273 | A 3274205130 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 6X0.7 MM | ||
| 273 | A 0454201029 | LINE |
| Repalced by: A 3454207228 | ||
| 273 | A 3454207228 | LINE |
| FROM DISTRIBUTOR TO RIGHT REAR WHEEL | ||
| 6X0.7 MM | ||
| 274 | A 0004280072 | UNION SCREW |
| 274 | N 074233012001 | UNION SCREW |
| Repalced by: A 0004280072 | ||
| 274 | A 0004280072 | UNION SCREW |
| 275 | A 3129973482 | HOSE |
| 276 | A 3129951020 | CLAMP |
| 277 | A 3454203749 | LINE |
| FROM LEFT COMBINATION CYL.,CONNECTION "11",TO RIGHT COMBIN. CYL.,CONNECTION: | ||
| "11" 12X1 MM | ||
| 277 | A 3504208735 | LINE |
| FROM LEFT COMBINATION CYL.,CONNECTION "11",TO RIGHT COMBIN. CYL.,CONNECTION: | ||
| "11"12X1 MM | ||
| 278 | A 3454307073 | TUBE |
| FROM LEFT COMBINATION CYL.,CONNECTION "11",TO RIGHT COMBIN. CYL.,CONNECTION: | ||
| "11",12X1 MM | ||
| N 915017012100 | UNION NUT | |
| N 915017012100 | UNION NUT | |
| N 003861012007 | GLAND | |
| N 003861012007 | GLAND | |
| A 0109975982 | HOSE | |
| Repalced by: A 0009872827 | ||
| A 0009872827 | PLASTIC PIPE | |
| Repalced by: A 0009875027 | ||
| A 0009875027 | PLASTIC PIPE | |
| FROM LEFT COMBINATION CYL.,CONNECTION "11",TO RIGHT COMBIN. CYL.,CONNECTION: | ||
| 12 X 1.5 MM | ||
| N 915052009000 | BANJO UNION | |
| FROM LEFT COMBINATION CYL.,CONNECTION "11",TO RIGHT COMBIN. CYL.,CONNECTION: | ||
| "11" | ||
| 282 | A 0009904770 | T-FITTING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| 283 | A 3089907171 | ELBOW FITTING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| 283 | A 3849907071 | ELBOW FITTING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| 284 | A 0009971548 | SEAL RING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| 285 | A 0004290927 | THRUST RING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| 285 | A 0004290927 | THRUST RING |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| N 000936016003 | NUT | |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| N 000936016003 | NUT | |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| N 915039012200 | HOLLOW SCREW FITTING | |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| N 007603016103 | SEAL RING | |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| 287 | A 3445457114 | SWITCH |
| Repalced by: A 0015454114 | ||
| 287 | A 0015454114 | SWITCH |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| 287 | A 3445457214 | SWITCH |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| 287 | A 0005455414 | SWITCH |
| LEFT COMBINATION CYLINDER;CONNECTION: | ||
| "11,12" | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| COMPRESSED AIR SYSTEM | ||
| 288 | A 0029971272 | FITTING |
| Repalced by: N 003901018004 | ||
| 288 | N 003901018006 | SCREW-IN FITTING |
| AT AIR COMPRESSOR | ||
| 288 | A 3454298336 | CONNECTOR |
| AT AIR COMPRESSOR | ||
| N 007603022102 | SEAL RING | |
| AT AIR COMPRESSOR | ||
| N 007603026104 | SEAL RING | |
| AT AIR COMPRESSOR | ||
| 290 | A 3454298236 | CONNECTOR |
| AT AIR COMPRESSOR | ||
| 291 | A 3454298436 | CONNECTOR |
| 292 | A 3454208336 | LINE |
| FROM AIR COMPRESSOR TO TIRE INFLATOR CYLINDER | ||
| 15X1.5 MM | ||
| 292 | A 3454208331 | LINE |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 18X1.5 MM | ||
| 293 | A 3454201426 | LINE |
| FROM AIR COMPRESSOR TO FITTING | ||
| 18X1.5 MM | ||
| 293 | A 0454201334 | LINE |
| FROM AIR COMPRESSOR TO FITTING | ||
| 18X1.5 MM | ||
| 293 | H 983454200636 | LINE |
| Repalced by: A 3454207137 | ||
| 293 | A 3454207137 | LINE |
| FROM AIR COMPRESSOR TO FITTING | ||
| 18X1.5 MM | ||
| 293 | A 3454200236 | LINE |
| FROM AIR COMPRESSOR TO FITTING | ||
| 18X1.5 MM | ||
| N 074297026102 | UNION NUT | |
| N 915017018100 | UNION NUT | |
| N 915017018100 | UNION NUT | |
| N 074297018202 | SLIP RING | |
| N 003861018003 | GLAND | |
| N 003861018003 | GLAND | |
| 295 | A 3454206637 | LINE |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 15X1.5 MM | ||
| 295 | A 3444202737 | LINE |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 295 | A 3444202837 | LINE |
| FROM AIR COMPRESSOR TO FITTING | ||
| 295 | A 3454203637 | LINE |
| FROM AIR COMPRESSOR TO FITTING | ||
| 15X1.5 MM | ||
| 296 | A 3444204936 | LINE |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| N 915017015100 | UNION NUT | |
| N 003861015004 | GLAND | |
| 298 | A 3524281740 | BRACKET |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 299 | A 3049950220 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 007985006515 | SCREW | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 913004006001 | NUT | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 000933008282 | SCREW | |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| N 000125008417 | WASHER | |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| N 913004008001 | NUT | |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| N 916016015203 | CLAMP | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 007985006502 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000125006420 | WASHER | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 913004006001 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 916016015202 | CLAMP | |
| COMPRESSED AIR LINE MOUNTING | ||
| 301 | A 3454298236 | CONNECTOR |
| 301 | A 0019972072 | FITTING |
| A 0019972072 | FITTING | |
| Repalced by: N 003902018001 | ||
| N 003902018001 | CONNECTION FITTING | |
| N 003902015001 | CONNECTION FITTING | |
| N 003902015001 | CONNECTION FITTING | |
| N 003902015002 | CONNECTION FITTING | |
| N 915065018101 | THRUST RING | |
| A 0004291584 | SEAL RING | |
| Repalced by: N 915045015100 | ||
| N 915045015100 | SEAL RING | |
| COMPRESSED AIR LINE TO AIR COMPRESSOR | ||
| N 915045015100 | SEAL RING | |
| COMPRESSED AIR LINE TO AIR COMPRESSOR | ||
| N 915045015100 | SEAL RING | |
| COMPRESSED AIR LINE TO TIRE INFLATOR CYLINDER | ||
| 303 | A 3454297840 | BRACKET |
| COMPRESSED AIR LINE TO BELL HOUSING | ||
| 304 | A 3049950120 | CLAMP |
| Repalced by: A 3049950220 | ||
| 304 | A 3049950220 | CLAMP |
| COMPRESSED AIR LINE TO BELL HOUSING | ||
| 305 | A 0009954801 | CLAMP |
| Repalced by: N 916016018201 | ||
| 305 | N 916016018201 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 305 | A 3459958601 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 306 | A 3049950220 | CLAMP |
| COMPRESSED AIR LINE TO AIR COMPRESSOR BRACKET | ||
| A 0009958901 | CLAMP | |
| Repalced by: N 916016018204 | ||
| N 916016018204 | CLAMP | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 007985006515 | SCREW | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 007985006502 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 007985006515 | SCREW | |
| COMPRESSED AIR LINE TO BELL HOUSING | ||
| N 007985006515 | SCREW | |
| COMPRESSED AIR LINE TO AIR COMPRESSOR BRACKET | ||
| N 000125006420 | WASHER | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000127006203 | LOCK WASHER | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000934006006 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 913004006001 | NUT | |
| COMPRESSED AIR LINE TO BELL HOUSING | ||
| N 913004006001 | NUT | |
| COMPRESSED AIR LINE TO AIR COMPRESSOR BRACKET | ||
| 308 | H 983454200736 | LINE |
| Repalced by: A 3454207237 | ||
| 308 | A 3454207237 | LINE |
| FROM DOUBLE FITTING TO PRESSURE REGULATOR | ||
| 18X1.5 MM | ||
| 308 | A 3454208731 | LINE |
| FROM DOUBLE FITTING TO PRESSURE REGULATOR | ||
| 18X1.5 MM | ||
| 309 | A 3454200636 | LINE |
| FROM DOUBLE FITTING TO PRESSURE REGULATOR | ||
| 18X1.5 MM | ||
| 309 | A 3454208831 | LINE |
| FROM DOUBLE FITTING TO PRESSURE REGULATOR | ||
| 18X1.5 MM | ||
| N 915017018100 | UNION NUT | |
| N 003861018003 | GLAND | |
| 311 | A 3454207133 | LINE |
| FROM AIR COMPRESSOR TO PRESSURE REGULATOR | ||
| 15X1.5 MM | ||
| 312 | A 3454206737 | LINE |
| FROM FITTING TO PRESSURE REGULATOR | ||
| 15X1.5 MM | ||
| 312 | A 3454203737 | LINE |
| FROM FITTING TO PRESSURE REGULATOR | ||
| 15X1.5 MM | ||
| 312 | A 3444202937 | LINE |
| FROM FITTING TO PRESSURE REGULATOR | ||
| N 915017015100 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 915065018101 | THRUST RING | |
| A 0004291584 | SEAL RING | |
| Repalced by: N 915045015100 | ||
| N 915045015100 | SEAL RING | |
| N 915045015100 | SEAL RING | |
| N 916016015203 | CLAMP | |
| COMPRESSED AIR LINE TOWARDS PRESSURE REGULATOR | ||
| N 916016015202 | CLAMP | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 007985006502 | SCREW | |
| N 913004006001 | NUT | |
| N 000125006420 | WASHER | |
| A 3049950220 | CLAMP | |
| COMPRESSED AIR LINE MOUNTING | ||
| 315 | A 3524281740 | BRACKET |
| BRAKE LINE TO SIDE AND CROSS MEMBERS | ||
| N 000933008050 | SCREW | |
| BRACKET TO FRAME SIDE MEMBER | ||
| N 912004008100 | LOCK WASHER | |
| BRACKET TO FRAME SIDE MEMBER | ||
| N 000934008000 | NUT | |
| BRACKET TO FRAME SIDE MEMBER | ||
| 317 | A 1869950220 | CLAMP |
| N 007985005183 | SCREW | |
| CLAMP TO BRACKET | ||
| N 000127005001 | LOCK WASHER | |
| CLAMP TO BRACKET | ||
| N 000934005008 | NUT | |
| CLAMP TO BRACKET | ||
| N 000933008279 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000933008317 | SCREW | |
| COMPRESSED AIR LINE TO INTERMEDIATE SHAFT BEARING CROSS MEMBER | ||
| N 000933008282 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000125008417 | WASHER | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 913004008001 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 913004008001 | NUT | |
| COMPRESSED AIR LINE TO INTERMEDIATE SHAFT BEARING CROSS MEMBER | ||
| A 0009958901 | CLAMP | |
| Repalced by: N 916016018204 | ||
| N 916016018204 | CLAMP | |
| COMPRESSED AIR LINE MOUNTING | ||
| 319 | N 916016015200 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 319 | A 3459958101 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 319 | A 3459958101 | CLAMP |
| COMPRESSED AIR LINE TO INTERMEDIATE SHAFT BEARING CROSS MEMBER | ||
| N 000084006137 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000125006420 | WASHER | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 913004006001 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| A 0029971272 | FITTING | |
| Repalced by: N 003901018004 | ||
| N 003901018006 | SCREW-IN FITTING | |
| N 003901018006 | SCREW-IN FITTING | |
| N 074305022202 | NUT | |
| N 007603022102 | SEAL RING | |
| 321 | A 3454297838 | ELBOW FITTING |
| 322 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 322 | A 0009940203 | THRUST RING |
| 323 | A 0009870446 | O-RING |
| 324 | A 0005910002 | TIRE INFLATOR CYLINDER |
| Repalced by: A 3445910019 | ||
| 324 | A 3445910019 | TIRE INFLATOR CYLINDER |
| 325 | A 0005910097 | REPAIR KIT |
| 326 | N 074313016401 | FITTING |
| 326 | A 0019972372 | FITTING |
| 327 | A 0009870446 | O-RING |
| 328 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 328 | A 0009940203 | THRUST RING |
| 329 | A 0004312706 | PRESSURE REGULATOR |
| 330 | H 983455860743 | REPAIR KIT |
| 331 | A 0004310212 | COMPENSATOR |
| 332 | A 0004310856 | SCREW PLUG |
| 333 | A 0004310070 | STUD |
| N 000934005008 | NUT | |
| 335 | A 0004310956 | SCREW PLUG |
| 336 | A 0004312493 | SPRING |
| 337 | A 0004312383 | PISTON |
| 338 | A 0004311476 | WASHER |
| 339 | A 0004311056 | SCREW PLUG |
| 340 | A 0004310073 | BREATHER PIPE |
| 341 | A 0014314106 | PRESSURE REGULATOR |
| Repalced by: A 3454317206 | ||
| 341 | A 3454317206 | PRESSURE REGULATOR |
| Repalced by: A 0014312206 | ||
| 341 | A 0014312206 | PRESSURE REGULATOR |
| "WABCO" | ||
| 341 | A 0014319906 | PRESSURE REGULATOR |
| KNORR | ||
| 341 | A 0014310006 | PRESSURE REGULATOR |
| "WABCO" | ||
| 341 | A 0014319806 | PRESSURE REGULATOR |
| Repalced by: A 0024318306 | ||
| 341 | A 0024318306 | PRESSURE REGULATOR |
| "KNORR" | ||
| 341 | A 0024313406 | PRESSURE REGULATOR |
| "BOSCH" | ||
| 342 | A 3455868243 | REPAIR KIT |
| Repalced by: A 0015864343 | ||
| 342 | A 0015864343 | REPAIR KIT |
| TO 001 431 00 06 | ||
| 342 | A 0015868543 | REPAIR KIT |
| TO 001 431 41 06 | ||
| 342 | A 0004301807 | REPAIR KIT |
| TO 002 431 83 06 | ||
| 342 | A 0025866743 | REPAIR KIT |
| Repalced by: A 0004201371 | ||
| 342 | A 0004201371 | REPAIR KIT |
| TO 001 431 98 06,001 431 99 06 | ||
| 343 | A 3764297338 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| 344 | A 0009870446 | O-RING |
| AT PRESSURE REGULATOR | ||
| 344 | A 0009870446 | O-RING |
| AT PRESSURE REGULATOR | ||
| 344 | A 0009870446 | O-RING |
| AT PRESSURE REGULATOR | ||
| 345 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 345 | A 0009940203 | THRUST RING |
| AT PRESSURE REGULATOR | ||
| 345 | A 0009940203 | THRUST RING |
| AT PRESSURE REGULATOR | ||
| 345 | A 0009940203 | THRUST RING |
| AT PRESSURE REGULATOR | ||
| N 074305022202 | NUT | |
| AT PRESSURE REGULATOR | ||
| N 074305022202 | NUT | |
| AT PRESSURE REGULATOR | ||
| N 074305022202 | NUT | |
| AT PRESSURE REGULATOR | ||
| 347 | A 0009905871 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| 347 | A 0009905871 | ELBOW FITTING |
| AT PRESSURE REGULATOR | ||
| 347 | N 074315000200 | FITTING |
| AT PRESSURE REGULATOR | ||
| 347 | N 074315000200 | FITTING |
| AT PRESSURE REGULATOR | ||
| A 0019972072 | FITTING | |
| Repalced by: N 003901018004 | ||
| N 003901018006 | SCREW-IN FITTING | |
| AT PRESSURE REGULATOR | ||
| 349 | A 3454298336 | CONNECTOR |
| AT PRESSURE REGULATOR | ||
| 349 | A 3454298336 | CONNECTOR |
| AT PRESSURE REGULATOR | ||
| 350 | N 074313016201 | FITTING |
| AT PRESSURE REGULATOR | ||
| 350 | A 0019972172 | FITTING |
| AT PRESSURE REGULATOR | ||
| 351 | A 0019972372 | FITTING |
| AT PRESSURE REGULATOR | ||
| 351 | N 074313016401 | FITTING |
| AT PRESSURE REGULATOR | ||
| 351 | N 074313012100 | FITTING |
| AT PRESSURE REGULATOR | ||
| 351 | A 0029971172 | FITTING |
| Repalced by: A 3454307879 | ||
| 351 | A 3454307879 | CONNECTOR |
| AT PRESSURE REGULATOR | ||
| N 007603022102 | SEAL RING | |
| AT PRESSURE REGULATOR | ||
| N 007603022102 | SEAL RING | |
| AT PRESSURE REGULATOR | ||
| N 007603022102 | SEAL RING | |
| AT PRESSURE REGULATOR | ||
| 353 | A 3529971282 | HOSE |
| AT PRESSURE REGULATOR | ||
| N 900288020006 | CLAMP | |
| AT PRESSURE REGULATOR | ||
| 355 | A 3509970290 | CLAMP |
| AT PRESSURE REGULATOR | ||
| 356 | A 3524315340 | BRACKET |
| PRESSURE REGULATOR | ||
| 357 | A 3445917040 | BRACKET |
| PRESSURE REGULATOR | ||
| N 000933008288 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 913004008001 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| N 000931008321 | SCREW | |
| PRESSURE REGULATOR TO BRACKET | ||
| N 000931008370 | SCREW | |
| PRESSURE REGULATOR TO BRACKET | ||
| N 000125008417 | WASHER | |
| PRESSURE REGULATOR TO BRACKET | ||
| N 913004008001 | NUT | |
| PRESSURE REGULATOR TO BRACKET | ||
| 359 | A 3454208436 | LINE |
| FROM PRESSURE REGULATOR TO AIR RESERVOIR | ||
| 15X1.5 MM | ||
| 359 | A 3454208431 | LINE |
| FROM PRESSURE REGULATOR TO AIR RESERVOIR | ||
| 15X1.5 MM | ||
| 360 | A 3454201526 | LINE |
| FROM PRESSURE REGULATOR TO DOUBLE FITTING I | ||
| 15X1.5 MM | ||
| 360 | A 0454201434 | LINE |
| FROM PRESSURE REGULATOR TO DOUBLE FITTING I | ||
| 15X1.5 MM | ||
| 360 | H 983454201026 | LINE |
| Repalced by: A 3454207337 | ||
| 360 | A 3454207337 | LINE |
| FROM PRESSURE REGULATOR TO CONNECTION FITTING I | ||
| 15X1.5 MM | ||
| 360 | A 3454208931 | LINE |
| FROM PRESSURE REGULATOR TO CONNECTION FITTING I | ||
| 15X1.5 MM | ||
| 360 | A 3454209045 | LINE |
| FROM PRESSURE REGULATOR TO CONNECTION FITTING I | ||
| 15X1.5 MM | ||
| 360 | A 3454209031 | LINE |
| FROM PRESSURE REGULATOR TO CONNECTION FITTING I | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| 362 | A 3454206837 | LINE |
| FROM PRESSURE REGULATOR TO FITTING | ||
| 12X1 MM | ||
| 362 | A 3444203037 | LINE |
| FROM PRESSURE REGULATOR TO FITTING | ||
| 362 | A 3444207235 | LINE |
| FROM PRESSURE REGULATOR TO FITTING | ||
| 363 | A 3444205036 | LINE |
| FROM PRESSURE REGULATOR TO FITTING | ||
| 363 | A 0004293501 | LINE |
| FROM PRESSURE REGULATOR TO FITTING | ||
| 12X1 MM | ||
| 364 | A 3454206937 | LINE |
| DOUBLE LEVER TO THRUST SHACKLE | ||
| N 915017012100 | UNION NUT | |
| N 003861012007 | GLAND | |
| 366 | A 0019972172 | FITTING |
| 366 | N 074313016201 | FITTING |
| 367 | N 003902012001 | CONNECTION FITTING |
| 367 | N 003902012003 | CONNECTION FITTING |
| 367 | A 0029971472 | FITTING |
| 368 | A 3454767036 | BRACKET |
| FROM PRESSURE REGULATOR TO FITTING | ||
| N 000933008273 | SCREW | |
| FROM PRESSURE REGULATOR TO FITTING | ||
| N 000125008417 | WASHER | |
| FROM PRESSURE REGULATOR TO FITTING | ||
| N 913004008001 | NUT | |
| FROM PRESSURE REGULATOR TO FITTING | ||
| 370 | N 916016012200 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 370 | A 3459957901 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| N 007985006137 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 913004006001 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 915065015101 | THRUST RING | |
| LINE TO PRESSURE REGULATOR & AIR RESERVOIR | ||
| N 915045012100 | SEAL RING | |
| LINE TO PRESSURE REGULATOR & AIR RESERVOIR | ||
| 372 | N 916016012200 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 372 | A 3459957901 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 373 | A 3184280140 | BRACKET |
| A 0009958501 | CLAMP | |
| Repalced by: N 916016015203 | ||
| N 916016015202 | CLAMP | |
| COMPRESSED AIR LINE TO BRACKET | ||
| 375 | A 3049951520 | CLAMP |
| Repalced by: A 1009950420 | ||
| 375 | A 1009950420 | CLAMP |
| N 000084006137 | SCREW | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 007985006515 | SCREW | |
| N 007985006515 | SCREW | |
| N 000125006420 | WASHER | |
| N 913004006001 | NUT | |
| 377 | A 0454201534 | LINE |
| FROM DOUBLE FITTING I TO DOUBLE FITTING II | ||
| 15X1.5 MM | ||
| 377 | A 3524208945 | LINE |
| FROM DOUBLE FITTING II TO DOUBLE FITTING III | ||
| 377 | A 0454201634 | LINE |
| FROM DOUBLE FITTING II TO DOUBLE FITTING III | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| 379 | N 074313016201 | FITTING |
| 379 | A 0019972172 | FITTING |
| N 915065015101 | THRUST RING | |
| N 915045012100 | SEAL RING | |
| 381 | A 3524207634 | LINE |
| FROM DOUBLE FITTING I TO TWO-CIRCUIT PROTECTIVE VALVE | ||
| 381 | H 983454200134 | LINE |
| Repalced by: A 3454207437 | ||
| 381 | A 3454207437 | LINE |
| FROM DOUBLE FITTING I TO TWO-CIRCUIT PROTECTIVE VALVE | ||
| 15X1.5 MM | ||
| 381 | A 3454202336 | LINE |
| FROM DOUBLE FITTING I TO TWO-CIRCUIT PROTECTIVE VALVE | ||
| 15X1.5 MM | ||
| 382 | A 3454200336 | LINE |
| FROM DOUBLE FITTING I TO DOUBLE FITTING II | ||
| 15X1.5 MM | ||
| 383 | A 3454209437 | LINE |
| FROM DOUBLE FITTING II TO TWO-CIRCUIT PROTECTIVE VALVE | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| 385 | A 0019972172 | FITTING |
| 385 | N 074313016201 | FITTING |
| N 915065015101 | THRUST RING | |
| N 915045012100 | SEAL RING | |
| 387 | A 3454204737 | LINE |
| FROM FITTING TO FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION: | ||
| 12X1 MM,"1" | ||
| 387 | A 3444205236 | LINE |
| FROM FITTING TO FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION: | ||
| 12X1 MM | ||
| 387 | A 3444207135 | LINE |
| FROM FITTING TO FOUR-CIRCUIT PROTECTIVE VALVE,CONNECTION: | ||
| "1" | ||
| N 915017012100 | UNION NUT | |
| N 003861012007 | GLAND | |
| A 0009958501 | CLAMP | |
| Repalced by: N 916016018204 | ||
| N 916016018204 | CLAMP | |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| N 007985006502 | SCREW | |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| N 007985006515 | SCREW | |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| N 000125006420 | WASHER | |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| N 000125006420 | WASHER | |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| N 913004006001 | NUT | |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| N 913004006001 | NUT | |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| 389 | A 3049951520 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| Repalced by: A 1009950420 | ||
| 389 | A 1009950420 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| 390 | A 0024310106 | VALVE |
| (FOUR-CIRCUIT PROTECTIVE VALVE) | ||
| "KNORR" | ||
| 390 | A 0014318906 | VALVE |
| (FOUR-CIRCUIT PROTECTIVE VALVE) | ||
| WABCO | ||
| 391 | A 0004301068 | REPAIR KIT |
| Repalced by: A 0004201571 | ||
| 391 | A 0004201571 | REPAIR KIT |
| TO 002 431 01 06 | ||
| 392 | A 0035860943 | REPAIR KIT |
| TO 001 431 89 06 | ||
| 393 | N 074313012100 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "1" | ||
| 393 | A 0029971172 | FITTING |
| Repalced by: A 3454307879 | ||
| 393 | A 3454307879 | CONNECTOR |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "1" | ||
| 394 | A 3459977072 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22" | ||
| N 007603022102 | SEAL RING | |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "22" | ||
| N 080705022001 | NUT | |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "1" | ||
| 396 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 396 | A 0009940203 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "1" | ||
| 397 | A 3089907171 | ELBOW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22" | ||
| 397 | A 3089907171 | ELBOW FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "21" | ||
| A 3849907071 | ELBOW FITTING | |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: | ||
| "21" | ||
| 399 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22" | ||
| 400 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22" | ||
| N 000936016003 | NUT | |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTIONS "21,22" | ||
| N 000936016003 | NUT | |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| N 074317012200 | FITTING | |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 402 | N 074317012203 | FITTING |
| 402 | A 0009904970 | T-FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 403 | A 0004290927 | THRUST RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 404 | A 0009971548 | SEAL RING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23" | ||
| 405 | N 074313006101 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" | ||
| 405 | N 074313006103 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" | ||
| 405 | A 0029978172 | FITTING |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" | ||
| N 007603016103 | SEAL RING | |
| FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" | ||
| 407 | A 3454204037 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "21",TO AIR RESERVOIR I | ||
| 12X1 MM | ||
| 408 | A 3454207833 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR | ||
| 12X1 MM | ||
| 409 | A 3454207633 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR | ||
| 12X1 MM | ||
| N 915017012100 | UNION NUT | |
| N 003861012007 | GLAND | |
| 411 | A 3224320301 | RESERVOIR |
| AIR RESERVOIR I | ||
| 412 | A 3454308005 | RESERVOIR |
| Repalced by: A 3454308105 | ||
| 412 | A 3454308105 | RESERVOIR |
| AIR RESERVOIRS I AND II | ||
| 413 | A 3124302905 | RESERVOIR |
| AIR RESERVOIR I | ||
| 414 | A 3454327001 | RESERVOIR |
| AIR RESERVOIR I | ||
| 414 | A 3214300205 | RESERVOIR |
| Repalced by: A 3454308205 | ||
| 414 | A 3454308205 | RESERVOIR |
| AIR RESERVOIR I | ||
| 415 | A 0004320607 | VALVE |
| Repalced by: A 0004320807 | ||
| 415 | A 3454300081 | VALVE |
| Repalced by: A 0004320807 | ||
| 415 | A 3454300181 | VALVE |
| Repalced by: A 0004320807 | ||
| 415 | A 0004320807 | VALVE |
| DRAIN | ||
| 415 | A 0004321107 | VALVE |
| DRAIN | ||
| 415 | A 0004322107 | VALVE |
| DRAIN | ||
| 415 | A 0004322207 | VALVE |
| DRAIN | ||
| 415 | A 0004322407 | VALVE |
| DRAIN | ||
| N 900397000201 | RING | |
| TO 345 430 00 81 | ||
| N 007603022102 | SEAL RING | |
| N 000908022001 | SCREW PLUG | |
| AT AIR RESERVOIR | ||
| N 007603022102 | SEAL RING | |
| AT AIR RESERVOIR | ||
| 417 | A 0009902470 | T-FITTING |
| AT AIR RESERVOIR I | ||
| 417 | N 074317000100 | FITTING |
| AT AIR RESERVOIR I | ||
| 418 | A 0019972372 | FITTING |
| AT AIR RESERVOIR I | ||
| 418 | N 074313016401 | FITTING |
| AT AIR RESERVOIR I | ||
| 419 | N 074313012100 | FITTING |
| AT AIR RESERVOIR I | ||
| 419 | A 0029971172 | FITTING |
| Repalced by: A 3454307879 | ||
| 419 | A 3454307879 | CONNECTOR |
| AT AIR RESERVOIR I | ||
| N 007603022102 | SEAL RING | |
| AT AIR RESERVOIR I | ||
| 421 | N 074315012101 | FITTING |
| AT AIR RESERVOIR I | ||
| 421 | A 0009907771 | ELBOW FITTING |
| AT AIR RESERVOIR I | ||
| N 074305022202 | NUT | |
| AT AIR RESERVOIR I | ||
| N 074305022202 | NUT | |
| AT AIR RESERVOIR I | ||
| 423 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 423 | A 0009940203 | THRUST RING |
| AT AIR RESERVOIR I | ||
| 423 | A 0009940203 | THRUST RING |
| AT AIR RESERVOIR I | ||
| 424 | A 0009870446 | O-RING |
| AT AIR RESERVOIR I | ||
| 424 | A 0009870446 | O-RING |
| AT AIR RESERVOIR I | ||
| 425 | A 3229970071 | FITTING |
| AT T-FITTING | ||
| N 915045012100 | SEAL RING | |
| AT T-FITTING | ||
| 427 | N 074313016201 | FITTING |
| AT AIR RESERVOIR I | ||
| 427 | A 0019972172 | FITTING |
| AT AIR RESERVOIR I | ||
| N 007603022102 | SEAL RING | |
| AT AIR RESERVOIR I | ||
| 429 | A 0004315406 | VALVE |
| Repalced by: A 0034290344 | ||
| 429 | A 0004296044 | VALVE |
| (OVERFLOW VALVE) | ||
| WABCO | ||
| 430 | A 0004290145 | DIAPHRAGM |
| TO 000 431 54 06 | ||
| 431 | A 0019932301 | SPRING |
| TO 000 429 60 44 | ||
| 432 | A 0004290389 | SPRING RETAINER |
| TO 000 429 60 44 | ||
| 433 | A 0005865842 | REPAIR KIT |
| TO 000 429 60 44 | ||
| 434 | A 3454208836 | LINE |
| FROM OVERFLOW VALVE TO FITTING | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 915065015101 | THRUST RING | |
| COMPRESSED AIR LINE TO DOUBLE FITTING AND TO OVERFLOW VALVE | ||
| N 915045012100 | SEAL RING | |
| COMPRESSED AIR LINE TO DOUBLE FITTING AND TO OVERFLOW VALVE | ||
| 436 | A 0009905871 | ELBOW FITTING |
| AT OVERFLOW VALVE | ||
| 436 | N 074315000200 | FITTING |
| AT OVERFLOW VALVE | ||
| N 074305022202 | NUT | |
| AT OVERFLOW VALVE | ||
| 438 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 438 | A 0009940203 | THRUST RING |
| AT OVERFLOW VALVE | ||
| 439 | A 0009870446 | O-RING |
| AT OVERFLOW VALVE | ||
| 440 | A 0004317006 | VALVE |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 440 | A 0004317206 | VALVE |
| TWO-CIRCUIT PROTECTIVE VALVE | ||
| 441 | A 0014316693 | SPRING |
| TO BOSCH-NR. 0481 027 023,024 | ||
| 442 | A 0014316793 | SPRING |
| TO BOSCH-NR. 0481 027 023,024 | ||
| 442 | A 0009934905 | SPRING |
| Repalced by: A 0009935205 | ||
| 442 | A 0009935205 | SPRING |
| TO BOSCH-NR. 0481 027 103,104 | ||
| 443 | A 0004315333 | FILLER CAP |
| 444 | A 0004311981 | VALVE DISC |
| TO BOSCH-NR. 0481 027 023,024 | ||
| 445 | A 0004312081 | VALVE DISC |
| TO BOSCH-NR. 0481 027 023,024 | ||
| 446 | A 0007630454 | SEAL |
| TO BOSCH-NR. 0481 027 023,024 | ||
| 447 | A 0004315086 | CUP |
| TO BOSCH-NR. 0481 027 023,024 | ||
| 447 | A 0014312086 | CUP |
| Repalced by: A 0014312386 | ||
| 447 | A 0014312386 | CUP |
| TO BOSCH-NR. 0481 027 103,104 | ||
| 447 | A 0014312186 | CUP |
| TO BOSCH-NR. 0481 027 103,104 | ||
| 448 | A 0004317987 | PROTECTIVE CAP |
| 449 | A 0049977945 | SEAL RING |
| TO BOSCH-NR. 0481 027 103,104 | ||
| 450 | A 0004350780 | GASKET |
| TO BOSCH-NR. 0481 027 103,104 | ||
| 451 | N 074313016201 | FITTING |
| 451 | A 0019972172 | FITTING |
| 451 | A 0019972172 | FITTING |
| OUTSIDE AIR RESERVOIR,REAR CONNECTION | ||
| 451 | A 0019972172 | FITTING |
| OVERFLOW VALVE | ||
| 452 | A 0009905871 | ELBOW FITTING |
| AT TWO-CIRCUIT PROTECTIVE VALVE | ||
| 452 | A 0009905871 | ELBOW FITTING |
| OUTSIDE AIR RESERVOIR,REAR CONNECTION | ||
| 452 | N 074315000200 | FITTING |
| AT TWO-CIRCUIT PROTECTIVE VALVE | ||
| 452 | N 074315000200 | FITTING |
| OUTSIDE AIR RESERVOIR,REAR CONNECTION | ||
| N 074305022202 | NUT | |
| AT TWO-CIRCUIT PROTECTIVE VALVE | ||
| N 074305022202 | NUT | |
| OUTSIDE AIR RESERVOIR,REAR CONNECTION | ||
| 454 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 454 | A 0009940203 | THRUST RING |
| AT TWO-CIRCUIT PROTECTIVE VALVE | ||
| 454 | A 0009940203 | THRUST RING |
| OUTSIDE AIR RESERVOIR,REAR CONNECTION | ||
| 455 | A 0009870446 | O-RING |
| AT TWO-CIRCUIT PROTECTIVE VALVE | ||
| 455 | A 0009870446 | O-RING |
| OUTSIDE AIR RESERVOIR,REAR CONNECTION | ||
| 456 | A 0019972372 | FITTING |
| OVERFLOW VALVE | ||
| 456 | N 074313016401 | FITTING |
| OVERFLOW VALVE | ||
| 457 | A 3224320115 | CONSOLE |
| AIR RESERVOIR | ||
| 458 | A 3604301311 | CONSOLE |
| AIR RESERVOIR | ||
| N 000961012160 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| N 000961012106 | SCREW | |
| CONSOLE TO BRACKET | ||
| 460 | A 3454320026 | PLATE |
| CONSOLE TO BRACKET | ||
| N 913004012003 | NUT | |
| CONSOLE TO SIDE MEMBER | ||
| N 913004012006 | NUT | |
| CONSOLE TO BRACKET | ||
| 462 | A 3224300140 | STRAP |
| AIR RESERVOIR TO CONSOLE | ||
| 463 | A 3604300040 | STRAP |
| AIR RESERVOIR TO CONSOLE | ||
| N 001434010024 | PIN | |
| AIR RESERVOIR TO CONSOLE | ||
| N 000094003026 | COTTER PIN | |
| AIR RESERVOIR TO CONSOLE | ||
| N 000933010258 | SCREW | |
| AIR RESERVOIR TO CONSOLE | ||
| N 913004010004 | NUT | |
| AIR RESERVOIR TO CONSOLE | ||
| N 000934010005 | NUT | |
| AIR RESERVOIR TO CONSOLE | ||
| 465 | A 3354320218 | BASE |
| AIR RESERVOIR TO CONSOLE | ||
| 466 | A 3454202026 | LINE |
| FROM AIR RESERVOIR I TO BRAKE-BOOSTER T-FITTING | ||
| 15X1.5 MM | ||
| 466 | A 0454201834 | LINE |
| Repalced by: A 3454207537 | ||
| 466 | A 3454207537 | LINE |
| FROM AIR RESERVOIR I TO BRAKE-BOOSTER T-FITTING | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 915065015101 | THRUST RING | |
| N 915045012100 | SEAL RING | |
| 468 | A 3454208326 | LINE |
| FROM AIR RESERVOIR TO BRAKE BOOSTER, "SUPPLY" | ||
| 15X1.5 MM | ||
| 469 | A 3524207834 | LINE |
| FROM AIR RESERVOIR I TO AIR RESERVOIR IA | ||
| 15X1.5 MM | ||
| 469 | A 0454201934 | LINE |
| Repalced by: A 3454207637 | ||
| 469 | A 3454207637 | LINE |
| FROM AIR RESERVOIR I TO AIR RESERVOIR IA | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 915065015101 | THRUST RING | |
| N 915045012100 | SEAL RING | |
| 471 | A 0444660840 | BRACKET |
| COMPRESSED AIR LINE TO CROSS MEMBER | ||
| N 000933008282 | SCREW | |
| BRACKET TO CROSS MEMBER | ||
| N 912004008100 | LOCK WASHER | |
| BRACKET TO CROSS MEMBER | ||
| N 000934008000 | NUT | |
| BRACKET TO CROSS MEMBER | ||
| N 007985006515 | SCREW | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 000127006203 | LOCK WASHER | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 000934006006 | NUT | |
| COMPRESSED AIR LINE TO BRACKET | ||
| 473 | A 3219950332 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 474 | A 3454310040 | BRACKET |
| BRAKE BOOSTER | ||
| 474 | A 3454317340 | BRACKET |
| BRAKE BOOSTER | ||
| N 000933010174 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| N 000933010129 | SCREW | |
| CONSOLE TO SIDE MEMBER | ||
| N 000127010202 | LOCK WASHER | |
| CONSOLE TO SIDE MEMBER | ||
| 476 | A 0004312405 | BRAKE BOOSTER |
| Repalced by: A 3444317014 | ||
| 476 | A 3444317014 | BRAKE BOOSTER |
| 477 | H 983455860243 | REPAIR KIT |
| MINOR | ||
| 478 | H 983455860343 | REPAIR KIT |
| MAJOR | ||
| 479 | A 0004312986 | CUP |
| 480 | A 0004312886 | SEAL RING |
| 481 | H 983454310192 | ROD |
| 482 | A 0004312786 | CUP |
| Repalced by: A 3459978846 | ||
| 482 | A 3459978846 | SEAL RING |
| 483 | H 983454310222 | COVER |
| Repalced by: A 0004311822 | ||
| 483 | A 0004311822 | COVER |
| A 0004311087 | PROTECTIVE CAP | |
| 485 | H 983454310122 | COVER |
| 486 | H 983454310293 | SPRING |
| Repalced by: A 0014316493 | ||
| 486 | A 0014314093 | SPRING |
| Repalced by: A 0014316493 | ||
| 486 | A 0014316493 | SPRING |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 001 431 40 93 | ||
| N 000931010100 | SCREW | |
| N 000933010261 | SCREW | |
| N 000934010000 | NUT | |
| N 000127010202 | LOCK WASHER | |
| 488 | H 983454310393 | SPRING |
| 489 | H 983454310152 | SPACER WASHER |
| 490 | A 0084310356 | SCREW PLUG |
| 491 | H 983454310493 | SPRING |
| Repalced by: H 983454310793 | ||
| 491 | H 983454310793 | SPRING |
| 492 | H 983454310024 | SLIDE |
| N 071752012000 | YOKE | |
| N 000417008002 | HEADLESS SETSCREW | |
| N 000934008000 | NUT | |
| 494 | A 0004290695 | AIR CLEANER |
| 495 | H 983459970030 | SCREW PLUG |
| 496 | A 0004295032 | T-FITTING |
| AT BRAKE BOOSTER | ||
| 496 | A 0009902970 | T-FITTING |
| AT BRAKE BOOSTER | ||
| 496 | A 0009905871 | ELBOW FITTING |
| AT BRAKE BOOSTER | ||
| 496 | N 074315000200 | FITTING |
| AT BRAKE BOOSTER | ||
| N 074305022202 | NUT | |
| AT BRAKE BOOSTER | ||
| N 074305022202 | NUT | |
| 498 | A 0009870446 | O-RING |
| AT BRAKE BOOSTER | ||
| 499 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 499 | A 0009940203 | THRUST RING |
| AT BRAKE BOOSTER | ||
| 500 | A 3454298136 | CONNECTOR |
| AT BRAKE BOOSTER | ||
| N 007603012112 | SEAL RING | |
| AT BRAKE BOOSTER | ||
| N 000908022001 | SCREW PLUG | |
| AT BRAKE BOOSTER | ||
| N 007603022102 | SEAL RING | |
| AT BRAKE BOOSTER | ||
| N 000933010129 | SCREW | |
| BRAKE BOOSTER TO CONSOLE | ||
| N 000127010202 | LOCK WASHER | |
| BRAKE BOOSTER TO CONSOLE | ||
| 502 | A 3124312092 | ROD |
| Repalced by: A 3444307092 | ||
| 502 | A 3444307092 | ROD |
| Repalced by: A 3454307192 | ||
| 502 | A 3454307192 | ROD |
| PUSH ROD | ||
| N 000936012017 | NUT | |
| Repalced by: N 000936012005 | ||
| N 000936012005 | NUT | |
| PUSH ROD | ||
| TO 312 431 20 92,344 430 70 92 | ||
| 504 | A 3124311097 | YOKE |
| PUSH ROD | ||
| TO 312 431 20 92,344 430 70 92 | ||
| N 000936012010 | NUT | |
| PUSH ROD | ||
| N 071412010100 | GREASE NIPPLE | |
| DOUBLE LEVER TO PUSH ROD | ||
| N 000933008005 | SCREW | |
| DOUBLE LEVER TO PUSH ROD | ||
| N 912004008100 | LOCK WASHER | |
| DOUBLE LEVER TO PUSH ROD | ||
| 506 | A 3454300023 | LEVER |
| Repalced by: A 3444300023 | ||
| 506 | A 3444300023 | LEVER |
| BRAKE BOOSTER | ||
| 507 | A 0459920301 | BUSHING |
| Repalced by: A 3449920201 | ||
| 507 | A 3449920201 | BUSHING |
| DOUBLE LEVER | ||
| 508 | A 3454310074 | PIN |
| DOUBLE LEVER TO PUSH ROD | ||
| 509 | A 3459940005 | LOCK |
| DOUBLE LEVER TO PUSH ROD | ||
| 510 | A 3449930110 | SPRING |
| DOUBLE LEVER | ||
| 510 | A 3529931010 | SPRING |
| DOUBLE LEVER | ||
| 511 | A 3529910007 | PIN |
| DOUBLE LEVER TO PUSH ROD | ||
| N 000094003027 | COTTER PIN | |
| DOUBLE LEVER TO PUSH ROD | ||
| 513 | A 0014309901 | BRAKE MASTER CYLINDER |
| 513 | A 0004313414 | BRAKE CYLINDER |
| Repalced by: A 3644317014 | ||
| 513 | A 3644317014 | BRAKE CYLINDER |
| 514 | H 983455860643 | REPAIR KIT |
| Repalced by: A 0015869143 | ||
| 514 | A 0015869143 | REPAIR KIT |
| Repalced by: A 0004301608 | ||
| 514 | A 0004301608 | REPAIR KIT |
| TO 000 431 34 14,364 431 70 14 | ||
| H 983454310186 | CUP | |
| TO 000 431 34 14 | ||
| H 983454310292 | ROD | |
| TO 000 431 34 14 | ||
| H 983454310893 | SPRING | |
| TO 000 431 34 14 | ||
| H 983454350087 | CUP | |
| TO 000 431 34 14 | ||
| 516 | A 0009905871 | ELBOW FITTING |
| AT COMPRESSED AIR CYLINDER | ||
| 516 | N 074315000200 | FITTING |
| AT COMPRESSED AIR CYLINDER | ||
| 517 | A 0009870446 | O-RING |
| AT COMPRESSED AIR CYLINDER | ||
| 518 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 518 | A 0009940203 | THRUST RING |
| AT COMPRESSED AIR CYLINDER | ||
| N 074305022202 | NUT | |
| AT COMPRESSED AIR CYLINDER | ||
| 520 | A 3454200536 | LINE |
| FROM BRAKE BOOSTER TO ONE-CHAMBER COMPRESSED AIR CYLINDER | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 915065015101 | THRUST RING | |
| N 915045012100 | SEAL RING | |
| SPRING LOAD ACCUMULATOR | ||
| 522 | A 3524207934 | LINE |
| FROM TWO-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR | ||
| 15X1.5 MM | ||
| 522 | H 983454200034 | LINE |
| Repalced by: A 3454207737 | ||
| 522 | A 3454207737 | LINE |
| FROM TWO-CIRCUIT PROTECTIVE VALVE TO AIR RESERVOIR | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 915065015101 | THRUST RING | |
| AT TWO-CIRCUIT PROTECTIVE VALVE & AIR RESERVOIR | ||
| N 915045012100 | SEAL RING | |
| AT TWO-CIRCUIT PROTECTIVE VALVE & AIR RESERVOIR | ||
| 524 | A 3454308005 | RESERVOIR |
| AIR RESERVOIR II | ||
| 525 | A 3214300205 | RESERVOIR |
| Repalced by: A 3454308205 | ||
| 525 | A 3454308205 | RESERVOIR |
| AIR RESERVOIR II | ||
| 525 | A 3454327001 | RESERVOIR |
| AIR RESERVOIR II | ||
| 526 | A 0004320607 | VALVE |
| Repalced by: A 0004320807 | ||
| 526 | A 3454300081 | VALVE |
| Repalced by: A 0004320807 | ||
| 526 | A 3454300181 | VALVE |
| Repalced by: A 0004320807 | ||
| 526 | A 0004320807 | VALVE |
| DRAIN VALVE | ||
| 526 | A 0004321107 | VALVE |
| DRAIN VALVE | ||
| 526 | A 0004322407 | VALVE |
| DRAIN VALVE | ||
| 526 | A 0004302107 | PRESSURE REGULATOR |
| DRAIN VALVE | ||
| 526 | A 0004322107 | VALVE |
| DRAIN VALVE | ||
| N 900397000201 | RING | |
| TO 345 430 00 81 | ||
| N 007603022102 | SEAL RING | |
| AT AIR RESERVOIR II | ||
| 528 | N 074313016201 | FITTING |
| 528 | A 0019972172 | FITTING |
| 529 | A 0019972372 | FITTING |
| 529 | N 074313016401 | FITTING |
| 530 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 530 | A 0009940203 | THRUST RING |
| FITTING TO AIR RESERVOIR | ||
| 531 | A 0009870446 | O-RING |
| FITTING TO AIR RESERVOIR | ||
| N 074305022202 | NUT | |
| FITTING TO AIR RESERVOIR | ||
| N 074317016401 | FITTING | |
| AT AIR RESERVOIR II | ||
| N 074313008101 | FITTING | |
| AT AIR RESERVOIR II | ||
| N 007603022102 | SEAL RING | |
| AT AIR RESERVOIR II | ||
| 533 | A 0019972372 | FITTING |
| AT AIR RESERVOIR II | ||
| 533 | N 074313016401 | FITTING |
| AT AIR RESERVOIR II | ||
| 534 | A 0009905871 | ELBOW FITTING |
| AT AIR RESERVOIR II | ||
| 534 | N 074315000200 | FITTING |
| AT AIR RESERVOIR II | ||
| 535 | N 074313016201 | FITTING |
| AT AIR RESERVOIR II | ||
| 535 | A 0019972172 | FITTING |
| AT AIR RESERVOIR II | ||
| N 007603022102 | SEAL RING | |
| AT AIR RESERVOIR II | ||
| 537 | N 074315012101 | FITTING |
| AT AIR RESERVOIR II | ||
| 537 | A 0009907771 | ELBOW FITTING |
| AT AIR RESERVOIR II | ||
| 538 | A 0009870446 | O-RING |
| AT AIR RESERVOIR II | ||
| 539 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 539 | A 0009940203 | THRUST RING |
| AT AIR RESERVOIR II | ||
| N 074305022202 | NUT | |
| AT AIR RESERVOIR II | ||
| 541 | A 3049950532 | CLAMP |
| AT AIR RESERVOIR II | ||
| N 007985006515 | SCREW | |
| AT AIR RESERVOIR II | ||
| N 000125006420 | WASHER | |
| AT AIR RESERVOIR II | ||
| N 913004006001 | NUT | |
| AT AIR RESERVOIR II | ||
| 543 | A 0004298344 | VALVE |
| 543 | A 0004295544 | VALVE |
| 543 | A 0004296044 | VALVE |
| (OVERFLOW VALVE) | ||
| "WESTINGHOUSE" | ||
| 543 | A 0004296044 | VALVE |
| (OVERFLOW VALVE) | ||
| "WESTINGHOUSE" | ||
| 543 | A 0004315406 | VALVE |
| Repalced by: A 0034290344 | ||
| 543 | A 0034290344 | VALVE |
| (OVERFLOW VALVE) | ||
| "KNORR" | ||
| 543 | A 0034290344 | VALVE |
| (OVERFLOW VALVE) | ||
| "KNORR" | ||
| 544 | A 0004290145 | DIAPHRAGM |
| TO 000 431 54 06 | ||
| 544 | A 0004290145 | DIAPHRAGM |
| TO 000 431 54 06 | ||
| A 0004290945 | DIAPHRAGM | |
| 546 | A 0019932301 | SPRING |
| TO 000 429 60 44 | ||
| 546 | A 0019932301 | SPRING |
| TO 000 429 60 44 | ||
| 547 | A 0004290389 | SPRING RETAINER |
| TO 000 429 60 44 | ||
| 547 | A 0004290389 | SPRING RETAINER |
| TO 000 429 60 44 | ||
| 548 | A 0005865842 | REPAIR KIT |
| TO 000 429 60 44 | ||
| 548 | A 0005865842 | REPAIR KIT |
| TO 000 429 60 44 | ||
| 549 | N 074315000200 | FITTING |
| 549 | N 074315000200 | FITTING |
| 549 | A 0009905871 | ELBOW FITTING |
| 549 | A 0009905871 | ELBOW FITTING |
| 550 | A 0009870446 | O-RING |
| 550 | A 0009870446 | O-RING |
| 551 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 551 | A 0009940203 | THRUST RING |
| 551 | A 0009940203 | THRUST RING |
| N 074305022202 | NUT | |
| N 074305022202 | NUT | |
| N 007603022102 | SEAL RING | |
| 553 | A 3454208536 | LINE |
| FROM OVERFLOW VALVE TO AIR RESERVOIR | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 915065015101 | THRUST RING | |
| COMPRESSED AIR LINE TO T-FITTING & TO OVERFLOW VALVE | ||
| N 915045012100 | SEAL RING | |
| COMPRESSED AIR LINE TO T-FITTING & TO OVERFLOW VALVE | ||
| 555 | A 3454204049 | LINE |
| FROM AIR RESERVOIR I TO FITTING | ||
| 12X1 MM | ||
| 556 | A 3454208033 | LINE |
| FROM FITTING TO SERVICE BRAKE VALVE, CONNECTION: | ||
| "12" 12X1 MM | ||
| 557 | A 3454204237 | LINE |
| FROM AIR RESERVOIR I TO FITTING | ||
| 12X1 MM | ||
| 558 | A 3454204437 | LINE |
| FROM AIR RESERVOIR I TO FITTING | ||
| 559 | A 3454206537 | LINE |
| FROM FITTING TO SERVICE BRAKE VALVE, CONNECTION: | ||
| "11"12X1 MM | ||
| 559 | A 3444203537 | LINE |
| FROM FITTING TO SERVICE BRAKE VALVE, CONNECTION: | ||
| "11" | ||
| 559 | A 3444206745 | LINE |
| FROM FITTING TO SERVICE BRAKE VALVE, CONNECTION: | ||
| "11" | ||
| 560 | A 3444203536 | LINE |
| FROM FITTING TO SERVICE BRAKE VALVE, CONNECTION: | ||
| "11" | ||
| 561 | A 3454203949 | LINE |
| FROM AIR RESERVOIR II TO FITTING | ||
| 12X1 MM | ||
| 562 | A 3454207933 | LINE |
| "11" 12X1 MM | ||
| 563 | A 3454204437 | LINE |
| FROM AIR RESERVOIR II TO FITTING | ||
| 12X1 MM | ||
| 564 | A 3454204237 | LINE |
| FROM AIR RESERVOIR II TO FITTING | ||
| 565 | A 3454203537 | LINE |
| FROM FITTING TO SERVICE BRAKE VALVE, CONNECTION: | ||
| "12"12X1 MM | ||
| 565 | A 3444203137 | LINE |
| FROM FITTING TO SERVICE BRAKE VALVE, CONNECTION: | ||
| "12" | ||
| 565 | A 3444205845 | LINE |
| FROM FITTING TO SERVICE BRAKE VALVE, CONNECTION: | ||
| "12" | ||
| 566 | A 3444203136 | LINE |
| FROM FITTING TO SERVICE BRAKE VALVE, CONNECTION: | ||
| "12" | ||
| N 915017012100 | UNION NUT | |
| N 003861012007 | GLAND | |
| N 003902012001 | CONNECTION FITTING | |
| 568 | N 003902012003 | CONNECTION FITTING |
| 568 | A 0029971472 | FITTING |
| 569 | A 0024313905 | BRAKE VALVE |
| "KNORR" | ||
| 569 | A 0024313905 | BRAKE VALVE |
| "KNORR" | ||
| 571 | A 3454317005 | BRAKE VALVE |
| KNORR | ||
| 571 | A 3454317105 | BRAKE VALVE |
| WABCO | ||
| 572 | A 0014311386 | CUP |
| TO 002 431 39 05 | ||
| 573 | A 0009910845 | RING |
| TO 002 431 39 05 | ||
| 574 | A 0004319483 | PISTON |
| TO 002 431 39 05, 345 431 70 05 | ||
| 574 | A 0004318783 | PISTON |
| 574 | A 0004318883 | PISTON |
| 574 | A 0004318683 | PISTON |
| TO 345 431 71 05 | ||
| 575 | A 0004311522 | COVER |
| MAKE KNORR | ||
| TO 002 431 39 05 | ||
| 575 | A 0004311622 | COVER |
| MAKE KNORR | ||
| TO 002 431 39 05 | ||
| 576 | A 0014317093 | SPRING |
| MAKE KNORR | ||
| TO 002 431 39 05 | ||
| 577 | A 0014317193 | SPRING |
| MAKE KNORR | ||
| TO 002 431 39 05,345 431 70 05 | ||
| 578 | A 0014317293 | SPRING |
| MAKE KNORR | ||
| TO 002 431 39 05,345 431 70 05 | ||
| 578 | A 0014317493 | SPRING |
| TO 345 431 71 05 | ||
| 579 | A 0004310750 | BUSHING |
| MAKE KNORR | ||
| TO 002 431 39 05 | ||
| 580 | A 0004312374 | PIN |
| MAKE KNORR | ||
| TO 002 431 39 05 | ||
| 581 | A 0019974286 | PLUG |
| MAKE KNORR | ||
| TO 002 431 39 05 | ||
| 582 | A 0049949941 | LOCK |
| TO 002 431 39 05,345 431 70 05 | ||
| 582 | N 000984038000 | LOCK RING |
| TO 345 431 71 05 | ||
| 582 | N 000472045000 | LOCK RING |
| TO 345 431 71 05 | ||
| 582 | N 000472047001 | LOCK RING |
| TO 345 431 71 05 | ||
| 582 | N 000472060000 | LOCK RING |
| TO 345 431 71 05 | ||
| 583 | A 0004301160 | REPAIR KIT |
| Repalced by: A 0004306260 | ||
| 583 | A 0004306260 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 345 431 71 05 | ||
| 584 | A 0004307360 | REPAIR KIT |
| Repalced by: A 0004304306 | ||
| 584 | A 0004304306 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 002 431 39 05 | ||
| 584 | A 0004304206 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 345 431 70 05 | ||
| 584 | A 0014301260 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 002 431 39 05,345 431 70 05 | ||
| 584 | A 0014301160 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 345 431 71 05 | ||
| N 000933008288 | SCREW | |
| BRAKE VALVE | ||
| N 000933008288 | SCREW | |
| BRAKE VALVE | ||
| N 913004008001 | NUT | |
| BRAKE VALVE | ||
| N 913004008001 | NUT | |
| BRAKE VALVE | ||
| N 003901012005 | SCREW-IN FITTING | |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,21" | ||
| N 003901012005 | SCREW-IN FITTING | |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11" | ||
| N 003901012005 | SCREW-IN FITTING | |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "21" | ||
| 586 | N 003901012014 | SCREW-IN FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11" | ||
| 586 | A 0029971572 | FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,21" | ||
| 586 | A 0029971572 | FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11" | ||
| 586 | A 0029971572 | FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "21" | ||
| 587 | A 3459907270 | T-FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "21" | ||
| N 000936016003 | NUT | |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "21" | ||
| 589 | A 0009971548 | SEAL RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "21" | ||
| 590 | A 0004290927 | THRUST RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "21" | ||
| 591 | N 074313006101 | FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| 591 | N 074313006101 | FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| 591 | N 074313006103 | FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| 591 | A 0029978172 | FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| 591 | A 0029978172 | FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| N 915036012200 | HOLLOW SCREW | |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| N 915036012203 | HOLLOW SCREW | |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12" | ||
| 593 | N 074317012200 | FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "12" | ||
| 593 | N 074317012203 | FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "12" | ||
| 593 | A 0009904970 | T-FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "12" | ||
| 594 | A 3089907171 | ELBOW FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "22" | ||
| 594 | A 3849907071 | ELBOW FITTING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "22" | ||
| N 000936016003 | NUT | |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "12",22" | ||
| N 000936016003 | NUT | |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "22" | ||
| 596 | A 0004290927 | THRUST RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "12,22" | ||
| 596 | A 0004290927 | THRUST RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "22" | ||
| 597 | A 0009971548 | SEAL RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "12,22" | ||
| 597 | A 0009971548 | SEAL RING |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "22" | ||
| N 007604016102 | SCREW PLUG | |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "21,22" | ||
| N 007604016107 | SCREW PLUG | |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "21,22" | ||
| N 007603016103 | SEAL RING | |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "11,12,21" | ||
| 599 | A 3645457409 | SWITCH |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "21" | ||
| 599 | A 0005456009 | SWITCH |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "21" | ||
| 600 | A 3459978282 | HOSE |
| SERVICE BRAKE VALVE | ||
| 600 | A 3459978282 | HOSE |
| SERVICE BRAKE VALVE | ||
| 601 | A 3134310080 | GASKET |
| SERVICE BRAKE VALVE TO BRACKET | ||
| N 913004008001 | NUT | |
| SERVICE BRAKE VALVE TO BRACKET | ||
| N 000125008417 | WASHER | |
| SERVICE BRAKE VALVE TO BRACKET | ||
| 603 | A 3454200836 | LINE |
| FROM AIR RESERVOIR II TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 604 | A 3454205537 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO T-FITTING | ||
| 8X0.7 MM | ||
| 604 | A 3444209533 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO T-FITTING | ||
| 604 | A 3444206345 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO T-FITTING | ||
| 605 | A 3444203036 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO T-FITTING | ||
| 606 | A 3454206949 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO FITTING | ||
| 8X0.7 MM | ||
| 607 | A 3454207233 | LINE |
| FROM FITTING TO T-FITTING | ||
| 8X0.7 MM | ||
| N 915017008100 | UNION NUT | |
| N 003861008005 | GLAND | |
| 609 | A 0019972672 | FITTING |
| 609 | N 003902008004 | CONNECTION FITTING |
| 609 | N 003902008001 | CONNECTION FITTING |
| 610 | A 0009901070 | T-FITTING |
| M14X1,5 / M14X1,5 / M12X1,5 | ||
| 610 | A 3454297132 | T-FITTING |
| 611 | A 0005455414 | SWITCH |
| AT HAND BRAKE VALVE | ||
| 611 | A 3445457214 | SWITCH |
| AT HAND BRAKE VALVE | ||
| 612 | A 3524208034 | LINE |
| FROM HAND BRAKE VALVE,CONNECTION "1", TO CONNECTION FITTING | ||
| 8X1 MM | ||
| 612 | A 0454200134 | LINE |
| Repalced by: A 3454207837 | ||
| 612 | A 3454207837 | LINE |
| FROM HAND BRAKE VALVE,CONNECTION "1", TO CONNECTION FITTING | ||
| 8X1 MM | ||
| 613 | A 3444209733 | LINE |
| FROM T-FITTING TO FITTING | ||
| 614 | A 3459978272 | FITTING |
| BULKHEAD FITTING | ||
| 614 | A 0009909271 | ELBOW FITTING |
| BULKHEAD FITTING | ||
| N 080705014001 | NUT | |
| BULKHEAD FITTING | ||
| N 006797014150 | TOOTHED WASHER | |
| BULKHEAD FITTING | ||
| N 000125015012 | WASHER | |
| BULKHEAD FITTING | ||
| 616 | A 0089979082 | HOSE |
| Repalced by: A 0009874927 | ||
| 616 | A 0009874927 | PLASTIC PIPE |
| PARKING BRAKE VALVE,CONNECTION: | ||
| 8X6 MM | ||
| 616 | A 0009874927 | PLASTIC PIPE |
| PARKING BRAKE VALVE,CONNECTION: | ||
| 8X6 MM | ||
| N 915017008100 | UNION NUT | |
| PARKING BRAKE VALVE,CONNECTION: | ||
| N 003861008005 | GLAND | |
| PARKING BRAKE VALVE,CONNECTION: | ||
| 618 | A 0019976672 | FITTING |
| Repalced by: N 915062006000 | ||
| 618 | N 915062006000 | SLEEVE |
| PARKING BRAKE VALVE,CONNECTION: | ||
| N 915052006005 | BANJO UNION | |
| PARKING BRAKE VALVE,CONNECTION: | ||
| N 915052006021 | BANJO UNION | |
| PARKING BRAKE VALVE,CONNECTION: | ||
| 620 | A 3444202736 | LINE |
| FROM HAND BRAKE VALVE,CONNECTION "1", TO CONNECTION FITTING | ||
| 621 | A 3454206049 | LINE |
| FROM T-FITTING TO HAND BRAKE VALVE, CONNECTION: | ||
| "1" 8X0.7 MM | ||
| N 915017008100 | UNION NUT | |
| N 003861008005 | GLAND | |
| 623 | A 3454297540 | BRACKET |
| 623 | A 3454297540 | BRACKET |
| 623 | A 3454297540 | BRACKET |
| COMPRESSED AIR LINE TO DOUBLE FITTING | ||
| A 0009959101 | CLAMP | |
| Repalced by: N 916016008203 | ||
| N 916016008203 | CLAMP | |
| COMPRESSED AIR LINE MOUNTING | ||
| 625 | A 3379950032 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 625 | A 3379950032 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 625 | A 3379950032 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 625 | A 3379950032 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 625 | A 3049950532 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 625 | A 3049950532 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| A 3449950132 | CLAMP | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 007985005171 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 007985006515 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 007985006515 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000125005315 | WASHER | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000125006420 | WASHER | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000125006420 | WASHER | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 913004005001 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 913004006001 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 913004006001 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| HAND BRAKE | ||
| 630 | A 3454317016 | VALVE |
| 631 | H 983454310016 | VALVE |
| N 000933008273 | SCREW | |
| N 000127008200 | LOCK WASHER | |
| 633 | A 0004290695 | AIR CLEANER |
| N 000094003007 | COTTER PIN | |
| 635 | H 983454310793 | SPRING |
| 636 | A 0019972530 | SCREW PLUG |
| N 001433012015 | PIN | |
| N 000094004023 | COTTER PIN | |
| 638 | A 0004317087 | PROTECTIVE CAP |
| N 000471020000 | LOCK RING | |
| 640 | A 0004317386 | CUP |
| 641 | A 0004350390 | VALVE DISC |
| N 007603030100 | SEAL RING | |
| 643 | H 983455860443 | REPAIR KIT |
| 644 | A 0004304781 | VALVE |
| Repalced by: A 3454307381 | ||
| 644 | A 3454307381 | VALVE |
| (HAND BRAKE VALVE) | ||
| WABCO | ||
| 644 | A 3454307381 | VALVE |
| (HAND BRAKE VALVE) | ||
| WABCO | ||
| 644 | A 3454307381 | VALVE |
| (HAND BRAKE VALVE) | ||
| WABCO | ||
| 645 | A 3644307181 | VALVE |
| (HAND BRAKE VALVE) | ||
| WABCO | ||
| 645 | A 3644307281 | VALVE |
| (HAND BRAKE VALVE) | ||
| KNORR | ||
| 646 | A 0009973277 | HANDLE |
| TO 345 430 73 81 | ||
| 647 | A 0025867243 | REPAIR KIT |
| Repalced by: A 0034303381 | ||
| 647 | A 0034303381 | REPAIR KIT |
| Repalced by: A 0034304781 | ||
| 647 | A 0034304781 | REPAIR KIT |
| HAND BRAKE VALVE | ||
| TO 364 430 71 81 | ||
| 647 | A 0004304406 | REPAIR KIT |
| HAND BRAKE VALVE | ||
| TO 364 430 72 81 | ||
| 647 | H 983455861043 | REPAIR KIT |
| Repalced by: A 0034301181 | ||
| 647 | A 0034301181 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 345 430 73 81 | ||
| 647 | A 0005868043 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 345 430 73 81 | ||
| N 007603014102 | SEAL RING | |
| AT HAND BRAKE VALVE | ||
| N 007603014102 | SEAL RING | |
| AT HAND BRAKE VALVE | ||
| N 007603014102 | SEAL RING | |
| AT HAND BRAKE VALVE | ||
| N 007603022102 | SEAL RING | |
| AT HAND BRAKE VALVE | ||
| 649 | N 074313016201 | FITTING |
| AT HAND BRAKE VALVE | ||
| 649 | A 0019972172 | FITTING |
| AT HAND BRAKE VALVE | ||
| 650 | N 003901010001 | SCREW-IN FITTING |
| AT HAND BRAKE VALVE | ||
| 650 | N 003901010001 | SCREW-IN FITTING |
| AT HAND BRAKE VALVE | ||
| 650 | N 003901010001 | SCREW-IN FITTING |
| AT HAND BRAKE VALVE | ||
| 651 | A 0004295032 | T-FITTING |
| AT HAND BRAKE VALVE | ||
| 652 | A 0459900071 | ELBOW FITTING |
| Repalced by: A 3454297338 | ||
| 652 | A 3454297338 | ELBOW FITTING |
| AT HAND BRAKE VALVE | ||
| 652 | A 3454297338 | ELBOW FITTING |
| AT HAND BRAKE VALVE | ||
| 652 | A 3454297338 | ELBOW FITTING |
| AT HAND BRAKE VALVE | ||
| N 915017010100 | UNION NUT | |
| AT HAND BRAKE VALVE | ||
| N 915017010100 | UNION NUT | |
| AT HAND BRAKE VALVE | ||
| N 915017010100 | UNION NUT | |
| AT HAND BRAKE VALVE | ||
| N 003861010009 | GLAND | |
| AT HAND BRAKE VALVE | ||
| N 003861010009 | GLAND | |
| AT HAND BRAKE VALVE | ||
| N 003861010009 | GLAND | |
| AT HAND BRAKE VALVE | ||
| 654 | A 0454200081 | LEVER |
| Repalced by: A 3454207381 | ||
| 654 | A 3454207381 | LEVER |
| TOP | ||
| 655 | A 0454200181 | LEVER |
| Repalced by: A 3454207481 | ||
| 655 | A 3454207481 | LEVER |
| BOTTOM | ||
| 656 | A 0459920101 | BUSHING |
| Repalced by: A 3459927101 | ||
| 656 | A 3459927101 | BUSHING |
| N 071412010300 | GREASE NIPPLE | |
| N 001444014212 | PIN | |
| UPPER LEVER TO BRACKET | ||
| N 000125015012 | WASHER | |
| UPPER LEVER TO BRACKET | ||
| N 000094004050 | COTTER PIN | |
| UPPER LEVER TO BRACKET | ||
| 658 | A 3604200089 | SHACKLE |
| N 001444014211 | PIN | |
| SHACKLE TO LEVER | ||
| N 000125015012 | WASHER | |
| SHACKLE TO LEVER | ||
| N 000094004050 | COTTER PIN | |
| SHACKLE TO LEVER | ||
| 660 | A 0009870446 | O-RING |
| AT HAND BRAKE VALVE | ||
| 661 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 661 | A 0009940203 | THRUST RING |
| AT HAND BRAKE VALVE | ||
| N 074305022202 | NUT | |
| AT HAND BRAKE VALVE | ||
| N 007604022200 | SCREW PLUG | |
| AT HAND BRAKE VALVE | ||
| 663 | A 0005455414 | SWITCH |
| AT HAND BRAKE VALVE | ||
| 663 | A 3445457214 | SWITCH |
| AT HAND BRAKE VALVE | ||
| 664 | A 3454208636 | LINE |
| FROM AIR RESERVOIR TO HAND BRAKE VALVE | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 915065015101 | THRUST RING | |
| LINE TO AIR RESERVOIR & BRAKE VALVE | ||
| N 915045012100 | SEAL RING | |
| LINE TO AIR RESERVOIR & BRAKE VALVE | ||
| 666 | A 3554311340 | BRACKET |
| HAND BRAKE VALVE | ||
| 667 | A 3604300110 | BRACKET |
| HAND BRAKE VALVE | ||
| 668 | A 3444307010 | BRACKET |
| HAND BRAKE VALVE | ||
| 668 | A 3444307010 | BRACKET |
| HAND BRAKE VALVE | ||
| 668 | A 3444307010 | BRACKET |
| HAND BRAKE VALVE | ||
| 669 | A 3454317140 | BRACKET |
| HAND BRAKE VALVE | ||
| 669 | A 3454317140 | BRACKET |
| HAND BRAKE VALVE | ||
| 669 | A 3454318740 | BRACKET |
| HAND BRAKE VALVE | ||
| N 000933008282 | SCREW | |
| BRACKET TO CAB FLOOR | ||
| N 000933008280 | SCREW | |
| BRACKET TO CAB FLOOR | ||
| 8X50 MM | ||
| N 000933008280 | SCREW | |
| BRACKET TO CAB FLOOR | ||
| 8X50 MM | ||
| N 000933008279 | SCREW | |
| BRACKET TO CAB FLOOR | ||
| 8X40 MM | ||
| N 000933008279 | SCREW | |
| BRACKET TO CAB FLOOR | ||
| 8X40 MM | ||
| N 000127008104 | LOCK WASHER | |
| BRACKET TO CAB FLOOR | ||
| N 000127008104 | LOCK WASHER | |
| BRACKET TO CAB FLOOR | ||
| N 000127008104 | LOCK WASHER | |
| BRACKET TO CAB FLOOR | ||
| 671 | A 3452927092 | COVER PLATE |
| N 007981004226 | SHEET METAL SCREW | |
| N 915036010100 | HOLLOW SCREW | |
| PARKING BRAKE VALVE | ||
| N 915036010204 | HOLLOW SCREW | |
| PARKING BRAKE VALVE | ||
| N 007603014106 | SEAL RING | |
| PARKING BRAKE VALVE | ||
| 673 | A 3454277841 | BRACKET |
| PARKING BRAKE VALVE | ||
| 674 | A 3844317140 | BRACKET |
| Repalced by: A 3844307510 | ||
| 674 | A 3844307510 | BRACKET |
| PARKING BRAKE VALVE | ||
| N 000931010395 | SCREW | |
| ANGLE TO PEDESTAL | ||
| N 000125010517 | WASHER | |
| ANGLE TO PEDESTAL | ||
| N 913004010004 | NUT | |
| ANGLE TO PEDESTAL | ||
| N 000933006221 | SCREW | |
| BRACKET TO BRACKET | ||
| N 000933006221 | SCREW | |
| BRACKET TO BRACKET | ||
| N 000933006221 | SCREW | |
| BRACKET TO BRACKET | ||
| N 000127006203 | LOCK WASHER | |
| BRACKET TO BRACKET | ||
| N 000127006203 | LOCK WASHER | |
| BRACKET TO BRACKET | ||
| N 000127006203 | LOCK WASHER | |
| BRACKET TO BRACKET | ||
| N 000934006006 | NUT | |
| BRACKET TO BRACKET | ||
| N 000934006006 | NUT | |
| BRACKET TO BRACKET | ||
| N 000934006006 | NUT | |
| BRACKET TO BRACKET | ||
| N 000934008010 | NUT | |
| BRACKET TO CAB FLOOR | ||
| N 000934008010 | NUT | |
| BRACKET TO CAB FLOOR | ||
| N 000934008010 | NUT | |
| BRACKET TO CAB FLOOR | ||
| N 000931010127 | SCREW | |
| HAND BRAKE VALVE TO BRACKET AND TO CROSS MEMBER | ||
| N 000965006026 | SCREW | |
| HAND BRAKE VALVE TO BRACKET | ||
| M 6X20 | ||
| N 000965006026 | SCREW | |
| HAND BRAKE VALVE TO BRACKET | ||
| M 6X20 | ||
| N 000965006026 | SCREW | |
| HAND BRAKE VALVE TO BRACKET | ||
| M 6X20 | ||
| N 000127010202 | LOCK WASHER | |
| HAND BRAKE VALVE TO BRACKET AND TO CROSS MEMBER | ||
| N 000127006203 | LOCK WASHER | |
| HAND BRAKE VALVE TO BRACKET | ||
| N 000127006203 | LOCK WASHER | |
| HAND BRAKE VALVE TO BRACKET | ||
| N 000127006203 | LOCK WASHER | |
| HAND BRAKE VALVE TO BRACKET | ||
| N 000934010000 | NUT | |
| HAND BRAKE VALVE TO BRACKET AND TO CROSS MEMBER | ||
| N 000934006006 | NUT | |
| HAND BRAKE VALVE TO BRACKET | ||
| N 000934006006 | NUT | |
| HAND BRAKE VALVE TO BRACKET | ||
| N 000934006006 | NUT | |
| HAND BRAKE VALVE TO BRACKET | ||
| N 000933008268 | SCREW | |
| PARKING BRAKE VALVE TO BRACKET | ||
| N 912004008100 | LOCK WASHER | |
| PARKING BRAKE VALVE TO BRACKET | ||
| N 000933008268 | SCREW | |
| BRACKET TO PEDESTAL | ||
| N 913004008001 | NUT | |
| BRACKET TO PEDESTAL | ||
| 676 | H 103446840227 | PROTECTIVE CAP |
| Repalced by: A 3446847027 | ||
| 676 | A 3446847027 | PLATE |
| 676 | A 3446847027 | PLATE |
| 676 | A 3446847027 | PLATE |
| 677 | A 3506807007 | COVERING |
| N 000966005023 | SCREW | |
| N 000966005023 | SCREW | |
| N 000966005023 | SCREW | |
| N 900056005202 | COUNTERSUNK WASHER | |
| N 900056005202 | COUNTERSUNK WASHER | |
| N 900056005202 | COUNTERSUNK WASHER | |
| N 000933008268 | SCREW | |
| PARKING BRAKE VALVE | ||
| N 912004008100 | LOCK WASHER | |
| PARKING BRAKE VALVE | ||
| 679 | A 3524208134 | LINE |
| HAND BRAKE VALVE BLEEDING | ||
| 8X1.0 MM | ||
| 679 | A 0454200334 | LINE |
| Repalced by: A 3454207937 | ||
| 679 | A 3454207937 | LINE |
| HAND BRAKE VALVE BLEEDING | ||
| 8X0.7 MM | ||
| 679 | A 3454207937 | LINE |
| HAND BRAKE VALVE BLEEDING | ||
| 8X0.7 MM | ||
| 679 | A 3454207937 | LINE |
| HAND BRAKE VALVE BLEEDING | ||
| 8X0.7 MM | ||
| N 915017008100 | UNION NUT | |
| N 003861008005 | GLAND | |
| 681 | A 3454208945 | LINE |
| FROM HAND BRAKE VALVE TO SPRING-LOAD ACCUMULATOR | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 915065015101 | THRUST RING | |
| LINE TO HAND BRAKE VALVE & SPRING LOAD ACCUMULATOR | ||
| N 915045012100 | SEAL RING | |
| LINE TO HAND BRAKE VALVE & SPRING LOAD ACCUMULATOR | ||
| 683 | A 3524281740 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000933008050 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 912004008100 | LOCK WASHER | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000934008000 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| 685 | A 0009954701 | CLAMP |
| Repalced by: N 916016015202 | ||
| 685 | N 916016015202 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 685 | A 3459957701 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| N 007985006515 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000127006203 | LOCK WASHER | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000934006006 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| 687 | A 3524208234 | LINE |
| FROM HAND BRAKE VALVE,CONNECTION "2", TO CONNECTION FITTING I | ||
| 8X1.0 MM | ||
| 687 | A 3454203449 | LINE |
| FROM HAND BRAKE VALVE,CONNECTION "2", TO CONNECTION FITTING I | ||
| 8X0.7 MM | ||
| 688 | A 0454200234 | LINE |
| Repalced by: A 3454201036 | ||
| 688 | A 3454201036 | LINE |
| FROM HAND BRAKE VALVE,CONNECTION "2", TO CONNECTION FITTING I | ||
| 8X0.7 MM | ||
| 689 | A 3444202836 | LINE |
| FROM HAND BRAKE VALVE,CONNECTION "2", TO CONNECTION FITTING I | ||
| 8X0.7 MM | ||
| 690 | A 3504297340 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000933008288 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 913004008001 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 916016008200 | CLAMP | |
| COMPRESSED AIR LINE MOUNTING | ||
| A 3444297340 | BRACKET | |
| COMPRESSED AIR LINE MOUNTING | ||
| 693 | A 3049951520 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| Repalced by: A 1009950420 | ||
| 693 | A 1009950420 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 693 | A 3379950032 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 693 | A 3449950132 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| N 007985006515 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 913004006001 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000125006420 | WASHER | |
| COMPRESSED AIR LINE MOUNTING | ||
| 695 | A 0089979082 | HOSE |
| Repalced by: A 0009874927 | ||
| 695 | A 0009874927 | PLASTIC PIPE |
| FROM PARKING BRAKE VALVE,CONNECTION "21",TO FITTING | ||
| 8X6 MM | ||
| 695 | A 0009874927 | PLASTIC PIPE |
| FROM PARKING BRAKE VALVE,CONNECTION "21",TO FITTING | ||
| 8X6 MM | ||
| N 915017008100 | UNION NUT | |
| FROM PARKING BRAKE VALVE,CONNECTION "21",TO FITTING | ||
| N 003861008005 | GLAND | |
| FROM PARKING BRAKE VALVE,CONNECTION "21",TO FITTING | ||
| 697 | A 0019976672 | FITTING |
| Repalced by: N 915062006000 | ||
| 697 | N 915062006000 | SLEEVE |
| FROM PARKING BRAKE VALVE,CONNECTION "21",TO FITTING | ||
| N 915052006005 | BANJO UNION | |
| FROM PARKING BRAKE VALVE,CONNECTION "21",TO FITTING | ||
| N 915052006021 | BANJO UNION | |
| FROM PARKING BRAKE VALVE,CONNECTION "21",TO FITTING | ||
| 699 | A 3454207333 | LINE |
| FROM FITTING TO FITTING | ||
| 8X0.7 MM | ||
| 700 | A 3454208037 | LINE |
| FROM FITTING TO CONNECTION FITTING | ||
| 8X0.7 MM | ||
| 701 | A 3454206849 | LINE |
| FROM FITTING TO FITTING | ||
| 8X0.7 MM | ||
| 702 | A 3454206337 | LINE |
| FROM FITTING TO FITTING | ||
| 8X0.7 MM | ||
| 702 | A 3444209933 | LINE |
| FROM FITTING TO FITTING | ||
| 702 | A 3444206445 | LINE |
| FROM FITTING TO FITTING | ||
| 703 | A 3444207134 | LINE |
| 704 | A 3444203736 | LINE |
| FROM FITTING TO FITTING | ||
| 8X0.7 MM | ||
| N 915017008100 | UNION NUT | |
| N 003861008005 | GLAND | |
| N 003861008005 | GLAND | |
| 706 | N 003902008004 | CONNECTION FITTING |
| 706 | A 0019972672 | FITTING |
| 706 | A 0019972672 | FITTING |
| 706 | N 003902008001 | CONNECTION FITTING |
| 706 | N 003902008001 | CONNECTION FITTING |
| A 0009959101 | CLAMP | |
| Repalced by: N 916016008203 | ||
| N 916016008203 | CLAMP | |
| COMPRESSED AIR LINE MOUNTING | ||
| 708 | A 3524208334 | LINE |
| FROM DOUBLE FITTING TO QUICK-RELEASE VALVE | ||
| 8X1.0 MM | ||
| 708 | A 0454200434 | LINE |
| Repalced by: A 3454208137 | ||
| 708 | A 3454208137 | LINE |
| FROM DOUBLE FITTING TO QUICK-RELEASE VALVE | ||
| 8X1.0 MM | ||
| 708 | A 3454209137 | LINE |
| FROM DOUBLE FITTING TO QUICK-RELEASE VALVE | ||
| 8X0.7 MM | ||
| 708 | A 3454202436 | LINE |
| FROM DOUBLE FITTING TO QUICK-RELEASE VALVE | ||
| 8X0.7 MM | ||
| 709 | A 3454206749 | LINE |
| FROM FITTING TO RELAY VALVE | ||
| 8X0.7 MM | ||
| 710 | A 3454205437 | LINE |
| FROM FITTING TO RELAY VALVE | ||
| 8X0.7 MM | ||
| 710 | A 3454205637 | LINE |
| FROM FITTING TO RELAY VALVE | ||
| 8X0.7 MM | ||
| 710 | A 3454205737 | LINE |
| FROM FITTING TO RELAY VALVE | ||
| 8X0.7 MM | ||
| N 915017008100 | UNION NUT | |
| N 003861008005 | GLAND | |
| A 0009959101 | CLAMP | |
| Repalced by: N 916016008203 | ||
| N 916016008203 | CLAMP | |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| N 007985005171 | SCREW | |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| N 000125005315 | WASHER | |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| N 000127005001 | LOCK WASHER | |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| N 000934005008 | NUT | |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| 712 | A 3524281740 | BRACKET |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| N 000933008282 | SCREW | |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| N 912004008100 | LOCK WASHER | |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| N 000934008000 | NUT | |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| A 0009959101 | CLAMP | |
| Repalced by: N 916016008203 | ||
| N 916016008203 | CLAMP | |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| N 007985005171 | SCREW | |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| N 000125005315 | WASHER | |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| N 000127005001 | LOCK WASHER | |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| N 000934005008 | NUT | |
| COMPRESSED AIR LINE TO SIDE MEMBER | ||
| 714 | A 3454207733 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO FITTING | ||
| 12X1 MM | ||
| 715 | A 3454209033 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO FITTING | ||
| 12X1 MM | ||
| 716 | A 3444202636 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE CONNECTION "23" TO FITTING | ||
| 717 | A 3454203849 | LINE |
| FROM FITTING TO RELAY VALVE | ||
| 718 | A 3454204137 | LINE |
| FROM FITTING TO RELAY VALVE | ||
| 12X1 MM | ||
| 718 | A 3454204837 | LINE |
| FROM FITTING TO RELAY VALVE | ||
| 12X1 MM | ||
| 718 | A 3454204937 | LINE |
| FROM FITTING TO RELAY VALVE | ||
| 12X1 MM | ||
| N 915017012100 | UNION NUT | |
| N 003861012007 | GLAND | |
| 720 | N 003902012001 | CONNECTION FITTING |
| 720 | N 003902012003 | CONNECTION FITTING |
| 720 | A 0029971472 | FITTING |
| 721 | A 3524281740 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 722 | A 3454287040 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000933008317 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| M 8X18 | ||
| N 000933008282 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| M 8X20 | ||
| N 913004008001 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| 724 | A 3379950032 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 725 | A 3049951520 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| Repalced by: A 1009950420 | ||
| 725 | A 1009950420 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 007985006515 | SCREW | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 000125006420 | WASHER | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 913004006001 | NUT | |
| COMPRESSED AIR LINE TO BRACKET | ||
| 727 | A 0004296544 | VALVE |
| (RELAY VALVE) | ||
| "WABCO" | ||
| 727 | A 0014295444 | VALVE |
| Repalced by: A 0034295244 | ||
| 727 | A 0034295244 | VALVE |
| (RELAY VALVE) | ||
| "KNORR" | ||
| 728 | A 0014296844 | VALVE |
| (RELAY VALVE) | ||
| "WABCO" | ||
| 728 | A 0034293044 | VALVE |
| (RELAY VALVE) | ||
| "KNORR" | ||
| 729 | A 0005865742 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 000 429 65 44,001 429 68 44 | ||
| 729 | H 983455860842 | REPAIR KIT |
| Repalced by: A 0004205555 | ||
| 729 | A 0004205555 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 000 429 65 44,001 429 68 44 | ||
| 729 | A 0025863542 | REPAIR KIT |
| TO 001 429 54 44,003 429 52 44 | ||
| 729 | A 0004305360 | REPAIR KIT |
| Repalced by: A 0004201471 | ||
| 729 | A 0004201471 | REPAIR KIT |
| TO 003 429 30 44 | ||
| 730 | N 074317000100 | FITTING |
| 730 | A 0009902470 | T-FITTING |
| 731 | N 074313016401 | FITTING |
| 731 | A 0019972372 | FITTING |
| 732 | N 074313012100 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "1" | ||
| 732 | A 0029971172 | FITTING |
| Repalced by: A 3454307879 | ||
| 732 | A 3454307879 | CONNECTOR |
| RELAY VALVE,CONNECTION: | ||
| "1" | ||
| N 007603022102 | SEAL RING | |
| RELAY VALVE,CONNECTION: | ||
| "1" | ||
| N 074305022202 | NUT | |
| RELAY VALVE,CONNECTION: | ||
| "V" | ||
| 734 | A 0004290227 | THRUST RING |
| Repalced by: A 0009940203 | ||
| 734 | A 0009940203 | THRUST RING |
| RELAY VALVE,CONNECTION: | ||
| "V" | ||
| 735 | A 0009870446 | O-RING |
| RELAY VALVE,CONNECTION: | ||
| "V" | ||
| 736 | N 074313008102 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "4" | ||
| 736 | N 074313008104 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "4" | ||
| 736 | A 0029979572 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "4" | ||
| N 007603016103 | SEAL RING | |
| RELAY VALVE,CONNECTION: | ||
| "4" | ||
| 738 | A 0004294438 | ELBOW FITTING |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| 739 | A 3459977972 | FITTING |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| 740 | A 0009971548 | SEAL RING |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| 741 | A 0004290927 | THRUST RING |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| N 000936016003 | NUT | |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| N 000908016001 | SCREW PLUG | |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| N 007604016102 | SCREW PLUG | |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| N 007604016107 | SCREW PLUG | |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| N 007603016103 | SEAL RING | |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| N 007603016103 | SEAL RING | |
| RELAY VALVE,CONNECTION: | ||
| "2" | ||
| 743 | A 0004292844 | VALVE |
| Repalced by: A 0044295044 | ||
| 743 | A 0044295044 | VALVE |
| QUICK-RELEASE VALVE | ||
| 744 | A 3445867242 | REPAIR KIT |
| TO 000 429 28 44 | ||
| 745 | A 3454297038 | ELBOW FITTING |
| AT QUICK-RELEASE VALVE | ||
| 746 | A 3454297056 | SCREW PLUG |
| AT QUICK-RELEASE VALVE | ||
| 747 | A 3454297936 | CONNECTOR |
| AT QUICK-RELEASE VALVE | ||
| N 007603022102 | SEAL RING | |
| AT QUICK-RELEASE VALVE | ||
| N 074313008101 | FITTING | |
| AT QUICK-RELEASE VALVE | ||
| N 000931008072 | SCREW | |
| QUICK-RELEASE VALVE TO SIDE MEMBER | ||
| N 912004008100 | LOCK WASHER | |
| QUICK-RELEASE VALVE TO SIDE MEMBER | ||
| N 000934008000 | NUT | |
| QUICK-RELEASE VALVE TO SIDE MEMBER | ||
| 749 | A 1209911140 | SPACER TUBE |
| QUICK-RELEASE VALVE TO SIDE MEMBER | ||
| A 3524208534 | LINE | |
| FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE | ||
| 15X1.5 MM | ||
| 751 | A 0454200534 | LINE |
| Repalced by: A 3454209337 | ||
| 751 | A 3454209337 | LINE |
| FROM QUICK-RELEASE VALVE TO TWO-WAY VALVE | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 915065015101 | THRUST RING | |
| N 915045012100 | SEAL RING | |
| 753 | A 0004290344 | VALVE |
| Repalced by: A 0014298744 | ||
| 753 | A 0014298744 | VALVE |
| TWO-WAY VALVE | ||
| 754 | A 0024299544 | VALVE |
| TWO-WAY VALVE | ||
| "WESTINGHOUSE" | ||
| 755 | A 0004291182 | VALVE BODY |
| TO 002 429 95 44 | ||
| 756 | A 0014302960 | REPAIR KIT |
| TO 001 429 87 44 | ||
| 757 | A 0454290036 | CONNECTOR |
| Repalced by: A 3454297436 | ||
| 757 | A 3454297436 | CONNECTOR |
| AT TWO-WAY VALVE | ||
| 758 | A 0454290136 | CONNECTOR |
| Repalced by: A 3454298036 | ||
| 758 | A 3454298036 | CONNECTOR |
| AT TWO-WAY VALVE | ||
| 759 | A 0454290336 | CONNECTOR |
| Repalced by: A 3454297936 | ||
| 759 | A 3454297936 | CONNECTOR |
| AT TWO-WAY VALVE | ||
| 760 | N 074313008102 | FITTING |
| TWO-WAY VALVE,CONNECTION: | ||
| "V" | ||
| 760 | N 074313008104 | FITTING |
| TWO-WAY VALVE,CONNECTION: | ||
| "V" | ||
| 760 | A 0029979572 | FITTING |
| TWO-WAY VALVE,CONNECTION: | ||
| "V" | ||
| N 007603016103 | SEAL RING | |
| TWO-WAY VALVE,CONNECTION: | ||
| "V" | ||
| 762 | A 3089907171 | ELBOW FITTING |
| TWO-WAY VALVE,CONNECTION: | ||
| "Z" | ||
| 762 | A 3849907071 | ELBOW FITTING |
| TWO-WAY VALVE,CONNECTION: | ||
| "Z" | ||
| 763 | A 0009971548 | SEAL RING |
| TWO-WAY VALVE,CONNECTION: | ||
| "Z" | ||
| 764 | A 0004290927 | THRUST RING |
| TWO-WAY VALVE,CONNECTION: | ||
| "Z" | ||
| N 000936016003 | NUT | |
| TWO-WAY VALVE,CONNECTION: | ||
| "Z" | ||
| 766 | A 3504311240 | BRACKET |
| RELAY VALVE | ||
| N 000125008417 | WASHER | |
| RELAY VALVE TO BRACKET | ||
| N 000125008417 | WASHER | |
| RELAY VALVE TO CROSS MEMBER | ||
| N 913004008001 | NUT | |
| RELAY VALVE TO BRACKET | ||
| N 913004008001 | NUT | |
| RELAY VALVE TO CROSS MEMBER | ||
| N 000933010174 | SCREW | |
| RELAY VALVE TO SIDE MEMBER | ||
| N 913004010004 | NUT | |
| RELAY VALVE TO SIDE MEMBER | ||
| 768 | A 3524208734 | LINE |
| FROM TWO-WAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 15X1.5 MM | ||
| 768 | A 3524208834 | LINE |
| FROM TWO-WAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 15X1.5 MM | ||
| 768 | A 0454200634 | LINE |
| Repalced by: A 3454208337 | ||
| 768 | A 3454208337 | LINE |
| FROM TWO-WAY VALVE TO SPRING-LOAD ACCUMULATOR CYLINDER | ||
| 15X1.5 MM | ||
| N 915018015000 | UNION NUT | |
| N 003861015004 | GLAND | |
| N 915065015101 | THRUST RING | |
| N 915045012100 | SEAL RING | |
| 770 | A 0004312114 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER | ||
| KNORR | ||
| 770 | A 3454317214 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER | ||
| WABCO | ||
| 771 | A 0004314814 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER | ||
| "BOSCH" | ||
| 771 | A 0004316314 | BRAKE CYLINDER |
| Repalced by: A 3454317014 | ||
| 771 | H 983454310114 | BRAKE CYLINDER |
| Repalced by: A 0014312314 | ||
| 771 | A 3454317014 | BRAKE CYLINDER |
| Repalced by: A 0014312314 | ||
| 771 | A 0014312314 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER | ||
| "WESTINGHOUSE" | ||
| 771 | A 3454317114 | BRAKE CYLINDER |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER | ||
| "FRESNIBRA" | ||
| A 0004319186 | CUP | |
| TO 000 431 21 14 | ||
| A 0004310649 | SLIDE | |
| TO 000 431 21 14 | ||
| 774 | A 0004317486 | CUP |
| TO 000 431 48 14 | ||
| 774 | A 0004318186 | CUP |
| TO 000 431 21 14 | ||
| 775 | H 983454310087 | PROTECTIVE CAP |
| Repalced by: A 0004301808 | ||
| 775 | A 0004301808 | REPAIR KIT |
| TO 98 345 431 01 14,345 431 72 14 | ||
| 776 | H 983454310193 | SPRING |
| TO 000 431 48 14 | ||
| 776 | A 0084311093 | SPRING |
| TO 000 431 48 14,000 431 21 14 | ||
| 776 | A 0084310993 | SPRING |
| TO 000 431 21 14 | ||
| 776 | H 983454310593 | SPRING |
| TO 98 345 431 01 14 | ||
| 776 | H 983454310693 | SPRING |
| TO 345 431 72 14 | ||
| 777 | H 983454310089 | SPRING RETAINER |
| Repalced by: A 3454317189 | ||
| 777 | A 3454317189 | SPRING RETAINER |
| TO 98 345 431 01 14,345 431 72 14 | ||
| 778 | H 983454310036 | FILTER BOTTOM |
| TO 98 345 431 01 14,345 431 72 14 | ||
| 779 | H 983454310083 | PISTON |
| TO 98 345 431 01 14,345 431 72 14 | ||
| N 000127014201 | LOCK WASHER | |
| N 000127014201 | LOCK WASHER | |
| N 000934014020 | NUT | |
| N 000933006221 | SCREW | |
| 781 | H 983455860043 | REPAIR KIT |
| TO 000 431 48 14 | ||
| 781 | H 983455860143 | REPAIR KIT |
| TO 000 431 48 14,000 431 21 14 | ||
| 781 | H 983455860543 | REPAIR KIT |
| Repalced by: A 0004301708 | ||
| 781 | A 0004301708 | REPAIR KIT |
| TO 98 345 431 01 14,345 431 72 14 | ||
| 781 | A 0025861443 | REPAIR KIT |
| TO 001 431 23 14 | ||
| 782 | A 0029971640 | SEAL RING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER | ||
| 783 | A 0004290727 | THRUST RING |
| Repalced by: A 3084297027 | ||
| 783 | A 3084297027 | THRUST RING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER | ||
| N 000936016003 | NUT | |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER | ||
| N 000936016003 | NUT | |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER | ||
| 785 | A 3454297238 | ELBOW FITTING |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER | ||
| 786 | A 0004311675 | THREADED UNION |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER | ||
| 787 | A 3604302411 | CONSOLE |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER | ||
| 788 | A 3524301011 | CONSOLE |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER | ||
| N 000933010129 | SCREW | |
| BEARG.BRACKET W/SPRING-LOAD ACCUMULAT. CYL.TO REAR SPRING BRACKET CROSSMEMBER | ||
| N 000933010174 | SCREW | |
| BEARG.BRACKET W/SPRING-LOAD ACCUMULAT. CYL.TO REAR SPRING BRACKET CROSSMEMBER | ||
| N 000125010517 | WASHER | |
| BEARG.BRACKET W/SPRING-LOAD ACCUMULAT. CYL.TO REAR SPRING BRACKET CROSSMEMBER | ||
| N 000125010517 | WASHER | |
| BEARG.BRACKET W/SPRING-LOAD ACCUMULAT. CYL.TO REAR SPRING BRACKET CROSSMEMBER | ||
| N 000127010202 | LOCK WASHER | |
| BEARG.BRACKET W/SPRING-LOAD ACCUMULAT. CYL.TO REAR SPRING BRACKET CROSSMEMBER | ||
| N 000934010000 | NUT | |
| BEARG.BRACKET W/SPRING-LOAD ACCUMULAT. CYL.TO REAR SPRING BRACKET CROSSMEMBER | ||
| 790 | A 3609900040 | WASHER |
| BEARG.BRACKET W/SPRING-LOAD ACCUMULAT. CYL.TO REAR SPRING BRACKET CROSSMEMBER | ||
| N 000933010129 | SCREW | |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET | ||
| N 000933010174 | SCREW | |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET | ||
| N 000127010202 | LOCK WASHER | |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET | ||
| N 000934010000 | NUT | |
| SPRING LOAD ACCUMULATOR BRAKE CYLINDER TO BEARING BRACKET | ||
| 792 | H 983454200080 | BRAKE INTERMEDIATE SHAFT |
| Repalced by: A 3454207380 | ||
| 792 | A 3454207380 | BRAKE INTERMEDIATE SHAFT |
| 793 | A 3274270058 | SEAL HOLDER |
| HAND BRAKE INTERMEDIATE LEVER | ||
| 794 | A 3279970040 | SEAL RING |
| INTERMEDIATE SHAFT | ||
| 795 | A 3584201078 | BEARING BRACKET |
| Repalced by: A 3454207278 | ||
| 795 | A 3454207278 | BEARING BRACKET |
| BRAKE INTERMEDIATE SHAFT | ||
| 796 | A 3024260083 | SPHERICAL PIECE |
| N 000470052000 | EXPANSION PLUG | |
| N 000961012020 | SCREW | |
| BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER | ||
| N 000127012201 | LOCK WASHER | |
| BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER | ||
| N 000934012004 | NUT | |
| BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER | ||
| N 900331012183 | PULL ROD | |
| FROM BRAKE INTERMEDIATE SHAFT TO BRAKE LEVER AT REAR AXLE | ||
| 798 | A 3524200047 | YOKE |
| BRAKE INTERMEDIATE SHAFT | ||
| N 071752012002 | YOKE | |
| BRAKE INTERMEDIATE SHAFT | ||
| N 000934012010 | NUT | |
| BRAKE INTERMEDIATE SHAFT | ||
| N 000934012020 | NUT | |
| BRAKE INTERMEDIATE SHAFT | ||
| 800 | A 3529910207 | PIN |
| PULL ROD TO INTERMEDIATE LEVER | ||
| N 000125013012 | WASHER | |
| PULL ROD TO INTERMEDIATE LEVER | ||
| N 000137012203 | SPRING WASHER | |
| PULL ROD TO INTERMEDIATE LEVER | ||
| N 000094004050 | COTTER PIN | |
| PULL ROD TO INTERMEDIATE LEVER | ||
| 802 | A 3529910107 | PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| N 000125013012 | WASHER | |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| N 000094004050 | COTTER PIN | |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 804 | A 3024230636 | BRAKE CAMSHAFT |
| 804 | A 3604231136 | BRAKE CAMSHAFT |
| 805 | A 3414230186 | CUP |
| BRAKE CAMSHAFT | ||
| 806 | A 3024230037 | ADJUSTING LEVER |
| LEFT | ||
| 806 | A 3024230137 | ADJUSTING LEVER |
| RIGHT | ||
| 807 | A 3024230170 | STUD |
| N 000439018202 | NUT | |
| N 000931010399 | SCREW | |
| BRAKE LEVER ON BRAKE SHAFT | ||
| N 000127010202 | LOCK WASHER | |
| BRAKE LEVER ON BRAKE SHAFT | ||
| N 000936012017 | NUT | |
| Repalced by: N 000936012005 | ||
| N 000936012005 | NUT | |
| BRAKE LEVER ON BRAKE SHAFT | ||
| 809 | A 3544230171 | SCREW |
| BRAKE LEVER ON BRAKE SHAFT | ||
| 810 | A 3604261411 | LEVER |
| LEFT | ||
| 811 | H 983454260011 | LEVER |
| Repalced by: A 3454260211 | ||
| 811 | A 3454260211 | LEVER |
| LEFT | ||
| 811 | A 3604261511 | LEVER |
| RIGHT | ||
| 811 | H 983454260111 | LEVER |
| Repalced by: A 3454260311 | ||
| 811 | A 3454260311 | LEVER |
| RIGHT | ||
| 812 | A 3024260405 | BEARING |
| 812 | A 3024260105 | BEARING |
| 813 | A 0009814331 | JOINT BEARING |
| 813 | A 0019811031 | JOINT BEARING |
| 813 | A 3024260083 | SPHERICAL PIECE |
| 814 | A 0119975546 | SEAL RING |
| 814 | A 3459977846 | SEAL RING |
| 814 | A 3449970146 | SEAL RING |
| N 071412008100 | GREASE NIPPLE | |
| N 071412010100 | GREASE NIPPLE | |
| N 000960016255 | SCREW | |
| BEARING BRACKET TO REAR AXLE | ||
| N 000960016052 | SCREW | |
| BEARING BRACKET TO REAR AXLE | ||
| N 912004016101 | LOCK WASHER | |
| BEARING BRACKET TO REAR AXLE | ||
| 816 | A 3024230753 | SPACER TUBE |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 10.5 MM | ||
| 816 | A 3024230153 | SPACER TUBE |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 11.0 MM | ||
| 816 | A 3024230253 | SPACER TUBE |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 11.5 MM | ||
| 816 | A 3024230353 | SPACER TUBE |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 12.0 MM | ||
| 816 | A 3024230453 | SPACER TUBE |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 12.0 MM | ||
| 816 | A 3024230553 | SPACER TUBE |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 12.5 MM | ||
| 816 | A 3024230653 | SPACER TUBE |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 13.0 MM | ||
| N 000471032000 | LOCK RING | |
| BRAKE SHAFT TO BEARING BRACKET | ||
| N 000471045000 | LOCK RING | |
| BRAKE SHAFT TO BEARING BRACKET | ||
| N 000471035002 | LOCK RING | |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 818 | A 3029970020 | EXPANSION PLUG |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 818 | A 3609970020 | EXPANSION PLUG |
| BRAKE SHAFT TO BEARING BRACKET | ||
| N 000472062000 | LOCK RING | |
| BRAKE SHAFT TO BEARING BRACKET | ||
| N 000471032000 | LOCK RING | |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 820 | A 3604230057 | STOP WASHER |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 821 | A 0019972848 | SEAL RING |
| BRAKE SHAFT TO BEARING BRACKET | ||
| 822 | A 3454200441 | REPAIR KIT |
| BRAKE CAMSHAFT BEARING | ||
| 823 | A 3524209034 | LINE |
| 8X1.0 MM | ||
| 823 | A 3454208437 | LINE |
| FROM AIR RESERVOIR TO T-FITTING | ||
| 824 | A 0454200834 | LINE |
| Repalced by: A 3454201136 | ||
| 824 | A 3454201136 | LINE |
| FROM EXHAUST BRAKE T-FITTING TO OPERATING VALVE,CONNECTION I | ||
| 8X1.0 MM | ||
| 825 | A 3444309166 | LINE |
| FROM SERVICE VALVE,CONNECTION "12",TO VENT VALVE,CONNECTION: | ||
| "1" | ||
| 825 | A 3444309166 | LINE |
| FROM SERVICE VALVE,CONNECTION "12",TO VENT VALVE,CONNECTION: | ||
| "1" | ||
| 826 | A 3444202936 | LINE |
| FROM SERVICE VALVE,CONNECTION "12",TO VENT VALVE,CONNECTION: | ||
| "1" | ||
| N 915017008100 | UNION NUT | |
| N 003861008005 | GLAND | |
| A 0009959101 | CLAMP | |
| Repalced by: N 916016008203 | ||
| N 916016008203 | CLAMP | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 007985005133 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000125005315 | WASHER | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 913004005001 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| 828 | A 0004340501 | VALVE |
| Repalced by: A 3454347001 | ||
| 828 | A 3214340001 | VALVE |
| Repalced by: A 3454347001 | ||
| 828 | A 3454347001 | VALVE |
| (OPERATING VALVE) | ||
| "WABCO DO BRASIL" | ||
| 828 | A 3454347001 | VALVE |
| (OPERATING VALVE) | ||
| "WABCO DO BRASIL" | ||
| 828 | A 3454347001 | VALVE |
| (OPERATING VALVE) | ||
| "WABCO DO BRASIL" | ||
| 828 | A 0004342901 | VALVE |
| (OPERATING VALVE) | ||
| "KNORR" | ||
| 828 | A 0004342901 | VALVE |
| (OPERATING VALVE) | ||
| "KNORR" | ||
| 828 | A 0004342901 | VALVE |
| (OPERATING VALVE) | ||
| "KNORR" | ||
| 829 | A 0004350590 | VALVE DISC |
| TO 321 434 00 01 | ||
| 830 | A 0004340359 | SEAL RING |
| TO 321 434 00 01 | ||
| 831 | A 0004317387 | PROTECTIVE CAP |
| TO 000 434 05 01,345 434 70 01 | ||
| 832 | A 0109970948 | SEAL RING |
| TO 000 434 29 01 | ||
| 833 | A 0109971048 | SEAL RING |
| TO 000 434 29 01 | ||
| 834 | A 0109971148 | SEAL RING |
| TO 000 434 29 01 | ||
| 835 | A 0109971248 | SEAL RING |
| TO 000 434 29 01 | ||
| 836 | H 983455860943 | REPAIR KIT |
| Repalced by: A 0034301281 | ||
| 836 | A 0034301281 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 000 434 05 01,345 434 70 01 | ||
| 836 | A 0005869743 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 000 434 05 01,345 434 70 01 | ||
| 837 | A 0014301360 | REPAIR KIT |
| Repalced by: A 0004304106 | ||
| 837 | A 0004304106 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 000 434 29 01 | ||
| 837 | A 0014301460 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 000 434 29 01 | ||
| 838 | A 3444207334 | LINE |
| SERVICE BRAKE VALVE,CONNECTION: | ||
| "12" | ||
| N 003861008005 | GLAND | |
| N 915017008100 | UNION NUT | |
| 840 | A 0089979082 | HOSE |
| Repalced by: A 0009874927 | ||
| 840 | A 0009874927 | PLASTIC PIPE |
| SERVICE BRAKE VALVE | ||
| 8X6 MM | ||
| 840 | A 0009874927 | PLASTIC PIPE |
| SERVICE BRAKE VALVE | ||
| 8X6 MM | ||
| N 915017008100 | UNION NUT | |
| SERVICE BRAKE VALVE | ||
| N 003861008005 | GLAND | |
| SERVICE BRAKE VALVE | ||
| 842 | A 0019976672 | FITTING |
| Repalced by: N 915062006000 | ||
| 842 | N 915062006000 | SLEEVE |
| SERVICE BRAKE VALVE | ||
| N 915052006005 | BANJO UNION | |
| SERVICE BRAKE VALVE | ||
| N 915052006021 | BANJO UNION | |
| SERVICE BRAKE VALVE | ||
| 844 | A 3444297038 | ELBOW FITTING |
| AT OPERATING VALVE | ||
| 844 | A 3444297038 | ELBOW FITTING |
| AT OPERATING VALVE | ||
| 844 | A 3444297038 | ELBOW FITTING |
| AT OPERATING VALVE | ||
| N 080705012003 | NUT | |
| AT OPERATING VALVE | ||
| N 080705012003 | NUT | |
| AT OPERATING VALVE | ||
| N 080705012003 | NUT | |
| AT OPERATING VALVE | ||
| 846 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 846 | A 0009940103 | THRUST RING |
| AT OPERATING VALVE | ||
| 846 | A 0009940103 | THRUST RING |
| AT OPERATING VALVE | ||
| 846 | A 0009940103 | THRUST RING |
| AT OPERATING VALVE | ||
| 847 | A 0019875046 | SEALING CORD |
| AT OPERATING VALVE | ||
| 847 | A 0019875046 | SEALING CORD |
| AT OPERATING VALVE | ||
| 847 | A 0019875046 | SEALING CORD |
| AT OPERATING VALVE | ||
| N 074305026202 | NUT | |
| OPERATING VALVE TO BRACKET | ||
| N 074305026202 | NUT | |
| OPERATING VALVE TO BRACKET | ||
| N 074305026202 | NUT | |
| OPERATING VALVE TO BRACKET | ||
| N 000137027201 | SPRING WASHER | |
| OPERATING VALVE TO BRACKET | ||
| 849 | A 3524209234 | LINE |
| 8X1.0 MM | ||
| 849 | A 0454201034 | LINE |
| 8X1.0 MM | ||
| 849 | A 3454208537 | LINE |
| OPERATING VALVE | ||
| 8X0.7 MM | ||
| 849 | A 3454208537 | LINE |
| OPERATING VALVE TO BRACKET | ||
| 8X0.7 MM | ||
| 849 | A 3454208537 | LINE |
| OPERATING VALVE | ||
| 8X0.7 MM | ||
| 850 | A 3454200736 | LINE |
| FROM OPERATING VALVE TO CONNECTION FITTING I | ||
| 8X0.7 MM | ||
| 851 | A 3444204036 | LINE |
| FROM OPERATING VALVE TO CONNECTION FITTING I | ||
| 852 | A 3454203549 | LINE |
| FROM OPERATING VALVE TO CONNECTION FITTING I | ||
| 8X0.7 MM | ||
| N 915017008100 | UNION NUT | |
| N 003861008005 | GLAND | |
| 854 | A 0089979082 | HOSE |
| Repalced by: A 0009874927 | ||
| 854 | A 0009874927 | PLASTIC PIPE |
| FROM PARKING BRAKE VALVE,CONNECTION "23",TO FITTING | ||
| 8X6 MM | ||
| 854 | A 0009874927 | PLASTIC PIPE |
| FROM PARKING BRAKE VALVE,CONNECTION "23",TO FITTING | ||
| 8X6 MM | ||
| N 915017008100 | UNION NUT | |
| FROM PARKING BRAKE VALVE,CONNECTION "23",TO FITTING | ||
| N 003861008005 | GLAND | |
| FROM PARKING BRAKE VALVE,CONNECTION "23",TO FITTING | ||
| 856 | A 0019976672 | FITTING |
| Repalced by: N 915062006000 | ||
| 856 | N 915062006000 | SLEEVE |
| FROM PARKING BRAKE VALVE,CONNECTION "23",TO FITTING | ||
| N 915052006005 | BANJO UNION | |
| FROM PARKING BRAKE VALVE,CONNECTION "23",TO FITTING | ||
| N 915052006021 | BANJO UNION | |
| FROM PARKING BRAKE VALVE,CONNECTION "23",TO FITTING | ||
| 858 | A 3454297540 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 858 | A 3454297540 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| N 007985006515 | SCREW | |
| N 000125006420 | WASHER | |
| N 913004006001 | NUT | |
| N 916016008200 | CLAMP | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 916016008200 | CLAMP | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 007985006515 | SCREW | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 007985006515 | SCREW | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 000125006420 | WASHER | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 000125006420 | WASHER | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 913004006001 | NUT | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 913004006001 | NUT | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 003902008001 | CONNECTION FITTING | |
| N 003902008001 | CONNECTION FITTING | |
| 860 | N 003902008004 | CONNECTION FITTING |
| 860 | A 0019972672 | FITTING |
| 860 | A 0019972672 | FITTING |
| N 916016008203 | CLAMP | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 007985005171 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000125005315 | WASHER | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 913004005001 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| 862 | A 3524209334 | LINE |
| 8X1.0 MM | ||
| 862 | A 0454201134 | LINE |
| Repalced by: A 3454208637 | ||
| 862 | A 3454208637 | LINE |
| FROM CONNECTION FITTING I TO CONNECTION FITTING II | ||
| 8X1.0 MM | ||
| 863 | A 3454207433 | LINE |
| FROM FITTING TO FITTING | ||
| 8X0.7 MM | ||
| 864 | A 3454206649 | LINE |
| FROM FITTING TO FITTING | ||
| 8X0.7 MM | ||
| 865 | A 3454206437 | LINE |
| FROM FITTING TO FITTING | ||
| 8X0.7 MM | ||
| 866 | A 3444207734 | LINE |
| 867 | A 3444203836 | LINE |
| FROM FITTING TO FITTING | ||
| N 915017008100 | UNION NUT | |
| N 915017008100 | UNION NUT | |
| N 003861008005 | GLAND | |
| N 003861008005 | GLAND | |
| N 007981006224 | SHEET METAL SCREW | |
| PLASTIC PIPES TO PEDESTAL | ||
| N 912004006100 | LOCK WASHER | |
| PLASTIC PIPES TO PEDESTAL | ||
| N 916016015203 | CLAMP | |
| PLASTIC PIPES TO PEDESTAL | ||
| A 3459957701 | CLAMP | |
| PLASTIC PIPES TO PEDESTAL | ||
| 870 | N 003902008001 | CONNECTION FITTING |
| 870 | N 003902008004 | CONNECTION FITTING |
| 870 | A 0019972672 | FITTING |
| 870 | A 0019972672 | FITTING |
| 871 | A 3524209534 | LINE |
| 8X1 MM | ||
| 871 | A 0454201234 | LINE |
| FROM CONNECTION FITTING TO TWO-WAY VALVE | ||
| 8X1 MM | ||
| 871 | A 3454208737 | LINE |
| FROM CONNECTION FITTING TO TWO-WAY VALVE | ||
| 8X0.7 MM | ||
| 871 | A 3524308864 | LINE |
| FROM CONNECTION FITTING TO TWO-WAY VALVE | ||
| 8X1.0 MM | ||
| 871 | A 3454202536 | LINE |
| FROM CONNECTION FITTING TO TWO-WAY VALVE | ||
| 8X0.7 MM | ||
| N 915017008100 | UNION NUT | |
| N 003861008005 | GLAND | |
| 873 | A 3454206549 | LINE |
| FROM FITTING TO TWO-WAY VALVE | ||
| 8X0.7 MM | ||
| 874 | A 3454205337 | LINE |
| FROM CONNECTION FITTING TO TWO-WAY VALVE | ||
| 8X0.7 MM | ||
| 874 | A 3454205837 | LINE |
| FROM CONNECTION FITTING TO TWO-WAY VALVE | ||
| 8X0.7 MM | ||
| 874 | A 3454205937 | LINE |
| FROM CONNECTION FITTING TO TWO-WAY VALVE | ||
| 8X0.7 MM | ||
| N 915017008100 | UNION NUT | |
| N 003861008005 | GLAND | |
| N 003902008001 | CONNECTION FITTING | |
| 876 | N 003902008004 | CONNECTION FITTING |
| 876 | A 0019972672 | FITTING |
| 877 | A 3454288140 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 878 | A 3454288340 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 879 | A 3524290440 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 879 | A 3524290440 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 879 | A 3524290440 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 880 | A 3454297540 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 880 | A 3454297540 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 881 | A 3524290840 | BRACKET |
| Repalced by: A 3454299540 | ||
| 881 | A 3454299540 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 882 | A 3454290040 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 883 | A 3454288540 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 884 | A 3444297040 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 885 | A 3444297640 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000933008282 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| M 8X20 | ||
| N 000933008282 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| M 8X20 | ||
| N 000933008288 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| M 8X25 | ||
| N 000933008358 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| M 8X45 | ||
| N 000933008358 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| M 8X45 | ||
| N 000933010174 | SCREW | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 000125008417 | WASHER | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 913004008001 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 913004008001 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 913004008001 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 913004010004 | NUT | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 916016008200 | CLAMP | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 916016008200 | CLAMP | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 916016008200 | CLAMP | |
| COMPRESSED AIR LINE TO BRACKET | ||
| 887 | A 3379950032 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 887 | A 3379950032 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 888 | A 3459957432 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 889 | A 3444297340 | BRACKET |
| COMPRESSED AIR LINE TO BRACKET | ||
| 889 | A 3444297340 | BRACKET |
| COMPRESSED AIR LINE TO BRACKET | ||
| 889 | A 3444297340 | BRACKET |
| COMPRESSED AIR LINE TO BRACKET | ||
| 889 | A 3444297340 | BRACKET |
| COMPRESSED AIR LINE TO BRACKET | ||
| 890 | A 3049951520 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| Repalced by: A 1009950420 | ||
| 890 | A 1009950420 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 890 | A 1009950420 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 891 | A 3449950132 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 892 | A 3459957033 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 007985006515 | SCREW | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 000125006420 | WASHER | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 913004006001 | NUT | |
| COMPRESSED AIR LINE TO BRACKET | ||
| N 913004006001 | NUT | |
| COMPRESSED AIR LINE TO BRACKET | ||
| 894 | A 3459977390 | LOOM TIE |
| COMPRESSED AIR LINE TO PARKING BRAKE VALVE | ||
| 195 MM | ||
| 894 | A 3449977290 | LOOM TIE |
| Repalced by: A 3459977390 | ||
| 894 | A 3459977390 | LOOM TIE |
| COMPRESSED AIR LINE TO PARKING BRAKE VALVE | ||
| 195 MM | ||
| 895 | A 3444207534 | LINE |
| FROM FITTING TO FITTING | ||
| 896 | A 3444206245 | LINE |
| FROM FITTING TO FITTING | ||
| N 003861008005 | GLAND | |
| FROM FITTING TO FITTING | ||
| N 915017008100 | UNION NUT | |
| FROM FITTING TO FITTING | ||
| N 916027011008 | HOSE | |
| FROM TWO-WAY VALVE,"Z" CONNECTION,TO RIGHT COMBINATION CYLINDER | ||
| "12",11X630 | ||
| N 916027011010 | HOSE | |
| FROM TWO-WAY VALVE,"Z" CONNECTION,TO RIGHT COMBINATION CYLINDER | ||
| 11X750 | ||
| 898 | A 0004290541 | FITTING |
| Repalced by: A 3454297041 | ||
| 898 | A 3454297041 | FITTING |
| BRAKE HOSE | ||
| N 915017012100 | UNION NUT | |
| BRAKE HOSE | ||
| N 003861012007 | GLAND | |
| BRAKE HOSE | ||
| N 074304016200 | FITTING | |
| BRAKE HOSE | ||
| 900 | A 3459977990 | LOOM TIE |
| Repalced by: A 3459978890 | ||
| 900 | A 3459978890 | CLAMP |
| BRAKE HOSE | ||
| N 007603016103 | SEAL RING | |
| BRAKE HOSE TO TWO-WAY VALVE | ||
| 902 | A 0009904770 | T-FITTING |
| BRAKE HOSE TO TWO-WAY VALVE | ||
| 903 | A 3445457214 | SWITCH |
| BRAKE HOSE TO TWO-WAY VALVE | ||
| 903 | A 0005455414 | SWITCH |
| BRAKE HOSE TO TWO-WAY VALVE | ||
| 904 | A 0009971548 | SEAL RING |
| BRAKE HOSE TO TWO-WAY VALVE | ||
| 905 | A 0004290927 | THRUST RING |
| BRAKE HOSE TO TWO-WAY VALVE | ||
| N 000936016003 | NUT | |
| BRAKE HOSE TO TWO-WAY VALVE | ||
| 907 | A 3454203749 | LINE |
| FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION: | ||
| "12" 12X1 MM | ||
| 907 | A 3504208635 | LINE |
| FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION: | ||
| "12"12X1 MM | ||
| 908 | A 3454204537 | LINE |
| FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION: | ||
| "12" 12X1 MM | ||
| N 915017012100 | UNION NUT | |
| N 915017012100 | UNION NUT | |
| N 003861012007 | GLAND | |
| N 003861012007 | GLAND | |
| A 0109975982 | HOSE | |
| Repalced by: A 0009872827 | ||
| A 0009872827 | PLASTIC PIPE | |
| Repalced by: A 0009875027 | ||
| A 0009875027 | PLASTIC PIPE | |
| FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION: | ||
| 12 X 1.5 MM | ||
| N 915052009000 | BANJO UNION | |
| FROM RIGHT COMBINATION CYL.,CONNECTION "12",TO LEFT COMBIN. CYL.,CONNECTION: | ||
| "12" | ||
| A 0009959101 | CLAMP | |
| Repalced by: N 916016008203 | ||
| N 916016008203 | CLAMP | |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| N 007985005133 | SCREW | |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| N 000125005313 | WASHER | |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| N 000127005001 | LOCK WASHER | |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| N 000934005008 | NUT | |
| COMPRESSED AIR LINE TO BRACKET AT CROSS MEMBER | ||
| 912 | A 3524290740 | BRACKET |
| N 000933008282 | SCREW | |
| BRACKET TO CONSOLE | ||
| N 000127008206 | LOCK WASHER | |
| BRACKET TO CONSOLE | ||
| N 000934008000 | NUT | |
| BRACKET TO CONSOLE | ||
| 914 | A 3454207288 | RATCHET ROD |
| 915 | A 3124271151 | SPACER RING |
| N 001473004021 | GROOVED PIN | |
| 917 | A 3534270095 | PROTECTIVE CAP |
| 918 | A 3124201178 | BEARING BRACKET |
| PISTOL-GRIP HAND BRAKE | ||
| 919 | A 3124271215 | PAWL |
| Repalced by: A 3145860142 | ||
| 919 | A 1539930701 | SPRING |
| Repalced by: A 3145860142 | ||
| 919 | A 3129900043 | PLATE |
| Repalced by: A 3145860142 | ||
| 919 | A 3145860142 | REPAIR KIT |
| Repalced by: A 3144200092 | ||
| 919 | A 3144200092 | PAWL |
| N 000472015000 | LOCK RING | |
| N 001473004023 | GROOVED PIN | |
| 921 | A 3094270020 | HANDLE |
| 922 | A 3124271086 | DAMPING RING |
| N 007985010132 | SCREW | |
| 924 | A 3584270084 | SHIM |
| N 000933008288 | SCREW | |
| N 912004008100 | LOCK WASHER | |
| N 000934008000 | NUT | |
| 926 | A 3529910407 | PIN |
| PISTOL GRIP HAND BRAKE TO HAND BRAKE LEVER | ||
| N 000433008403 | WASHER | |
| PISTOL GRIP HAND BRAKE TO HAND BRAKE LEVER | ||
| N 000094002033 | COTTER PIN | |
| PISTOL GRIP HAND BRAKE TO HAND BRAKE LEVER | ||
| 928 | A 3454207312 | BRAKE LEVER |
| 929 | A 3449920301 | BUSHING |
| 930 | A 3584200578 | BEARING BRACKET |
| HAND BRAKE LEVER | ||
| 931 | A 3129901540 | WASHER |
| BRAKE LEVER TO BEARING BRACKET | ||
| N 000471022000 | LOCK RING | |
| BRAKE LEVER TO BEARING BRACKET | ||
| N 071412010100 | GREASE NIPPLE | |
| BRAKE LEVER TO BEARING BRACKET | ||
| N 000931010053 | SCREW | |
| BEARING BRACKET TO FRAME | ||
| N 000933010269 | SCREW | |
| BEARING BRACKET TO FRAME | ||
| N 000127010202 | LOCK WASHER | |
| BEARING BRACKET TO FRAME | ||
| N 000934010000 | NUT | |
| BEARING BRACKET TO FRAME | ||
| 933 | A 3604200278 | BEARING BRACKET |
| CABLE PULLEY | ||
| 934 | A 3524200093 | CABLE PULLEY |
| 935 | A 3124272850 | BUSHING |
| 936 | A 3404270074 | PIN |
| N 000125013012 | WASHER | |
| HAND BRAKE BEARING BRACKET TO DRIVER'S PEDESTAL CONSOLE | ||
| N 000094003027 | COTTER PIN | |
| HAND BRAKE BEARING BRACKET TO DRIVER'S PEDESTAL CONSOLE | ||
| N 071412010300 | GREASE NIPPLE | |
| HAND BRAKE BEARING BRACKET TO DRIVER'S PEDESTAL CONSOLE | ||
| N 000933010294 | SCREW | |
| BEARING BRACKET TO ENGINE CROSS MEMBER | ||
| N 000127010202 | LOCK WASHER | |
| BEARING BRACKET TO ENGINE CROSS MEMBER | ||
| N 000934010000 | NUT | |
| BEARING BRACKET TO ENGINE CROSS MEMBER | ||
| 938 | A 3604200285 | BRAKE CABLE |
| 939 | A 3214200176 | END PIECE |
| 940 | A 3529910007 | PIN |
| BRAKE CABLE TO FORK AND TO HAND BRAKE VALVE LEVER | ||
| N 000934010000 | NUT | |
| BRAKE CABLE TO FORK AND TO HAND BRAKE VALVE LEVER | ||
| N 000125010517 | WASHER | |
| BRAKE CABLE TO FORK AND TO HAND BRAKE VALVE LEVER | ||
| N 000094003026 | COTTER PIN | |
| BRAKE CABLE TO FORK AND TO HAND BRAKE VALVE LEVER | ||
| 942 | A 3524202874 | ROD |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 943 | A 0009961501 | YOKE |
| N 000934010000 | NUT | |
| FROM BOTTOM LEVER TO BRAKE SHAFT INTERMEDIATE LEVER | ||
| 945 | A 3529910007 | PIN |
| FROM TRAILER BRAKE VALVE TO SPRINGLOADED BRAKE CYLINDER | ||
| N 900055010001 | SPRING WASHER | |
| FROM TRAILER BRAKE VALVE TO SPRINGLOADED BRAKE CYLINDER | ||
| N 000433010500 | WASHER | |
| FROM TRAILER BRAKE VALVE TO SPRINGLOADED BRAKE CYLINDER | ||
| N 000094003027 | COTTER PIN | |
| FROM TRAILER BRAKE VALVE TO SPRINGLOADED BRAKE CYLINDER | ||
| 947 | A 3454207281 | LEVER |
| CENTRAL | ||
| 948 | A 3449920301 | BUSHING |
| N 071412010300 | GREASE NIPPLE | |
| 950 | A 3404200278 | BEARING BRACKET |
| N 000933010174 | SCREW | |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 000127010202 | LOCK WASHER | |
| BEARING BRACKET TO SIDE MEMBER | ||
| N 000934010000 | NUT | |
| BEARING BRACKET TO SIDE MEMBER | ||
| 952 | A 3124261574 | PIN |
| CENTRAL INTERMEDIATE LEVER TO BEARING BRACKET | ||
| N 000471022000 | LOCK RING | |
| CENTRAL INTERMEDIATE LEVER TO BEARING BRACKET | ||
| 954 | A 0452900139 | ROD |
| CENTRAL INTERMEDIATE LEVER TO BRAKE INTERMEDIATE SHAFT | ||
| 955 | A 0009961501 | YOKE |
| N 000934010000 | NUT | |
| N 000934010035 | NUT | |
| 957 | A 3224200347 | YOKE |
| 958 | A 3529910007 | PIN |
| FROM TRAILER BRAKE VALVE TO SPRINGLOADED BRAKE CYLINDER | ||
| N 900055010001 | SPRING WASHER | |
| FROM TRAILER BRAKE VALVE TO SPRINGLOADED BRAKE CYLINDER | ||
| N 000433010500 | WASHER | |
| FROM TRAILER BRAKE VALVE TO SPRINGLOADED BRAKE CYLINDER | ||
| N 000094003027 | COTTER PIN | |
| FROM TRAILER BRAKE VALVE TO SPRINGLOADED BRAKE CYLINDER | ||
| 960 | H 983454200180 | BRAKE INTERMEDIATE SHAFT |
| Repalced by: A 3454207280 | ||
| 960 | A 3454207280 | BRAKE INTERMEDIATE SHAFT |
| 961 | A 3454207178 | BEARING BRACKET |
| BRAKE INTERMEDIATE SHAFT | ||
| 962 | A 3024260083 | SPHERICAL PIECE |
| N 000470052000 | EXPANSION PLUG | |
| 964 | A 3274270058 | SEAL HOLDER |
| BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER | ||
| 965 | A 3279970040 | SEAL RING |
| BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER | ||
| N 000961012020 | SCREW | |
| BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER | ||
| N 000127012201 | LOCK WASHER | |
| BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER | ||
| N 000934012004 | NUT | |
| BEARING BRACKET&BRAKE INTERM. SHAFT TO REAR-SPRING FRONT-BRACKET CROSS MEMBER | ||
| 967 | A 3604200974 | ROD |
| FROM INTERMEDIATE LEVER SHAFT TO BRAKE LEVER AT REAR AXLE | ||
| 968 | A 3604200474 | ROD |
| N 001480012200 | TURNBUCKLE | |
| N 000934012020 | NUT | |
| N 000934012010 | NUT | |
| 970 | A 3604200774 | ROD |
| 971 | A 3529910207 | PIN |
| PULL ROD TO BRAKE INTERMEDIATE SHAFT | ||
| N 000094004050 | COTTER PIN | |
| PULL ROD TO BRAKE INTERMEDIATE SHAFT | ||
| N 000125013012 | WASHER | |
| PULL ROD TO BRAKE INTERMEDIATE SHAFT | ||
| N 000137012203 | SPRING WASHER | |
| PULL ROD TO BRAKE INTERMEDIATE SHAFT | ||
| 973 | A 3529910107 | PIN |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| N 000125013012 | WASHER | |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| N 000094004050 | COTTER PIN | |
| PULL ROD TO BRAKE LEVER,REAR AXLE | ||
| 975 | A 3084299401 | LINE |
| 6X0.7 MM | ||
| 976 | A 3084299501 | LINE |
| 8X0.7 MM | ||
| 976 | A 0004290301 | LINE |
| 8X1 MM | ||
| 977 | A 0004293501 | LINE |
| 12X1 MM | ||
| 978 | A 0004295101 | LINE |
| 15X1.5 MM | ||
| 978 | A 0004295201 | LINE |
| 15X1.5 MM | ||
| 979 | A 0004293701 | LINE |
| 18X1.5 MM | ||
| 979 | A 0004294201 | LINE |
| 18X1.5 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
