Transporto priemonė: OF 1313/1314; VIN numerio dalis: 345050

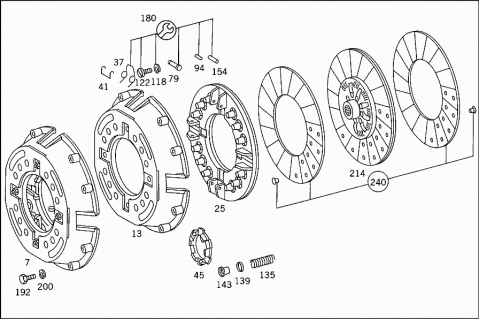

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0012500304 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0022509404 | ||
| 005 | A 0022509404 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0022509504 | ||
| 005 | A 0012500404 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0022509504 | ||
| 005 | A 0022509504 | CLUTCH PRESSURE PLATE |
| 005 | A 3442500104 | CLUTCH PRESSURE PLATE |
| Repalced by: A 3442507104 | ||
| 005 | A 3442507104 | CLUTCH PRESSURE PLATE |
| 007 | A 0012500704 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0032502004 | ||
| 007 | A 0032502004 | CLUTCH PRESSURE PLATE |
| 007 | A 3452507004 | CLUTCH PRESSURE PLATE |
| 007 | A 0032502504 | CLUTCH PRESSURE PLATE |
| 010 | A 0002522332 | HOUSING |
| TO 001 250 03 04 | ||
| 010 | A 0002524332 | HOUSING |
| TO 002 250 94 04,002 250 95 04 | ||
| 010 | A 0002524432 | HOUSING |
| 013 | A 0002520932 | HOUSING |
| Repalced by: A 0002525432 | ||
| 013 | A 0002525432 | HOUSING |
| TO 001 250 07 04,003 250 20 04 | ||
| 020 | H 983452500004 | CLUTCH PRESSURE PLATE |
| Repalced by: A 0002524312 | ||
| 020 | A 0002524312 | PRESSURE PLATE |
| 025 | A 0002522612 | PRESSURE PLATE |
| TO 001 250 07 04 | ||
| 025 | A 0002520412 | PRESSURE PLATE |
| TO 003 250 20 04,003 250 25 04 | ||
| 037 | A 0002520727 | SPRING |
| TO 001 250 07 04,003 250 20 04 | ||
| 037 | A 0002521927 | SPRING |
| TO 001 250 07 04,003 250 20 04 | ||
| 037 | A 0002523227 | SPRING |
| TO 003 250 25 04 | ||
| 041 | A 0002520929 | CLAMP |
| TO 001 250 07 04,003 250 20 04 | ||
| 045 | A 0002522045 | FLANGE |
| Repalced by: A 0002520345 | ||
| 045 | A 0002520345 | FLANGE |
| TO 001 250 07 04,003 250 20 04 | ||
| 045 | A 0002522145 | FLANGE |
| TO 000 250 25 04 | ||
| 053 | A 0002522772 | NUT |
| TO 001 250 03 04 | ||
| 053 | A 0002522472 | NUT |
| Repalced by: A 0002523372 | ||
| 053 | A 0002523372 | NUT |
| A 0002521372 | NUT | |
| Repalced by: A 0002523072 | ||
| A 0002523072 | NUT | |
| N 006799007003 | LOCK PLATE | |
| A 0002524613 | RELEASE LEVER | |
| TO 001 250 07 04,003 250 20 04,25 04 | ||
| A 0002521716 | SPINDLE | |
| 079 | A 0002522816 | SPINDLE |
| TO 001 250 07 04,003 250 20 04,25 04 | ||
| A 0002520614 | BRACKET | |
| TO 001 250 07 04,003 250 20 04,25 04 | ||
| 094 | A 0002520318 | ROLLER |
| 094 | A 0002520118 | ROLLER |
| TO 001 250 07 04,003 250 20 04,25 04 | ||
| A 0082520173 | LOCK | |
| Repalced by: A 0002520473 | ||
| A 0002520473 | LOCK | |
| CONSOLE TO SIDE MEMBER | ||
| TO 002 250 94 04,002 250 95 04 | ||
| A 0002521073 | LOCK | |
| TO 001 250 07 04,003 250 20 04 | ||
| 110 | N 000127005001 | LOCK WASHER |
| 118 | A 0009901647 | LOCK WASHER |
| Repalced by: N 912004005100 | ||
| 118 | N 000127005001 | LOCK WASHER |
| TO 001 250 07 04,003 250 20 04 | ||
| 122 | A 0002522971 | SCREW |
| TO 001 250 07 04,003 250 20 04 | ||
| 122 | A 0002522971 | SCREW |
| TO 001 250 07 04,003 250 20 04 | ||
| 122 | A 0002522971 | SCREW |
| 122 | A 0002522971 | SCREW |
| TO 003 250 25 04 | ||
| 122 | A 0009900020 | SCREW |
| Repalced by: N 000085005106 | ||
| 130 | A 0002525020 | PRESSURE SPRING |
| TO 002 250 94 04 | ||
| 130 | A 0002525120 | PRESSURE SPRING |
| TO 002 250 95 04,344 250 01 04 | ||
| 135 | A 0002524320 | PRESSURE SPRING |
| TO 001 250 07 04,003 250 20 04 | ||
| 135 | A 0002524420 | PRESSURE SPRING |
| TO 003 250 25 04 | ||
| 139 | A 0002520024 | INSULATING WASHER |
| TO 001 250 07 04 | ||
| 143 | A 0002520535 | SLEEVE |
| TO 001 250 07 04,003 250 20 04,25 04 | ||
| 154 | A 0002521616 | SPINDLE |
| 154 | A 0002522916 | SPINDLE |
| Repalced by: A 0002520616 | ||
| 154 | A 0002520616 | SPINDLE |
| TO 001 250 07 04,003 250 20 04,25 04 | ||
| A 0002520519 | LEAF SPRING | |
| TO 001 250 07 04,003 250 20 04,25 04 | ||
| 166 | A 0002520253 | SPACER TUBE |
| 175 | H 983455860025 | REPAIR KIT |
| 180 | A 0085860025 | REPAIR KIT |
| TO 001 250 07 04 | ||
| 180 | A 3505867025 | REPAIR KIT |
| TO 345 250 70 04,003 250 20 04 | ||
| 188 | A 0452520171 | SCREW |
| Repalced by: A 3452520071 | ||
| 188 | A 3452520071 | SCREW |
| 188 | N 000933008275 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 192 | N 000931010409 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| 196 | N 912004008100 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 200 | N 000127010202 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 210 | A 0022503403 | CLUTCH DISC |
| Repalced by: A 3452507403 | ||
| 210 | A 3452507003 | CLUTCH DISC |
| Repalced by: A 3452507403 | ||
| 210 | A 3452507303 | CLUTCH DISC |
| Repalced by: A 3452507403 | ||
| 210 | A 3452507403 | CLUTCH DISC |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 003 250 82 03 | ||
| 214 | A 3442507203 | CLUTCH DISC |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 004 250 89 03 | ||
| 214 | A 0022509803 | CLUTCH DISC |
| 214 | A 0082500103 | CLUTCH DISC |
| 214 | A 0082500203 | CLUTCH DISC |
| 214 | A 0012506003 | CLUTCH DISC |
| Repalced by: A 3452507503 | ||
| 214 | A 3442507103 | CLUTCH DISC |
| Repalced by: A 3452507503 | ||
| 214 | A 3452507503 | CLUTCH DISC |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 003 250 83 03 | ||
| 214 | A 0032508303 | CLUTCH DISC |
| A 0012522910 | CLUTCH LINING | |
| TO 002 250 98 03 | ||
| 220 | A 0002525210 | CLUTCH LINING |
| Repalced by: A 3452527010 | ||
| 220 | A 3452527010 | CLUTCH LINING |
| Repalced by: A 0002529010 | ||
| 220 | A 0002529010 | CLUTCH LINING |
| 230 | A 0082520575 | RIVET |
| Repalced by: A 3452527075 | ||
| 230 | A 0002520375 | RIVET |
| Repalced by: A 3452527075 | ||
| 230 | A 3452527075 | RIVET |
| TO 345 250 70 03,002 250 34 03 | ||
| 230 | N 007338005303 | RIVET |
| TO 003 250 83 03 | ||
| 230 | A 0002522175 | RIVET |
| TO 003 250 83 03 | ||
| 230 | A 0002522575 | RIVET |
| TO 003 250 83 03 | ||
| 235 | A 3455867025 | REPAIR KIT |
| 240 | A 3455867125 | REPAIR KIT |

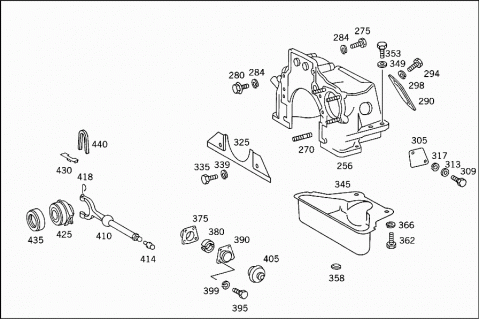

| 256 | A 3522500305 | HOUSING |
| Repalced by: A 3452507005 | ||
| 256 | A 3452507005 | HOUSING |
| Repalced by: A 3452510301 | ||
| 256 | A 3452510301 | BELL HOUSING |
| 256 | A 3452510501 | BELL HOUSING |
| Repalced by: A 3452511401 | ||
| 256 | A 3452511401 | BELL HOUSING |
| 256 | A 3452511401 | BELL HOUSING |
| 270 | N 000939010041 | STUD BOLT |
| TO 345 250 70 05 | ||
| 270 | N 000939010105 | STUD BOLT |
| TO 345 250 70 05 | ||
| 270 | A 0009902605 | STUD |
| Repalced by: A 0009904805 | ||
| 270 | A 0009904805 | STUD |
| TO 345 251 03 01,05 01,14 01 | ||
| 270 | N 000939010116 | STUD BOLT |
| TO 345 251 03 01,05 01,14 01 | ||
| 275 | N 000931012277 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 280 | N 900170012005 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 284 | N 000127012201 | LOCK WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 290 | A 3602510004 | END COVER |
| TOP | ||
| 294 | N 000933006223 | SCREW |
| END COVER TO BELL HOUSING | ||
| 298 | N 000127006203 | LOCK WASHER |
| END COVER TO BELL HOUSING | ||
| 305 | A 3522510004 | END COVER |
| 309 | N 000933008282 | SCREW |
| COVER TO BELL HOUSING | ||
| 313 | N 000125008417 | WASHER |
| COVER TO BELL HOUSING | ||
| 317 | N 000127008203 | LOCK WASHER |
| COVER TO BELL HOUSING | ||
| 325 | A 3122511006 | PROTECTIVE PLATE |
| Repalced by: A 3522510106 | ||
| 325 | A 3522510106 | PROTECTIVE PLATE |
| TO 345 251 05 01,345 251 14 01 | ||
| 335 | N 000933006223 | SCREW |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 339 | N 000137006203 | SPRING WASHER |
| PROTECTIVE PLATE TO BELL HOUSING | ||
| 345 | A 3522510002 | BELL HOUSING |
| Repalced by: A 3812510102 | ||
| 345 | A 3812510102 | BELL HOUSING |
| TO 345 250 70 05 | ||
| 345 | A 3812510102 | BELL HOUSING |
| LOWER PART | ||
| TO 345 251 03 01,05 01,14 01 | ||
| 349 | A 3609901840 | WASHER |
| ENGINE TO REAR RUBBER MOUNTING | ||
| TO 345 251 03 01 | ||
| 353 | N 000961014106 | SCREW |
| ENGINE TO REAR RUBBER MOUNTING | ||
| TO 345 250 70 05 | ||
| 353 | N 000961014107 | SCREW |
| ENGINE TO REAR RUBBER MOUNTING | ||
| TO 345 250 70 05 | ||
| 353 | N 000961014101 | SCREW |
| ENGINE TO REAR RUBBER MOUNTING | ||
| TO 345 251 03 01 | ||
| 358 | A 3129971681 | GROMMET |
| 362 | N 000933006223 | SCREW |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 366 | N 000137006203 | SPRING WASHER |
| BELL HOUSING LOWER PART TO BELL HOUSING | ||
| 375 | A 3522540040 | BRACKET |
| INSIDE | ||
| 380 | A 3522540135 | BEARING |
| 390 | A 3522500243 | BRACKET |
| Repalced by: A 3452500043 | ||
| 390 | A 3452500043 | BRACKET |
| OUTSIDE | ||
| 395 | N 000933008282 | SCREW |
| BRACKET TO BELL HOUSING | ||
| 399 | N 912004008100 | LOCK WASHER |
| BRACKET TO BELL HOUSING | ||
| 405 | A 3522540097 | BOOT |
| Repalced by: A 3142540197 | ||
| 405 | A 3142540197 | BOOT |
| 410 | A 3522500113 | RELEASE LEVER |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 352 293 03 11,302 991 00 15 | ||
| 410 | A 3522500113 | RELEASE LEVER |
| IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: | ||
| 352 293 03 11,302 991 00 15 | ||
| 410 | A 3022930011 | RELEASE YOKE |
| 410 | A 3452540508 | RELEASE LEVER |
| 410 | A 3452540508 | RELEASE LEVER |
| 414 | A 3029910015 | BALL PIVOT |
| 418 | A 3402540013 | SPRING LOCK |
| 425 | A 3212500515 | RELEASE BEARING |
| 425 | A 3522500115 | RELEASE BEARING |
| Repalced by: A 3452500115 | ||
| 425 | A 3452500115 | RELEASE BEARING |
| Repalced by: A 3402500215 | ||
| 425 | A 3402500215 | RELEASE BEARING |
| 425 | A 3402500215 | RELEASE BEARING |
| 430 | A 3452547033 | COVER |
| TO 345 250 01 15 | ||
| 430 | A 3052540033 | COVER |
| TO 345 250 01 15 | ||
| 435 | A 0002540020 | RELEASE BEARING |
| 435 | A 0002540120 | RELEASE BEARING |
| 435 | A 3452547020 | RELEASE BEARING |
| 440 | A 3129870110 | STRIP |
| 440 | A 3409830010 | STRIP |
| 440 | A 3409830010 | STRIP |

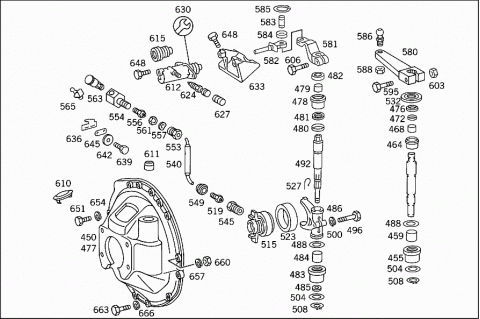

| 450 | A 3452500205 | HOUSING |
| Repalced by: A 3512500005 | ||
| 450 | A 3512500005 | HOUSING |
| 450 | A 3512510001 | BELL HOUSING |
| 455 | A 3432510150 | BUSHING |
| BOTTOM | ||
| 459 | A 3439920103 | BUSHING |
| 464 | A 3432510050 | BUSHING |
| TOP | ||
| 468 | A 3439920003 | BUSHING |
| 472 | N 005419035101 | FELT RING |
| 476 | A 3432930027 | COVER PLATE |
| 477 | A 3642511301 | BELL HOUSING |
| 478 | A 6202510050 | BUSHING |
| TOP | ||
| 479 | A 3389920103 | BUSHING |
| TOP | ||
| 480 | A 3852930027 | COVER PLATE |
| 481 | A 3859970040 | SEAL RING |
| 482 | A 0099971547 | SEAL RING |
| 483 | A 3432510150 | BUSHING |
| BOTTOM | ||
| 484 | A 3439920103 | BUSHING |
| BOTTOM | ||
| 485 | A 3379975040 | SEAL RING |
| 486 | A 3372540208 | RELEASE LEVER |
| Repalced by: A 3452937011 | ||
| 486 | A 3452937011 | RELEASE YOKE |
| Repalced by: A 3452930111 | ||
| 486 | A 3452930111 | RELEASE YOKE |
| 488 | A 3172930377 | WASHER |
| 1.0 MM | ||
| 488 | A 3172930377 | WASHER |
| AS REQUIRED | ||
| 1.0 MM | ||
| 488 | A 3172930177 | WASHER |
| AS REQUIRED | ||
| 0.8 MM, | ||
| 488 | A 3172930277 | WASHER |
| AS REQUIRED | ||
| 0.9 MM, | ||
| 488 | A 3172930477 | WASHER |
| AS REQUIRED | ||
| 1.1 MM, | ||
| 488 | A 3172930577 | WASHER |
| AS REQUIRED | ||
| 1.2 MM, | ||
| 488 | A 3172930677 | WASHER |
| AS REQUIRED | ||
| 1.3 MM, | ||
| 492 | A 3432930001 | RELEASE SHAFT |
| 492 | A 3502547007 | SHAFT |
| 496 | N 000931012283 | SCREW |
| RELEASE YOKE TO SHAFT | ||
| 496 | N 000931012242 | SCREW |
| RELEASE YOKE TO SHAFT | ||
| 500 | N 000127012201 | LOCK WASHER |
| RELEASE YOKE TO SHAFT | ||
| 504 | A 3432930052 | SPACER WASHER |
| RELEASE YOKE TO SHAFT | ||
| 508 | N 000471024000 | LOCK RING |
| RELEASE YOKE TO SHAFT | ||
| 515 | A 3442500115 | RELEASE BEARING |
| 515 | A 0012500315 | RELEASE BEARING |
| 519 | N 071428004102 | SCREW-IN FITTING |
| 523 | A 3042500315 | RELEASE BEARING |
| 527 | A 3122541013 | SPRING LOCK |
| RELEASE COLLAR TO RELEASE YOKE | ||
| 527 | A 3179930225 | SPRING |
| 532 | A 3439900040 | WASHER |
| RELEASE COLLAR TO RELEASE YOKE | ||
| 540 | A 3059971982 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 540 | A 3089977182 | HOSE |
| RELEASE BEARING LUBRICATION | ||
| 545 | N 003871004100 | UNION SCREW |
| RELEASE BEARING LUBRICATION | ||
| 549 | N 003862004001 | DOUBLE TAPER RING |
| RELEASE BEARING LUBRICATION | ||
| 553 | A 0009973683 | SLEEVE |
| RELEASE BEARING LUBRICATION | ||
| 554 | A 3072510208 | INTERMEDIATE PIECE |
| RELEASE BEARING LUBRICATION | ||
| 556 | N 071428004102 | SCREW-IN FITTING |
| 557 | N 000137014203 | SPRING WASHER |
| RELEASE BEARING LUBRICATION | ||
| 561 | N 000936014010 | NUT |
| RELEASE BEARING LUBRICATION | ||
| 563 | N 003411002001 | GREASE CUP |
| RELEASE BEARING LUBRICATION | ||
| 565 | N 071412008300 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| 565 | A 3459977288 | GREASE NIPPLE |
| RELEASE BEARING LUBRICATION | ||
| 580 | A 3452907227 | LEVER |
| Repalced by: A 3642907334 | ||
| 580 | A 3642907334 | LEVER |
| CLUTCH OPERATION | ||
| 581 | A 3642950128 | LEVER |
| CLUTCH OPERATION | ||
| 582 | A 0009966440 | ROD END |
| CLUTCH OPERATION | ||
| 583 | A 3072560074 | PIN |
| CLUTCH OPERATION | ||
| 584 | A 0019972141 | SEAL RING |
| CLUTCH OPERATION | ||
| 585 | N 000471012000 | LOCK RING |
| CLUTCH OPERATION | ||
| 586 | A 3339910015 | BALL PIVOT |
| CLUTCH OPERATION | ||
| 588 | N 000934014024 | NUT |
| CLUTCH OPERATION | ||
| 595 | N 000931010409 | SCREW |
| LEVER TO RELEASE SHAFT | ||
| 10X70 | ||
| 603 | N 000934010005 | NUT |
| LEVER TO RELEASE SHAFT | ||
| 606 | N 000931010395 | SCREW |
| LEVER TO RELEASE SHAFT | ||
| 10X50 | ||
| 610 | A 3352500055 | COVER |
| 611 | A 3642500155 | COVER |
| 612 | A 3452957007 | SLAVE CYLINDER |
| Repalced by: A 0012959407 | ||
| 612 | A 0012955307 | SLAVE CYLINDER |
| Repalced by: A 0012958807 | ||
| 612 | A 0012958807 | SLAVE CYLINDER |
| Repalced by: A 0022950407 | ||
| 612 | A 0022950407 | SLAVE CYLINDER |
| Repalced by: A 0012959407 | ||
| 612 | A 0012959407 | SLAVE CYLINDER |
| Repalced by: A 3842957107 | ||
| 612 | A 3842957107 | SLAVE CYLINDER |
| Repalced by: A 3842957307 | ||
| 612 | A 3842957307 | SLAVE CYLINDER |
| CLUTCH ACTUATION | ||
| 615 | A 0002952683 | BOOT |
| TO 001 295 53 07 | ||
| 615 | A 0002955583 | BOOT |
| TO 345 295 70 07 | ||
| 615 | A 0022956083 | BOOT |
| TO 001 295 88 07 | ||
| A 0002950673 | LOCK | |
| TO 001 295 53 07,88 07 | ||
| A 3842907939 | ROD | |
| TO 384 295 73 07 | ||
| A 3762907039 | ROD | |
| NOT INCLUDED IN RANGE OF DELIVERY OF: | ||
| 345 295 70 07 | ||
| 624 | A 3454317165 | VALVE |
| TO 001 295 53 07 | ||
| 624 | A 3075530107 | VALVE |
| TO 001 295 88 07 | ||
| 624 | A 0004202155 | BLEEDER VALVE |
| TO 002 295 04 07 | ||
| 627 | A 0004212687 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 627 | A 0004210887 | PROTECTIVE CAP |
| Repalced by: A 3454317287 | ||
| 627 | A 3454317287 | PROTECTIVE CAP |
| TO 001 295 53 07,002 295 04 07 | ||
| 627 | A 0004217187 | PROTECTIVE CAP |
| Repalced by: A 0004210887 | ||
| 627 | A 0004210887 | PROTECTIVE CAP |
| TO 001 295 88 07 | ||
| 630 | A 0002902567 | REPAIR KIT |
| Repalced by: A 0002900911 | ||
| 630 | A 0002900911 | REPAIR KIT |
| CLUTCH SLAVE CYLINDER | ||
| TO 001 295 53 07,88 07,002 295 04 07 | ||
| 630 | A 0002902767 | REPAIR KIT |
| Repalced by: A 0002901311 | ||
| 630 | A 0002901311 | REPAIR KIT |
| Repalced by: A 0002901611 | ||
| 630 | A 0002901711 | REPAIR KIT |
| REPAIR KIT | ||
| TO 0012959407,3452957007,3842957107 | ||
| 633 | A 3072950840 | BRACKET |
| SLAVE CYLINDER | ||
| 636 | A 3072540127 | POINTER |
| CLUTCH LINING WEAR | ||
| 639 | N 000933006220 | SCREW |
| POINTER TO CLUTCH ACTUATION BRACKET | ||
| M 6X16 | ||
| 642 | N 009021006103 | WASHER |
| POINTER TO CLUTCH ACTUATION BRACKET | ||
| 645 | A 3079940032 | LOCK |
| POINTER TO CLUTCH ACTUATION BRACKET | ||
| 648 | N 000933010129 | SCREW |
| BRACKET TO BELL HOUSING | ||
| M 10X28 | ||
| 648 | N 000933010129 | SCREW |
| CLUTCH SLAVE CYLINDER TO BRACKET | ||
| M 10X28 | ||
| 651 | N 000933014024 | SCREW |
| BELL HOUSING TO TRANSMISSION | ||
| 654 | N 000127014201 | LOCK WASHER |
| BELL HOUSING TO TRANSMISSION | ||
| 657 | N 912004016101 | LOCK WASHER |
| BELL HOUSING TO ENGINE | ||
| 660 | N 000934016003 | NUT |
| BELL HOUSING TO ENGINE | ||
| 663 | N 000931012114 | SCREW |
| BELL HOUSING TO OIL PAN | ||
| 666 | N 912004012100 | LOCK WASHER |
| BELL HOUSING TO OIL PAN | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
