Transporto priemonė: OF 1313/1314; VIN numerio dalis: 345050
Grupė: 30 CONTROL

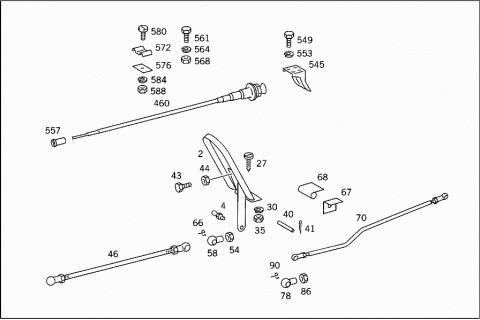

27673

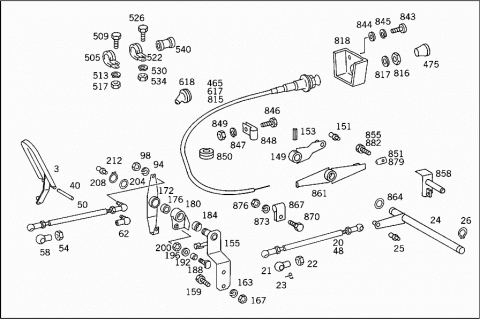

27674

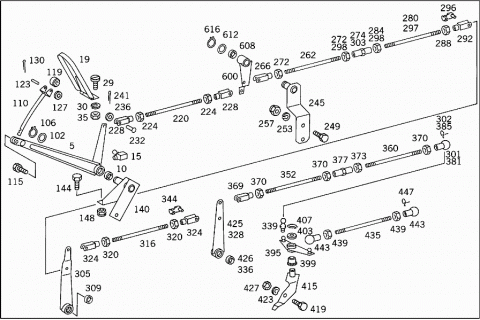

27675

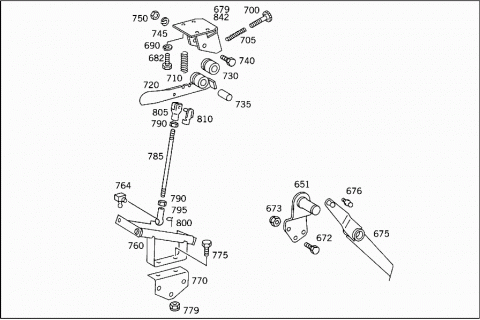

27676

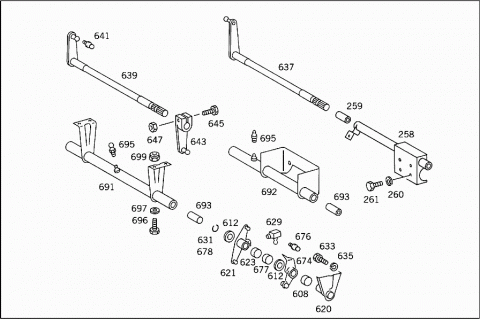

27677
# Kodas Pavadinimas
002 A 3443000102 PLATE
002 A 3453000002 PLATE
002 A 3453000002 PLATE
002 A 3453007202 PLATE
002 A 3453007302 PLATE
003 A 3523000502 PLATE
004 N 071803010206 BALL PIVOT
004 N 071803010206 BALL PIVOT
004 N 071803010206 BALL PIVOT
005 A 0443000016 ACCELERATOR PEDAL
Repalced by: A 3443000104
005 A 3443000104 ACCELERATOR PEDAL
010 A 3213010050 BUSHING
015 N 071412010300 GREASE NIPPLE
019 H 983453000202 PLATE
Repalced by: A 3453007002
019 A 3453007002 PLATE
ACCELERATOR PEDAL
020 A 3453008315 ROD
PLATE TO SHAFT
021 N 071805010202 BALL SOCKET
022 N 000934006006 NUT
023 N 071805010402 CIRCLIP
CONTROL ROD
024 A 3453007720 SHAFT
025 N 071803010206 BALL PIVOT
026 N 000471012002 LOCK RING
CONTROL SHAFT
027 N 007985006515 SCREW
PEDAL TO CAB FLOOR
M 6X16
029 N 007971005209 SHEET METAL SCREW
PEDAL TO CAB FLOOR
030 N 000127006203 LOCK WASHER
PEDAL TO CAB FLOOR
035 N 000934006006 NUT
PEDAL TO CAB FLOOR
040 A 3123011009 PIN
PEDAL TO CAB FLOOR
041 N 000094002059 COTTER PIN
PEDAL TO CAB FLOOR
043 N 000931010264 SCREW
STOP TO CONTROL LEVER
044 N 913004010014 NUT
STOP TO CONTROL LEVER
046 A 3443001915 ROD
048 A 3453007415 ROD
050 A 3523004415 ROD
054 N 000934006006 NUT
058 N 071805010202 BALL SOCKET
062 N 071803010101 BALL PIVOT
066 N 071805010402 CIRCLIP
067 A 3453027340 BRACKET
068 A 3453017008 CLAMP
070 A 3443001515 ROD
070 A 3604302292 ROD
078 N 071805010202 BALL SOCKET
078 A 0009912422 BALL SOCKET
086 N 000934006006 NUT
086 N 000934006006 NUT
090 N 071805010402 CIRCLIP
094 N 000127006203 LOCK WASHER
098 N 000934006006 NUT
102 A 3219900040 WASHER
ACCELERATOR PEDAL TO BEARING BRACKET
106 N 000471020000 LOCK RING
ACCELERATOR PEDAL TO BEARING BRACKET
110 A 3443000123 CLAMP
ACCELERATOR PEDAL
115 N 000933008282 SCREW
ACCELERATOR PEDAL TO LEVER
119 A 3443000006 ROLLER
Repalced by: A 3453007006
119 A 3453007006 ROLLER
ACCELERATOR PEDAL
123 N 001443006200 PIN
ROLLER TO LEVER
127 N 000125006420 WASHER
ROLLER TO LEVER
130 N 000094001609 COTTER PIN
ROLLER TO LEVER
140 H 983453000335 PART NAME MISSING
Repalced by: A 3453007136
140 A 3453007136 BEARING BRACKET
PEDAL BEARING
144 N 000933008288 SCREW
BEARING BRACKET TO SIDE MEMBER
148 N 913004008001 NUT
BEARING BRACKET TO SIDE MEMBER
149 A 3453008425 LEVER
151 N 071803010206 BALL PIVOT
153 N 007343003005 CLAMPING PIN
LEVER TO SHAFT
155 A 3453000140 BRACKET
159 N 000933010174 SCREW
163 N 000127010202 LOCK WASHER
167 N 000934010000 NUT
172 A 0453000025 LEVER
176 A 3213010050 BUSHING
180 A 3523000517 LEVER
184 A 3213010050 BUSHING
188 A 3523020071 SCREW
192 A 3523020050 BUSHING
196 N 000125006420 WASHER
200 N 000934006006 NUT
204 A 3219900040 WASHER
208 N 000471020000 LOCK RING
212 N 071412010100 GREASE NIPPLE
220 H 983453000115 ROD
Repalced by: A 3453007115
220 A 3453007115 ROD
REVERSING LEVER
224 N 000934006006 NUT
REVERSING LEVER
228 N 071752006001 YOKE
REVERSING LEVER
232 N 001444006206 PIN
REVERSING LEVER
236 N 000125006420 WASHER
REVERSING LEVER
241 N 000094001609 COTTER PIN
REVERSING LEVER
245 H 983453000235 PART NAME MISSING
Repalced by: A 3453007240
245 A 3453007240 BRACKET
REVERSING LEVER
245 A 3453007540 BRACKET
249 N 000933010174 SCREW
BRACKET TO SIDE MEMBER
M 10X25
249 N 000933010174 SCREW
BRACKET TO SIDE MEMBER
M 10X25
249 N 000933010129 SCREW
BRACKET TO SIDE MEMBER
253 N 000127010202 LOCK WASHER
BRACKET TO SIDE MEMBER
253 N 000127010202 LOCK WASHER
BRACKET TO SIDE MEMBER
257 N 913004010004 NUT
BRACKET TO SIDE MEMBER
257 N 913004010004 NUT
BRACKET TO SIDE MEMBER
257 N 913004010004 NUT
BRACKET TO SIDE MEMBER
258 A 3453007940 BRACKET
259 A 3444340150 BUSHING
260 N 000127012201 LOCK WASHER
261 N 000961012172 SCREW
262 N 900331006250 PULL ROD
REVERSING LEVER
6X4900
262 N 900331006251 PULL ROD
REVERSING LEVER
6X4900
262 N 900331006484 PULL ROD
REVERSING LEVER
6X5280
N 900331006250 PULL ROD
REVERSING LEVER
6X4900
266 N 071752006001 YOKE
REVERSING LEVER
272 N 000934006004 NUT
REVERSING LEVER
274 A 3219960034 NUT
REVERSING LEVER
280 N 900331006275 PULL ROD
FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER
6X930
280 N 900331006275 PULL ROD
FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER
6X930
280 N 900331006690 PULL ROD
FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER
280 N 900331006672 PULL ROD
FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER
284 N 000934006004 NUT
FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER
288 N 000934006006 NUT
FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER
292 N 071752006001 YOKE
FROM TURNBUCKLE NUT TO INTERMEDIATE LEVER
296 N 918001006000 PIN
PULL ROD TO LEVER AND TO INTERMEDIATE LEVER
297 N 900331006431 PULL ROD
ACCELERATOR CONTROL
6X1260
298 N 000934006004 NUT
ACCELERATOR CONTROL
301 N 071805010202 BALL SOCKET
ACCELERATOR CONTROL
302 N 071805010402 CIRCLIP
ACCELERATOR CONTROL
303 A 3219960034 NUT
ACCELERATOR CONTROL
305 A 3523002325 LEVER
(INTERMEDIATE LEVER)
309 A 3213010050 BUSHING
A 3523003915 ROD
PULL ROD TO LEVER II
316 N 900331006205 PULL ROD
PULL ROD TO LEVER II
320 N 000934006006 NUT
PULL ROD TO LEVER II
324 N 071752006001 YOKE
PULL ROD TO LEVER II
328 A 3523002525 LEVER
(INTERMEDIATE LEVER)
328 A 3523002525 LEVER
(INTERMEDIATE LEVER)
328 A 3453000325 LEVER
(INTERMEDIATE LEVER)
336 A 3213010050 BUSHING
339 N 071803010209 BALL PIVOT
344 N 918001006000 PIN
PULL ROD TO LEVER
A 3219900040 WASHER
INTERMEDIATE LEVER TO PIVOT PIN
N 000471020000 LOCK RING
INTERMEDIATE LEVER TO PIVOT PIN
N 071412010300 GREASE NIPPLE
INTERMEDIATE LEVER TO PIVOT PIN
352 N 900331006055 PULL ROD
FROM INTERMEDIATE LEVER II TO TURNBUCKLE NUT
6X105
360 N 900331006164 PULL ROD
FROM TURNBUCKLE NUT TO ENGINE
6X700
N 000934006006 NUT
N 000934006004 NUT
N 071805010202 BALL SOCKET
N 071805010202 BALL SOCKET
N 071752006001 YOKE
A 3219960034 NUT
N 071805010402 CIRCLIP
A 3523004015 ROD
FROM INTERMEDIATE LEVER II TO CONTROL LEVER
A 3453007715 ROD
FROM INTERMEDIATE LEVER II TO CONTROL LEVER
N 900331006191 PULL ROD
FROM INTERMEDIATE LEVER II TO CONTROL LEVER
TO 352 300 40 15
N 900331006106 PULL ROD
FROM INTERMEDIATE LEVER II TO CONTROL LEVER
TO 352 300 40 15
N 900331006950 PULL ROD
FROM INTERMEDIATE LEVER II TO CONTROL LEVER
TO 345 300 77 15
369 N 071752006001 YOKE
370 N 000934006006 NUT
373 N 000934006004 NUT
377 A 3219960034 NUT
381 N 071805010202 BALL SOCKET
FROM TURNBUCKLE NUT TO ENGINE
381 N 071805010202 BALL SOCKET
FROM TURNBUCKLE NUT TO ENGINE
385 N 071805010402 CIRCLIP
PULL ROD TO LEVER II
385 N 071805010402 CIRCLIP
PULL ROD TO LEVER II
395 A 3023000725 LEVER
Repalced by: A 3643000025
395 A 3643000025 LEVER
LEFT CONTROL LEVER
399 A 3023010150 BUSHING
403 A 3023010076 WASHER
407 N 000471014000 LOCK RING
415 A 3023001036 BEARING BRACKET
REAR CONTROL LEVER
419 N 000961012171 SCREW
BEARING BRACKET TO TRANSMISSION
423 N 000137012203 SPRING WASHER
BEARING BRACKET TO TRANSMISSION
425 A 3523002425 LEVER
(INTERMEDIATE LEVER)
426 A 3213010050 BUSHING
427 N 000936012017 NUT
Repalced by: N 000936012005
427 N 000936012005 NUT
BEARING BRACKET TO TRANSMISSION
A 3023001915 ROD
CONTROL,REAR
A 3443000415 ROD
CONTROL SHAFT TO ENGINE
435 N 900331006152 PULL ROD
CONTROL,REAR
6X130X30/30
435 N 900331006298 PULL ROD
CONTROL SHAFT TO ENGINE
6X200X30/30
439 N 000934006006 NUT
CONTROL,REAR
443 N 071805010202 BALL SOCKET
CONTROL,REAR
447 N 071805010402 CIRCLIP
460 A 3453007307 KNOB
460 A 3453008107 KNOB
465 A 3523000907 KNOB
A 3523020201 KNOB
475 A 3523020101 KNOB
A 3129902140 WASHER
A 3523020208 GUIDE
Repalced by: A 3523020308
A 3523020308 GUIDE
A 3129901151 NUT
MANUAL CONTROL TO BRACKET
A 0019900040 WASHER
MANUAL CONTROL TO BRACKET
505 A 0009954501 CLAMP
Repalced by: N 916016006200
505 N 916016006200 CLAMP
509 N 000933006220 SCREW
513 N 000127006203 LOCK WASHER
517 N 000934006006 NUT
522 A 0009952401 CLAMP
Repalced by: N 916016006201
522 N 916016006201 CLAMP
522 A 3459957801 CLAMP
526 N 007985006515 SCREW
530 N 000127006203 LOCK WASHER
534 N 000934006006 NUT
540 A 3523020091 GROMMET
Repalced by: A 3453027191
540 A 3453027191 GROMMET
545 A 3443020040 BRACKET
549 N 000933006220 SCREW
BRACKET TO WINDOW SILL
553 N 000127006203 LOCK WASHER
BRACKET TO WINDOW SILL
557 A 3453027091 GROMMET
MANUAL CONTROL TO BRACKET
561 N 000933006220 SCREW
MANUAL CONTROL TO BRACKET
564 N 000127006203 LOCK WASHER
MANUAL CONTROL TO BRACKET
568 N 000934006006 NUT
MANUAL CONTROL TO BRACKET
572 A 3129950332 CLAMP
CABLE TO PRESSURE GAUGE LINE
576 A 3215422340 BRACKET
CABLE TO PRESSURE GAUGE LINE
580 N 007985005183 SCREW
CABLE TO PRESSURE GAUGE LINE
584 N 000127005001 LOCK WASHER
CABLE TO PRESSURE GAUGE LINE
588 N 000934005008 NUT
CABLE TO PRESSURE GAUGE LINE
600 H 983453000025 LEVER
Repalced by: A 3453007225
600 A 3453007225 LEVER
ACCELERATOR PEDAL CONTROL
608 A 0459921601 BUSHING
Repalced by: A 3443020150
608 A 3443020150 BUSHING
612 N 000988018003 FITTED WASHER
LEVER TO BRACKET
616 N 000471018000 LOCK RING
LEVER TO BRACKET
617 A 3453008707 KNOB
WITH SPINDLE
618 A 3639975081 GROMMET
KNOB WITH SPINDLE TO FRONT PANEL
620 A 3443007120 SHAFT
621 A 3443000225 LEVER
623 A 3443020150 BUSHING
629 N 071412010100 GREASE NIPPLE
631 N 000471018000 LOCK RING
633 N 000933008228 SCREW
CONTROL SHAFT TO SIDE MEMBER
635 N 912004008100 LOCK WASHER
CONTROL SHAFT TO SIDE MEMBER
637 A 3453008325 LEVER
639 A 3453008025 LEVER
641 A 3129910120 BALL PIVOT
Repalced by: N 071803010209
641 N 071803010205 BALL PIVOT
643 A 3520700521 LEVER
645 N 000933006225 SCREW
LEVER TO SHAFT
647 N 000934006006 NUT
LEVER TO SHAFT
651 A 3443007036 BEARING BRACKET
651 A 3453007236 BEARING BRACKET
A 3843007136 BEARING BRACKET
ACCELERATOR PEDAL
A 3863017050 BUSHING
A 3843017220 LEVER
PEDAL LEVER
N 900055010403 RETAINING RING
BEARING BRACKET TO PEDAL LEVER
A 3843007125 LEVER
CONTROL LEVER
N 071803010205 BALL PIVOT
N 000931006197 SCREW
CONTROL LEVER TO PEDAL LEVER
N 000125006420 WASHER
CONTROL LEVER TO PEDAL LEVER
N 913004006001 NUT
CONTROL LEVER TO PEDAL LEVER
A 1263010141 STOP
FULL THROTTLE
N 000933008268 SCREW
ACCELERATOR PEDAL BEARING BRACKET TO FLOOR PLATE
N 913004008001 NUT
ACCELERATOR PEDAL BEARING BRACKET TO FLOOR PLATE
A 6733000004 ACCELERATOR PEDAL
Repalced by: A 3843007004
A 3843007004 ACCELERATOR PEDAL
N 007972006002 SHEET METAL SCREW
ACCELERATOR PEDAL TO FLOOR PLATE
N 000965006043 SCREW
ACCELERATOR PEDAL TO FLOOR PLATE
A 3843007140 BRACKET
N 000933008358 SCREW
BRACKET TO WINDOW SILL SUPPORT
N 913004008001 NUT
BRACKET TO WINDOW SILL SUPPORT
N 000933008280 SCREW
BRACKET TO WINDOW SILL SUPPORT
N 000125008417 WASHER
BRACKET TO WINDOW SILL SUPPORT
672 N 000933008145 SCREW
BEARING BRACKET TO GUSSET PLATE
672 N 000933008145 SCREW
BEARING BRACKET TO GUSSET PLATE
673 N 913004008001 NUT
BEARING BRACKET TO GUSSET PLATE
673 N 913004008001 NUT
BEARING BRACKET TO GUSSET PLATE
674 A 3443000017 LEVER
675 A 3443007017 LEVER
675 A 3443007117 LEVER
675 A 3443007317 LEVER
676 N 071803010209 BALL PIVOT
676 N 071803010209 BALL PIVOT
677 A 3443020150 BUSHING
677 A 3443020150 BUSHING
678 N 000471018000 LOCK RING
678 N 000471018000 LOCK RING
679 A 3453007040 BRACKET
MANUAL CONTROL
679 A 3453007040 BRACKET
MANUAL CONTROL
682 N 000933006220 SCREW
BRACKET TO WINDOW SILL SUPPORT
682 N 000933006220 SCREW
BRACKET TO WINDOW SILL SUPPORT
682 N 000933006220 SCREW
BRACKET TO WINDOW SILL SUPPORT
690 N 000127006203 LOCK WASHER
BRACKET TO WINDOW SILL SUPPORT
690 N 000127006203 LOCK WASHER
BRACKET TO WINDOW SILL SUPPORT
690 N 000127006203 LOCK WASHER
BRACKET TO WINDOW SILL SUPPORT
691 A 3453007320 SHAFT
692 A 3453007740 BRACKET
693 A 3444340150 BUSHING
693 A 3524340150 BUSHING
A 3444347050 BUSHING
695 N 071412010100 GREASE NIPPLE
695 N 071412010300 GREASE NIPPLE
696 N 000933008282 SCREW
697 N 000125008417 WASHER
BRACKET TO PEDESTAL
699 N 913004008001 NUT
BRACKET TO PEDESTAL
700 A 3224300071 SCREW
700 A 3224300071 SCREW
700 A 3224300071 SCREW
700 A 3454307071 SCREW
700 A 3454307071 SCREW
700 A 3454307071 SCREW
705 A 1829930601 SPRING
705 A 1829930601 SPRING
705 A 1829930601 SPRING
710 A 3209930301 SPRING
710 A 3209930301 SPRING
710 A 3209930301 SPRING
720 H 983213000125 LEVER
Repalced by: A 3213002625
720 A 3213002625 LEVER
MANUAL CONTROL
720 A 3213002625 LEVER
MANUAL CONTROL
720 A 3213002625 LEVER
MANUAL CONTROL
730 H 983213010150 BUSHING
Repalced by: A 3213010450
730 A 3213010450 BUSHING
730 A 3213010450 BUSHING
735 H 983213010050 BUSHING
Repalced by: A 3213010550
735 A 3213010550 BUSHING
LEVER TO BRACKET
735 A 3213010550 BUSHING
LEVER TO BRACKET
735 A 3213010550 BUSHING
LEVER TO BRACKET
740 N 000933008358 SCREW
LEVER TO BRACKET
740 N 000933008358 SCREW
LEVER TO BRACKET
740 N 000933008358 SCREW
LEVER TO BRACKET
745 N 000127008104 LOCK WASHER
LEVER TO BRACKET
745 N 000127008104 LOCK WASHER
LEVER TO BRACKET
745 N 000127008104 LOCK WASHER
LEVER TO BRACKET
750 N 000934008010 NUT
LEVER TO BRACKET
750 N 000934008010 NUT
LEVER TO BRACKET
750 N 000934008010 NUT
LEVER TO BRACKET
760 H 983453000036 BEARING BRACKET
Repalced by: A 3453007036
760 A 3453007036 BEARING BRACKET
764 N 071412010300 GREASE NIPPLE
770 H 983453020240 BRACKET
Repalced by: A 3453027040
770 A 3453027040 BRACKET
775 N 000933008282 SCREW
779 N 913002008000 NUT
A 3453007815 ROD
FROM LEVER TO BEARING BRACKET
A 3453007815 ROD
FROM DOUBLE LEVER TO LEVER
A 3453007815 ROD
FROM LEVER TO BEARING BRACKET
785 N 900331006185 PULL ROD
FROM LEVER TO BEARING BRACKET
790 N 000934006006 NUT
795 N 071805010202 BALL SOCKET
FROM LEVER TO BEARING BRACKET
795 A 0009912422 BALL SOCKET
800 N 071805010402 CIRCLIP
805 N 071752006001 YOKE
FROM LEVER TO BEARING BRACKET
810 N 918001006000 PIN
PULL ROD TO LEVER
815 A 3503007107 KNOB
WITH SPINDLE
815 A 3503008007 KNOB
WITH SPINDLE
815 A 3503007907 KNOB
WITH SPINDLE
815 A 3503007107 KNOB
WITH SPINDLE
815 A 3503007707 KNOB
WITH SPINDLE
815 A 3503007807 KNOB
816 A 3129901151 NUT
817 A 0009900040 WASHER
818 A 3453007340 BRACKET
MANUAL CONTROL
818 A 3453007340 BRACKET
MANUAL CONTROL
N 007985006515 SCREW
BRACKET MOUNTING
N 000125006420 WASHER
BRACKET MOUNTING
N 000127006203 LOCK WASHER
BRACKET MOUNTING
A 3843007232 WIRE CABLE
MANUAL CONTROL
A 0019900040 WASHER
A 3129901151 NUT
A 3093020050 BUSHING
CONTROL LEVER TO IDLING ADJUSTMENT
A 3823007415 ROD
FROM ACCELERATOR CONTROL BRACKET TO REVERSING LEVER
N 900331006687 PULL ROD
FROM ACCELERATOR CONTROL BRACKET TO REVERSING LEVER
N 071752006001 YOKE
FROM ACCELERATOR CONTROL BRACKET TO REVERSING LEVER
A 3009910022 BALL SOCKET
FROM ACCELERATOR CONTROL BRACKET TO REVERSING LEVER
N 000934006006 NUT
FROM ACCELERATOR CONTROL BRACKET TO REVERSING LEVER
N 071805010402 CIRCLIP
PULL ROD
N 918001006000 PIN
PULL ROD TO ENGINE TIMING
A 6843007140 BRACKET
ACCELERATOR CONTROL LINKAGE BEARING
A 3173010085 RUBBER BUFFER
N 000933010129 SCREW
BRACKET TO SIDE MEMBER
N 913004010004 NUT
BRACKET TO SIDE MEMBER
A 6843007074 PIN
REVERSING LEVER
I
A 6843007174 PIN
REVERSING LEVER
II
N 000933008050 SCREW
PIVOT PIN TO FRAME
N 913004008001 NUT
PIVOT PIN TO FRAME
842 A 3453007040 BRACKET
MANUAL CONTROL
843 N 007985006512 SCREW
BRACKET TO WINDOW SILL SUPPORT
M 6X12
844 N 000125006420 WASHER
BRACKET TO WINDOW SILL SUPPORT
845 N 000127006203 LOCK WASHER
BRACKET TO WINDOW SILL SUPPORT
846 N 000933006223 SCREW
KNOB WITH SPINDLE TO FRONT PANEL
M 6X10
847 N 000127006203 LOCK WASHER
KNOB WITH SPINDLE TO FRONT PANEL
848 A 3609950101 CLAMP
KNOB WITH SPINDLE TO FRONT PANEL
849 N 000934006006 NUT
KNOB WITH SPINDLE TO FRONT PANEL
850 A 0009972881 GROMMET
KNOB WITH SPINDLE TO FRONT PANEL
851 A 1203020087 RING
WIRE CABLE TO LEVER
851 A 1203020087 RING
WIRE CABLE TO LEVER
N 000933005095 SCREW
WIRE CABLE TO LEVER
N 000933005095 SCREW
WIRE CABLE TO LEVER
855 N 000933005095 SCREW
WIRE CABLE TO LEVER
M 5X10
858 A 3453007640 LEVER
MANUAL CONTROL
861 A 3453007028 LEVER
864 N 000125013012 WASHER
LEVER TO SHAFT
867 A 3129951801 CLAMP
DOUBLE LEVER
870 N 000933005097 SCREW
DOUBLE LEVER
873 N 000127005001 LOCK WASHER
DOUBLE LEVER
876 N 000934005008 NUT
DOUBLE LEVER
879 A 1203020087 RING
WIRE CABLE TO LEVER
882 N 000933005095 SCREW
WIRE CABLE TO LEVER
A 3453009125 LEVER
CONTROL LEVER
A 3443020150 BUSHING
N 000988018003 FITTED WASHER
CONTROL LEVER
N 000471018000 LOCK RING
CONTROL LEVER
Reklama
Kontaktai
Pasiūlymas
Skaitliukas



© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
