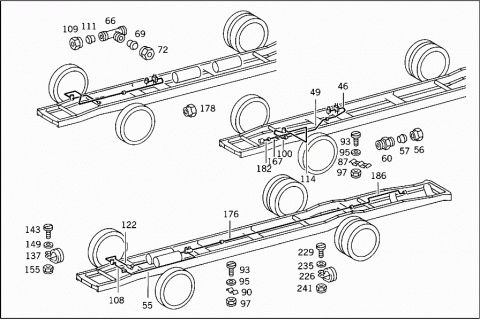

Transporto priemonė: OF 1313/1314; VIN numerio dalis: 345050
Grupė: 43 EXHAUST BRAKE
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 3524300209 | VALVE |
| Repalced by: A 3454347001 | ||
| 005 | A 0004340501 | VALVE |
| Repalced by: A 3454347001 | ||
| 005 | A 3214340001 | VALVE |
| Repalced by: A 3454347001 | ||
| 005 | A 3454347001 | VALVE |
| "WABCO DO BRASIL" | ||
| 005 | A 3454347001 | VALVE |
| "WABCO DO BRASIL" | ||
| 005 | A 3454347001 | VALVE |
| "WABCO DO BRASIL" | ||
| 005 | A 0004342301 | VALVE |
| "WESTINGHOUSE" | ||
| 005 | A 0004342301 | VALVE |
| "WESTINGHOUSE" | ||
| 005 | A 0004342301 | VALVE |
| "WESTINGHOUSE" | ||
| 009 | A 0004342901 | VALVE |
| "KNORR" | ||
| 009 | A 0004342901 | VALVE |
| "KNORR" | ||
| 009 | A 0004342901 | VALVE |
| "KNORR" | ||
| 010 | A 0004350590 | VALVE DISC |
| TO 321 434 00 01 | ||
| 011 | A 0004340359 | SEAL RING |
| TO 321 434 00 01 | ||
| 018 | A 0004317387 | PROTECTIVE CAP |
| TO 000 434 05 01,345 434 70 01 | ||
| 019 | A 0109970948 | SEAL RING |
| TO 000 434 29 01 | ||
| 022 | A 0109971048 | SEAL RING |
| TO 000 434 29 01 | ||
| 025 | A 0109971148 | SEAL RING |
| TO 000 434 29 01 | ||
| 028 | A 0109971248 | SEAL RING |
| TO 000 434 29 01 | ||
| 031 | H 983455860943 | REPAIR KIT |
| Repalced by: A 0034301281 | ||
| 031 | A 0034301281 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 000 434 05 01,345 434 70 01 | ||
| A 0005869743 | REPAIR KIT | |
| LARGE SCOPE | ||
| TO 000 434 05 01,345 434 70 01 | ||
| 032 | A 0004304106 | REPAIR KIT |
| LARGE SCOPE | ||
| TO 000 434 29 01 | ||
| 032 | A 0014301360 | REPAIR KIT |
| Repalced by: A 0004304106 | ||
| 034 | A 0014301460 | REPAIR KIT |
| SMALL SCOPE | ||
| TO 000 434 29 01 | ||
| 035 | N 074305026202 | NUT |
| VENT VALVE TO PEDESTAL FLOOR | ||
| M 26X1.5 | ||
| 035 | N 074305026202 | NUT |
| VENT VALVE TO PEDESTAL FLOOR | ||
| M 26X1.5 | ||
| 035 | N 074305026202 | NUT |
| VENT VALVE TO PEDESTAL FLOOR | ||
| M 26X1.5 | ||
| 037 | N 000137027201 | SPRING WASHER |
| VENT VALVE TO PEDESTAL FLOOR | ||
| 037 | N 000137027201 | SPRING WASHER |
| VENT VALVE TO PEDESTAL FLOOR | ||
| 040 | A 3454298136 | CONNECTOR |
| AT OPERATING VALVE | ||
| 040 | A 3454298136 | CONNECTOR |
| AT OPERATING VALVE | ||
| 040 | A 3454298136 | CONNECTOR |
| AT OPERATING VALVE | ||
| 043 | N 007603012112 | SEAL RING |
| AT OPERATING VALVE | ||
| 043 | N 007603012113 | SEAL RING |
| AT OPERATING VALVE | ||
| 043 | N 007603012113 | SEAL RING |
| AT OPERATING VALVE | ||
| 046 | A 3454206349 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24",TO FITTING | ||
| 6X0.7 MM | ||
| 049 | A 3454206449 | LINE |
| FROM FITTING TO T-FITTING | ||
| 6X0.7 MM | ||
| 052 | A 3454206137 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24",TO FITTING | ||
| 6X0.7 MM | ||
| A 3444203837 | LINE | |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24",TO FITTING | ||
| A 3444206645 | LINE | |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24",TO FITTING | ||
| M | ||
| 055 | A 3444203436 | LINE |
| FROM FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24",TO FITTING | ||
| 6X0.7 MM | ||
| 056 | N 915017006100 | UNION NUT |
| 057 | N 003861006007 | GLAND |
| 060 | N 003902006001 | CONNECTION FITTING |
| 063 | A 0454290032 | T-FITTING |
| Repalced by: A 3454297132 | ||
| 063 | A 3454297132 | T-FITTING |
| 063 | A 0009901070 | T-FITTING |
| M14X1,5 / M14X1,5 / M12X1,5 | ||
| 066 | N 003908006001 | T-FITTING |
| 066 | A 0009903470 | T-FITTING |
| 069 | N 915005004003 | LOCKING CONE |
| 072 | N 915020012000 | NUT |
| M 12X1.5 | ||
| 075 | A 0009959001 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 078 | N 000933005097 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| 080 | N 000125005313 | WASHER |
| COMPRESSED AIR LINE TO BRACKET | ||
| 082 | N 912004005100 | LOCK WASHER |
| COMPRESSED AIR LINE TO BRACKET | ||
| 084 | N 000934005008 | NUT |
| COMPRESSED AIR LINE TO BRACKET | ||
| 087 | A 3444297340 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 090 | A 3459957432 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 093 | N 007985006515 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| M 6X16 | ||
| 093 | N 007985006515 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| M 6X16 | ||
| 095 | N 000125006420 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 095 | N 000125006420 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 097 | N 913004006001 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 097 | N 913004006001 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| N 916016006201 | CLAMP | |
| COMPRESSED AIR LINE MOUNTING | ||
| N 916016006201 | CLAMP | |
| COMPRESSED AIR LINE MOUNTING | ||
| A 3459957801 | CLAMP | |
| COMPRESSED AIR LINE MOUNTING | ||
| A 3459957801 | CLAMP | |
| COMPRESSED AIR LINE MOUNTING | ||
| 100 | A 3454207533 | LINE |
| FROM T-FITTING TO VENT VALVE, CONNECTION: | ||
| "1" 6X0.7 MM | ||
| 103 | A 0454202134 | LINE |
| Repalced by: A 3454201336 | ||
| 103 | A 3454201336 | LINE |
| FROM T-FITTING TO OPERATING VALVE | ||
| 6X0.7 MM | ||
| 106 | A 3454206237 | LINE |
| FROM T-FITTING TO VENT VALVE, CONNECTION: | ||
| "1" 6X0.7 MM | ||
| A 3444203637 | LINE | |
| FROM T-FITTING TO VENT VALVE, CONNECTION: | ||
| "1" | ||
| 108 | A 3444203636 | LINE |
| FROM T-FITTING TO VENT VALVE, CONNECTION: | ||
| "1" 6X0.7 MM | ||
| 109 | N 915017006100 | UNION NUT |
| 111 | N 003861006007 | GLAND |
| 114 | A 3454206249 | LINE |
| FROM VENT VALVE CONNECTION "2" TO FITTING | ||
| 6X0.7 MM | ||
| 117 | A 0454202234 | LINE |
| Repalced by: A 3454201436 | ||
| 117 | A 3454201436 | LINE |
| FROM OPERATING VALVE TO CONNECTION FITTING I | ||
| 6X0.7 MM | ||
| 120 | A 3454206037 | LINE |
| FROM VENT VALVE CONNECTION "2" TO FITTING | ||
| 6X0.7 MM | ||
| A 3444203737 | LINE | |
| VENT VALVE | ||
| A 3444203737 | LINE | |
| VENT VALVE | ||
| 122 | A 3444203336 | LINE |
| VENT VALVE | ||
| 123 | N 915017006100 | UNION NUT |
| 125 | N 003861006007 | GLAND |
| 128 | N 003902006001 | CONNECTION FITTING |
| 128 | N 003902006001 | CONNECTION FITTING |
| 128 | N 003902006001 | CONNECTION FITTING |
| 131 | A 3454298136 | CONNECTOR |
| 134 | A 0009959001 | CLAMP |
| Repalced by: N 916016006205 | ||
| 134 | N 916016006205 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 137 | N 916016006201 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 137 | N 916016006201 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 137 | A 3459957801 | CLAMP |
| 137 | A 3459957801 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 140 | N 007985005171 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 143 | N 007985006515 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| M 6X16 | ||
| 143 | N 007985006515 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| M 6X16 | ||
| 146 | N 000125005315 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 149 | N 000125006420 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 149 | N 000125006420 | WASHER |
| COMPRESSED AIR LINE TO BRACKET | ||
| 152 | N 913004005001 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 155 | N 913004006001 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 155 | N 913004006001 | NUT |
| COMPRESSED AIR LINE TO BRACKET | ||
| A 3459957432 | CLAMP | |
| COMPRESSED AIR LINE TO BRACKET | ||
| 158 | A 0454202334 | LINE |
| Repalced by: A 3454208837 | ||
| 158 | A 3454208837 | LINE |
| FROM DOUBLE FITTING I TO DOUBLE FITTING II | ||
| 6X0.7 MM | ||
| 158 | A 3444204137 | LINE |
| FROM DOUBLE FITTING I TO DOUBLE FITTING II | ||
| 158 | A 3444203936 | LINE |
| FROM DOUBLE FITTING I TO DOUBLE FITTING II | ||
| 6X0.7 MM | ||
| 164 | A 3454208937 | LINE |
| FROM FITTING II TO CONNECTION FITTING III | ||
| 6X0.7 MM | ||
| 164 | A 3444205536 | LINE |
| FROM FITTING II TO CONNECTION FITTING III | ||
| 164 | A 3504307165 | LINE |
| FROM FITTING II TO CONNECTION FITTING III | ||
| 164 | A 3524308564 | LINE |
| FROM T-FITTING TO FITTING | ||
| 6X0.7 MM | ||
| 164 | A 3454202736 | LINE |
| FROM T-FITTING TO FITTING | ||
| 6X0.7 MM | ||
| 167 | A 3454200048 | BRAKE HOSE |
| FROM FITTING TO FITTING | ||
| 169 | N 915017006100 | UNION NUT |
| 171 | N 003861006007 | GLAND |
| 174 | N 003902006001 | CONNECTION FITTING |
| 174 | N 003902006001 | CONNECTION FITTING |
| 176 | A 0454202434 | LINE |
| FROM DOUBLE FITTING II TO EXHAUST BRAKE CYLINDER | ||
| 6X0.7 MM | ||
| 178 | N 074297012102 | UNION NUT |
| 182 | A 3454206149 | LINE |
| FROM FITTING TO COMPRESSED AIR CYLINDER,ENGINE | ||
| 6X0.7 MM | ||
| 185 | A 3454209037 | LINE |
| FROM DOUBLE FITTING III TO EXHAUST BRAKE CYLINDER | ||
| 6X0.7 MM | ||
| 185 | A 3444204037 | LINE |
| FROM DOUBLE FITTING III TO EXHAUST BRAKE CYLINDER | ||
| 186 | A 3444205136 | LINE |
| FROM DOUBLE FITTING III TO EXHAUST BRAKE CYLINDER | ||
| 188 | A 3524308664 | LINE |
| FROM DOUBLE FITTING III TO EXHAUST BRAKE CYLINDER | ||
| 6X0.7 MM | ||
| A 3444205645 | LINE | |
| FROM CONNECTOR IV TO CONNECTOR V | ||
| 191 | N 915017006100 | UNION NUT |
| 194 | N 003861006007 | GLAND |
| 198 | A 3454298136 | CONNECTOR |
| EXHAUST BRAKE CYLINDER | ||
| 201 | N 007603012112 | SEAL RING |
| EXHAUST BRAKE CYLINDER | ||
| 201 | N 007603012106 | SEAL RING |
| EXHAUST BRAKE CYLINDER | ||
| 205 | A 3454297438 | ELBOW FITTING |
| EXHAUST BRAKE CYLINDER | ||
| 207 | N 080705012003 | NUT |
| EXHAUST BRAKE CYLINDER | ||
| 209 | A 0004290827 | THRUST RING |
| Repalced by: A 0009940103 | ||
| 209 | A 0009940103 | THRUST RING |
| EXHAUST BRAKE CYLINDER | ||
| 211 | A 0019875046 | SEALING CORD |
| EXHAUST BRAKE CYLINDER | ||
| 214 | A 3179950148 | CLAMPING PIECE |
| A 3844347040 | BRACKET | |
| A 3649977236 | VALVE | |
| SOLENOID VALVE | ||
| A 3889978836 | VALVE | |
| SOLENOID VALVE | ||
| N 000127005001 | LOCK WASHER | |
| SOLENOID VALVE TO BRACKET | ||
| N 000933005095 | SCREW | |
| SOLENOID VALVE TO BRACKET | ||
| N 000933008288 | SCREW | |
| BRACKET TO SIDE MEMBER | ||
| N 913004008001 | NUT | |
| BRACKET TO SIDE MEMBER | ||
| N 000125008417 | WASHER | |
| BRACKET TO SIDE MEMBER | ||
| A 3454297736 | CONNECTOR | |
| SOLENOID VALVE | ||
| A 3444205945 | LINE | |
| SOLENOID VALVE TO CYLINDER | ||
| N 915017006100 | UNION NUT | |
| SOLENOID VALVE TO CYLINDER | ||
| N 003861006007 | GLAND | |
| SOLENOID VALVE TO CYLINDER | ||
| 225 | A 0009959001 | CLAMP |
| Repalced by: N 916016006205 | ||
| 225 | N 916016006205 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 226 | N 916016006201 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 226 | A 3459957801 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 227 | A 3459957432 | CLAMP |
| COMPRESSED AIR LINE MOUNTING | ||
| 227 | A 3459957432 | CLAMP |
| COMPRESSED AIR LINE TO BRACKET | ||
| 228 | N 007985005171 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| 229 | N 007985006510 | SCREW |
| COMPRESSED AIR LINE MOUNTING | ||
| M 6X16 | ||
| 229 | N 007985006510 | SCREW |
| COMPRESSED AIR LINE TO BRACKET | ||
| M 6X16 | ||
| 232 | N 000125005315 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 235 | N 000125006420 | WASHER |
| COMPRESSED AIR LINE MOUNTING | ||
| 235 | N 000125006420 | WASHER |
| COMPRESSED AIR LINE TO BRACKET | ||
| 238 | N 913004005001 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 241 | N 913004006001 | NUT |
| COMPRESSED AIR LINE MOUNTING | ||
| 241 | N 913004006001 | NUT |
| COMPRESSED AIR LINE TO BRACKET | ||
| 245 | A 3524281740 | BRACKET |
| 248 | A 3184280140 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 248 | A 3184280140 | BRACKET |
| COMPRESSED AIR LINE MOUNTING | ||
| 251 | N 000933008288 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| 254 | N 000933010174 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 254 | N 000933010174 | SCREW |
| BRACKET TO SIDE MEMBER | ||
| M 10X25 | ||
| 257 | N 913004008005 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 259 | N 913004010011 | NUT |
| BRACKET TO SIDE MEMBER | ||
| 259 | N 913004010011 | NUT |
| BRACKET TO SIDE MEMBER | ||

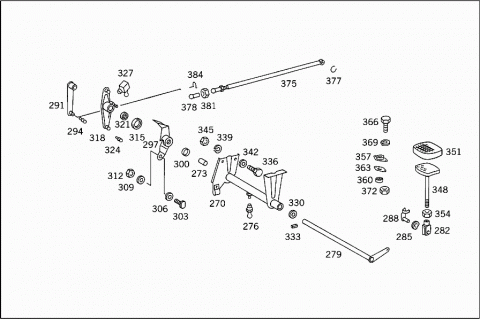

| 270 | A 3444300138 | BEARING |
| EXHAUST BRAKE SHAFT BEARING | ||
| 273 | A 3444340150 | BUSHING |
| 273 | A 3524340150 | BUSHING |
| A 3444347050 | BUSHING | |
| 276 | N 071412010200 | GREASE NIPPLE |
| 279 | A 3444300146 | INTERMEDIATE SHAFT |
| EXHAUST BRAKE SHAFT | ||
| 282 | N 071752008000 | YOKE |
| EXHAUST BRAKE SHAFT | ||
| 285 | N 000137008101 | SPRING WASHER |
| EXHAUST BRAKE SHAFT | ||
| 288 | N 918001008000 | PIN |
| EXHAUST BRAKE SHAFT | ||
| 291 | A 3524300023 | LEVER |
| EXHAUST BRAKE SHAFT | ||
| 294 | N 071803010209 | BALL PIVOT |
| 297 | A 3443000217 | LEVER |
| 300 | A 3443020150 | BUSHING |
| 303 | A 3523020071 | SCREW |
| 306 | A 3523020050 | BUSHING |
| 309 | N 000125006420 | WASHER |
| 312 | N 000934006006 | NUT |
| 315 | N 000988018003 | FITTED WASHER |
| 318 | A 3443000428 | LEVER |
| Repalced by: A 3443000225 | ||
| 318 | A 3443000225 | LEVER |
| CONTROL | ||
| 321 | A 3443020150 | BUSHING |
| 324 | N 071803010209 | BALL PIVOT |
| 327 | N 071412010300 | GREASE NIPPLE |
| 330 | N 000125013012 | WASHER |
| 333 | N 001481004017 | CLAMPING SLEEVE |
| 336 | N 000933008228 | SCREW |
| EXHAUST BRAKE SHAFT BEARING TO CAB SIDE MEMBER AND TO CAB FLOOR | ||
| 339 | N 912004008100 | LOCK WASHER |
| EXHAUST BRAKE SHAFT BEARING TO CAB SIDE MEMBER AND TO CAB FLOOR | ||
| 342 | N 000125008417 | WASHER |
| EXHAUST BRAKE SHAFT BEARING TO CAB SIDE MEMBER AND TO CAB FLOOR | ||
| 345 | N 000934008000 | NUT |
| EXHAUST BRAKE SHAFT BEARING TO CAB SIDE MEMBER AND TO CAB FLOOR | ||
| 348 | A 3524300318 | BRAKE PEDAL |
| 351 | A 3203015082 | PAD |
| 354 | N 000934008000 | NUT |
| 357 | A 3524341040 | BRACKET |
| BRAKE PEDAL THRU CAB FLOOR | ||
| 360 | A 3524340123 | GUIDE |
| BRAKE PEDAL THRU CAB FLOOR | ||
| 363 | A 3524340187 | SHIM |
| Repalced by: A 3454347087 | ||
| 363 | A 3454347087 | SHIM |
| BRAKE PEDAL THRU CAB FLOOR | ||
| 366 | N 000933006220 | SCREW |
| COMPRESSED AIR LINE TO FIRE WALL | ||
| 369 | N 000127006203 | LOCK WASHER |
| COMPRESSED AIR LINE TO FIRE WALL | ||
| 372 | N 000934006006 | NUT |
| COMPRESSED AIR LINE TO FIRE WALL | ||
| 375 | A 3604303492 | ROD |
| Repalced by: A 3604302292 | ||
| 375 | A 3604302292 | ROD |
| FROM EXHAUST BRAKE SHAFT LEVER TO CONTROL ROD LEVER | ||
| 377 | N 071805010302 | SNAP RING |
| 378 | A 0009912422 | BALL SOCKET |
| 381 | N 000934006006 | NUT |
| 384 | N 071805010402 | CIRCLIP |
| 391 | A 3084299401 | LINE |
| 6X0.7 MM | ||
| 391 | A 3084299501 | LINE |
| 8X0.7 MM | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
