Transporto priemonė: OF 1313/1314; VIN numerio dalis: 345050
Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|

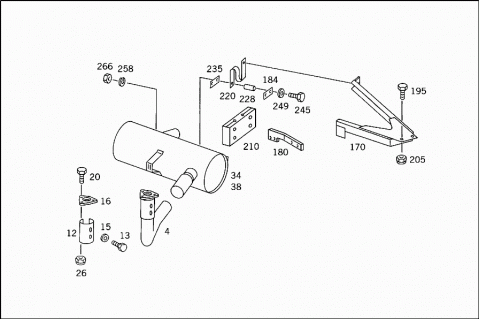

| 004 | A 3524901020 | EXHAUST PIPE |
| Repalced by: A 3454907220 | ||
| 004 | H 983454900020 | EXHAUST PIPE |
| Repalced by: A 3454907220 | ||
| 004 | A 3454907220 | EXHAUST PIPE |
| FRONT | ||
| 004 | A 0454900119 | EXHAUST PIPE |
| FRONT | ||
| 004 | A 3454907019 | EXHAUST PIPE |
| FRONT | ||
| 012 | A 3224920530 | PROTECTIVE PLATE |
| 012 | A 3024900030 | PROTECTIVE PLATE |
| Repalced by: A 3454907430 | ||
| 012 | H 983454900130 | PROTECTIVE PLATE |
| Repalced by: A 3454907430 | ||
| 012 | A 3454907430 | PROTECTIVE PLATE |
| H 983214920230 | PROTECTIVE PLATE | |
| Repalced by: A 3444927230 | ||
| 012 | A 3444927230 | PROTECTIVE PLATE |
| 013 | N 000933006223 | SCREW |
| 015 | N 000125006420 | WASHER |
| 016 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 016 | A 4424920280 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 016 | H 983444920080 | FLANGE GASKET |
| Repalced by: A 3444920080 | ||
| 016 | A 3444920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | N 000931010264 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X45 | ||
| 020 | N 000960012041 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | N 000933012136 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | N 000961012209 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | N 000933012135 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | N 000931010111 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 10X65 | ||
| 026 | N 000934010004 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 026 | A 3459900151 | NUT |
| Repalced by: N 913004010000 | ||
| 026 | N 913004010000 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| N 000934012004 | NUT | |
| Repalced by: H 983459900351 | ||
| 026 | H 983459900351 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 026 | A 3459900251 | NUT |
| Repalced by: N 913004012010 | ||
| 026 | N 913004012010 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 028 | A 3604920207 | CONNECTOR |
| FRONT | ||
| 028 | A 3604920107 | CONNECTOR |
| FRONT | ||
| A 3224900201 | EXHAUST MUFFLER | |
| Repalced by: A 3454907101 | ||
| 032 | A 3454907101 | EXHAUST MUFFLER |
| 032 | A 3604900001 | EXHAUST MUFFLER |
| 032 | A 3454907801 | EXHAUST MUFFLER |
| 034 | A 3214906101 | EXHAUST MUFFLER |
| 038 | H 983214900101 | EXHAUST MUFFLER |
| Repalced by: A 3454907201 | ||
| 038 | A 3454907201 | EXHAUST MUFFLER |

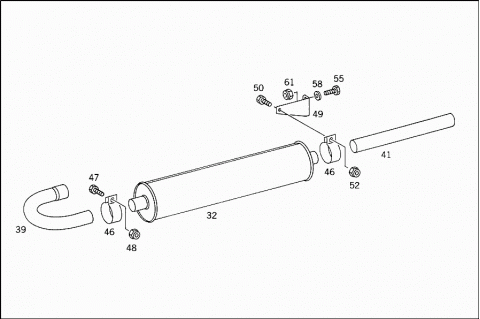

| 039 | A 3524920233 | PIPE ELBOW |
| FRONT | ||
| 039 | A 0454920033 | PIPE ELBOW |
| FRONT | ||
| 041 | A 3524929304 | REAR EXHAUST PIPE |
| REAR | ||
| 041 | A 0454920204 | REAR EXHAUST PIPE |
| REAR | ||
| A 0454920119 | BRACKET | |
| REAR EXHAUST PIPE | ||
| N 000933010294 | SCREW | |
| BRACKET TO SUPPORT | ||
| N 000127010202 | LOCK WASHER | |
| BRACKET TO SUPPORT | ||
| N 000934010000 | NUT | |
| BRACKET TO SUPPORT | ||
| 046 | N 071555065500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 65.5 MM | ||
| 046 | N 071555075500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 75.5 MM | ||
| 046 | N 071555063500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 63.5 MM | ||
| 046 | N 071555070500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 70.5 MM | ||
| 047 | N 000933008288 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| 048 | N 000934010034 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 048 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 048 | N 913004010004 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
| 049 | A 3524920417 | ANGLE |
| 050 | N 000933010049 | SCREW |
| 050 | N 000933010129 | SCREW |
| 052 | N 000934010035 | NUT |
| 052 | N 913004010004 | NUT |
| 055 | N 000933008282 | SCREW |
| 055 | N 000933008288 | SCREW |
| 058 | N 000125008417 | WASHER |
| 061 | N 913004008001 | NUT |

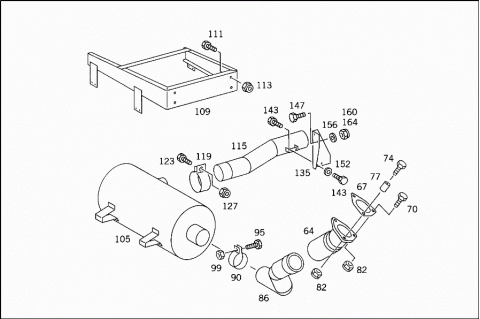

| 064 | A 3454907519 | EXHAUST PIPE |
| FRONT | ||
| 067 | A 3444920080 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 070 | N 000933012135 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X50 | ||
| 074 | N 000931012140 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 12X90 | ||
| 077 | A 3044920053 | SPACER TUBE |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 082 | A 3459900251 | NUT |
| Repalced by: N 913004012010 | ||
| 082 | N 913004012010 | NUT |
| FRONT,REAR LEFT PART | ||
| 086 | A 3454907120 | EXHAUST PIPE |
| FRONT | ||
| 090 | A 3274925240 | CLAMP |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 095 | N 000933010129 | SCREW |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 099 | N 913004010000 | NUT |
| FRONT EXHAUST PIPE TO MUFFLER | ||
| 105 | A 3444900101 | EXHAUST MUFFLER |
| 105 | A 3454907401 | EXHAUST MUFFLER |
| 109 | A 3454907134 | SUPPORT |
| EXHAUST MUFFLER | ||
| 111 | N 000933010174 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X25 | ||
| 113 | N 913004010004 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| M 10 | ||
| 115 | A 3454907021 | EXHAUST PIPE |
| REAR | ||
| 119 | A 3034930143 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 123 | N 000933008288 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 127 | N 913004008001 | NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 135 | A 3454927041 | BRACKET |
| REAR EXHAUST PIPE | ||
| 135 | A 3454927116 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 143 | N 000933008100 | SCREW |
| EXHAUST PIPE SUSPENSION | ||
| 147 | N 000931006200 | SCREW |
| EXHAUST PIPE SUSPENSION | ||
| 152 | N 000125008417 | WASHER |
| EXHAUST PIPE SUSPENSION | ||
| 156 | N 000125006420 | WASHER |
| EXHAUST PIPE SUSPENSION | ||
| 160 | N 913004008001 | NUT |
| EXHAUST PIPE SUSPENSION | ||
| 164 | N 913004006001 | NUT |
| EXHAUST PIPE SUSPENSION | ||
| 170 | H 983454900034 | SUPPORT |
| Repalced by: A 3454907234 | ||
| 170 | A 3454907234 | SUPPORT |
| EXHAUST MUFFLER | ||
| 180 | H 983454910019 | BRACKET |
| Repalced by: A 3454917619 | ||
| 180 | A 3454917619 | BRACKET |
| REAR EXHAUST PIPE | ||
| 184 | A 1834920018 | BASE PLATE |
| 184 | A 3174920018 | BASE PLATE |
| 195 | N 000933010174 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X25 | ||
| 195 | N 000933010129 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 10X28 | ||
| 205 | N 913004010004 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 210 | A 3444920082 | DAMPING PAD |
| Repalced by: A 3054920082 | ||
| 210 | A 3054920082 | DAMPING PAD |
| EXHAUST MUFFLER SUSPENSION | ||
| 220 | A 3444927026 | CLAMPING PIECE |
| EXHAUST MUFFLER SUSPENSION | ||
| 228 | A 3179910840 | SPACER TUBE |
| EXHAUST MUFFLER SUSPENSION | ||
| 228 | A 3449917140 | SPACER TUBE |
| EXHAUST MUFFLER SUSPENSION | ||
| 235 | A 3214920083 | INSULATION |
| Repalced by: A 3174920083 | ||
| 235 | A 3174920083 | INSULATION |
| EXHAUST MUFFLER SUSPENSION | ||
| 245 | N 000933006238 | SCREW |
| DAMPING PAD TO BRACKET AND TO MUFFLER | ||
| 245 | N 000960008016 | SCREW |
| DAMPING PAD TO BRACKET AND TO MUFFLER | ||
| 245 | N 000960008016 | SCREW |
| DAMPING PAD TO BRACKET AND TO MUFFLER | ||
| 245 | N 000961008021 | SCREW |
| DAMPING PAD TO BRACKET AND TO MUFFLER | ||
| 245 | N 000933006083 | SCREW |
| DAMPING PAD TO BRACKET AND TO MUFFLER | ||
| 245 | N 000960008002 | SCREW |
| DAMPING PAD TO BRACKET AND TO MUFFLER | ||
| 249 | N 009021008100 | WASHER |
| DAMPING PAD TO BRACKET AND TO MUFFLER | ||
| 249 | N 009021006103 | WASHER |
| DAMPING PAD TO BRACKET AND TO MUFFLER | ||
| 258 | N 000127006203 | LOCK WASHER |
| DAMPING PAD TO BRACKET AND TO MUFFLER | ||
| 258 | N 912004008100 | LOCK WASHER |
| DAMPING PAD TO BRACKET AND TO MUFFLER | ||
| 258 | N 912004008100 | LOCK WASHER |
| DAMPING PAD TO BRACKET AND TO MUFFLER | ||
| 266 | N 000934006006 | NUT |
| DAMPING PAD TO BRACKET AND TO MUFFLER | ||
| 266 | N 913004008011 | NUT |
| DAMPING PAD TO BRACKET AND TO MUFFLER | ||

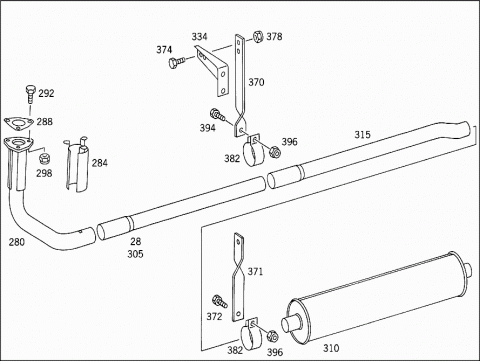

| 280 | A 0454900019 | EXHAUST PIPE |
| Repalced by: A 3454900219 | ||
| 280 | A 3454900219 | EXHAUST PIPE |
| FRONT | ||
| 284 | A 3024900030 | PROTECTIVE PLATE |
| 288 | A 3124921080 | FLANGE GASKET |
| Repalced by: A 4424920280 | ||
| 288 | A 4424920280 | FLANGE GASKET |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 292 | N 000931010264 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 292 | N 000931010422 | SCREW |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 298 | A 3459900151 | NUT |
| Repalced by: N 913004010000 | ||
| 298 | N 913004010000 | NUT |
| FRONT EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 305 | A 3604920207 | CONNECTOR |
| FRONT | ||
| 310 | A 3604900101 | EXHAUST MUFFLER |
| 310 | A 3454907301 | EXHAUST MUFFLER |
| 315 | A 0454920101 | FRONT EXHAUST PIPE |
| 315 | A 3454928601 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 315 | A 3454928302 | FRONT EXHAUST PIPE |
| AT MUFFLER | ||
| 322 | H 983454920704 | REAR EXHAUST PIPE |
| Repalced by: A 3454927804 | ||
| 322 | A 3454927804 | REAR EXHAUST PIPE |
| REAR | ||
| 322 | A 3454928804 | REAR EXHAUST PIPE |
| REAR | ||
| 322 | A 3454929104 | REAR EXHAUST PIPE |
| REAR | ||

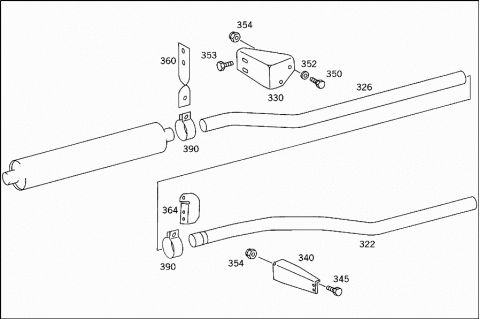

| 326 | A 3524929004 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 326 | A 3454928704 | REAR EXHAUST PIPE |
| CENTRAL PART | ||
| 326 | A 3454927107 | CONNECTOR |
| CENTRAL PART | ||
| 330 | A 3454920016 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 334 | A 3124911016 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 334 | A 3124911016 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 340 | H 983454910116 | SUPPORT |
| Repalced by: A 3454917316 | ||
| 340 | A 3454917316 | SUPPORT |
| REAR EXHAUST PIPE | ||
| 345 | N 000933008273 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X22 | ||
| 350 | N 000933008288 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| 350 | N 000933008275 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X35 | ||
| 350 | N 000933008288 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X25 | ||
| 352 | A 3459900040 | WASHER |
| SUPPORT TO SIDE MEMBER | ||
| 353 | N 000933008050 | SCREW |
| SUPPORT TO SIDE MEMBER | ||
| M 8X22 | ||
| 354 | N 913004008001 | NUT |
| SUPPORT TO SIDE MEMBER | ||
| 360 | A 3224921819 | BRACKET |
| Repalced by: A 3454927341 | ||
| 360 | A 3454927341 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 360 | A 3454917041 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 364 | A 3604921319 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 364 | A 3454928141 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 370 | A 3604921519 | BRACKET |
| Repalced by: A 3454927241 | ||
| 370 | A 3454927241 | BRACKET |
| REAR EXHAUST PIPE TO SUPPORT | ||
| 371 | A 3444917019 | BRACKET |
| EXHAUST SYSTEM | ||
| 371 | A 3454927119 | BRACKET |
| EXHAUST SYSTEM | ||
| 372 | N 000933008050 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 374 | N 000933008050 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X22 | ||
| 374 | N 000933008282 | SCREW |
| BRACKET TO SUPPORT | ||
| M 8X20 | ||
| 378 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 378 | N 913004008001 | NUT |
| BRACKET TO SUPPORT | ||
| 378 | N 913004008001 | NUT |
| BRACKET TO CROSS MEMBER | ||
| 382 | N 071555065500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 65.5 MM | ||
| 382 | N 071555065500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 65.5 MM | ||
| 390 | A 3274920040 | CLAMP |
| Repalced by: N 071555063500 | ||
| 390 | N 071555063500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 63.5 MM | ||
| 390 | N 071555063500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 63.5 MM | ||
| 390 | N 071555060500 | CLAMP |
| REAR EXHAUST PIPE TO BRACKET | ||
| 60.5 MM | ||
| 394 | N 000933008288 | SCREW |
| CLAMP TO BRACKET AND TO PIPE | ||
| M 8X25 | ||
| 396 | N 913004008001 | NUT |
| CLAMP TO BRACKET AND TO PIPE | ||
© 2010-2013 UAB "RPV" Paslaugų teikimo sąlygos - Privatumo politika - Kopijuoti ir naudoti komerciniais tikslais draudžiama
